5. Move the knobs you wish to control with the expression pedal to the minimum desired
position and then click the DELAY/TAP footswitch. The C
faster (about 4 blinks per second). Note that you may control one or more knobs with the
expression pedal, up to three total knobs.
6. Move the knobs you wish to control with the expression pedal to the maximum desired
position and then click the DELAY/TAP footswitch. The C
7. After setting the minimum and maximum knob positions, the parameter mapping is
complete.
Note: The parameter range can be inverted by swapping the minimum and maximum position of the
knobs during steps 5 and 6.
Note: To cancel a control assignment, press the CONTROL INPUT button at any time during the
process above.
Once a mapping is created, it can be stored as part of a user preset. This way, each preset can be
configured to have its own custom mapping.
External Control can be toggled on/off at any time by pressing the CONTROL INPUT button.
External Switch Used As Expression Input (Expression "Toggle")
An external switch can also work as a sort of expression pedal that only has two positions: on and off.
The external switch can be either momentary or latching.
External Switch as Expression Toggle (1/4" TRS Connection – PEDAL IN Jack)
To use this mode, connect an external switch to PEDAL IN and set the PEDAL IN switch to the EXP

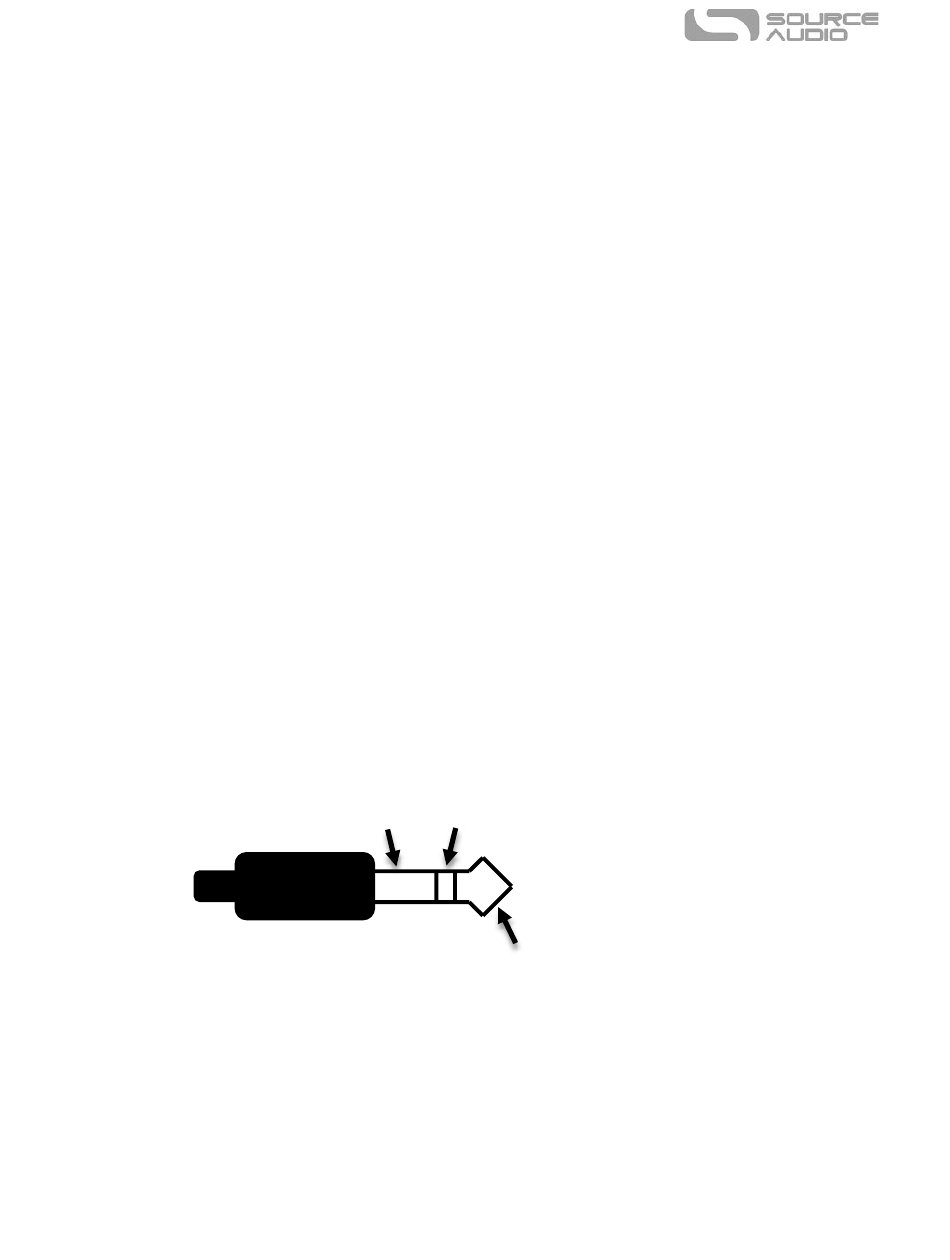

position instead of the SWITCH position. The following plug configuration is required:
Follow these steps for configuration:
1. Press the C
ONTROL
2. Press and hold the C
(approximately one blink per second).
3. Tap the external switch once.
4. Click the DELAY/TAP footswitch once. The C
second). Now, it is time to map the external switch to the effect parameters.
SA263
Gr ound
Power (Switch pul l -up)
I
button to enable external control. The C
NPUT
I
button until the C
ONTROL
NPUT
Collider Delay+Reverb Owner's Manual
L
ONTROL
ED
L
ONTROL
ED
1/ 4"
Switch Out
ONTROL
L
begins to blink slowly
ONTROL
ED
L
will blink faster (about 2 blinks per
ONTROL
ED
will now blink even
will now be lit solid red.
L
should be lit red.
ED
33
