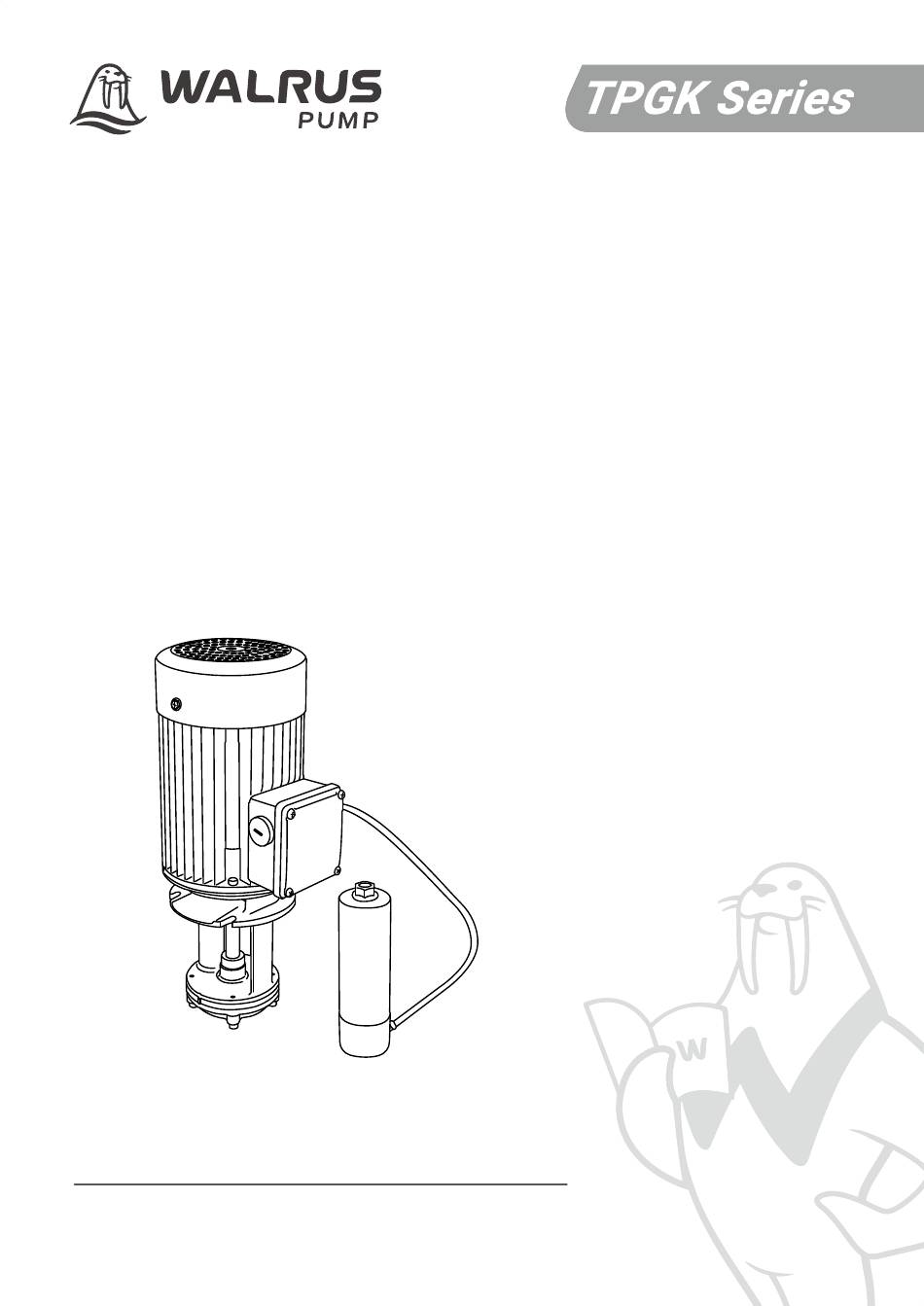

- Page 1 TPGK Series TPGK Series Instruction Manual Immersible Pump Model : TPGK440 To ensure safe and proper use, please read this instruction before operation. ISO 9001 Certified Walrus America Inc.
-
Page 3: Model Code
4. Installation 1. Application The pump has hot surface on The TPGK Series coolant pump is design the motor. It must be installed for the circulation and spraying of cooling s o t h a t p e r s o n s c a n n o t lubricants, especially for machine tools. -
Page 4: Electrical Connection
4.3. Maximum liquid level on nameplate. Three phase motor re quires a magne tic s tar te r for T h e m a x i m u m l i q u i d l e v e l i n safety. -
Page 5: Wiring Diagram
CONNECTING liquids. Please c arefull y follow all instructions in the manual as W2 U2 Walrus may refuse to accept the contaminated pump for servicing. 7.6. If the supply cord is damaged, it must be replaced by a special cord or asse mbly available from the manufacturer or its service agent. -
Page 6: Fault Finding
10. Fault Finding Make sure to disconnect the power before attempting to diagnose any fault. Fault Cause Remedy Connect the electricity supply. Supply failure. Fuses are blown. Replace fuses. Motor starter overload has tripped Reactivate the motor protection. out. 1. M o t o r d o e s not run when Thermal protection has tripped out. - Page 7 11. Dimensions TPGK440 ~ 7 ~...
