Dynojet Power Commander V Installation Instructions Manual page 5

FIG.G
FIG.H
Unplug TPS
FIG.I
22-044 www.powercommander.com

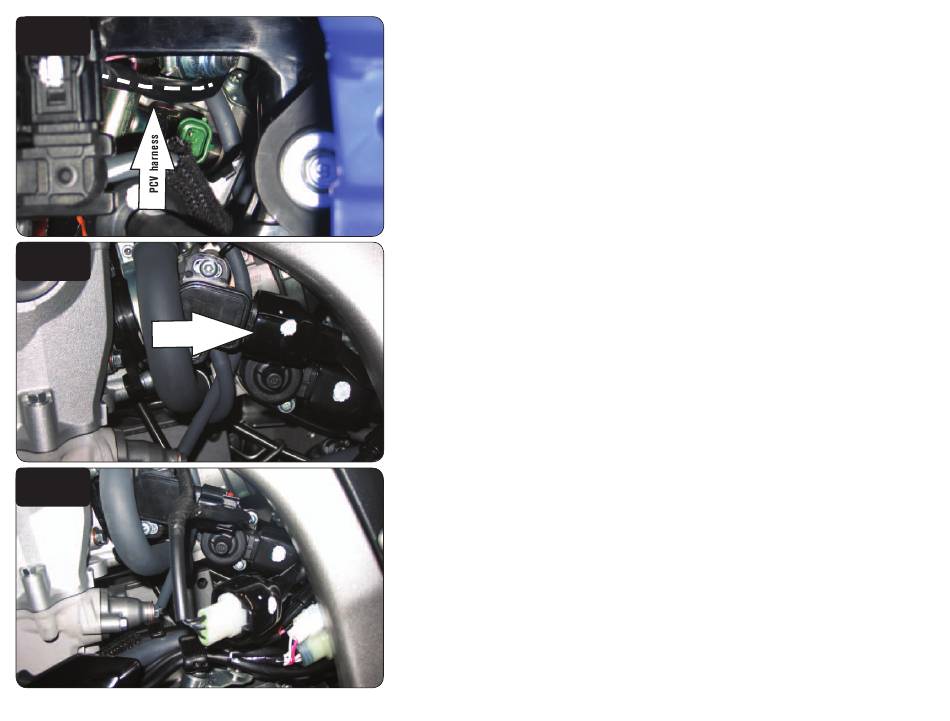

13 Route the set of 3 pin connectors, and the set of 2 pin connectors, of the PCV
harness down the left side of the throttle body (Fig. G).
14 Unplug the Throttle Position Sensor connector from the left hand side of the
throttle body (Fig. H).
This connector is covered with a BLACK rubber boot.
15 Connect the set of 3 pin connectors of the PCV in-line of the TPS and the
stock wiring harness (Fig. I).
2009-2013 Yamaha YFZ450 R/X PCV - 5
