Dynojet Power Commander V Installation Instructions Manual page 4

PCV Connectors
FIG.D
Stock Connector
FIG.E
FIG.F
22-044 www.powercommander.com

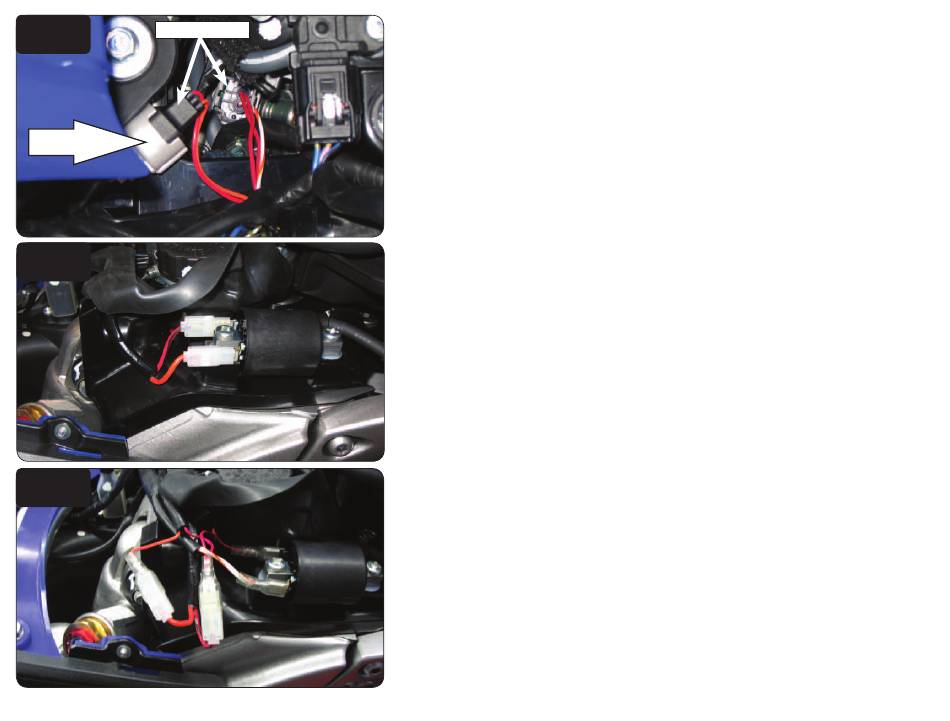

7 Plug the PCV wiring harness in-line with the fuel injector and stock wiring
harness (Fig. D).
8 Route the branch of the wiring harness with RED and GREEN colored wires
to the right side of the quad, across the top of the rear shock, and under the
rubber flap, where the ignition coil is located (Fig. E).
9 Unplug the RED/BLACK wire on the ignition coil.
10 Connect the pair of RED colored wires of the PCV harness in-line with the coil
and the RED/BLACK wire.
11 Unplug the ORANGE wire on the ignition coil.
12 Connect the pair of GREEN colored wires of the PCV harness in-line with the
coil and the ORANGE wire (Fig. F).
2009-2013 Yamaha YFZ450 R/X PCV - 4
