Dynojet Power Commander V Installation Instructions Manual page 3

FIG.A
FIG.B
FIG.C
22-044 www.powercommander.com
1 Remove seat.

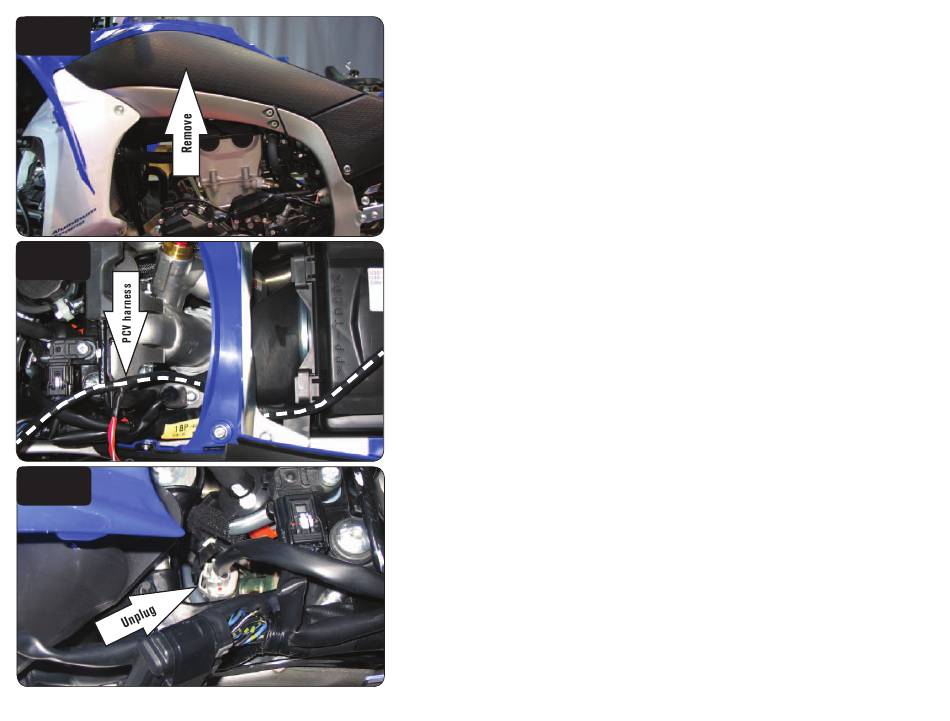

2 Remove the side covers (Fig. A).
3 Remove the fuel tank.
4 Lay the PCV in the tail section of the quad temporarily.
5 Route the PCV wiring harness from the rear of the quad to the throttle body
going along the left hand side of the frame.
Route the harness underneath the frame crossover (Fig. B).
6 Unplug the stock wiring harness from the injector (Fig. C).
2009-2013 Yamaha YFZ450 R/X PCV - 3
