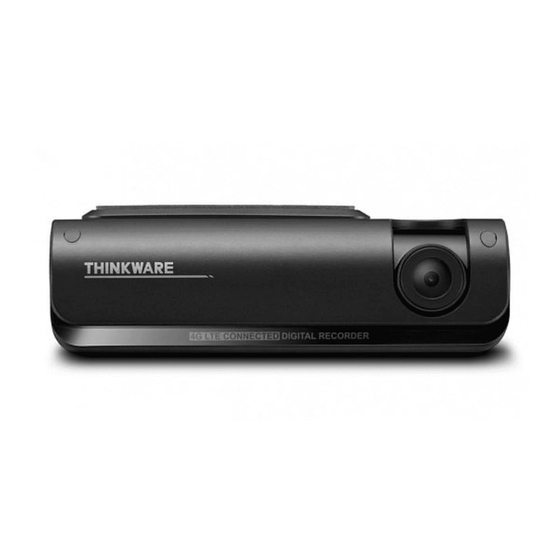

T700
User Guide
This product records videos while the vehicle is operating.
Read and follow the instructions in this guide to properly use and maintain the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thinkware T700

Summary of Contents for Thinkware T700

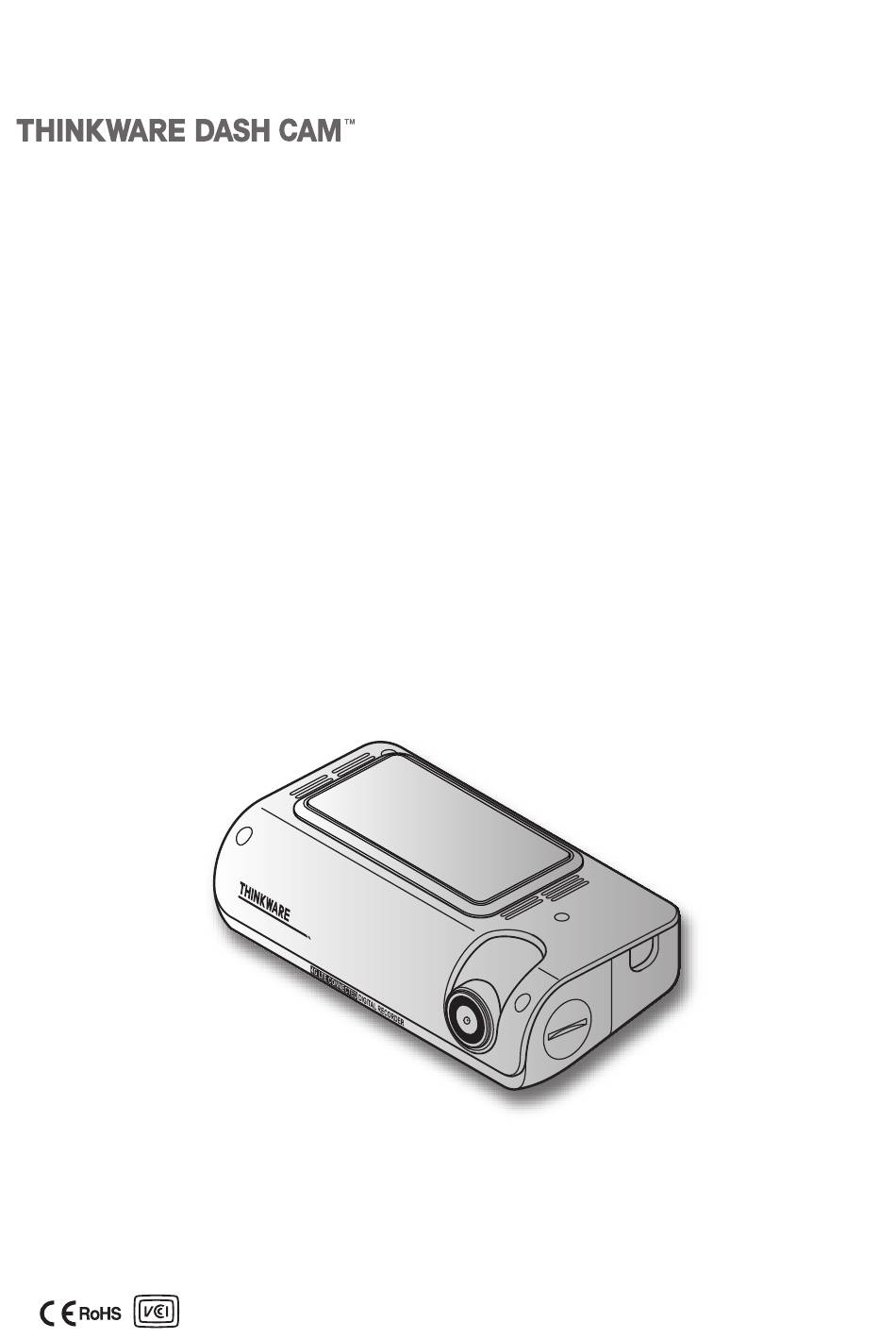

  • Page 1 T700 User Guide This product records videos while the vehicle is operating. Read and follow the instructions in this guide to properly use and maintain the product.
  • Page 2 THINKWARE is not responsible for any loss caused by an accident, nor is it responsible for providing any support regarding the outcome of an accident.

  • Page 3: Table Of Contents

    3.7 Using the Super Night Vision  23 11. Specifications  38 3.8 Using the road safety features  23 4. Using THINKWARE CONNECTED LTE  24 4.1 Connecting the product to THINKWARE CONNECTED LTE  24 4.2 Viewing the THINKWARE CONNECTED LTE screen layout  25...

  • Page 4: Safety Information

    Safety information Read the following safety information to properly use the product. Safety symbols in this guide "Warning" - Indicates a potential hazard which, if not avoided, may result in injury or death. "Caution" - Indicates a potential hazard which, if not avoided, may result in minor injury or property damage. "Note"...
  • Page 5 Doing so may result in electrical fire or electrocution. • Use only genuine accessories from THINKWARE or an authorized THINKWARE dealer. THINKWARE does not guarantee compatibility and normal operation of third-party accessories.
  • Page 6 • THINKWARE is NOT responsible for the loss of any recorded video during operation. • Although the device was designed to withstand high-impact car collisions, THINKWARE does not guarantee the recording of accidents when the device is damaged as a result of the accident.

  • Page 7: Product Overview

    • The standard items may change without prior notice. • You can use the services provided by the THINKWARE CONNECTED LTE application by installing a designated nano SIM card (sold with the product) in the product. If a SIM other than an authorized nano SIM for the THINKWARE CONNECTED LTE application is installed, the service may not operate normally and THINKWARE will not be responsible for any loss.

  • Page 8: Part Names

    • Press to turn on • Indicates the SOS the product. feature status. SOS button Press to upload the recorded footage to the THINKWARE CONNECTED LTE application when an accident occurs. Speaker Outputs the voice guide and buzzer sounds to indicate the product’s status.

  • Page 9: Front Camera (Main Unit) - Rear View

    Product overview 1.2.2 Front camera (main unit) - rear view Memory card slot V-IN input port Insert a memory card to save recordings. Used to connect the rear camera. Nano SIM card slot DC-IN power port Insert a nano SIM Used to connect card to use LTE the power cable.

  • Page 10: Removing And Inserting The Memory Card

    SIM card may be damaged if it is inserted incorrectly. You can use the services provided on the THINKWARE CONNECTED LTE application by installing a designated nano SIM card (sold with the product) in the product. If a SIM other than the genuine nano SIM for the THINKWARE CONNECTED LTE application is installed, the service may not operate normally and THINKWARE is not responsible for any loss.

  • Page 11: Installing The Product

    2. Installing the product 2.1 Installing the front camera (main unit) Follow the instructions to properly install the product. 2.1.1 Selecting an installation location Select an installation location that can record the entire view in front of the vehicle without obstructing the driver’s vision.
  • Page 12 Installing the product Remove the protective film from the adhesive mount, and then press the mount to the installation location. ➊ ➊ ➋ ➋ Remove the product from the mount and push the ➋ ➋ mount against the windshield to ensure that the ➊...

  • Page 13: Connecting The Power Cable

    • Use the authentic THINKWARE continuous power cable only. Using other manufacturer’s cable may damage the product or cause electrocution due to the voltage difference.
  • Page 14 Installing the product Connect the BATTERY wire to a fuse leg of the continuous power terminal and connect the ACC wire to a fuse leg of the normal (ACC) terminal. Check the fuse panel’s input and output contact points by using an electrical tester. Place the fuses back into their locations on the fuse panel, connecting each fuse leg with the wire to the output contact point and taking care not to change the fuse position.
  • Page 15 ➋ ➋ • Use the authentic THINKWARE car charger. Use of third party power cables may damage the product and result in electrical fire or electrocution due to the voltage difference. • Do not cut or modify the power cable yourself. Doing so may damage the product or the vehicle.

  • Page 16: Installing The Rear Camera

    Installing the product 2.2 Installing the rear camera Refer to the following instructions to properly install the rear camera. 2.2.1 Selecting an installation location Select a location on the rear windshield where there is no defrost grid wire and the camera can record the entire rear view.

  • Page 17: Securing The Rear Camera

    ➊ ➊ and camera lens. ➋ ➋ Attach the product with the THINKWARE logo facing indoors and press the adhesive tape firmly to secure the camera. If the product is fixed in reverse, the rear view will be recorded upside down.

  • Page 18: Connecting The Rear Camera Cable

    Installing the product 2.2.3 Connecting the rear camera cable Power off the product and connect the rear camera cable to the front camera (main unit). Connect one end of the rear camera cable to the front camera’s V-IN port. Connect the other end of the rear camera cable to the rear camera’s connection port.

  • Page 19: Using Recording Features

    Play videos on Window/Mac computer or using the THINKWARE mobile applications. If you play videos by inserting the memory card in devices such as a smartphone or a tablet PC, the video files may be lost. A file name is composed of the recording start date and time, and the recording option.

  • Page 20: Using The Continuous Recording Feature

    Using recording features 3.3 Using the continuous recording feature Connect the power cable to the product’s DC-IN power port and then turn on the vehicle’s electrical accessories or start the engine. The voice guide will indicate that continuous recording has started. During continuous recording, the product operates as follows.

  • Page 21: Using Parking Mode

    Using recording features 3.5 Using parking mode When the product is connected to the vehicle via the hardwiring cable, the operating mode is switched to parking mode after the engine or electrical accessories are turned off and the voice guide will indicate that the parking mode has started.

  • Page 22: Using The Sos Recording Feature

    According to the data service policy, if you have used all of the SOS recording upload usage times, pressing the SOS button will save the recorded video to the SD card, but may not upload it to the THINKWARE CONNECTED LTE application. Visit THINWARE website (https://www.thinkware.com) for more information.

  • Page 23: Using The Super Night Vision

    Using recording features 3.7 Using the Super Night Vision With the Super Night Vision feature, you can record videos that are much brighter than videos recorded without this feature. This feature is enabled by real-time image signal processing (ISP) to improve the brightness of videos recorded while parking at night.

  • Page 24: Using Thinkware Connected Lte

    4. Using THINKWARE CONNECTED LTE You can view and manage recorded videos and configure various product features on your smartphone. • One of the following environments is required to use the THINKWARE CONNECTED LTE application: - Android 7.0 (Nougat) or higher - iOS 11.4 or higher...

  • Page 25: Viewing The Thinkware Connected Lte Screen Layout

    Using THINKWARE CONNECTED LTE Run THINKWARE CONNECTED LTE and tap Sign In on your smartphone. You need a THINKWARE ID to use THINKWARE CONNECTED LTE. If you don’t have an ID, tap Sign Up and sign up for a THINKWARE membership.

  • Page 26: Using The Mobile Viewer

    5. Using the mobile viewer You can view and manage recorded videos and configure various product features on your smartphone. • One of the following environments is required to use the THINKWARE DASH CAM LINK application: - Android 7.0 (Nougat) or higher - iOS 11.4 or higher...

  • Page 27: Using The Pc Viewer

    Insert the memory card into a memory card reader connected to your PC. Move the installation file to the desktop, run it, and complete the installation according to the instructions given in the installation wizard. After the installation is complete, there will be a shortcut icon to Thinkware Dashcam Viewer.

  • Page 28: Pc Viewer Screen Layout (For Windows)

    ➊ Open a file, or save a video with a different name. ➋ ➋ Visit the THINKWARE website. ➌ ➌ View or configure the dashcam settings, and set the language for the PC viewer. Display the current video in full screen. Tap the Back ( ) button to return to the previous screen.

  • Page 29: Playing Recorded Videos On The Pc Viewer (For Windows)

    Using the PC viewer 6.2.3 Playing recorded videos on the PC viewer (for Windows) Follow the instructions to play recorded videos. Turn off the product and remove the memory card. Insert the memory card into a memory card reader connected to your PC. Double-click the shortcut to the PC viewer ( ) to open the program.

  • Page 30: Pc Viewer Screen Layout (For Mac)

    ➏ ➏ ➊ ➊ ➐ ➐ ➑ ➑ ➒ ➒ T700 ➓ ➓ Number Description Visit the THINKWARE website. ➊ ➊ Set the language for the PC viewer. ➋ ➋ Set the speed unit. ➌ ➌ Switch between the front and rear videos.

  • Page 31: Playing Recorded Videos On The Pc Viewer (For Mac)

    The video files in the memory card will be automatically added to the playlist in the bottom-right corner of the PC viewer screen. The playlist section layout is as follows. T700 Select a folder. Displays a list of videos in the selected folder.

  • Page 32: Settings

    7. Settings You can set the product features according to your needs and preferences using the mobile viewer or the PC viewer. The following procedures are based on the mobile viewer. The product will stop recording while configuring settings on the mobile viewer. Select Disable to turn off the feature.

  • Page 33: Setting Road Safety Features

    Settings Options Description Impact Sensitivity in Parking Select the desired parking mode sensitivity from Lowest/Low/Mid/High/Highest. Mode Select the desired motion detection mode sensitivity from Lowest/Low/Mid/High/ Motion Detection Sensitivity Highest. Record Timer Select the desired record time from Disabled/3hrs/6hrs/12hrs/24hrs/48hrs/72hrs. Battery Protection Select from Enable/Disabled.

  • Page 34: Configuring The System Settings

    Settings 7.5 Configuring the system settings From the mobile viewer, tap Dash Cam Settings System Settings to configure the hardware system > settings. Options Description Language Select the desired language. Volume Select the desired volume level. Time Zone Select the desired time zone. Daylight Saving Select from Enable/Disabled.

  • Page 35: Accessing The Product Information

    8. Accessing the product information New users may benefit from the basic product information that can be accessed from the Menu screen. 8.1 Viewing the product information From the mobile viewer, tap Dash Cam Info to view product information. The following product information will be displayed on the screen.

  • Page 36: Upgrading The Firmware

    Follow the instructions to upgrade the firmware. On your PC, open a web browser and go to https://www.thinkware.com/Support/Download. Select the product and download the latest firmware upgrade file.

  • Page 37: Troubleshooting

    Every product requested for repair is regarded as a device that has had its data backed up. The customer service center does not back up your data. THINKWARE is not responsible for any loss, such as data loss.

  • Page 38: Specifications

    Item Specification Remarks Brand name THINKWRAE DASH CAM Product name T700 Model name T700QT5ESI 110 x 60.4 x 32.2 mm / 128 g Dimensions / Weight Rear camera: 25Ø x 32.8 x 61.05 mm / 26 g 4.3 x 2.4 x 1.27 inch / 0.28 lb...
  • Page 39 Specifications Item Specification Remarks Embedded GPS Safety driving section alert supported GNSS GPS / GLONASS • Frequency Band: B3 / B7 / B8 4G FDD LTE • RF Power (Max.): 23dBm ±2dB Wi-Fi 802.11 a/b/g/n 2.4GHz + 5GHz Power input DC 12 / 24 V supported Power consumption 2ch: 4.6 W / 1ch: 3.4 W (mean)
  • Page 40 Ver. 1.1 (July. 2020)
