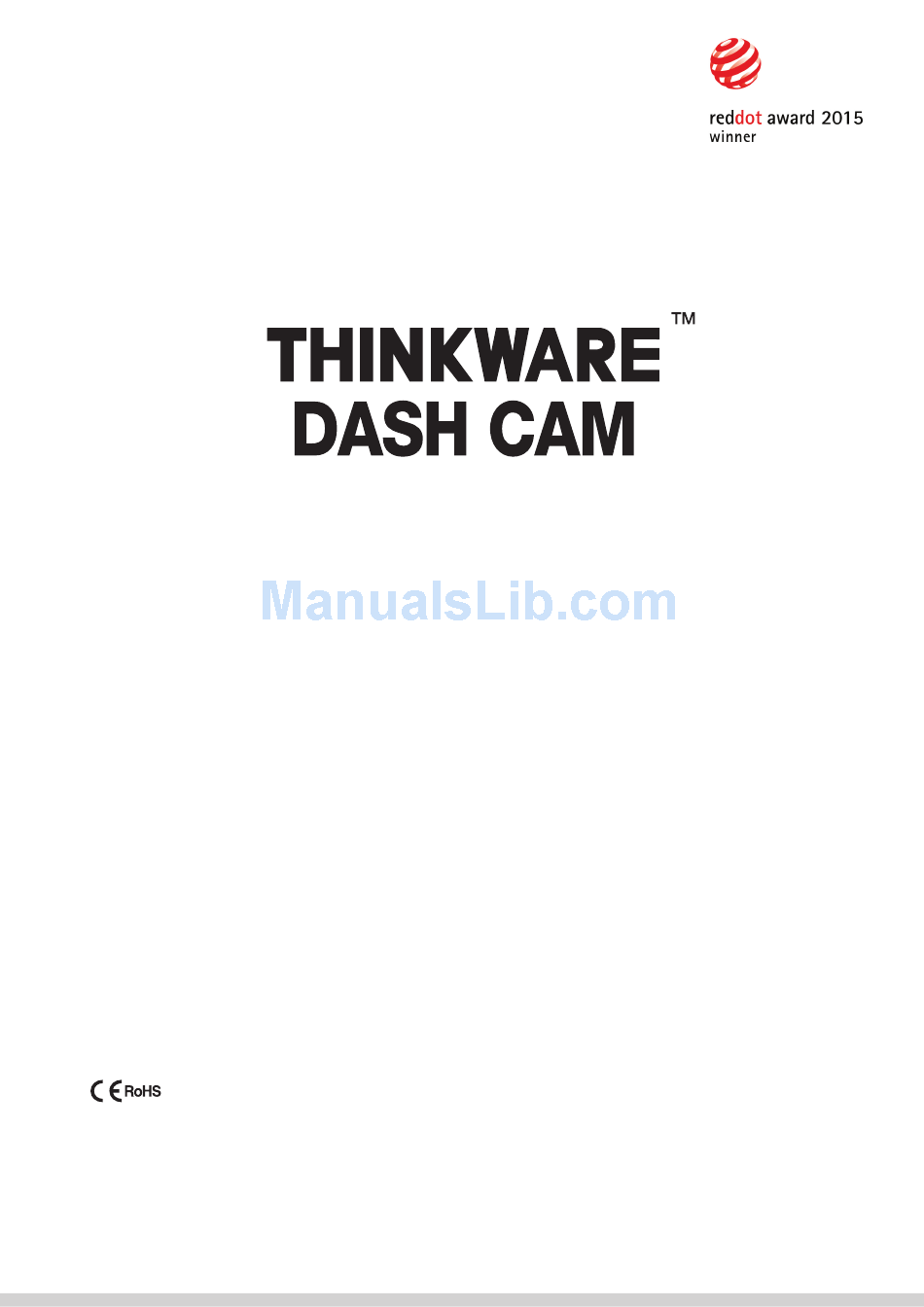

X500
U s e r M a n u a l

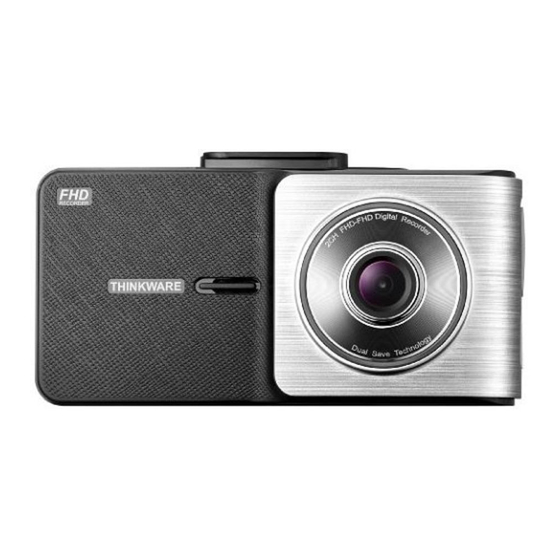

This Dashboard Camera (dash cam) is a specialized onboard device that continuously records video while the vehicle is in use.
Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary
for each device as a result of installed firmware.
The device DOES NOT guarantee video recording of all accidents as built-in impact sensor may not be activated due to combina-
tion of user settings and the level of impact during the collision.
ACMA-020UBR101
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Thinkware X500
Summary of Contents for Thinkware X500
- Page 1 X500 U s e r M a n u a l This Dashboard Camera (dash cam) is a specialized onboard device that continuously records video while the vehicle is in use. Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary for each device as a result of installed firmware.
-
Page 3: Table Of Contents
3-5. Dual Save Videos 3-6. Settings > Camera Settings 3-7. Settings > Record settings 3-8. Settings > Road Safety settings 3-9. Settings > System Settings 3-10. About Device PC Viewer Software 4-1. Thinkware Dash Cam PC Viewer Device Information 5-1. Specifications... -
Page 4: Before Using Thinkware Dash Cam
▶ THINKWARE reserves the right to change or modify the product and the content of this manual at any time without prior notice for product improvements. -
Page 5: Caution
Handle with care. Drop, shock, and mishandling THINKWARE is NOT responsible for the loss of any the Product may result in malfunction and/or recorded video during operation. damage to the device. -
Page 6: Getting Started
1. Getting Started This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to ensure compliance. 1-1. In the Package Mount with 3M tape Adhesive Cable Holder Main Dash Cam Unit Car Charger (1ea) (5ea) -
Page 7: Product Overview
1-2. Product Overview Front view Rear view Right view Top view Name Description Camera Lens Front facing camera for video recording Mount Connector Connects to the windshield mount Operation indicator lights that are used to visually indicate that the Security LED vehicle is equipped with a dash cam Speaker For voice guidance and alert/notification sounds... -
Page 8: Inserting A Memory Card
The MicroSD card is a consumable item and should be replaced periodically. THINKWARE is NOT responsible for any issues and / or damages that may occur from not using genuine or authorized parts and accessories. It is strongly recommended that only THINKWARE memory cards are used to minimize card error. -
Page 9: Vehicle Installation
1-4. Vehicle Installation 1-4-1. Connecting the Device and the Mount ① Align the mount with the connector (A), and slide it towards (B) until it clicks into place. ② Remove the protective film from the camera lens. 1-4-2. Installing the Device ①... -
Page 10: Connecting To Power
For more information on the power cable routing instruction, please visit Thinkware homepage. (www.thinkware.com) Preventing Vehicle Battery Discharge ■ Depending on the make and model of your car, the power may be supplied to the dash cam even with the ignition turned off. - Page 11 ■ When using a Hardwiring Cable Ligando os cabos da câmera direto na energia da bateria do veículo habilita a função modo estacionamento que funciona para registrar incidentes enquanto a ignição está desligada. Cuidado: Tenha certeza que a ignição esteja desligada durante a instalação do produto. Conecte a ponta do adaptador a porta de entrada de energia DC-IN e conecte a outra ponta a caixa de fusíveis do veículo conforme as instruções abaixo.
- Page 12 A homepage oficial da THINKWARE (www.thinkwarebrasil.com.br) fornece vídeos e imagens adicionais para ajudarem a sua instalação. A THINKWARE não é responsável pela má instalação e por eventuais danos causados a câmeras e os seus acessórios. A THINKWARE altamente recomenda a utilização de serviços profissional para...
- Page 13 Thinkware hompage (www.thinkware.com) provides various guides to assist with the rear view camera installation. Please refer to the detailed product guide before installing the rear view camera. Thinkware is not responsible for damages to the main unit and / or any attached accessories due to improper user installations.
-
Page 14: Basic Operations
2. Basic Operations 2-1. Turning the Device Power On/Off Once connected to the vehicle, the device will automatically turn on and off with vehicle ignition. Power cable for vehicle To manually turn the device on/off, press and hold the Power button ( ) for 3 seconds. -
Page 15: Road Safety Warning
2-2. Road Safety Warning 2-2-1. Safety Camera Alert Safety Camera Alert : Using GPS and database, safety camera alert will warn the driver when approaching traffic enforcement zones such as red light camera, speed camera, average speed camera, and mobile speed zones. ①... - Page 16 2-2-2. Advanced Driver Assistance Systems (ADAS) ADAS Auto Calibration 1. ADAS settings must be calibrated before use. 2. Auto Calibration will initiate when driving on a straight road at a speed greater than 30km/h Align blue line with center of the hood (18mph) for more than 1 minute.
- Page 17 Front Vehicle Departure Warning (FVDW) Front vehicle departure warning alerts the driver when the vehicle ahead starts to move forward from a complete stop. ┗ The vehicle must be at a complete stop for more than 4 seconds in order for the FVDW notification to be activated. ①...
-
Page 18: Recorded Files
2-3. Recorded Files Recorded video files are saved in the folder by date and hour in the MicroSD card. ┗ Files are created based on the time when the videos are recorded. Front view Year Month Day Hour Second recording Minute Rear view recording... -
Page 19: Recording Videos While Driving
2-4. Recording Videos While Driving 2-4-1. Continuous Recording Mode Videos are recorded in 1 minute segments and saved as files in the MicroSD card under the folder named “cont_rec”. 2-4-2. Incident Recording During Continuous Recording Mode When the dash cam detects impact, it will immediately store the 10 seconds prior and after the impact. - Page 20 2-4-3. Dual Save (Internal Memory Backup) Dual Save is a Thinkware proprietary technology that utilizes built-in memory as secure backup in addition to the MicroSD memory card. Dual Save technology guarantees incident video recording using internal memory in case of an accident that causes damage to the MicroSD memory card.
-
Page 21: Recording Videos While Parked
2-5. Recording Videos While Parked This feature is available only when the dash cam has been hardwired directly to the vehicle battery. Separate purchase for the hardwiring cable accessory and professional installation is required. 2-5-1. Incident Recording When the dash cam detects impact while parked, it will imme- diately store the 10 seconds prior and after the impact. -
Page 22: Manual Recording
2-6. Manual Recording In addition to recording accidents, the dash cam allows the user to initiate manual recording mode to cap- ture scenery and/or places while driving. This feature can also be used to save video as witness where the installed vehicle is not directly involved in an accident. -
Page 23: Formatting Microsd Card
The system will automatically be updated if the MicroSD card contains the firmware upgrade file. The device restarts automatically after the upgrade has been completed. Make sure your device is always up to date with latest firmware. Please check back frequently at THINK- WARE website (www.thinkware.com) for the latest firmware updates. -
Page 24: Lcd Screen
3. LCD Screen 3-1. Main Menu Recording status Change to Live View GPS status Data/Time Directional Keys Select... -
Page 25: Live View
3-2. Live View LCD screen can be used to verify current recording view. Switch to Front/ Rearview camera (appears only when Rear view Back to main menu rearview camera is connected) Audio recording status Manual recording Current speed / Voltage status... -
Page 26: File List
3-3. File List Recording will suspend when browsing through video list and settings menu. Visual notification will appear on the screen to confirm the suspension of recording prior to entering the menu. 3-3-1. File List - 1 Continuous : Lists loop recording videos during continuous mode (in 1 minute segments) ... - Page 27 3-3-2. File List - 2 Recording will stop when accessing on-screen menu. Video file name Current Video playback play time progress bar Total playing time Switch to front/rear view Enter zoom view Mute on/off Play/Pause Next Previous Video playback with 3X zoom Directional button Exit zoom view...
-
Page 28: Memory Card Settings
3-4. Memory Card Settings Memory Partition : Sets how storage space on the memory card will be allotted for each recording mode ┗ Type A (recommended) : Optimized for continuous recording ┗ Type B : Optimized for incident and motion detection during parking surveillance ┗... -
Page 29: Dual Save Videos
3-5. Dual Save Videos Videos : View Dual Save video list Copy to SD : Copy all videos saved on the internal memory to MicroSD card Delete All : Delete all videos saved on the internal memory... -
Page 30: Settings > Camera Settings
3-6. Settings > Camera Settings Brightness-F/R : Sets the video recording brightness for front/rear camera Wide Dynamic Range : Sets the WDR mode to record clear video even under large variation of backlightingillumination. -
Page 31: Settings > Record Settings
3-7. Settings > Record settings Impact Sensitivity : Sets the impact sensitivity level Use Parking Mode : Monitors vehicle ignition status to automatically convert to parking mode when the vehicle engine is turned off Parking Sensitivity : Sets the impact sensitivity during parking recording mode ... -
Page 32: Settings > Road Safety Settings
3-8. Settings > Road Safety settings Road Safety Warning System ┗ Road safety settings : Sets audible notifications for road safety warnings. Advanced Driver Assistance Systems (ADAS) ┗ Vehicle type : Sets the vehicle type to be used to optimize Advanced Driver Assis tance Systems (ADAS) features ┗... -
Page 33: Settings > System Settings
3-9. Settings > System Settings Language : Sets dash cam system language Voice Volume : Sets the volume level LCD Brightness : Sets the brightness of the LCD screen LCD Auto-Off : Sets the time for LCD auto shut off ┗... -
Page 34: About Device
3-10. About Device Functions : Help for device features Device Info : Information on device and firmware ┗ Factory Reset: Restores to factory setting GPS Info : View GPS information ┗ GPS Initialization: Reset GPS... -
Page 35: Pc Viewer Software
The setup file for the Thinkware Dash Cam PC Viewer is included in the MicroSD card within the package. Please check THINKWARE homepage(www.thinkware.com) for the latest Dash Cam PC Viewer application. - Page 36 Windows 8.x (32/64 bit) ① Move the file named “Dashcam Viewer.zip” stored in the MicroSD card to the desktop. ② Right click on the mouse and select “Open With” > “Archive Utility” to launch the Thinkware Dash Cam viewer application.
- Page 37 The MicroSD card will not be recognized by the software until it has been initialized in the dash cam. It is recommended that the user record at least one video clip on the MicroSD card with the dash cam unit before accessing the Thinkware Dash Cam PC Viewer.
- Page 38 4-1-4. Thinkware Dash Cam Viewer Overview Full screen Switch between front/rear view Dash cam setting / Information File open Rear view (Enabled only if Mi- croSD card contains video captured using rear view Viewing screen camera) Checks the location Playback...
- Page 39 4-1-5. View Video Playlist Select appropriate folder (Continuous Recording, Incident Recording, Manual Recording, Parking Motion, Parking Incident) to see the playlist for each recording mode. Continuous Recording Playlist Manual Recording Playlist...
-
Page 40: Specifications
5-1. Specifications The specifications of this product may change without prior notice for product improvements. Item Standard Note Model X500 104.3 x51.4 x 29.3mm / 109g Size/weight 4.1 x 2.02 x 1.15 inches / 0.24lbs Display Panel 2.7"LCD (320x240) Capacity...
