X300
U s e r M a n u a l

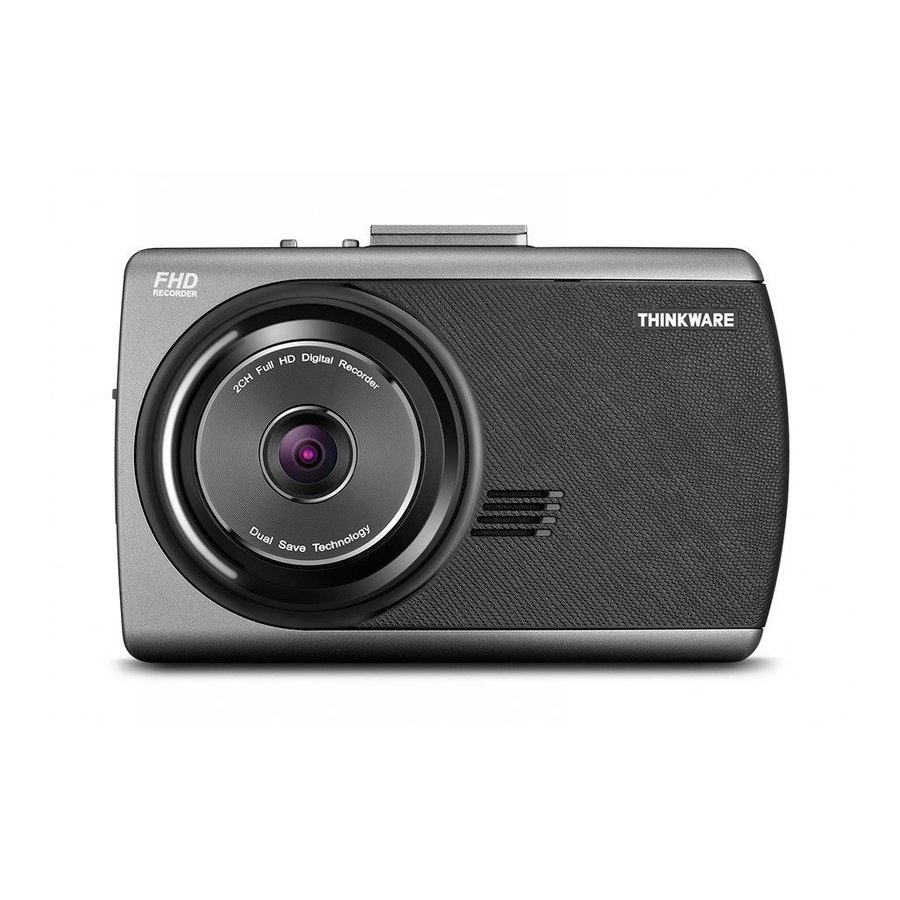

This Dashboard Camera (dash cam) is a specialized onboard device that continuously records video while the vehicle is in use.
Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary
for each device as a result of installed firmware.
The device DOES NOT guarantee video recording of all accidents as built-in impact sensor may not be activated due to combina-
tion of user settings and the level of impact during the collision.
ACMA-020RAM1
Advertisement
Table of Contents
Related Manuals for Thinkware X300
Summary of Contents for Thinkware X300
- Page 1 X300 U s e r M a n u a l This Dashboard Camera (dash cam) is a specialized onboard device that continuously records video while the vehicle is in use. Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary for each device as a result of installed firmware.
-
Page 3: Table Of Contents
3-3. Video List 3-4. Settings > Common 3-5. Settings > Continuous Recording Mode 3-6. Settings > Parking Surveillance Mode 3-7. Settings > Additional Functions 3-8. Settings > Dual Save Video PC Application 4-1. Thinkware Dash Cam PC Viewer Device Information 5-1. Specifications... -
Page 4: Before Using Thinkware Dash Cam
▶ THINKWARE reserves the right to change or modify the product and the content of this manual at any time without prior notice for product improvements. -
Page 5: Caution
Product may result in malfunction and/or surrounding temperatures. damage to the device. THINKWARE is NOT responsible for the loss of any Do not operate this device while driving. recorded video during operation. Install this device in a location where it has unob-... -
Page 6: Getting Started
1. Getting Started This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to insure compliance. 1-1. In the Package Mount with 3M tape Adhesive Cable Holder Main Dash Cam Unit Car Charger (1ea) (5ea) -
Page 7: Product Overview
1-3. Product Overview Front view Rear view Left/Right Top view Left Right view 13 14 Name Description Camera Lens Front facing camera for video recording Mount Connector Connects to the windshield mount LED light that is used to visually indicate that the vehicle is equipped Security LED with dash cam which is in operation Speaker... -
Page 8: Inserting A Memory Card
The microSD card should be tested for errors on a regular basis and as the memory card is a consumable item, it will need to be replaced periodically. THINKWARE shall NOT be responsible for any problems and/or damages that may occur from not using genuine or authorized parts and accessories. It is strongly recommended that THINKWARE memory card is used to minimize memory card error. -
Page 9: Vehicle Installation
1-5. Vehicle Installation 1-5-1. Connecting the Device and the Mount ① Place the mount so it is aligned with the connector (A), and push it toward (B) until it clicks into place. ② Remove the protective film from the camera lens. 1-5-2. -
Page 10: Connecting To Power
Recommended location for ad- hesive wires clips are illustrated in the diagram For more information on the power cable routing instruction, please visit Thinkware homepage (http://thinkwaredashcam.com) Preventing Vehicle Battery Discharge ■ Depending on the car make and model, the power from the vehicle can be supplied even with the ignition turned off. -
Page 11: Turning The Device Power On/Off
2. Basic Operations 2-1. Turning the Device Power On/Off The device will automatically turn on and off with vehicle ignition. : Red : Green : Blue Power cable for vehicle Blinks in all 3 colors To manually turn the device on/off, press and hold the Power button ( ) for 3 seconds. -
Page 12: Connecting External Gps Receiver(Optional Accessories)
2-3. Connecting External GPS Receiver(Optional Accessories) External GPS Receiver is available as an optional accessory that can be purchased from Thinkware autho- rized dealers. External GPS Receiver enables recording of vehicle locations in the video file for driving route tracking. -
Page 13: Recorded Files
2-4. Recorded Files Recorded video files are saved in the folder by date and hour in the microSD card. ┗Files are created based on the time when the videos are recorded. Front view Year Month Day Hour Second recording Minute Rear view recording (optional rear view cam-... -
Page 14: Recording Videos While Driving
2-5. Recording Videos While Driving 2-5-1. Continuous Recording Mode Videos are recorded in 1 minute segments and saves as files in the microSD card under folder named “cont_rec”. Recording Status LED Blue light on 2-5-2. Incident Recording in During Continuous Recording Mode ... - Page 15 2-5-3. Dual Save (Internal Memory Backup) Dual Save is a Thinkware proprietary technology that utilizes built-in memory as secure backup in addition to microSD memory card. Dual Save technology guarantees incident video recording using internal memo- ry in case of an accident that causes damage to the microSD memory card.
-
Page 16: Optional] Recording Videos While Parked
2-6. [Optional] Recording Videos While Parked This feature is available only when the dash cam has been hardwired direct to the vehicle battery. Separate purchase is required for the hardwiring cable accessory and installation is required. 2-6-1. Incident Recording When the dash cam detects impact while parked, it will imme- diately store the previous 10 seconds prior to impact and start recording video for next 10 seconds which is then saved in a secure location on the microSD card under folder named... -
Page 17: Manual Recording
2-7. Manual Recording In addition to recording accidents, the dash cam allows the user to initiate manual recording mode to cap- ture scenery and/or places while driving. This feature can also be used to save video as witness where the installed vehicle is not directly involved in an accident. -
Page 18: Capturing Still Images
T he system will automatically be updated if the microSD card contains the firmware upgrade file. The device restarts automatically after the upgrade has been completed. M ake sure your device is always up to date with latest firmware. Please check back frequently at THINKWARE website (http://thinkwaredashcam.com) for latest firmware updates. -
Page 19: Touch Lcd
3. Touch LCD 3-1. Main Menu Indicates audio alert/notification status Indicates external GPS Date/Time receiver connection Indicates current recording status Indicates audio recording status Initiates manual recording Triggers still image capture... -
Page 20: Live View
3-2. Live View LCD screen can be used to verify current recording view. Rearview camera (appears only when rearview camera is connected) Back to main menu Touching anywhere in the screen to hide menu buttons (touch once again to show the menu buttons) Current speed / Voltage... -
Page 21: Video List
3-3. Video List Recording will suspend when browsing through video list and settings menu screen. Visual notification will appear on the screen to confirm the suspension of recording prior to entering these menu screens. 3-3-1. Video List - 1 Continuous Recording: Lists loop recording videos during continuous mode (in 1 minute segments) Incident in Continuous Mode: Lists incident recording videos during continuous mode Motion in Parking Mode: Lists motion detection recording videos during parking surveillance mode Incident in Parking Mode: Lists incident recording videos during parking surveillance mode... - Page 22 3-3-2. Video List - 2 Recording will stop when accessing on-screen menu. Audio On/Off Video file name Back to main menu Play Next Play/Pause Current playing time Total playing time Video playback progress bar...
-
Page 23: Settings > Common
3-4. Settings > Common Recording will suspend when browsing through video list and settings menu screen. Visual notification will appear on the screen to confirm the suspension of recording prior to entering these menu screens. Language : Sets language Audio Recording: Sets audio recording on/off Voice guidance: Sets voice guidance on/off Volume: Sets the volume level Camera Brightness: Sets the brightness of the camera... -
Page 24: Settings > Continuous Recording Mode
3-5. Settings > Continuous Recording Mode Front/Rear Camera Resolution: Sets the video recording resolution for front camera Front Camera Frame Rate: Sets the frame rate for video recording Impact Sensitivity: Sets the impact sensitivity level Cautions Tip on sensitivity It is recommended that you set the sensitivity according to vehicle type. High sensitivity setting is rec- ommended for cars with softer ride such as luxury sedans and low sensitivity setting is recommended for cars such as performance cars, trucks, or SUVs which tends to have stiffer suspension settings. -
Page 25: Settings > Parking Surveillance Mode
3-6. Settings > Parking Surveillance Mode Auto Parking Mode: Monitors vehicle ignition status to automatically convert to parking mode when the vehicle engine is turned off Front/Rear Camera Resolution: Sets the video recording resolution for front/rear camera in parking mode Front Camera Frame Rate: Sets the frame rate for video recording in parking mode Impact Sensitivity: Sets the impact sensitivity level in parking mode Motion Detection: Sets motion detection recording in parking mode... -
Page 26: Settings > Additional Functions
3-7. Settings > Additional Functions Memory Partition: Sets how storage space on the memory card will be allotted for each recording mode ┗ Type A (recommended) : Optimized for continuous recording ┗ Type B : Optimized for incident and motion detection during parking surveillance ┗... -
Page 27: Settings > Dual Save Video
3-8. Settings > Dual Save Video Copy Dual Save Video to Memory Card: Copy all videos saved on the internal memory to microSD card Delete All Dual Save Video: Delete all videos saved on the internal memory... -
Page 28: Pc Application
PC viewer allows user to watch the segments in single continuous video. The setup file for the Thinkware Dash Cam PC Viewer is included in the microSD card in the package. Please check THINKWARE homepage(http://thinkwaredashcam.com) for latest Dash Cam PC Viewer application. - Page 29 ① M ove the file named “Dashcam Viewer.zip” stored in the microSD card to the desktop. ② Right click on the mouse and select “Open With” > “Archive Utility” to launch the Thinkware Dash cam viewer application.
- Page 30 4-1-3. Select the Device Drive for X300 ① Click File from menu and select the drive for the portable storage drive for the connected mi- croSD card. ② Select any file from the list to load entire video play- list in the memory card.
- Page 31 4-1-4. Thinkware Dash Cam Viewer Overview Full Screen Switch between Front/Rear View Dash Cam Setting / Information File Open Rear View (Enabled only if mi- croSD card contains video captured using rear view Viewing Screen camera) Checks the location Playback...
- Page 32 4-1-5. View Video Playlist Select appropriate folder (Continuous Recording, Incident Recording, Manual Recording, Parking Motion, Parking Incident) to see the playlist for each recording mode. Continuous Recording Playlist Manual Recording Playlist...
-
Page 33: Specifications
5-1. Specifications The specifications of this product may change without prior notice for product improvements. Item Standard Note Model X300 106.3 x65.8 x 31.4mm / 150g Size/weight 4.2 x 2.6 x 1.23 inches / 0.33 lbs Display Panel 3.5"TFT LCD (480x320)
