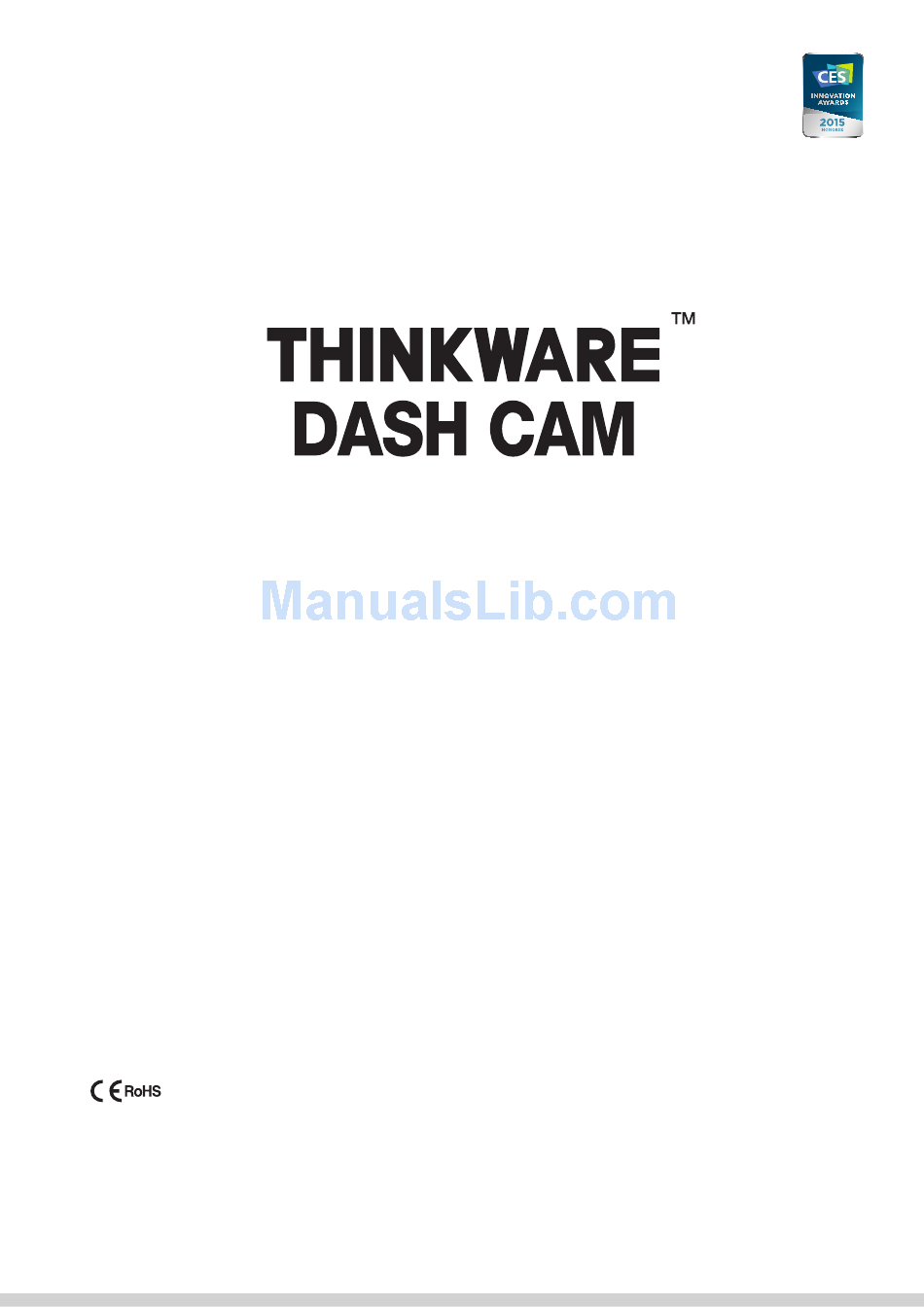

F750
U s e r M a n u a l
This Dashboard Camera (dash cam) is a specialized onboard device that continuously records video while the vehicle is in use.
Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary
for each device as a result of installed firmware.
The device DOES NOT guarantee video recording of all accidents as built-in impact sensor may not be activated due to combina-
tion of user settings and the level of impact during the collision.
ACMA-021DAM102
Advertisement
Table of Contents
Related Manuals for Thinkware F750
Summary of Contents for Thinkware F750
- Page 1 F750 U s e r M a n u a l This Dashboard Camera (dash cam) is a specialized onboard device that continuously records video while the vehicle is in use. Some features may not be available depending on installation, driving conditions, and vehicle type. The video quality might vary for each device as a result of installed firmware.
-
Page 2: Table Of Contents
2-8. Recording Videos While Parked (Optional Accessory) 2-9. Manual Recording 2-10. Audio Recording 2-11. Formatting MicroSD Card 2-12. Initializing Device Settings 2-13. Upgrading Firmware Mobile Application 3-1. Thinkware Dash Cam Mobile Viewer PC Viewer Software 4-1. Thinkware Dash Cam PC Viewer Device Information 5-1. Specifications... -
Page 3: Before Using Thinkware Dash Cam
▶ THINKWARE reserves the right to change or modify the product and the content of this manual at any time without prior notice for product improvements. - Page 4 Notice: Operation is subject to the following two conditions : (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. IC: 12594A-F750...
-
Page 5: Caution
Handle with care. Drop, shock, and mishandling THINKWARE is NOT responsible for the loss of any the Product may result in malfunction and/or recorded video during operation. damage to the device. -
Page 6: Getting Started
1. Getting Started This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to ensure compliance. 1-1. In the Package Main Dash Cam Unit Mount with 3M tape Car Charger Adhesive Cable Holder (1ea) (5ea) MicroSD memory card with adapter... -

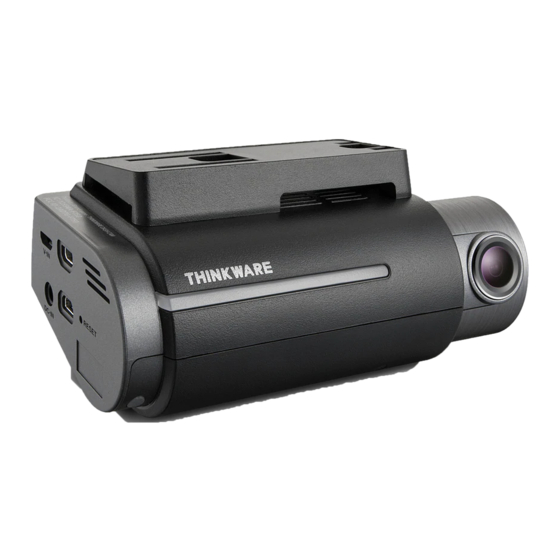

Page 7: Product Overview
1-3. Product Overview micro SD RESET Front Rear view view Left view view micro SD V-IN RESET DC-IN Name Description Camera Lens Front facing camera for video recording Mount Connector Connects to the windshield mount LED light that is used to visually indicate that the vehicle is equipped Security LED with dash cam which is in operation Wi-Fi LED... -
Page 8: Inserting A Memory Card
The MicroSD card should be tested for errors on a regular basis and as the memory card is a consumable item, it should be replaced periodically. THINKWARE is NOT responsible for any problems and/or damages that may occur from not using genu- ine or authorized parts and accessories. It is strongly recommended that THINKWARE memory cards are used to minimize memory card error. -
Page 9: Vehicle Installation
1-5. Vehicle Installation 1-5-1. Connecting the Device and the Mount Align the mount with the connector (A), and slide it towards (B) until it clicks into place. Remove the protective film from the camera lens. 1-5-2. Installing the Device ① Clean the area on the windshield where the dash cam will be installed. -
Page 10: Connecting To Power
RESET For more information on the power cable routing instruction, please visit Thinkware homepage (http://thinkwaredashcam.com) Preventing Vehicle Battery Discharge ■ Depending on the make and model of your car, the power may be supplied to the dash cam even with the ignition turned off. -
Page 11: Turning The Device Power On/Off
2. Basic Operations 2-1. Turning the Device Power On/Off Once connected to the vehicle, the device will automatically turn on and off with vehicle ignition. : Red : Green : Blue Blinks in all 3 colors Power cable for vehicle ... -
Page 12: Road Safety Warning System
Using embedded GPS and road data, related road safety information will be notified to the driver. Initializing GPS Built-in Internal GPS can be reset by selecting "Information > GPS Info > Reset GPS” on the Thinkware Dash Cam Mobile Viewer. -
Page 13: Lane Departure Warning System (Ldws)
1. Verify that the GPS is connected by checking for the green light on GPS LED. 2. Enable LDWS feature by selecting "Dashcam Settings > Road safety settings > LDWS" on the Thinkware Dash Cam Mobile Viewer. GPS LED 2-5. Forward Collision Warning System (FCWS) Audible warning notifies the driver in real time to avoid possible rear-end collision when the vehicle is ahead is slowing or stopped. -
Page 14: Recorded Files
2-6. Recorded Files Recorded video files are saved in the folder by date and hour in the MicroSD card. Files are created based on the time when the videos are recorded. Front view recording Year Month Day Hour Second Minute Rear view recording (optional rear view... -
Page 15: Recording Videos While Driving
2-7. Recording Videos While Driving 2-7-1. Continuous Recording Mode Videos are recorded in 1 minute segments and saved as files in the MicroSD card under the folder named “cont_rec”. Operation Status LED Voice recording is turned on. Voice recording is turned off. Blue light on Blue light on Green light on... - Page 16 2-7-3. Dual Save (Internal Memory Backup) Dual Save is a Thinkware proprietary technology that utilizes built-in memory as secure backup in addition to MicroSDmemory card. Dual Save technology guarantees incident video recording using internal memo- ry in case of an accident that causes damage to the MicroSD memory card.
-
Page 17: Recording Videos While Parked (Optional Accessory)
2-8. Recording Videos While Parked (Optional Accessory) This feature is available only when the dash cam has been hardwired direct to the vehicle battery. Separate purchase is required for the hardwiring cable accessory and installation is required. 2-8-1. Incident Recording ... -
Page 18: Manual Recording
2-9. Manual Recording In addition to recording accidents, the dash cam allows the user to initiate manual recording mode to cap- ture scenery and/or places while driving. This feature can also be used to save video as witness where the installed vehicle is not directly involved in an accident. -
Page 19: Audio Recording
2-10. Audio Recording Briefly press the Voice Recording ( ) button to turn the audio Press Briefly recording on or off. Cautions Users do not reserve the right to use the product for purposes other than as specified in this user guide. According to the Personal Information Protection Act and other related regulations, the user/owner may be held liable if the video and/or conversation recorded by the device are distributed without their con- sent. -
Page 20: Initializing Device Settings
Make sure your device is always up to date with latest firmware. Please check back frequently at THINKWARE website (www.thinkware.com) for the latest firmware updates. Dash cam firmware upgrade directly from the smartphone is available when using Thinkware Dash Cam Mobile Viewer for iOS... -
Page 21: Mobile Application
② Press briefly the Wi-Fi button on the dash cam to enter Wi-Fi connection mode ③ (Make sure to turn on the Wi-Fi in the device setting for iOS devices) In the Thinkware Dash Cam Mobile Viewer application, turn on the Wi-Fi option, select “thinkware” from SSID list, and enter password as “123456789”... - Page 22 ) button for more than 5 seconds on the dash cam to enter WPS connection mode. ③ Select "WPS" button on the Thinkware Dash Cam Mobile Viewer application to automatically connect to the Thinkware dash cam using Wi-Fi. (takes approximately 20~30 seconds) : Retry Wi-Fi search .
- Page 23 3-1-2. Thinkware Dash Cam Mobile Viewer Main Menu Following section describing the Thinkware Dash Cam Mobile Viewer menu is based on Android devices. Layouts and screen captures might be slightly different for iOS devices. Live View Back Switch to front/rear view...
- Page 24 3-1-3. Video List Continuous Recording : Lists loop recording videos during continuous mode (in 1 minute segments) Incident in Continuous Mode : Lists incident recording videos during contin- uous mode Motion in Parking Mode : Lists motion detection recording videos during parking surveillance mode ...
- Page 25 Video Playback When "Download" is selected from Front view videos the menu, all selected videos located at 'internal memory > Thinkware Rear view videos Dashcam' folder from the device will be downloaded. Zoom in/out to expand video up to...
-
Page 26: Memory Management
3-1-4. Memory Management Memory card management Memory partition setting : Sets how storage space on the memory card will be allotted for each recording mode (Entire memory card will be formatted when the memory partition setting is changed) Memory card format : Formats the MicroSD card. - Page 27 3-1-5. Dashcam Settings Camera Settings Front/Rear Camera Resolution : Sets the video recording resolution for front/rear camera Front/Rear Camera brightness : Sets the video recordingbrightness for front/rear camera Wide Dynamic Range : Sets the WDR mode to record clear videos under large variation of- backlightingillumination ...
- Page 28 Road Safety Warning System Settings Road safety warning notification : Sets the audible notifications for road safety warnings Vehicle type : Sets the vehicle type to be used to optimize Advanced Driver Assis- tance System (ADAS) features such as Lane Departure Warning System (LDWS) and Forward Collision Warning System (FCWS).
- Page 29 Wi-Fi Settings Sets the Wi-Fi name and/or password Information App Information : Displays current version and latest available version Dash cam information : Displays dash cam information GPS Information : Displays GPS information and provides GPS reset option...
-
Page 30: Pc Viewer Software
The setup file for the Thinkware Dash Cam PC Viewer is included in the MicroSD card within the package. Please check THINKWARE homepage(www.thinkware.com) for the latest Dash Cam PC Viewer application. - Page 31 Windows 7 (32/64bit), Windows 8.x (32/64bit) ① Move the file named “Dashcam Viewer.zip” stored in the MicroSD card to the desktop. ② Right click on the mouse and select “Open With” > “Archive Utility” to launch the Thinkware Dash cam PC viewer application.
- Page 32 The MicroSD card will not be recognized by the software until it has been initialized in the dash cam. It is recommended that the user record at least one video clip on the MicroSD card with the dash cam unit before accessing the Thinkware Dash Cam PC Viewer.
- Page 33 4-1-4. Thinkware Dash Cam PC Viewer Overview Full Screen Switch between Front/Rear View Dash Cam Setting / Information File Open Rear View (Enabled only if MicroSD card contains video captured using rear Viewing Screen view camera) Checks the location Playback...
- Page 34 4-1-5. View Video Playlist Select appropriate folder (Continuous Recording, Incident Recording, Manual Recording, Parking Motion, Parking Incident) to see the playlist for each recording mode. Continuous Recording Playlist Manual Recording Playlist...
-
Page 35: Specifications
5-1. Specifications The specifications of this product may change without prior notice for product improvements. Item Standard Note Model F750 105.2 x 61.5 x 41mm / 140.5g Size/weight 4.14 x 6.36 x 1.6 inches / 0.31 lbs Capacity MicroSD card (UHS-I)
