Page 1
Cigar Humidor Turning Kit Instructions Effective August 2018 Review full manual instructions prior to use for important safety information. Always check Rockler.com to confirm that you are using the most recent manual version for your product.
Page 2
Instructions and safety warnings for your product (see the • Keep children and bystanders away from the tool Instructions link on the product page at Rockler.com). operating area; • Do NOT use power tools in explosive environments, or in >...
Page 3
PRODUCT SPECIFIC SAFETY WARNINGS > When working with epoxy, make sure the area is > Do NOT use cyanoacrylate (CA) glue. As it cures, it will well-ventilated, wear nitrile gloves and use an applicator. leave an unsightly residue on the inside of the Tubes and Avoid contact with skin or clothing.
Page 4

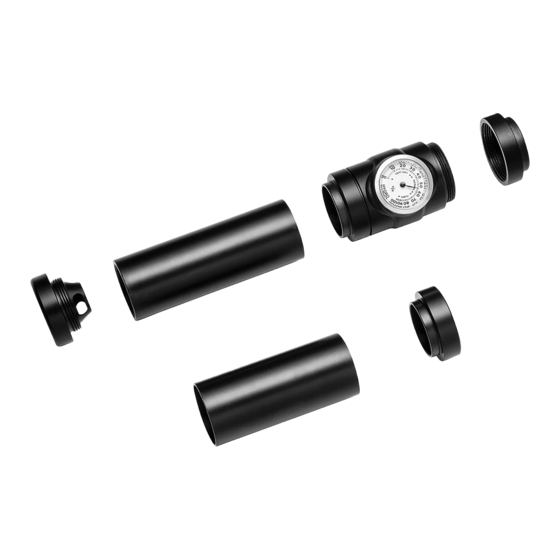

Hygrometer Collar Top Cap Lower Tube Bottom Cap Platform (foam disk underneath) Upper Tube Coupler Ring SUPPLIES NEEDED ⁄ " Diameter Forstner bit (50510, sold separately) Forstner Bit Extender (32937, sold separately) 2" x 2" x 6" Blank (min.) Pen Mandrel Pro Pen Turning Mandrel, #2 Morse Taper (49514, sold separately) Pro Pen Turning Mandrel, #1 Morse Taper (44309, sold separately) Adjustable Pen Mandrel, #2 Morse Taper (48377, sold separately)
Page 5
Fig. 1 9. Prepare to glue the tubes into the blank sections by masking off the interior of the tube ends with painter’s tape. Make sure that the tape extends at least 1" into the tube and that it is pressed tight to prevent any glue squeeze-out from adhering to the tube.
Page 6
Threaded End of Lower Tube Upper Tube Lower Tube Mandrel Cigar Humidor Bushings Fig. 3 Turning the Blanks 1. Assemble the blanks on the mandrel with the Cigar Humidor Bushings (57951, sold separately). Fig. 3. Make sure that the blanks are oriented correctly and that grain continuity is preserved.
Page 7
If you want a lower humidity, unscrew the Bottom Cap and allow some moisture to evaporate. Check Rockler.com for updates. If you have further questions, please contact our Technical Support Department at 1-800-260-9663 or support@rockler.com...
Page 8
52103 Distributed by Rockler Companies, Inc. Rev 08/18 Medina, MN 55340...
