2.2 Installation Orientation and Clearances

The drive can be installed horizontally (see Illustration 2.4)

or vertically (see Illustration 2.3) on any plain surface with

the PCB pointing towards the surface. Typically, the 6

mounting holes in the side flaps of the chassis are used for

installation.

For vertical installation, the upper two mounting holes can

be used as suspension holes.

NOTE

If the drive is installed on a sheet metal surface, the

clearance between the drive PCB and the mounting

surface must be observed. As a minimum, sheet metal

gauge 22, 33/1000 inch or 1 mm should be used. If

electrical contact with the mounting surface can not be

avoided an additional isolation foil should be used.

NOTE

For outdoor units, do not install the drive horizontally with

the PCB in the top or bottom. Water condensing on the

PCB cannot be properly drained.

VLT

Inverter Scroll CDS 801 Operating Instructions

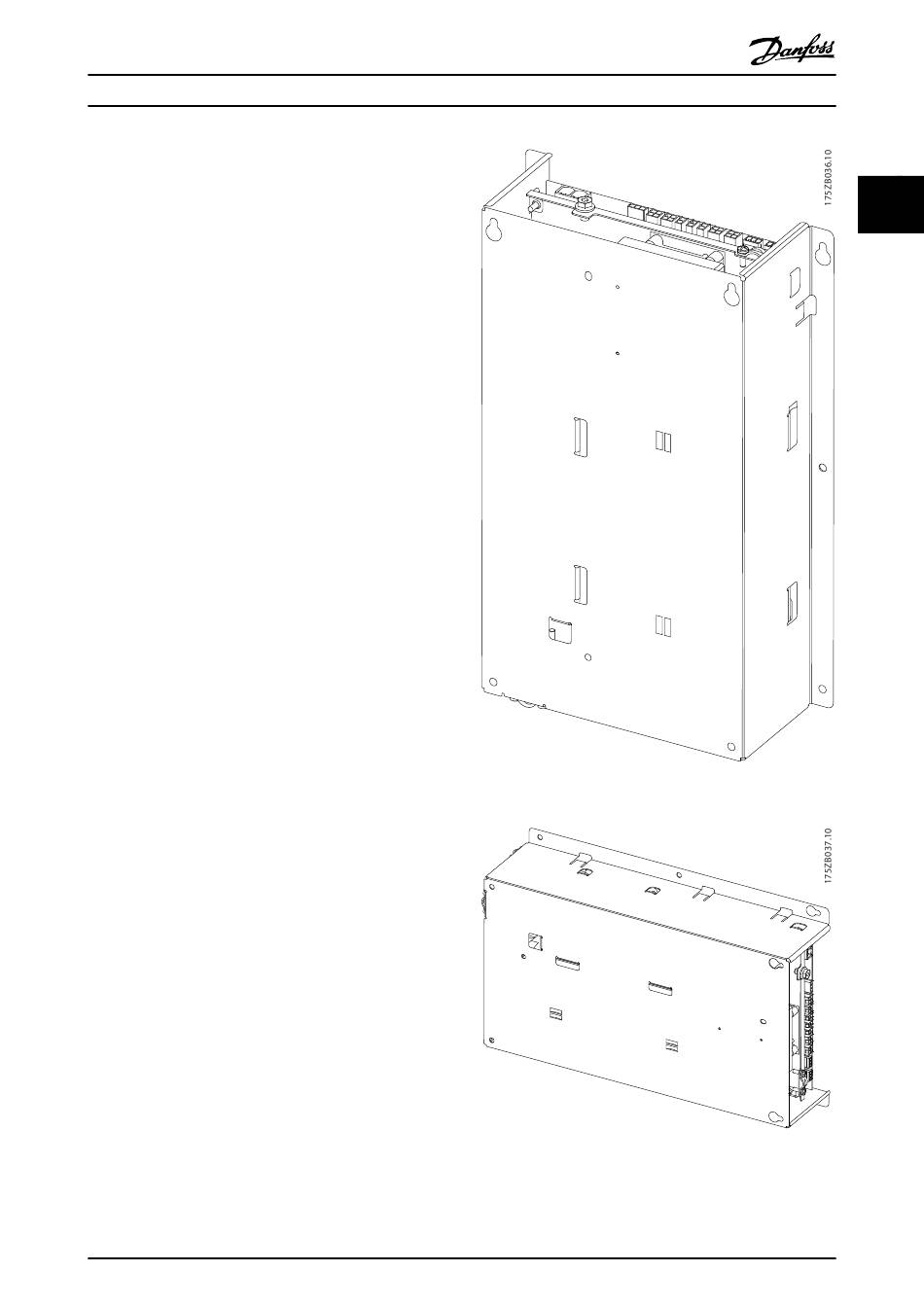

Illustration 2.3 Horizontal Orientation

Illustration 2.4 Vertical Orientation
