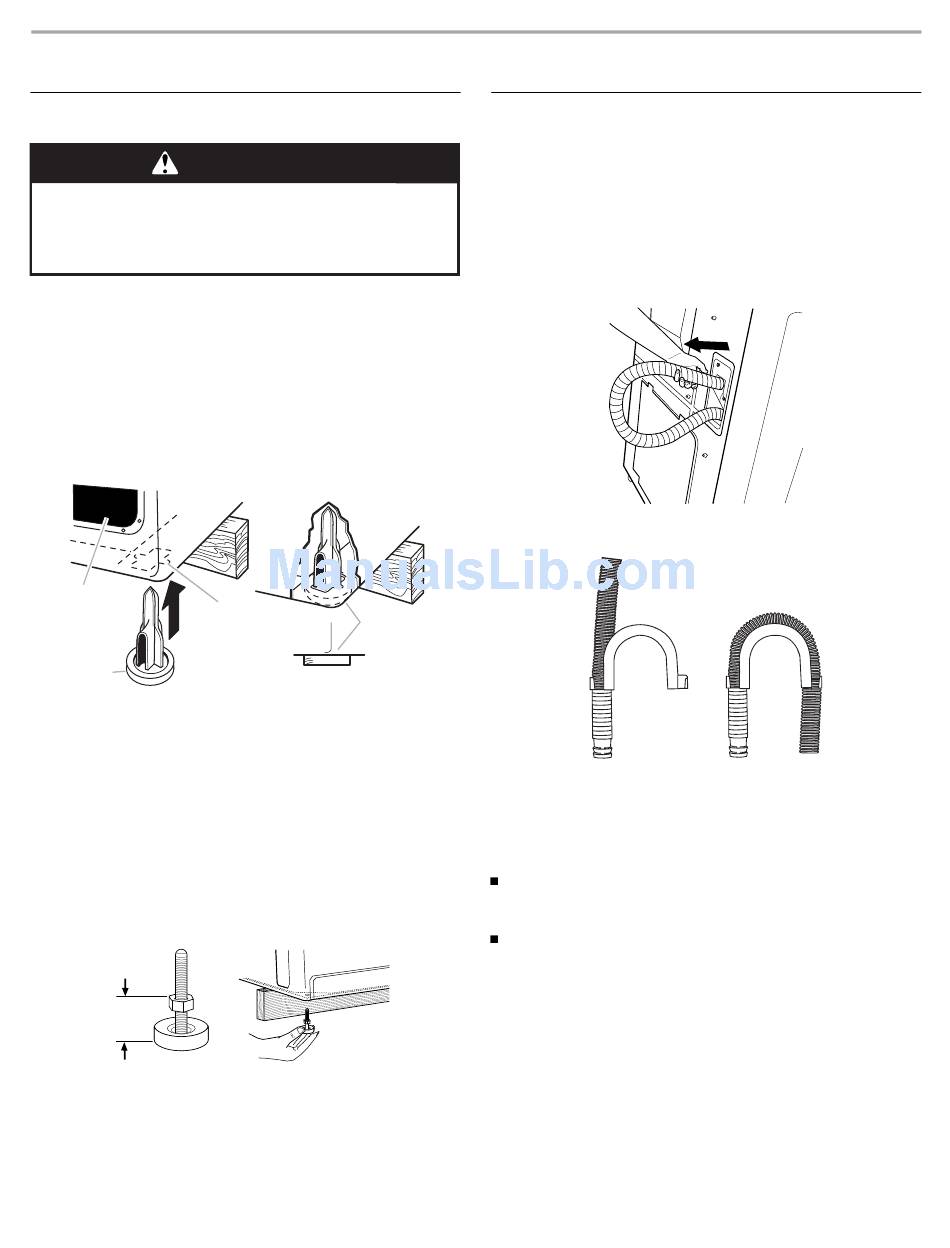

Install Leveling Feet

WARNING
Excessive Weight Hazard
Use two or more people to move and install washer.
Failure to do so can result in back or other injury.
Install the rear self-adjusting feet
1. To prevent floor damage, set the washer onto cardboard.
2. Move the washer to within approximately 3 ft (90 cm) of the
final location.
3. Prop up the rear of the washer about 4" (10.2 cm) with a
wood block or similar object. The block needs to support the
weight of the washer.
4. Install the self-adjusting rear feet by pushing all the way up
into the hole shown below.
A
B
A. Rear panel of washer
B. Rear leveling foot
C. Hole in bottom of washer to receive rear leveling foot
D. Rear leveling foot pushed into bottom of washer
5. Tilt the washer forward and remove the wood block. Gently
lower the washer to the floor.
Install the front leveling feet
6. Prop up the front of the washer about 4" (10.2 cm) with a
wood block or similar object. The block needs to support the
weight of the washer.
7. Screw the locknut onto each foot to within 1" (2.5 cm) of the
base.
1"
(2.5 cm)
8. Screw the feet into the correct holes at the front corner of the
washer until the nuts touch the washer.
NOTE: Do not tighten the nuts until the washer is level.
9. Tilt the washer back and remove the wood block. Gently
lower the washer to the floor.

INSTALLATION INSTRUCTIONS

C
D

Connect Drain Hose

Proper connection of the drain hose protects your floors from
damage due to water leakage. Carefully read and follow these
instructions.
The drain hose is connected to your washer and is stored inside
the washer cabinet.
Remove drain hose from washer cabinet
Gently pull the corrugated drain hose out of the washer from the
top of the hose. Continue to pull the hose until the end emerges.
Do not force excess drain hose back into the rear of the washer.
Laundry tub drain or standpipe drain
Connecting the drain hose form to the corrugated drain hose
A
A. Snap either end of the drain hose form to the drain hose at the
point where the corrugation begins.
B. Bend drain hose over drain hose form and snap into place.
To prevent drain water from going back into the washer:
Do not straighten the formed end of the drain hose and force
excess drain hose into standpipe. Hose should be secure but
loose enough to provide a gap for air.
Do not lay excess hose on the bottom of the laundry tub.
Floor drain
Do not install the drain hose form on to the corrugated drain
hose. You may need additional parts. See Floor Drain under
"Tools and Parts."
B
7
