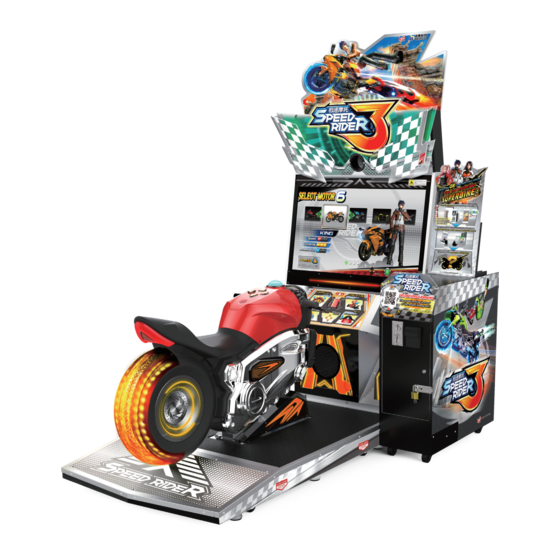

IGS Speed Rider 3 User Manual
  1. Manuals
  2. Brands
  3. IGS Manuals
  4. Arcade Game Machines
  5. Speed Rider 3
  6. User manual

IGS Speed Rider 3 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

User's Manual
●Before installing and using this machine, please read this user manual carefully.
●Before installing and using this machine, please read this user manual carefully.
●Please follow all instructions in this user manual and pay attention to all descriptions to
ensure that the machine is installed correctly.
●Please carefully store this user manual at where it can be easily accessed and read.
Important
●The cabinet and parts of this machine are subject to change for further improvement.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Speed Rider 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IGS Speed Rider 3

Summary of Contents for IGS Speed Rider 3

  • Page 1 User’s Manual ●Before installing and using this machine, please read this user manual carefully. ●Before installing and using this machine, please read this user manual carefully. ●Please follow all instructions in this user manual and pay attention to all descriptions to ensure that the machine is installed correctly.

  • Page 2: About This Manual

    Disclaimer IGS makes no warranty, expressed or implied, including but not limited to any implied warranties of the correctness and completeness of this document. IGS also makes no warranty to any merchantability or fitness for a particular purpose. IGS reserves the right to revise and improve this manual as it sees fit.

  • Page 3: Safety Precautions

    Do not place flammable items near electrical cords to avoid fires. ■ ■ If electrical cords are damaged, replace new ones with your local distributor. ■ ■ Do not use fuses and parts other than those designated by IGS. ■ ■ To avoid electric shocks or short circuits: ■ ●...
  • Page 4 Safety Precautions Transportation ■ ■ When transporting this product with a forklift, make sure to exert the force point to CAUTION avoid accidents or damages to the cabinet. ■ ■ When moving this product with a vehicle, make sure to fasten the caster rather than the leg leveler, or damages might be brought to the cabinet.

  • Page 5: Table Of Contents

    Table of contents Table of contents About this manual .........1 4.5 Game Settings ..........50 4.5.1 Coin Rate Settings..........51 Safety Precautions .........2 4.5.2 Sound Settings ..........51 Table of contents ..........4 4.5.3 Difficulty Settings ..........52 4.5.4 Number Of Laps ..........53 4.5.5 Multiplayer Settings ..........53 Quick installation 4.5.6 Flow Time Settings ...........54 4.5.7 Promotional QR Code ........55...

  • Page 6: Quick Installation

    Quick installation Quick installation Connection and power Setting up 2 cabinets 1. Remove the 2 M4 screws on the maintenance door in the back of the cabinet, and use a key to open the door. 2. Plug in the included Internet wire to the port of the first cabinet (viewed from the back). Setting up 4 cabinets 1.

  • Page 7: Basic Settings

    Quick installation ■ Basic settings Open the coin box under the standby mode, and press the [TEST] button to enter [Operator Settings]. A. Set up the group number and ID of the cabinet Enter [Operator Settings] > [System Settings] > [Connection Settings], and appoint all cabinets in connection into the same group, but provide each cabinet a different ID.

  • Page 8: I/O Adjustments

    Quick installation B. Coin Rate Settings • Enter [Operator Settings] > [Game Settings] > [Coin Rate Settings], and start to set the number of coins to be inserted for starting and continuing the game. C. Setting other related items (recommended) •...

  • Page 9: Introduction Of The Cabinet

    Introduction of the Cabinet Introduction of the Cabinet 1.1 List of the accessories After your purchase of this product, check if the following parts are all included. If any part is missing or damaged, contact your local distributor. Accessories Picture Quantity checking column Operator's manual...

  • Page 10: An Overview Of The Cabinet

    Introduction of the Cabinet 1.2 An overview of the cabinet ■ Viewed from the front and side 2485 /mm An overview of the cabinet...
  • Page 11 Introduction of the Cabinet ■ Viewed from the Top and back An overview of the cabinet...

  • Page 12: Name Of The Parts

    Introduction of the Cabinet 1.3 Name of the parts ■ Name of the exterior cabinet Cardboard ( No.2) Machine name board Camera Cardboard ( No.1) 42"LCD Acrylic board Light box Middle 4'' Speaker 4'' Speaker Cardboard QR code Cardboard Vent Instructions 8'' Speaker Name of the parts...
  • Page 13 Introduction of the Cabinet Billboard Maintenance Door Maintenance Door ( up ) Maintenance Door ( down ) Wheel Power Inlet Leg Level S/Boost Break ( right ) Break ( right ) Break ( right ) Break ( left ) Handle Handle Handle Arrow Keys...
  • Page 14 Introduction of the Cabinet I/O Board Break Light Body Cover Left Side and Right Side light Chassis decorative Tire lights Light Etched panel Middle Cardboard QR code Cardboard Coin Box Back Door Coin Insert Machine Coin Box Door Name of the parts...
  • Page 15 Introduction of the Cabinet ■ Name of the interior parts I/O board S3000 Vibration speaker AMP transformer Power supply Terminal block POWER 1P Test 2P Test Counter Counter Control 測試 panel 服務 Coin Box Power Power Switch Switch 1P Service 2P Service 1P Volume VR 2P Volume VR...

  • Page 16: Specification Of The Cabinet

    Introduction of the Cabinet 1.4 Specification of the cabinet Category Items Specification Size of the cabinet ( W )2485mmX( D )2121mmX( H )2282mm Concrete item Weight Supplied by distributor Power 110V/220V(To conform to local voltage ) Power Standby Power 400W(1 Cabinet) / 800W(2 Cabinet) Maximum power 550W(1 Cabinet) / 1100W(2 Cabinet) Platform...

  • Page 17: Machine Installation

    Machine Installation Machine Installation 2.1 Transporting or moving the cabinet After your purchase of this product, first move the cabinet to the location for installation and then connect the wires. When you transport, move and choose where to install make sure the following guidelines are followed: Reminders for transporting ■...

  • Page 18: Machine Installation

    Machine Installation 2.2 Machine Installation List of the accessories Coin 1 Middle Cardboard BH1707-SJ1400-00 1pcs Coin 2 QR code Cardboard BH1707-SJ1500-00 1pcs Light 3 LOGO Acrylic BH1707-SJ1600-00 2pcs LOGO Front grid Light BH1707-SJ1700-00 2pcs acrylic(right) LOGO Front grid Light BH1707-SJ1800-00 2pcs acrylic(left) Light...
  • Page 19 Machine Installation Light 7 Cardboard (right) BH1707-SJ2000-00 1pcs Machine name board Light BH1707- WJ9000-00 2PCS holder (right) Machine name board Light BH1707WJ9100-00 2PCS holder (left) Light 10 Machine name holder BH1707WJ9900-00 4PCS Machine name board Light BH1707-WJ10200-00 2PCS holder B (right) Machine name board Light BH1707-WJ10300-00...
  • Page 20 Machine Installation Lightbox acrylic board name of machine assembly: ❶ Secure the machine name holder, machine ❷ Secure the assembled LOGO front grid name holder B, LOGO front grid acrylic, acrylic and LOGO acrylic with 10 M4 and machine name disc with 8 M4 screws. screws.
  • Page 21 Machine Installation Money box cardboard and acrylic assembly:  Secure the middle cardboard and card ❻ Secure the middle cardboard and money description support bracket with 4 M4 box holder with 4 M4 screws. screws. ❼ Secure the QR code cardboard acrylic and money box holder with 4 M4 screws. Machine Installation...
  • Page 22 Machine Installation ❽ Secure the screen holder and motorcycle ❾ Secure the holder and motorcycle base base with 4 M6 screws. hardware with 16 M8 screws. Machine Installation: ❿ Open coin box back door, and secure the 1p and 2p with 8 M6 screws. Machine Installation...

  • Page 23: Fastening The Cabinet

    Machine Installation ⓫ Open the maintenance door and then secure U-shaped hook with screws from the inner side. 2.3 Fastening the cabinet Fasten the cabinet with the leg leveler: Counterclockwise turn the leg leveler till a distance of at least 5mm is kept between the caster and the floor. Fastening the cabinet...

  • Page 24: Connection And Power

    Machine Installation 2.4 Connection and Power Connecting 2 cabinets 1. Remove the 2 M4 screws on the maintenance door in the back of the cabinet, and use a key to open the door. 2. Plug in the included Internet wire to the port of the second cabinet (viewed from the back). Connecting 4 cabinets 1.

  • Page 25: Setting The Group Number And Id Of The Cabinets

    Machine Installation 2.5 Setting the group number and ID of the cabinets A. Setting the group number and ID of the cabinets In order to launch a multi-player game (a maximum of 4 cabinets is allowed), you must assign the cabinets into the same group but different ID. If four cabinets are connected, then appoint their ID as 1P, 2P, 3P, and 4P.
  • Page 26 Machine Installation Cabinet(L) Cabinet(R) Please setup the connection here. Please setup the connection here. • Checking connection setup ❹ After completing all settings, the screen should display cabinets to be connected.  For further connection testing, open the coin box, and press the [TEST] but ton to enter [Operator Settings] then enter [Hardware Test] >...

  • Page 27: Instructions Of The Game

    Instructions of the game 3.1 Game introduction Speed Rider 3 is a motorcycle racing game with exclusive features such as infrared bending sensor, immersive vibration experience, and intuitive left or right leaning control so players enjoy full sensory control of the vehicle. Players can moreover experience the exhilarating thrill of ultimate speed by activating the transform and accelerate function with the specially designed fan.
  • Page 28 Instructions of the game ● In scene selection, press [Left] or [Right] to select the scene; use [Up] or [Down] to proceed in clockwise or anti-clockwise direction. ● To instantly throttle, players can imitate the way to raise the front wheel of real motorcycles.
  • Page 29 Instructions of the game ● Leaning the motorcycle to the l e f t a n d r i g h t e n d c a n m a k e turns. ● T h e b e n d i n g p o s i t i o n c a n decrease wind resistance and increase the acceleration speed.
  • Page 30 Instructions of the game ● When the game is in process press [up], [down], [right brake] at the same time to stop the game. ● Use [Up], [Down], [Left], [Right] to select the text, then press key to confirm. ● After scanning the QR code at the bottom right corner to share your results, press [Up] on the standby page (another token is required)

  • Page 31: Instruction Of The Game Display

    Instructions of the game ● Go to the vehicle selection page and the prize will be displayed automatically. 3.4 Instruction of the game display Distance to destination Rank Time Player Distance to avatar destination Number of nitrogen Speed RPM gauge Instruction of the game display...

  • Page 32: Using The Operator Settings

    Using the Operator Settings Using the Operator Settings 4.1 Menu Structure Hardware Test I/O Test Screen Test Sound Test Lamp Test Connection Test Camera Test Counter Test Vibration Test Fan Speed Test System Settings Time Settings Connection Settings Country Settings Store Settings Password Settings Operator...
  • Page 33 Using the Operator Settings Operator settings default list: Menu Structure...

  • Page 34: Using The Operator Settings

    Using the Operator Settings 4.2 Using the Operator Settings To enter the Operator settings, make sure the cabinet is on the standby mode. Notes When the game is in process ,press [up], [down], [right brake] at the same time to stop the game. Open the door of coin box, and press the [TEST] button to enter [Operator Settings] as shown below.

  • Page 35: Hardware Test

    Using the Operator Settings 4.3 Hardware Test You can enter [Hardware Test] to test if all software is normally functioning or not. ❶ Enter [Operator Settings] > [Hardware Test], and the screen will display as follows: ❷ To enter the sub menu, use the [Up] and [Down] buttons to move the cursor and then press the button to confirm.

  • Page 36: Screen Test

    Using the Operator Settings I/O applications Testing method Testing results [Up] [Down] Press the corresponding Well-sensed devices will direction button display in red, but [Left] poorly-sensed ones will remain in white. [Right] Lean or place your hand Sensor on top of the sensor Neutral position is 0.000 Throttle Turn the throttle...

  • Page 37: Sound Test

    Using the Operator Settings ❸ Press the button again and the screen will display red, green,blue, white and black in sequence for you to check if colors shown are correct. ❹ In the black page, press the button to leave monitor testing page. 4.3.3 Sound Test In the page of [Sound Test], you can test whether each sound track is normally functioning or not.

  • Page 38: Lamp Test

    Using the Operator Settings 4.3.4 Lamp Test In the page of [Lamp Test], you can test whether the lights are functioning well or not. ❶ Enter [Operator Settings] > [Hardware Test]> [Lamp Test]. ❷ Choose [Auto Test], and press button, then the system will test all lights in sequence.

  • Page 39: Connection Test

    Using the Operator Settings 4.3.5 Connection Test After you have assigned a group number for the cabinets to be connected and set up the ID, you can enter the page of [Connection Test] to test whether each cabinet of the same group is normally connected. ❶...

  • Page 40: Camera Test

    Using the Operator Settings 4.3.6 Camera Test In the page of [Camera Test], you can test whether the Camera is normally functioning or not. ❶ Enter [Operator Settings] > [Hardware Test]> [Camera Test]. ❷ Enter the page and align the camera to check for issues. ❸...

  • Page 41: Vibration Test

    Using the Operator Settings 4.3.8 Vibration Test In the page of [Vibration Test], you can test whether the Vibration is normally functioning or not. ❶ Enter [Operator Settings] > [Hardware Test]> [Vibration Test]. ❷ After selecting [Vibration Test] and pressing the key, the system will automatically test vibration from levels 1 to 4 (1/4 - 4/4).

  • Page 42: System Settings

    Using the Operator Settings ❸ On this page, [Variable] can also be switched On/Off. ❹ After completing the test, use [Up], [Down] keys to select [Back] then press again to return to previous menu. 4.4 System Settings In the page of [System Settings], you can set up system time, connection, Country Settings, Store Settings, Password Setting or I/O Adjustments.
  • Page 43 Using the Operator Settings ► To adjust the time, make sure the internet is not connected. The set-up procedures are as follows: ❶ Ensure the machine is not connected to the internet. ❷ Enter [Operator Settings] > [System Settings] > [Time Settings]. ❸...
  • Page 44 Using the Operator Settings ❹ Go back to the previous menu [System Setting] > [Time Settings], use the [Up], [Down] key and use the [Up], [Down] keys to select the item you would like to adjust, press the keys to adjust, then press the key to confirm.

  • Page 45: Connection Settings

    Using the Operator Settings  Once time adjustment has been confirmed, use the [Up], [Down] keys to select [Back], press the key and the option to restart the machine will be displayed. Restart is required for this setting to take effect; if you select [No], you will return to the previous menu. 4.4.2 Connection Settings To connect each cabinet (a maximum of four cabinets are allowed), you need to complete the following settings.
  • Page 46 Using the Operator Settings Cabinet (1P) Cabinet (2P) Please setup the connection here. Please setup the connection here. Cabinet (3P) Cabinet (4P) Please setup the connection here. Please setup the connection here. Setup steps are as follows: ❶ Enter [Operator Settings] > [System Settings] > [Connection Settings]. ❷...

  • Page 47: Country Settings

    Using the Operator Settings ❹ You can use the [Up], [Down] keys to select [Network Information], press to enter the page, then check MAC Address, IP Address, Subnet Mask, Gateway are all correct.  After the adjustment has been confirmed, use the [Up], [Down] keys to select [Back], press the key to return to the previous menu.

  • Page 48: Store Settings

    Using the Operator Settings 4.4.4 Store Settings In the option of [Store Settings], you can set up the name of your store which will be displayed in players' information of the ranking list. ❶ Enter [Operator Settings] > [System Settings] > [Store Settings]. ❷...
  • Page 49 Using the Operator Settings ❹ After the original password has been confirmed, press to [Enter new password] and [Confirm new password].  After the new password has be entered, the words [Password changed successfully] will appear at the bottom in red. ❻...

  • Page 50: I/O Adjustments

    Using the Operator Settings 4.4.6 I/O Adjustments In the page of [I/O Adjustments], you can adjust each operating function of the motorcycle. ❶ Enter [Operator Settings] > [System Settings] > [I/O Adjustments]. ❷ Enter the page of [I/O Adjustments], and make sure the cursor is pointing to [Start Adjustments], then press button, to manual adjustment.

  • Page 51: Game Settings

    Using the Operator Settings  Once all of the options have been adjust, press the key to save and return to the previous menu. 4.5 Game Settings In the page of [Game Settings], you can set up all related features of the game. ❶...

  • Page 52: Coin Rate Settings

    Using the Operator Settings 4.5.1 Coin Rate Settings In the page of [Coin Rate Settings], you can determine if free games are offered, and set up the required number of coins to start or continue the game: ❶ Enter [Operator Settings] > [Game Settings] > [Coin Rate Settings]. ❷...

  • Page 53: Difficulty Settings

    Using the Operator Settings ❻ After the adjustment has been confirmed, use the [Up], [Down] keys to select [Back], press the key to return to the previous menu. 4.5.3 Difficulty Settings In the [Difficulty Settings], you can set up the level of the game . The default setting is [Normal].

  • Page 54: Number Of Laps

    Using the Operator Settings 4.5.4 Number Of Laps On the [Number Of Laps] page, you can set up how many times the [Check Point] (increase time) must be passed in the game to reach the final destination. The default setting is [3 Check points]. The set-up steps are as follows: ❶...

  • Page 55: Flow Time Settings

    Using the Operator Settings ❸ Option [Challenge in game player] refers to whether or not other players will be allowed to enter the battle randomly. Press the key, use the [Up], [Down] keys to adjust On/Off, then press the key again to confirm. ❹...

  • Page 56: Promotional Qr Code

    Using the Operator Settings 4.5.7 Promotional QR Code Go to the [Promotional QR Code] page to insert your store's official website or other websites into the game page in the form of a QR code for promotional purposes. The set-up steps are as follows: ❶...
  • Page 57 Using the Operator Settings ❹ To temporarily disable the promotional QR code, go to the option [Enable social network] and press the key, use the [Up], [Down] keys to adjust On/Off, then press the key again to confirm.  After the adjustment has been confirmed, use the [Up], [Down] keys to select [Back], press the key to return to the previous menu.

  • Page 58: Income Data

    Using the Operator Settings 4.6 Income Data On the page of [Income Data], you can view income information. ❶ Enter [Operator Settings] > [Income Data], and the screen will display as below. ❷ To enter the sub menu, move the cursor by using [Up] and [Down] buttons, and press the button to confirm.

  • Page 59: Monthly Income

    Using the Operator Settings 4.6.2 Monthly Income On the page of [Monthly Income] , you can view Monthly income information. ❶ Use the [Up], [Down] keys to move between pages, press the key to return to the previous menu. 4.6.3 Total Income On the page of [Total Income] , you can view the current total number of tokens, number of rounds, number of battles, game time, operation hours, and machine standby ratio.

  • Page 60: System Reset

    Using the Operator Settings 4.7 System Reset In the page of [System Reset], you can set system data and auto reply to the default setting. ❶ Enter [Operator Settings] > [System Settings], Steps are as follows. ❷ To enter the sub menu, move the cursor by using [Up] and [Down] buttons, and press the button to confirm.
  • Page 61 Using the Operator Settings ❸ If you select [Yes]: if Clear was successful the words [Reset Complete] will appear in red. ❹ If you select [No]: you will return to the previous menu directly.  If the password is entered incorrectly, the words [Incorrect password] will appear in red below.

  • Page 62: Restore Default Dettings

    Using the Operator Settings 4.7.2 Restore Default Dettings On the page of [Restore Default Settings] , you can reset the game settings to the default settings. ❶ Enter [Operator Settings] > [System Reset] > [Restore Default Settings]. ❷ Press the key at the option [Enter password], use the [Up], [Down] keys to set the password digit you would like to use, and press the key to confirm and...

  • Page 63: Ranking Board Reset

    Using the Operator Settings ❹ If you select [No]: you will return to the previous menu directly.  If the password is entered incorrectly, the words [Incorrect password] will appear in red below. ❻ If no adjustments are to be made, use the [Up], [Down] keys to select [Back], and press the key to return to the previous menu.

  • Page 64: Reset Player Photo

    Using the Operator Settings ❹ If you select [No]: you will return to the previous menu directly.  If no adjustments are to be made, use the [Up], [Down] keys to select [Back], and press the key to return to the previous menu. 4.7.4 Reset Player Photo On the [Reset Player Photo] page, you can restore the avatar photo to the default setting.

  • Page 65: Update Progress

    Using the Operator Settings ❹ If you selec: you will return to the previous menu directly.  If no adjustments are to be made, use the [Up], [Down] keys to select [Back], and press the key to return to the previous menu. 4.7.5 Update Progress On the [Update progress] page, you can check it there is an update for the latest version.

  • Page 66: Maintenance And Repair

    Maintenance and repair Maintenance and Repair 5.1 Daily inspection To extend the life of this product, routinely maintain and inspect it. Exterior inspection： ● Check if warning labels are coming off, dirty or unrecognizable. If so, replace them immediately. ● Check if the screws inside the speakers are well fastened. ●...

  • Page 67: Replacing Parts

    Maintenance and repair 5.3 Replacing Parts 5.3.1 Replace plate of the light box LED-PART1 Billboard Maintenance Door Remove 2 M4 screws and Billboard Maintenance Door. Then remove the 8 M2 screws, replace the light bar, and reassemble according to the reversed assembly sequence.
  • Page 68 Maintenance and repair Billboard Maintenance Remove 2 M4 screws and Billboard Door Maintenance Door. Remove the 2 M4 screws from the camera holder. Camera holder Remove the 11 M4 screws, Billboard maintenance door, and camera holder. Replacing Parts...

  • Page 69: Replace Camera

    Maintenance and repair Then remove the 2 M2 screws, replace the 2 light bars, and reassemble according to the reversed assembly sequence. light bars 5.3.2 Replace Camera Billboard Maintenance Remove 2 M4 screws Door and Billboard Maintenance Door. Remove the 2 M4 screws and camera holder panel.

  • Page 70: Replace Screen Decorative Led

    Maintenance and repair 5.3.3 Replace screen decorative LED screen acrylic Remove the 10 M4 screws and the decorative screen acrylic. Light bar Replace the light bars and reassemble according to the reversed assembly sequence. Replacing Parts...

  • Page 71: Replace The Screen Lcd

    Maintenance and repair 5.3.4 Replace the screen LCD Remove the 2 M4 screws and maintenance door (up), then remove the screen connectors. screen frame Remove the 6 M8 screws and the screen frame. Remove the 10 M4 screws from the screen frame. screen frame Remove the 8 M4 screws from the screen frame and remove...

  • Page 72: Replace The Fan

    Maintenance and repair Replace the screen frame and reassemble according to the reversed assembly sequence. 5.3.5 Replace the Fan Remove the 4 M4 screws, Instructions PVC, and Instructions acrylic board. Fan holder Remove the 4 M4 screws and fan holder. Replacing Parts...

  • Page 73: Replace Speaker Light Panel

    Maintenance and repair Then remove the 2 M4 screws and nuts, replace the fan and light bar, and reassemble according to the reversed assembly sequence. 5.3.6 Replace speaker light panel Speaker network hardware Remove the 6 M4 screws and the speaker network hardware.

  • Page 74: Replace Left And Right Screen Light Guide Led

    Maintenance and repair 5.3.7 Replace left and right screen light guide LED Speaker network hardware Remove the 6 M4 screws and the speaker network hardware. Remove the 10 M4 screws and the left and right guide light panel fi xture. Then remove the 6 M4 nuts and the light bar hardware,...

  • Page 75: Replace Left And Right Vehicle Decorative Led

    Maintenance and repair 5.3.8 Replace left and right vehicle decorative LED Remove 3 M4 screws. Pull out the left and right decorative hardware from beneath the vehicle. Vehicle light bar holder Remove the 2 M4 nuts and the light bar holder beneath the vehicle.

  • Page 76: Replace Left And Right Led Of Side Cover

    Maintenance and repair 5.3.9 Replace left and right LED of side cover Body side panel Remove the 5 M4 screws and vehicle body side panel. Remove the 3 M4 screws and side panel light cover. Remove the 5 M4 screws from the side panel light cover.

  • Page 77: Replace Left And Right Light Panels Of Tire Rim

    Maintenance and repair 5.3.10 Replace left and right light panels of tire rim Remove the 4 M4 screws,1 M6 screw and tire rim. Tire rim Then remove the 8 M4 screws, replace the 4 light panels, and reassemble according to the reversed assembly sequence.

  • Page 78: Replace Tire Led

    Maintenance and repair 5.3.11 Replace tire LED Tire rim Remove the 8 M4 screws, 2 M6 screws, and tire rim. Remove 10 M4 screws. Light bar tire Remove the tires then replace the 3 light bars, and reassemble according to the reversed assembly sequence. Replacing Parts...

  • Page 79: Replace Vehicle Tail Light Panel

    Maintenance and repair 5.3.12 Replace vehicle tail light panel tail light cover Remove the 3 M4 screws and tail light cover. Light cover Then remove the 4 M4 screws, replace the 2 light panels, and reassemble according to the reversed assembly sequence.

  • Page 80: Replace Fuel Tank Lid Button Light And Micro-Switch

    Maintenance and repair 5.3.13 Replace fuel tank lid button light and micro-switch Remove the 2 M12 screws and 2 M4 screws. Fuel tank lid Pull out the fuel tank lid. Button Remove the button. Replacing Parts...

  • Page 81: Replace Infrared Sensor Circuit Board

    Maintenance and repair Remove the button light and the micro-switch, then reassemble according to the reversed assembly sequence. 5.3.14 Replace infrared sensor circuit board Remove the 2 M12 screws and 2 M4 screws. Pull out the fuel tank lid. Replacing Parts...

  • Page 82: Replace I/O Circuit Board

    Maintenance and repair Remove the 2 M3 screws, replace the infrared sensor circuit board, and reassemble according to the reversed assembly sequence. 5.3.15 Replace I/O circuit board Remove the 2 M12 screws and 2 M4 screws. Pull out the fuel tank lid. Replacing Parts...

  • Page 83: Replace Vr Sensor

    Maintenance and repair Remove the 4 M3 screws, replace the infrared sensor circuit board, and reassemble according to the reversed assembly sequence. 5.3.16 Replace VR sensor Remove the 2 M12 screws and 2 M4 screws. Remove the 6 M4 screws and the VR sensor, then remove the 2 M4 screws.

  • Page 84: Troubleshooting

    Troubleshooting Troubleshooting Problem Solutions ■ Enter [Operator Settings] > [Hardware Test] > [I/O Test] to run The throttle, brakes or the testing. the tilt axis function do ■ If the testing does not respond, contact your local distributor to not work. replace the corresponding VR.
  • Page 85 Troubleshooting Problem Solutions ■ Enter [Operator Settings] > [Hardware Test] > [I/O Test] to run the testing. ■ If no testing results pop out, follow the instruction of <5.3.13 The sensor on the oil Replacing the circuit board of the motion sensor on the oil tank tank does not respond.

  • Page 86: Appendix 1: Warning Labels Of The Cabinet

    Appendix 1: warning labels of the cabinet warning labels of the cabinet...

  • Page 87: Appendix 2: Wiring Diagram Of The Cabinet
