Tap Body Sensor Installation continued...
1. Hold the sensor in the mounting tool inside the
guitar in the area of the bridge plate under the
bridge. (Do not press the pickup against the
bridge plate at this time)
2. Using one of the golf tee locator pins, insert it
through the "A" string bridge pin hole and into
the round hole in the corner of the mounting
tool. Using the second golf tee, insert it through
the "B" string bridge pin hole and into the
slotted hole in the opposite corner of the
mounting tool.

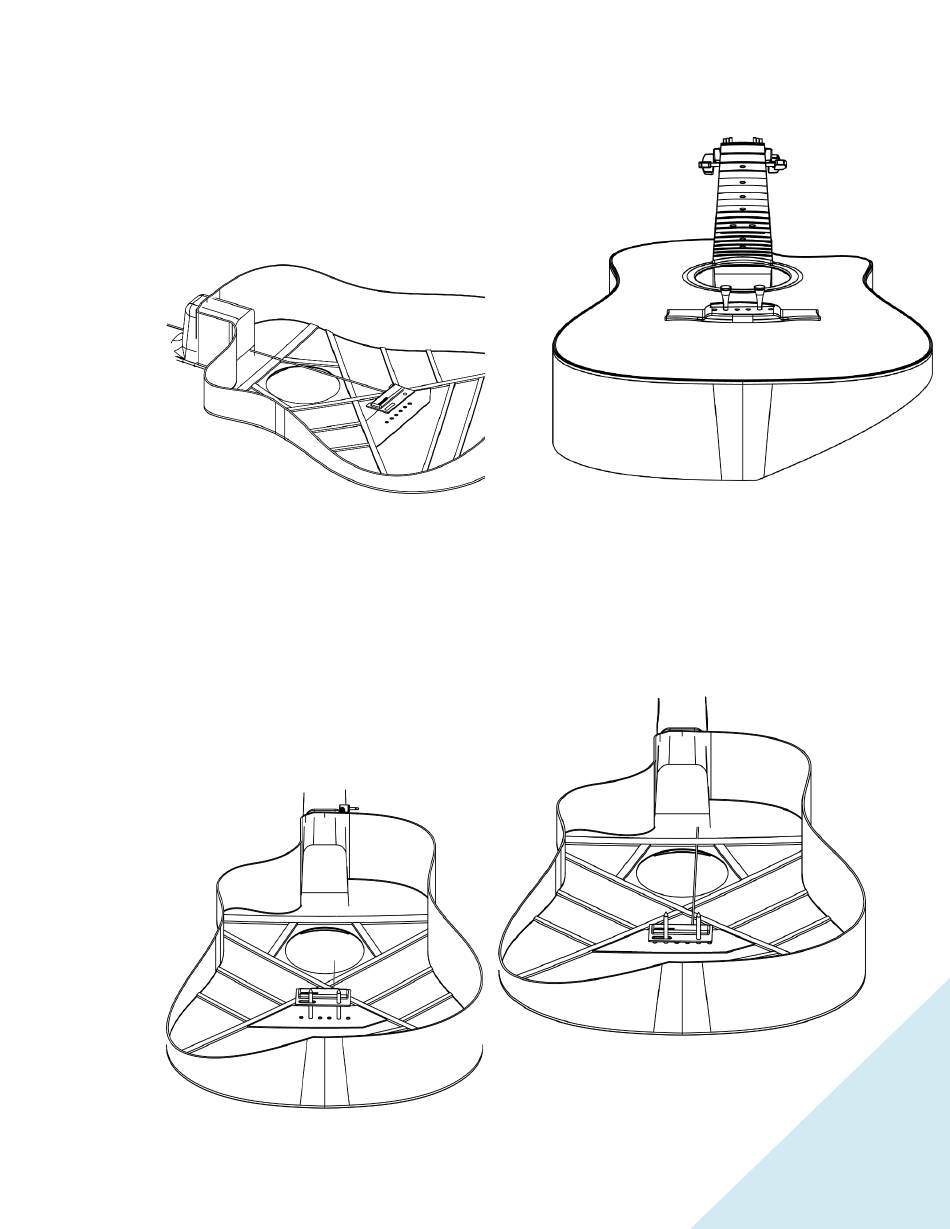

Inside view:
Top View:
3. With both locator pins inserted, gently push the
sensor into place on the bridge plate. Hold against
the bridge plate with firm pressure for 30 seconds.
Once the sensor is attached to the bridge plate
remove the mounting tool and golf tees.
- 2 -
