Anzzi KF-AZ035 Installation Manual

Perfection is our Tradition
1-844-44-ANZZI or visit www.ANZZI.com

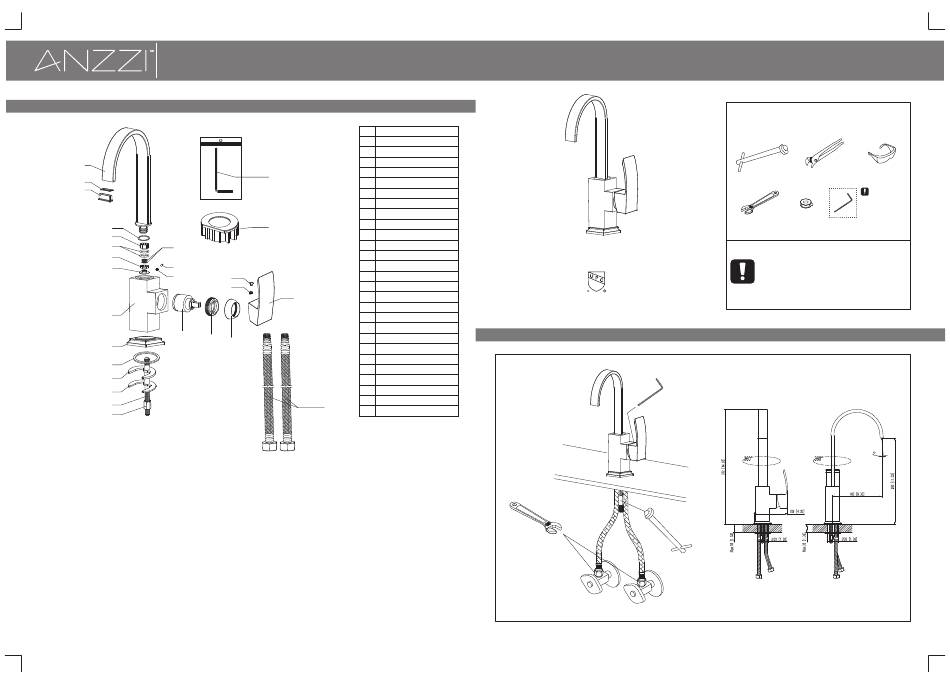

Step 4 Parts list
1
2
3
4
5
6
9
7
10
8
11
12
19
20
13
14
15
16
17
18
T M
NO. PART NAME
1 Spout
2 Washer
3 Aerator
4 Wearing ring
26
5 Ring
6 O-ring
7 Ring
8 Flow restricter
9 Screen filter
25
10 Handle button
11 Screw
Body
12
Base
13
14 O-ring
24
15 Rubber washer
23
16 Clamp
22
17 Screw
18 Lock nut
Cartridge
19
20 Cartridge lock nut
21
Trim cap
21
22 Handle
23 Screw
24 Index
25 Plastic base
26 Allen key
27
27 Flexible hose

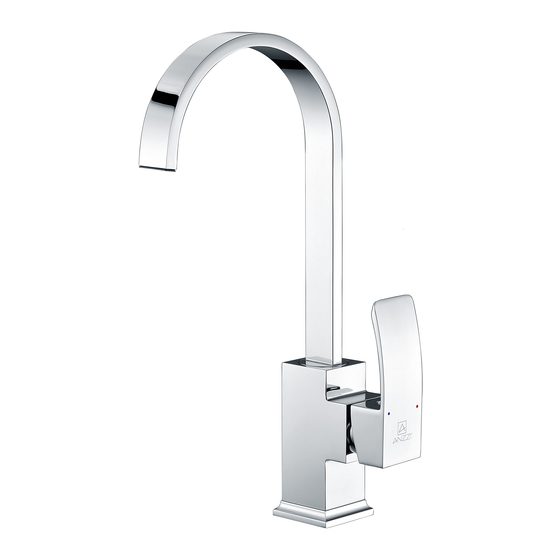

SINGLE HANDLE KITCHEN FAUCET
ASME A112.18.1/CSA B125.1
The tools might be applied to the following places:
KF-AZ035
INSTALLATION MANUAL
RECOMMENDED TOOLS
Basin wrench Channel Locks Goggles
WARNING:
Please keep the
tool for future
use!
Adjustable Wrench Teflon tape Allen key
Attention:
for easy installation, you will need:
1.To read all the installation instruction completely before
beginning.
2.To read all the warning, attention and maitenance
information.
3.To purchase the proper supply lines.
