INSTALLATION GUIDE

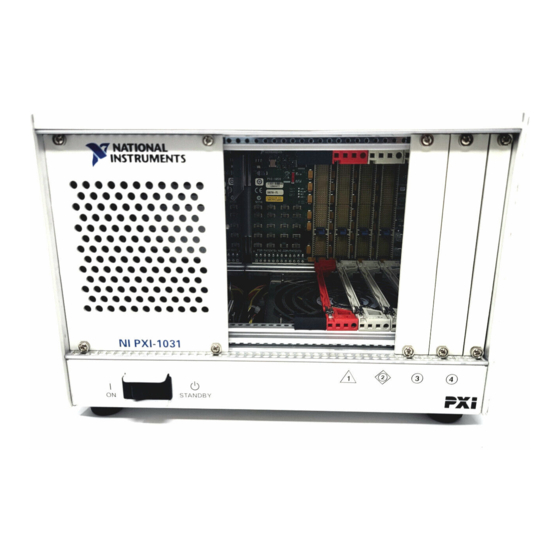

NI PXI-1031 Rack Mount Kit
1 Rubber Feet
2 COA Label Plate
3 Mounting Bracket (Qty. 2)
To mount the NI PXI-1031 in an instrument rack, complete the following
steps.
1.
Remove the bottom feet and COA label plate (as required) from the
NI PXI-1031 chassis.
2.
Install the mounting brackets onto the front or rear of each side of the
chassis using the M4 × 8 panhead screws and lock washers supplied.
Notice that you can recess the chassis in the cabinet rack at .5 in.
increments.
3.
Install the chassis in the instrument rack using four screws (not
supplied).
1

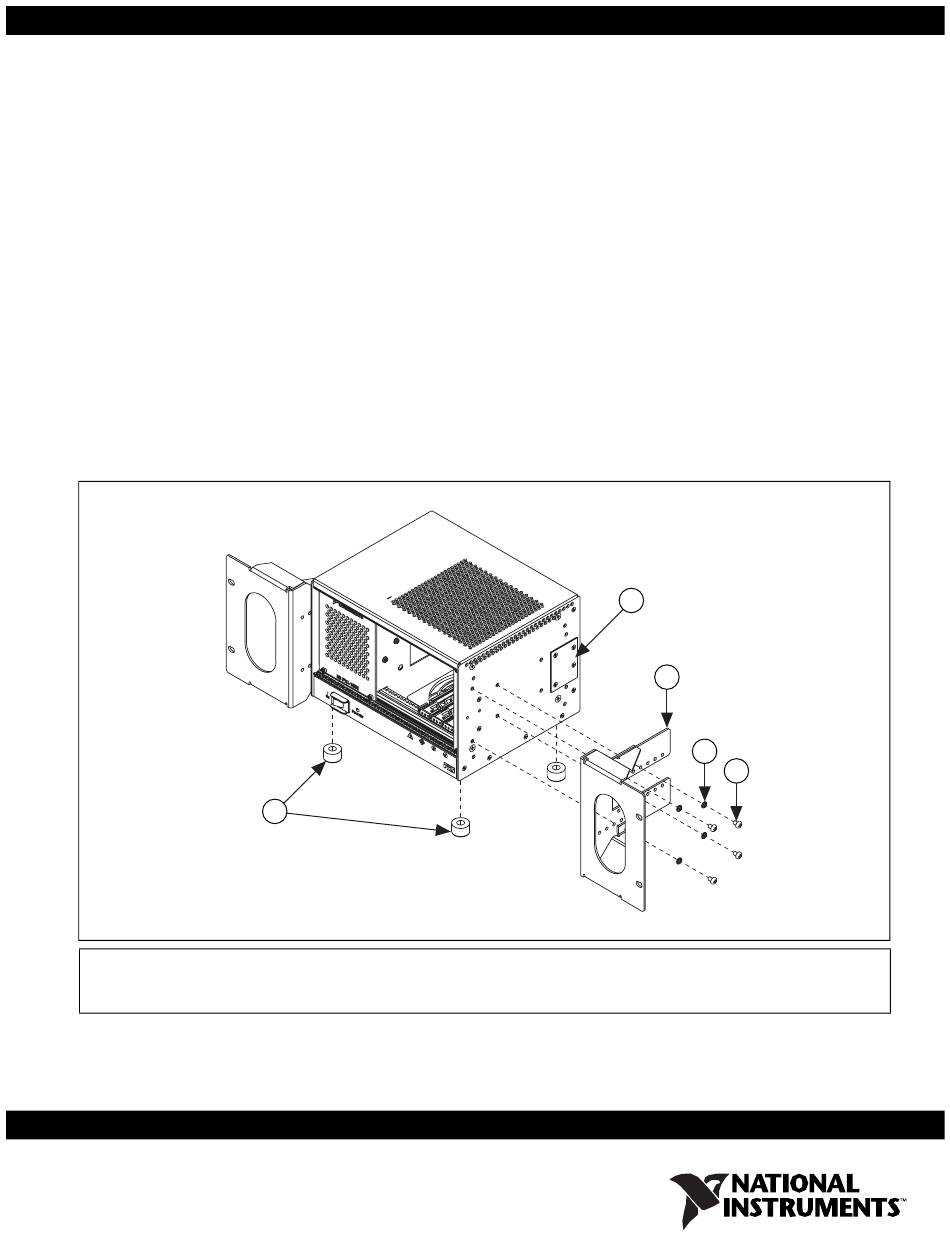

Figure 1. NI PXI-1031 in Rack Mount Configuration
2
3
4 Lock Washer (Qty. 8)
×
5 M4
8 Panhead Screw (Qty. 8)
4
5
