INSTALLATION INSTRUCTIONS
NI sbRIO-9691/9692 Stacking Kit
Note
You need an M3 Phillips screwdriver to install the sbRIO-9691/9692 stacking kit.
1 sbRIO-9691 Sheet Metal Frame OR
2 sbRIO-9692 Sheet Metal Frame
The National Instruments sbRIO-9691 and sbRIO-9692 stacking kits are
accessories you can use to stack NI 9XXXE board-only C Series modules
under the sbRIO-960X/961X/963X/964X. The sbRIO-9691 sheet metal
(part number 195391X-01) is for installation with an sbRIO-960X board;
and the sbRIO-9692 sheet metal (part number196470X-01) is for
installation with an sbRIO-961X/963X/964X board. The sheet metal frames
are labeled with the part number. Throughout this document, the
sbRIO-9691 and the sbRIO-9692 are referred to inclusively as the
sbRIO-9691/9692.

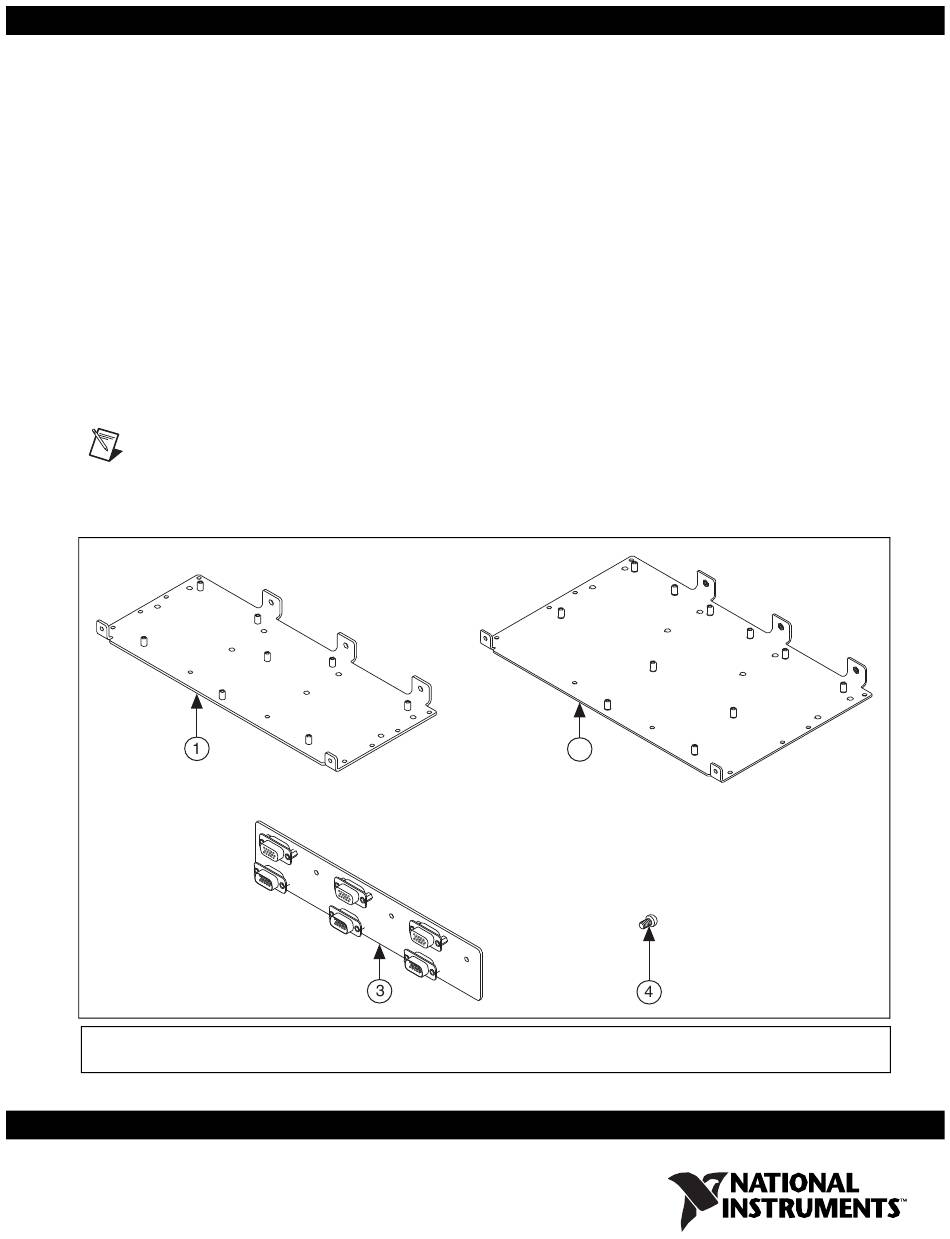

The sbRIO-9691/9692 stacking kit contains the following components:
OR
2
3 sbRIO-969X Riser Card
4 M3x5 Screw (Qty. 19 or 22)
Advertisement
Table of Contents
Related Manuals for National Instruments sbRIO-9691
Summary of Contents for National Instruments sbRIO-9691
- Page 1 Note You need an M3 Phillips screwdriver to install the sbRIO-9691/9692 stacking kit. The sbRIO-9691/9692 stacking kit contains the following components: 1 sbRIO-9691 Sheet Metal Frame OR 3 sbRIO-969X Riser Card 2 sbRIO-9692 Sheet Metal Frame 4 M3x5 Screw (Qty.
- Page 2 The installation instructions are the same when installing the sbRIO-9691 sheet metal frame or the sbRIO-9692 sheet metal frame, except the sbRIO-9691 requires less screws. The sbRIO-9691 stacking kit uses up to 19 screws, and the sbRIO-9692 stacking kit uses up to 22 screws.
- Page 3 Use an M3 Phillips screwdriver and eight (sbRIO-9691) or eleven (sbRIO-9692) M3x5 screws to attach the sbRIO-960X/961X/963X/964X to the sbRIO-969X sheet metal frame, as shown in Figure 1. Note Do not overtighten screws. You may need to adjust the screws when assembly is complete.
- Page 4 Plug the sbRIO-969X riser card into the sbRIO-960X/961X/ 963X/964X and fasten three M3x5 screws into the sbRIO-9691/9692 sheet metal frame, as shown in Figure 2. 1 sbRIO-960X/961X/963X/964X and 2 sbRIO-969X Riser Card sbRIO-9691/9692 Sheet Metal Frame Assembly Figure 2. Plugging the sbRIO-969X Riser Card into the sbRIO-960X/961X/963X/964X...
- Page 5 1 sbRIO-969X Riser Card 3 NI 9XXXE Board-Only C Series Module 2 sbRIO-960X/961X/963X/964X and sbRIO-9691/9692 Sheet Metal Frame Assembly Figure 3. Plugging the NI 9XXXE Board-Only Module into the sbRIO-969X Riser Card © National Instruments Corporation NI sbRIO-9691/9692 Installation Instructions...
- Page 6 Use four M3 5 screws to fasten the first board-only C Series module into the underside of the sbRIO-9691/9692 sheet metal frame, as shown in Figure 4. Use two M3 5 screws to attach each subsequent module. 1 sbRIO-969X Riser Card 2 sbRIO-960X/961X/963X/964X and sbRIO-9691/9692 Sheet Metal Frame Assembly Figure 4.
- Page 7 Torque for screws........0.55 N m (4.9 lb Environmental The sbRIO-9691/9692 is intended for indoor use only but may be used outdoors if installed in a suitable enclosure. Operating temperature internal to any enclosures (IEC 60068-2-1, IEC 60068-2-2)... –40 to 85 °C Storage temperature (IEC 60068-2-1, IEC 60068-2-2)...
- Page 8 Thailand 662 278 6777, Turkey 90 212 279 3031, United Kingdom 44 (0) 1635 523545 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks.
