9.Grasp sides of compactor drawer and place bottom
of drawer into tracks. Lift at the handle so the front
of drawer will go over drawer stops. Close drawer.
Check if drawer opens freely. If the toe plate rubs
against floor, see "Adjusting the toe plate" for further
instructions.

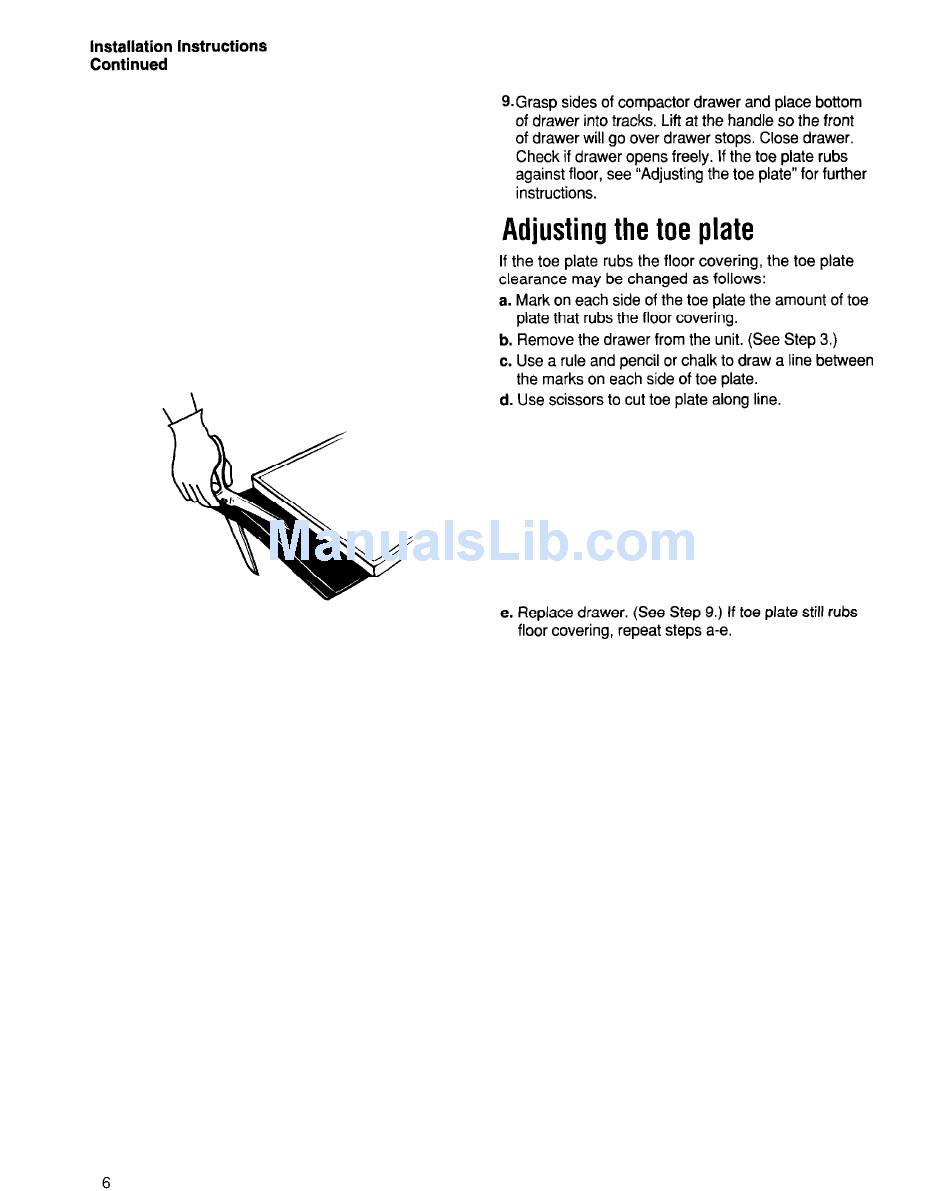

Adjusting the toe plate
If the toe plate rubs the floor covering, the toe plate
clearance may be changed as follows:
a. Mark on each side of the toe plate the amount of toe
plate that rubs the floor covering.
b. Remove the drawer from the unit. (See Step 3.)
c. Use a rule and pencil or chalk to draw a line between
the marks on each side of toe plate.
d. Use scissors to cut toe plate along line.
e. Replace drawer. (See Step 9.) If toe plate still rubs
floor covering, repeat steps a-e.
