Whirlpool TU800SPPB2 Parts List

Whirlpool trash compactor parts list
Hide thumbs


Advertisement

11−05 LITHO IN U.S.A. (ebk)

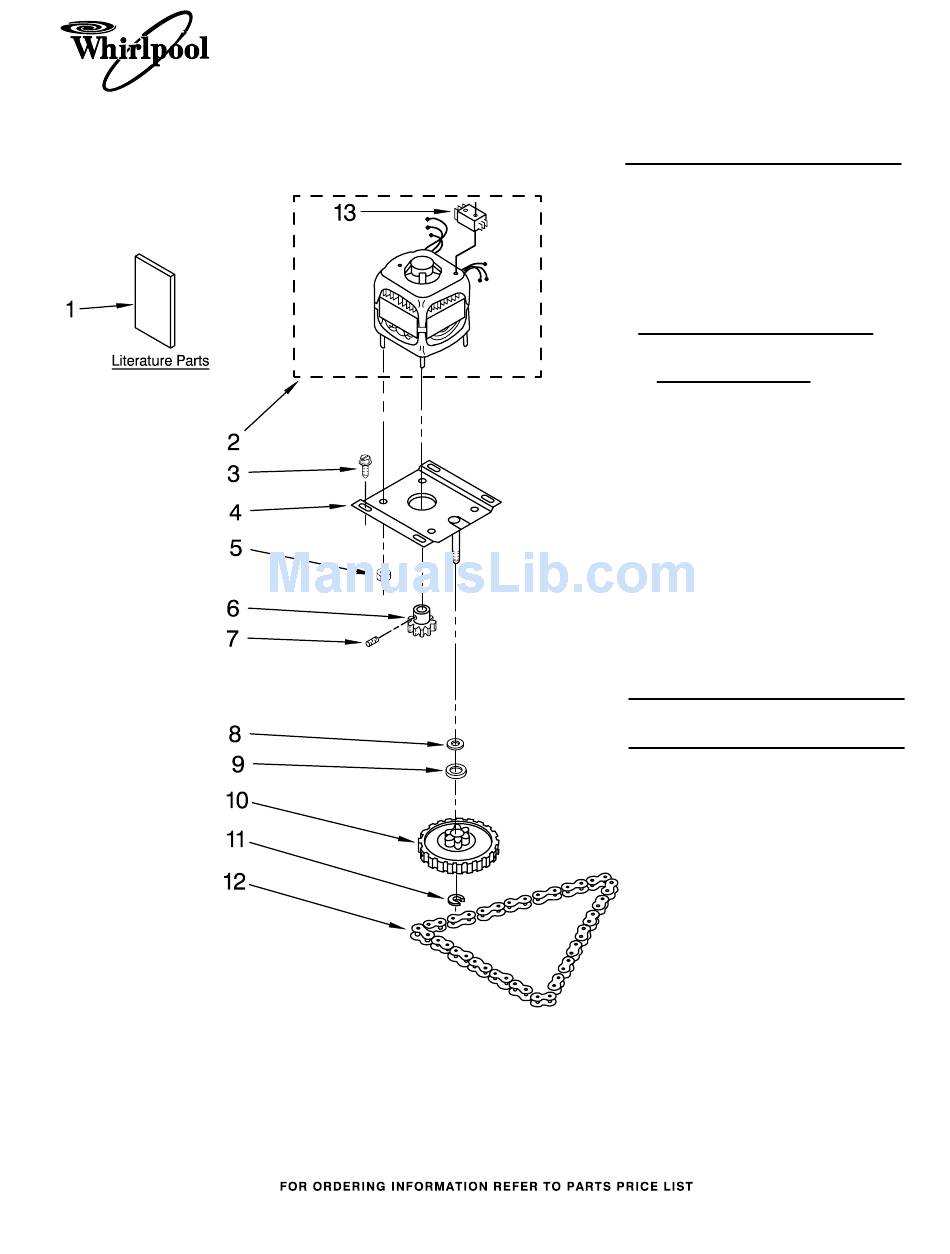

MOTOR AND DRIVE PARTS
For Models: TU800SPPB2, TU800SPPQ2
(Black)
(White)
Illus.
No.
1
Following May Be Purchased
2
3
4
5
6
7
8
9
10
11
12
13
Optional Parts (Not Included)
1
TRASH
COMPACTOR
Part
No.
DESCRIPTION
Literature Parts
9872208 Guide, Use & Care
9871607 Instructions,
Installation
9871765 Tech Sheet
8052029 Label, 1−800
Number
DO−IT−YOURSELF
REPAIR MANUALS
677821 Do−It−Yourself
Manual
9870343 Motor, Drive
(Includes Item 13)
9871067 Screw,
776327 Plate, Motor
776338 Locknut, 10−32 (4)
4149667 Gear, Drive
454512 Pin, Slotted
Spring
776035 Washer, Wave
297462 Washer, Thrust
777124 Gear, Driven
776036 Clip, Ring
780477 Chain, Drive
777971 Switch, Motor
Parts Not Illustrated and
9870118 Undercounter
Conversion Kit
Part No. 882792

Advertisement

Table of Contents
loading

  Related Manuals for Whirlpool TU800SPPB2

  Summary of Contents for Whirlpool TU800SPPB2

  • Page 1 MOTOR AND DRIVE PARTS 11−05 LITHO IN U.S.A. (ebk) For Models: TU800SPPB2, TU800SPPQ2 (Black) (White) TRASH COMPACTOR Illus. Part DESCRIPTION Literature Parts 9872208 Guide, Use & Care 9871607 Instructions, Installation 9871765 Tech Sheet 8052029 Label, 1−800 Number Following May Be Purchased DO−IT−YOURSELF...
  • Page 2: Frame Parts

    777035 Clamp, Wire 780034 Screw, 10−24 x 3/8 777180 Spring, Container 4149377 Switch, Drawer Safety 9870167 Pan, Bottom FRAME PARTS For Models: TU800SPPB2, TU800SPPQ2 (Black) (White) Illus. Part DESCRIPTION 4153788 Bearing, Roller (2) 775526 Bolt, Leveler 776356 Locknut, 3/8−24 9870867 Shield, Slide...
  • Page 3 9871073 White Front 489478 Screw, 8 x 1/2AB Knob, Switch 9870487 Black 9870486 White Plate, Cover 9871160 Black 9870473 White 882792 For Models: TU800SPPB2, TU800SPPQ2 (Black) (White) Illus. Part DESCRIPTION 9871825 Cover, Top (Recessed) 9871829 Switch, Drawer Tilt 608824 Switch,...
  • Page 4 POWERSCREW AND RAM PARTS For Models: TU800SPPB2, TU800SPPQ2 (Black) (White) Illus. Part DESCRIPTION 9870500 Screw, Power Complete Assembly (2) Screw, Power (Available Only As Complete Assembly) 779121 Plate, Bearing (2) 775482 Bearing, Needle (2) 776941 Hub, Power Screw (2) 775481 Race, Thrust (4)
  • Page 5 CONTAINER PARTS For Models: TU800SPPB2, TU800SPPQ2 (Black) (White) 882792...
  • Page 6 CONTAINER PARTS For Models: TU800SPPB2, TU800SPPQ2 (Black) (White) Illus. Part DESCRIPTION Handle, Container 9871267 Black 9871235 White Panel, Container 9871311 Black 9871309 White Front 884573 Container Assembly 3196175 Screw 776395 Guide, Rear Latch 9870066 Latch Assembly Pedal, Foot 4149672 Black...
  • Page 7: Accessory Parts

    94318921 12 Boxes of 15 Pack (15" Paper) 675186 12 Pack 882652 48 Pack 777635 Deodorizer, Solid Stick−Ups (2−Pack) 882792 ACCESSORY PARTS For Models: TU800SPPB2, TU800SPPQ2 (Black) (White) Illus. Part DESCRIPTION Deodorizer Block 9872166LG Lemongrove 9872166GA Green Apple 9872166L Lavender 13030 Carrier, Bag (Includes No.

This manual is also suitable for:

Tu800sppq2
