Whirlpool GC900QPPB1 Parts List

Whirlpool trash compactor parts list
Hide thumbs


Advertisement

3−05 Litho In U.S.A. (ebk)

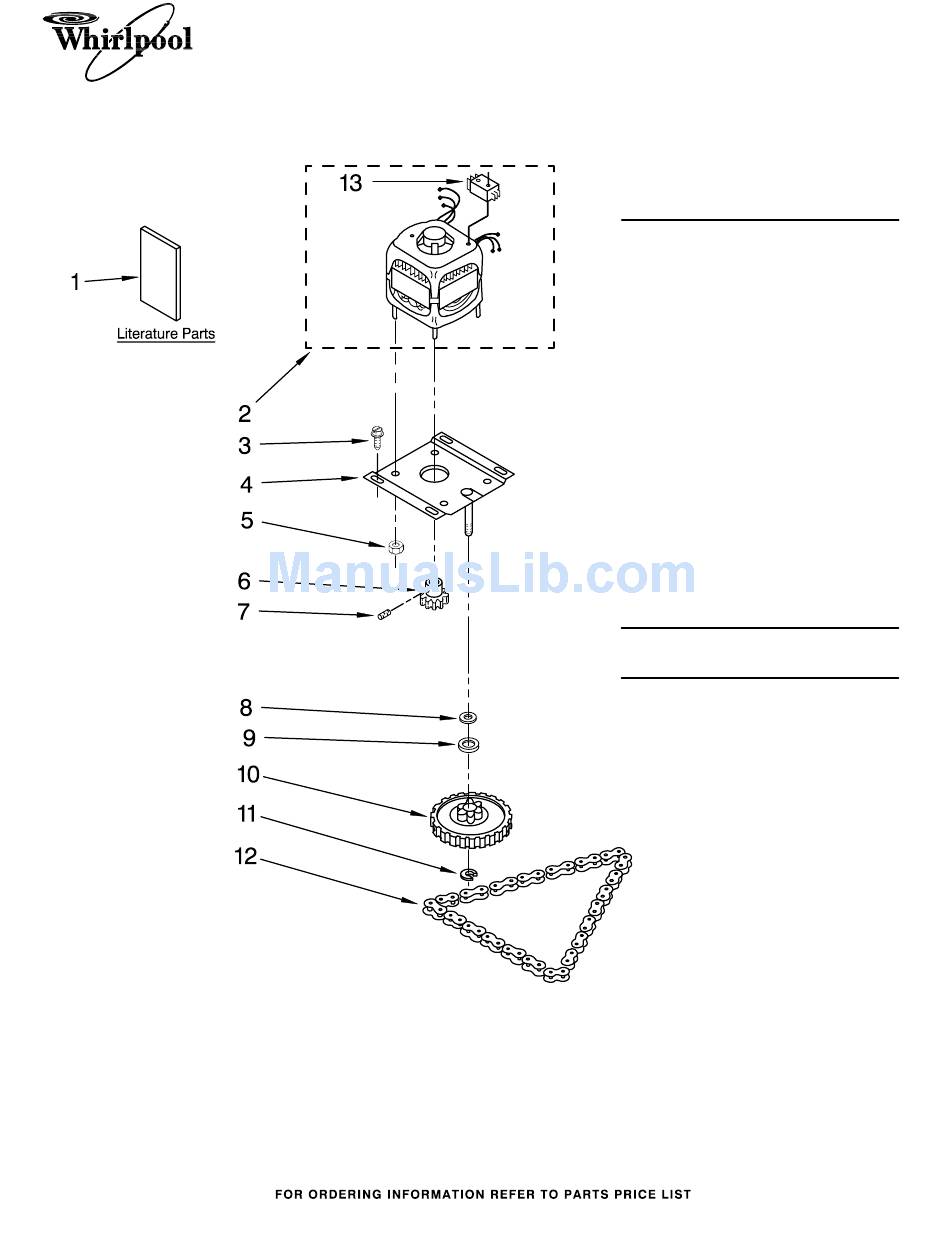

MOTOR AND DRIVE PARTS
For Models: GC900QPPQ1, GC900QPPB1
(White)
(Black)
Illus.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
Optional Parts (Not Included)
1
TRASH
COMPACTOR
Part
No.
DESCRIPTION
Literature Parts
9871676 Use & Care Guide
9871765 Tech Sheet
8052029 Label, 1−800
Number
677821 Do−It−Yourself
Manual
9870343 Motor, Drive
(Includes Item 13)
9871067 Screw,
776327 Plate, Motor
776338 Locknut, 10−32 (4)
4149667 Gear, Drive
454512 Pin, Slotted
Spring
776035 Washer, Wave
297462 Washer, Thrust
777124 Gear, Driven
776036 Clip, Ring
780477 Chain, Drive
777971 Switch, Motor
Parts Not Illustrated and
9870118 Undercounter
Conversion Kit
Part No. 882776

Advertisement

Table of Contents
loading

  Related Manuals for Whirlpool GC900QPPB1

  Summary of Contents for Whirlpool GC900QPPB1

  • Page 1 MOTOR AND DRIVE PARTS 3−05 Litho In U.S.A. (ebk) For Models: GC900QPPQ1, GC900QPPB1 (White) (Black) TRASH COMPACTOR Illus. Part DESCRIPTION Literature Parts 9871676 Use & Care Guide 9871765 Tech Sheet 8052029 Label, 1−800 Number 677821 Do−It−Yourself Manual 9870343 Motor, Drive...
  • Page 2: Frame Parts

    9872114 Cord, Power 780034 Screw, 10−24 x 3/8 777180 Spring, Container 4149377 Switch, Drawer Safety 780437 Pan, Bottom FRAME PARTS For Models: GC900QPPQ1, GC900QPPB1 (White) (Black) Illus. Part DESCRIPTION 4153788 Bearing, Roller (2) 775526 Bolt, Leveler 776356 Locknut, 3/8−24 9870867 Shield, Slide...
  • Page 3 CABINET AND CONTROL PARTS For Models: GC900QPPQ1, GC900QPPB1 (White) (Black) 882776...
  • Page 4 CABINET AND CONTROL PARTS For Models: GC900QPPQ1, GC900QPPB1 (White) Illus. Part DESCRIPTION Cabinet 9870913 White 9870921 Black 489478 Screw 8−18 X 1/2 775676 Plate, Power Cord 777380 Switch, Rotary 4155141 Knob, Switch Plate, Switch 9870356 White 9871161 Black Top, Cabinet...
  • Page 5 CONTAINER PARTS For Models: GC900QPPQ1, GC900QPPB1 (White) (Black) 882776...
  • Page 6 CONTAINER PARTS For Models: GC900QPPQ1, GC900QPPB1 (White) (Black) Illus. Part DESCRIPTION 3400888 Screw, 8−18 x 1/2 Handle, Container 9872040W White 9872040B Black Panel, Container Front 9871309 White 9871311 Black 884573 Container Assembly 3196175 Screw 8−18 X 1/2 776395 Guide, Rear...
  • Page 7 POWERSCREW AND RAM PARTS 882776 For Models: GC900QPPQ1, GC900QPPB1 (White) (Black) Illus. Part DESCRIPTION 9870500 Screw, Power Complete Assembly (2) Screw, Power (Available Only As Complete Assembly) 779121 Plate, Bearing (2) 775482 Bearing, Needle (2) 776941 Hub, Power Screw (2)
  • Page 8: Accessory Parts

    Bag, Trash 675186 12 Pack 882652 48 Pack 777635 Deodorizer, Solid Stick−Ups (2−Pack) 13030 Carrier, Bag (Includes No. 6) ACCESSORY PARTS For Models: GC900QPPQ1, GC900QPPB1 (White) (Black) Illus. Part DESCRIPTION 777108 Handle, Bag Carrier 675351 Grease, 4 Oz. (Use on Power Screw &...

This manual is also suitable for:

Gc900qppq1
