Summary of Contents for Oceanic APOLLO

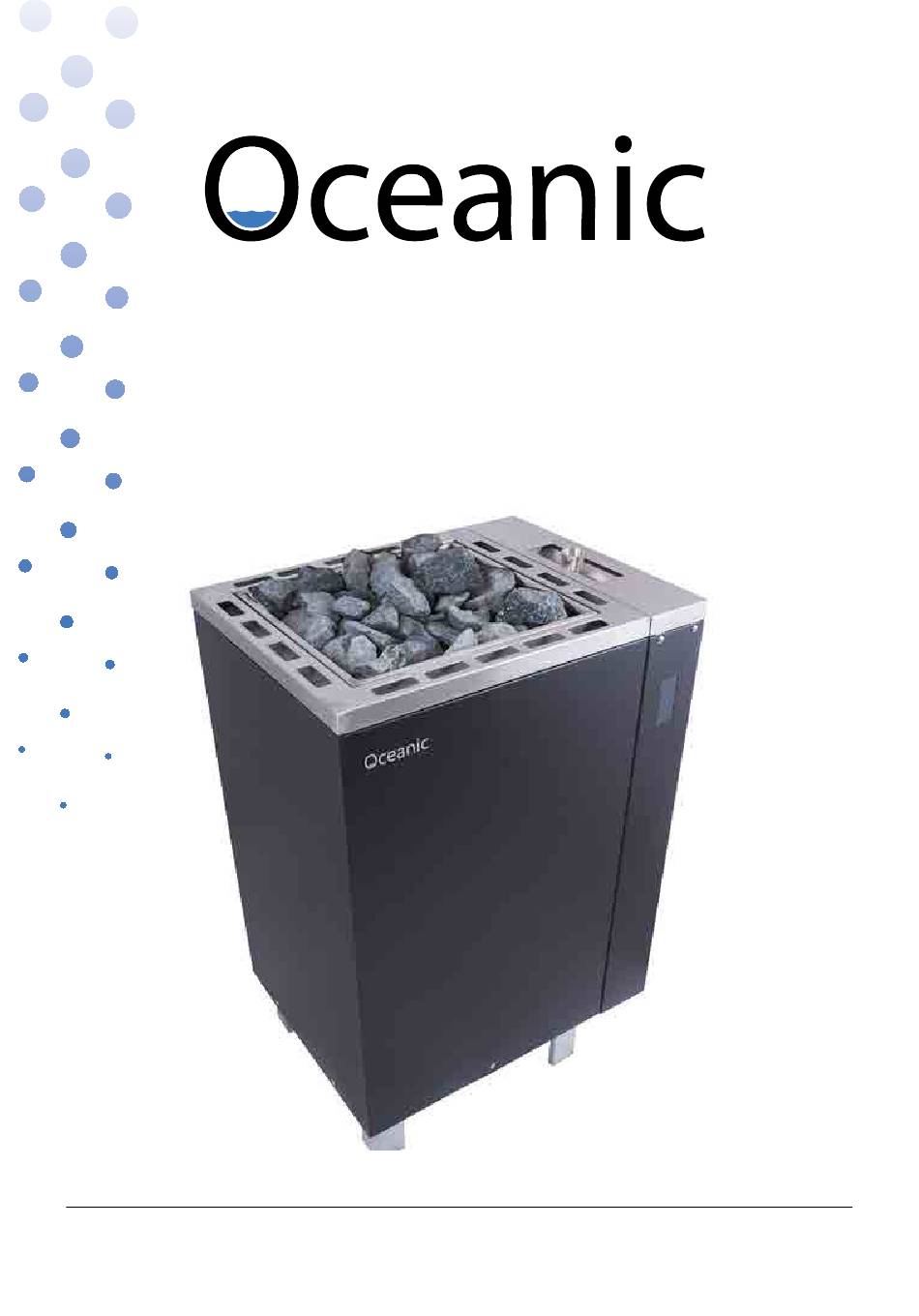

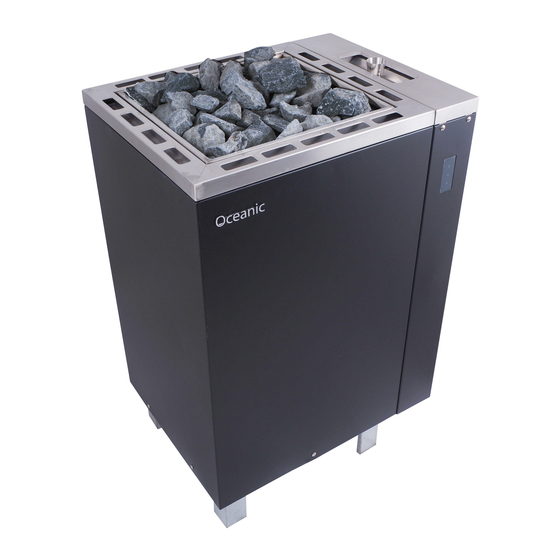

- Page 1 S a u n a & S t e a m APOLLO SAUNA HEATER Assembly and operating manual PRODUCT IMAGE Oceanic Ltd, Pountney Street, Wolverhampton, WV2 4HX Phone: 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
-
Page 2: Table Of Contents
14. Warranty & After Sales ........22 Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk... -
Page 3: Introduction
Sauna Heater Manual Introduction Thank you for choosing to buy our Apollo Series Sauna heater, please take the time to read these instructions before you begin as they contain important information about the installation and maintenance requirements. Apollo Series Sauna heaters are available from 3kw to 9kw and are equipped as standard with our OCSB digital controller . -
Page 4: Specification
1N or 3N Terminal1: L:495 (H1-H6) 5x4mm W:380 H:740 OCAP75 3×1.5kW 7-10 230 or 1N or 3N Terminal1: (H1,H2,H4) 5×6mm 3 x 1kW (H3,H5,H6) 0CAP90 6×1.5kW 9-12 230 or 1N or 3N Terminal1: (H1-H6) 5x6mm Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk... -
Page 5: Sauna Heater And Control Box Circuit Diagrams
Sauna Heater and Control Box Circuit Diagrams AC 230V 1N or 400V 3N AC 230V 1N or 400V 3N From control box Terminal From control box Terminal Fig 1.a OCAP 45, 4.5kw Fig 1.b OCAP60, OCA75, OCA90 Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk... - Page 6 S a u n a & S t e a m Sauna Heater Manual Fig 2a. Circuit Diagram for OCSB control box wired with Single Phase 230V connection Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
- Page 7 S a u n a & S t e a m Sauna Heater Manual ii. Fig 2b OCSB control box circuit diagram with wired with Three Phase 400V connection Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
-
Page 8: Sauna Heater Frame And Parts
Protects the electrical connections Terminal plate Access to terminals Mounting To fix steam generator to bracket heater central body Feet Raise heater off ground Under tray Collect excess water Fig 3b Sauna Heater Part diagram Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk... - Page 9 Fixing Steam Generator to Sauna Heater Note: Steam Generator is an optional item and is not supplied with all Apollo Sauna Heaters. For Apollo Heaters with Steam Unit please refer to the ‘Apollo Heater With Steam Unit and Saunarium Control manual’...
-
Page 10: Oc-Sb Controller
LED On means the heat element is working Stop working LED indicator LED to show Sauna temperature has been reached and the heater is not receiving any power until the temperature drops below preset level. Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk... - Page 11 Outlet to heater ,light and fan output Control cable entry The entry of control cable Light terminal Connect to light wire Fan terminal Connect to fan wire Control panel terminal Connect to control cable Cover Cover Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
-
Page 12: Temp Sensor Frame And Parts
A qualified electrician must do the installation of the heater to ensure safety and reliability. Improper electrical connection can cause fire or electric shock. Refer to fig 1a or fig 1b (Electrical connection chart).and fig 2 Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk... - Page 13 1800mm from floor. The horizontal distance to sauna heater should exceed 500mm. xi. Wash the rocks thoroughly before filling the basket. Discard any with veins running through or any rocks smaller than 50x50mm. Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
- Page 14 The correct size heat proof cable is required to the heater from the control box. This is not supplied as standard but can be bought at the required length from Oceanic Saunas Ltd or a local electrical wholesaler.
- Page 15 Install the temperature sensor as in the diagram opposite ii. Open the cover with a screwdriver iii. Fix the bottom of the temperature sensor on to wall with screw iv. Replace the cover. Fig 10 Temperature Sensor Fig 11 1800 Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
- Page 16 Rearrange the stones in the heater at least once a year or twice if it is in frequent use (maximum 500 hrs). To decide the correct volume of stones in heater, refer to table 1 (Technical parameter ) provided. Fig 13 Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
- Page 17 When it is hot, the outer surface of the heater may burn your skin. 1. Air supply vent 2. Optional air supply vent if mechanical exhaust ventilation is used, the opening is located 50cm Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
-
Page 18: Testing And Operation
Default Time Time adjust scope Working time Waiting Work time Wait time OC-SB 2hrs 4hrs 10mins - 8hrs 0-12 hrs Time adjustment per button press Temperature adjustment per button press 10 mins C /2 Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk... -
Page 19: Trouble Shooting Guide
– once the advance timer begins the countdown sequence if the door is opened the timing will stop and will not restart again until it is reset. 12. Trouble shooting Guide Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk... - Page 20 115 2. --H C means there is a short circuit in the temperature sensor or the temperature is higher than 115 C check the connection,cable or change sensor. 3.Change controller. Oceanic Saunas 01902 450 550 sales@oceanic-saunas.co.uk www.oceanic-saunas.co.uk...
-
Page 21: Maintenance
13.1. Sauna Heaters & Sauna Cabins Maintenance All Sauna products supplied by Direct Saunas Limited and Oceanic Saunas are for use in an indoor environment such as a domestic house or a club building and should not be used in any other circumstances. -
Page 22: Warranty & After Sales
14. Warranty & After Sales All Oceanic Sauna Heaters are guaranteed for 12 months from the date of purchase against faulty materials or workmanship. The guarantee excludes consumable items such as the electrical elements and faults arising from misuse or abuse of the appliance.
