Sill decor
Sill decor
Sill decor- 31373893 - V1.4
Page 1 / 12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Volvo 30784190
Summary of Contents for Volvo 30784190

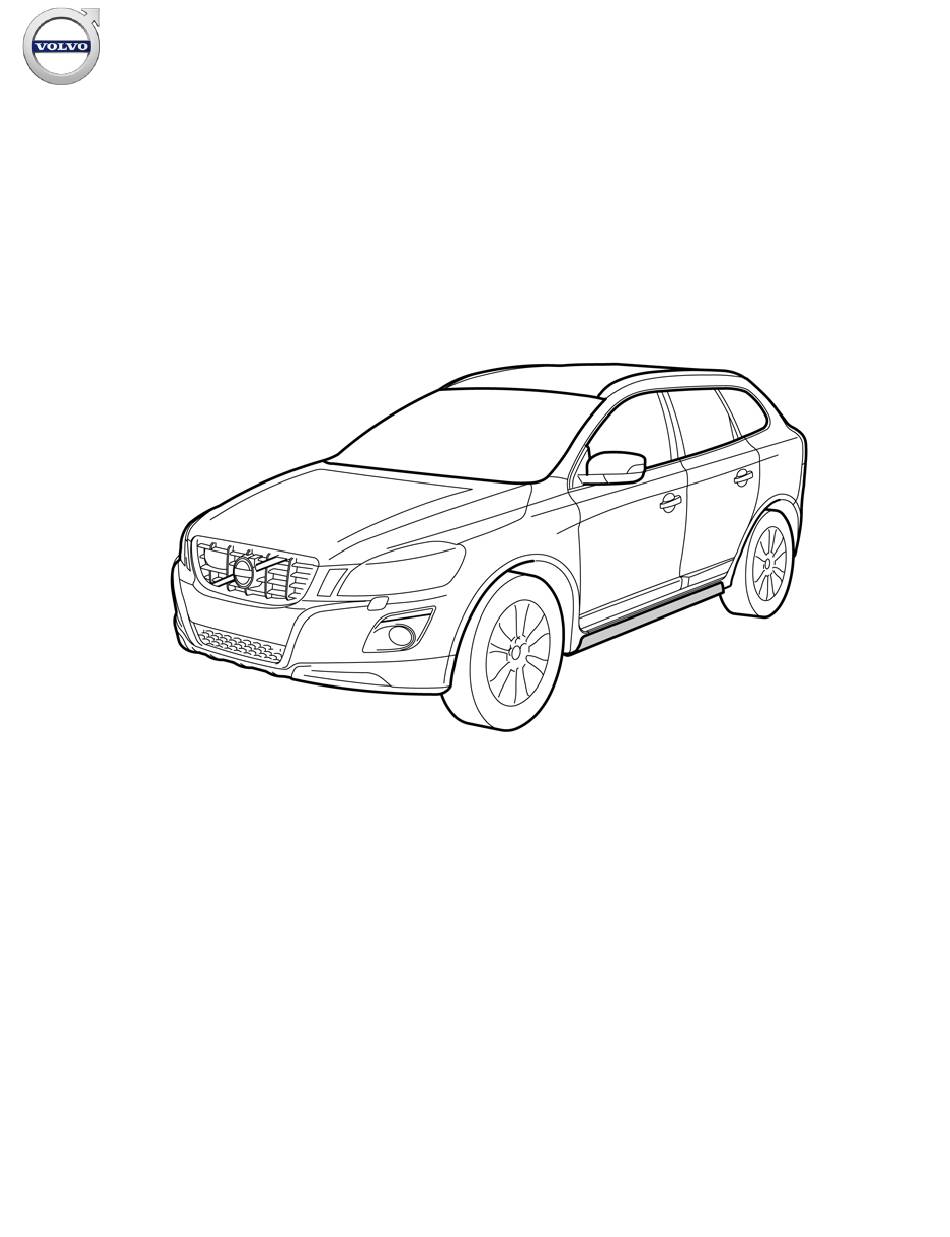

- Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 31373893 31373893 30784190 30784190 Sill decor Sill decor IMG-284607 IMG-284607 © Volvo Car Corporation Sill decor- 31373893 - V1.4 Page 1 / 12...
- Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment A0000162 J0000368 IMG-239660 IMG-239681 A0000177 IMG-251688 A0000170 IMG-285341 © Volvo Car Corporation Sill decor- 31373893 - V1.4 Page 2 / 12...
- Page 3 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-213320 © Volvo Car Corporation Sill decor- 31373893 - V1.4 Page 3 / 12...
- Page 4 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. IMG-285323 Installation of front cradle Take one of the front cradles from the kit. All cradles are marked and only fit in one place.
- Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Align the front edge of the cradle with the rear edge of the joint between the sill panels. Ensure that the tape does not adhere yet. At the same time hook the cradle on the top of the sill panel.
- Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Rivet the cradle in all holes at the sill panel. Break off the hooks along the cradle. IMG-285330 Installation of rear cradle Take the rear cradle from the kit. Remove the protective tape from the mounting tape at all locations.
- Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Align the lugs on the cradle with corresponding holes in the front cradle. Ensure that the tape does not adhere yet. Hook into the sill panel's upper edge and press at the pieces of mounting tape.
- Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Rivet the cradle in all holes at the sill panel. Break off the hooks along the cradle. IMG-285334 Note! Points 10-12, which describe bonding of the sill decor, are carried out to prevent the sill decor from detaching if the lifting...
- Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Clean the marked area on the protrusion between both mounting hooks on the front edge of the decor strip using isopropanol and wipe dry. Repeat the procedure with the rear end. IMG-302004 Note! Work must not be carried out at temperatures above 15º...
- Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Note! Two people are required for this step. Align the decor strip's notch, placed on one of the middle catches, in front of the arrow tip at the front end of the rear cradle.
- Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Rivet the panel through the two holes. Repeat drilling and riveting for the two rear holes. IMG-285337 Press the lower part of the panel towards the sill panel at the front holes.
- Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustrations A and B Note! First detach the central pin from the clip by tapping it in and then pulling it out, but leave it inside the clip a few millimeters. This is done because the decor panel springs in when the clip is attached and the central pin can break off when tapped in.
