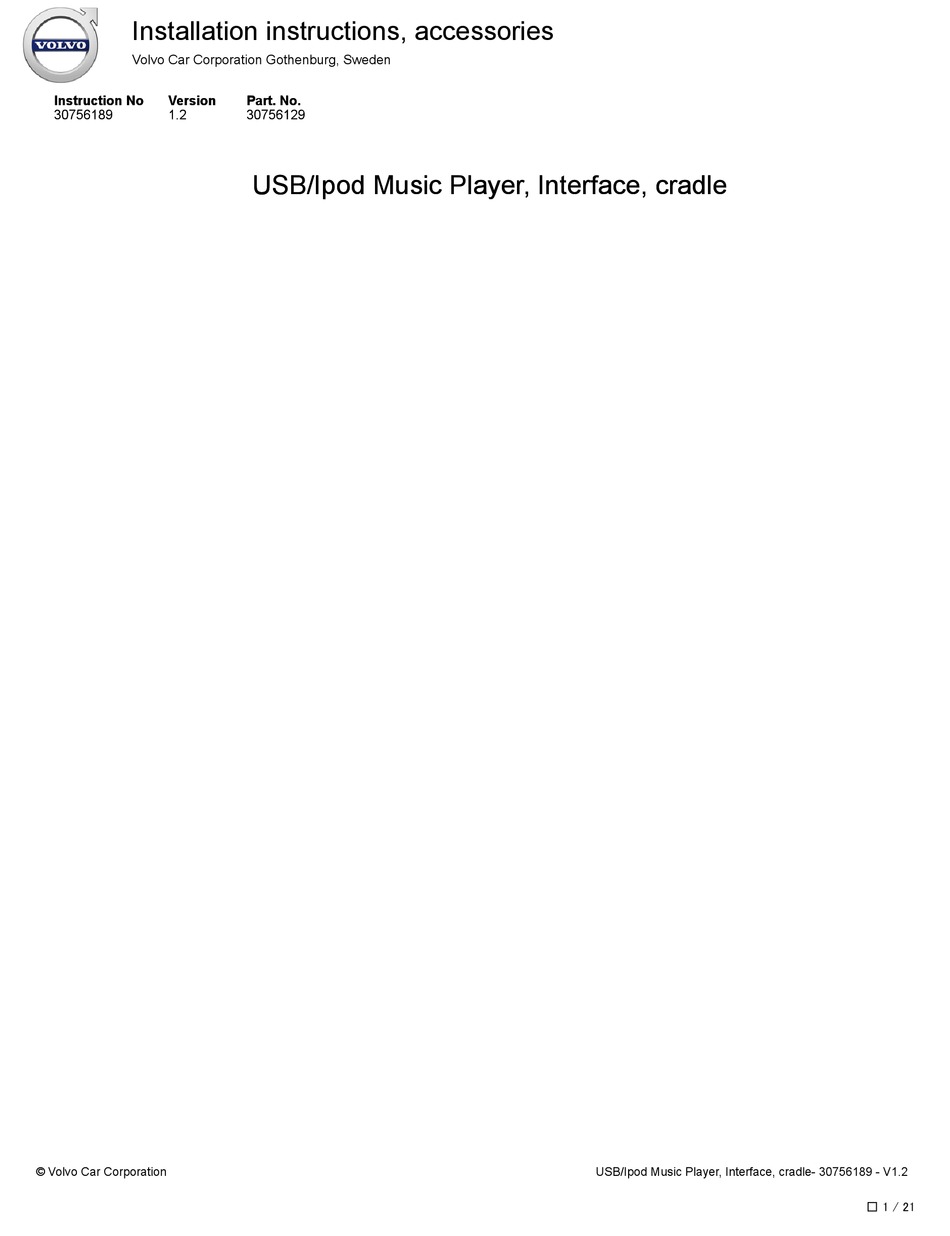

Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Instruction No
Instruction No
Version
Version
30756189
30756189
1.2
1.2
© Volvo Car Corporation
Part. No.
Part. No.
30756129
30756129
USB/Ipod Music Player, Interface, cradle
USB/Ipod Music Player, Interface, cradle
USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2
1 / 21
Advertisement
Related Manuals for Volvo 30756129
Summary of Contents for Volvo 30756129
- Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 30756189 30756189 30756129 30756129 USB/Ipod Music Player, Interface, cradle USB/Ipod Music Player, Interface, cradle © Volvo Car Corporation USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2...
- Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment A0000162 IMG-239981 IMG-302043 © Volvo Car Corporation USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2 2 / 21...
- Page 3 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-213320 © Volvo Car Corporation USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2 3 / 21...
- Page 4 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Applies to the S40, V50, C30 and C70 Applies to the S40, V50, C30 and C70 IMG-302044 ©...
- Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Positioning applies to left-hand drive cars IMG-302045 Applies to left-hand drive cars Position the cradle against the rear end. IMG-302046 © Volvo Car Corporation USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2...
- Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to left-hand drive cars IMG-302083 Applies to right-hand drive cars IMG-302084 © Volvo Car Corporation USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2 6 / 21...
- Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to right-hand drive cars Position the cradle in the middle of the side face. IMG-302085 Applies to right-hand drive cars IMG-302087 © Volvo Car Corporation USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2...
- Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to all models Mark and make holes using a scriber or similar. Caution! The hole must not be larger than 2 mm. IMG-302088 Applies to the XC90 Applies to the XC90 IMG-302089 ©...
- Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Position the cradle in the tunnel compartment's front end. IMG-302090 IMG-302091 © Volvo Car Corporation USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2 9 / 21...
- Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with DVD player (RSE) Position the cradle on the rear end in the tunnel console. IMG-302092 Applies to cars with DVD player (RSE) IMG-302093 © Volvo Car Corporation USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2...
- Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to all models Mark and make holes using a scriber or similar. Caution! The hole must not be larger than 2 mm. IMG-302094 Applies to the V70, XC70 and S80 Applies to the V70, XC70 and S80 IMG-302403 ©...
- Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to left-hand drive cars Position the cradle on the right-hand long side against the rear end. IMG-302404 Applies to left-hand drive cars IMG-302405 © Volvo Car Corporation USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2...
- Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to right-hand drive cars and cars with DVD players (RSE) IMG-302406 Applies to right-hand drive cars and cars with DVD players (RSE) IMG-302407 © Volvo Car Corporation USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2...
- Page 14 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to all models Mark and make holes using a scriber or similar. Caution! The hole must not be larger than 2 mm. IMG-302094 Applies to the XC60 Applies to the XC60 IMG-302408 ©...
- Page 15 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to left-hand drive cars and right-hand drive cars with carphones Position the cradle on the right-hand long side against the rear end. IMG-302409 Applies to left-hand drive cars and right-hand drive cars with...
- Page 16 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to right-hand drive cars Position the cradle on the left-hand long side against the front end. IMG-302423 Applies to right-hand drive cars IMG-302424 © Volvo Car Corporation USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2...
- Page 17 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to all models Mark and make holes using a scriber or similar. Caution! The hole must not be larger than 2 mm. IMG-302094 Applies to all models Applies to all models Slacken off the screws.
- Page 18 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the end section. IMG-302444 The marking on the connector must be pointing outwards. IMG-302445 © Volvo Car Corporation USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2 18 / 21...
- Page 19 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Press in the catches and connect the connector. IMG-302446 Install the rear section and the screws. IMG-302447 © Volvo Car Corporation USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2 19 / 21...
- Page 20 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Connect the connector with the marking pointing outwards. IMG-302448 Install the screw. IMG-302449 © Volvo Car Corporation USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2 20 / 21...
- Page 21 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Screw the cradle in the tunnel compartment. Try to feed in any excess wiring. IMG-302450 © Volvo Car Corporation USB/Ipod Music Player, Interface, cradle- 30756189 - V1.2 21 / 21...
