Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Instruction No
Instruction No
Version
Version
30664381
30664381
1.0
1.0
M3903045
M3903045
© Volvo Car Corporation
Part. No.
Part. No.

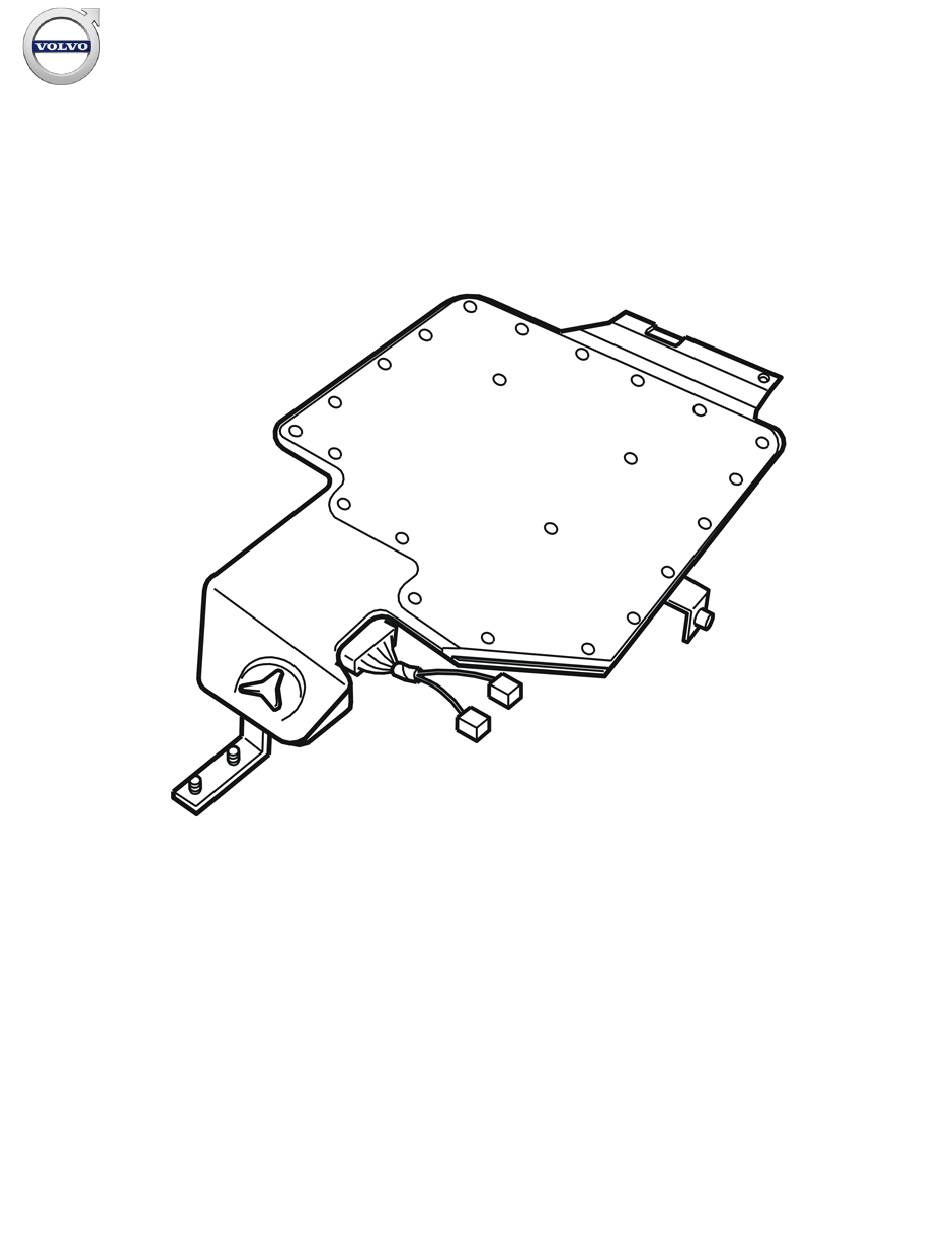

Bass speakers, cargo compartment
Bass speakers, cargo compartment
Bass speakers, cargo compartment- 30664381 - V1.0
Side 1 / 20
Advertisement
Related Manuals for Volvo 30664381
Summary of Contents for Volvo 30664381
- Page 1 Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 30664381 30664381 Bass speakers, cargo compartment Bass speakers, cargo compartment M3903045 M3903045 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 1 / 20...
- Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment A0000162 M3903046 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 2 / 20...
- Page 3 Remove the rear floor hatch. First open the hatch, then pull it backwards. M8503119 Secure the front floor hatch in the open position. M8503120 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 3 / 20...
- Page 4 Remove the storage box from under the rear floor hatch. Turning the clips on the left and right-hand sides 90°. Lift out the box. M8503121 Cut out the insulation panel as illustrated. M8503122 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 4 / 20...
- Page 5 Remove the jack and tool bag from the holder (it will not be used again). There is a new holder and securing device for the jack, too bag and spare wheel in the kit. M7700278 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 5 / 20...
- Page 6 Remove the rubber washer (1) in the rear cross member behind the spare wheel. The hole is used to secure the subwoofer at the rear edge. M8901651 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 6 / 20...
- Page 7 10 to 30 first. M3702197 Remove the folding panels on the left and right-hand sides of the cargo compartment. M8503006 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 7 / 20...
- Page 8 Pull the top of the panel out until the clips release Fold the panel inwards. Lift the panel out. M8503008 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 8 / 20...
- Page 9 Fold the backrest (2) forwards. M8502805 Remove the left-hand side cushion. First pull the upper edge of the cushion backwards and then lift it upwards. A8500151 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 9 / 20...
- Page 10 (2) and fold the loudspeaker forwards to lift it out Disconnect the connector from the loudspeaker. Place it to one side Repeat the operation on the other side. M3902958 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 10 / 20...
- Page 11 Tape the cable harness (2) at the cable and pull it up through the hole for the loudspeaker Repeat the operation on the other side. M3702200 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 11 / 20...
- Page 12 Install the guide pins for the loudspeakers in the corresponding holes in the D-post Fold the loudspeakers upwards until the catches engage Slide in the red catch (1). M3902915 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 12 / 20...
- Page 13 M3903048 Clamp the cable harness at the existing cable harness at the rear cross member. Use four tie straps (1) from the kit. M3702201 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 13 / 20...
- Page 14 9 on the VIN (see the illustration). Illustration C Applies to: -V70 with VIN marking position 8=1 and chassis numbers up to and including 287166 M8903428 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 14 / 20...
- Page 15 Connect the violet (VO) cable to terminal 2 Reinstall the connector Reinstall the cover on the connector Reconnect the connectors to the fuse holder. Tighten the screw. M3702202 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 15 / 20...
- Page 16 Clamp it at the drainage hose. Use the tie straps (2) from the kit as illustrated Hide the ground lead under the insulation panel if possible. M3702208 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 16 / 20...
- Page 17 Thread the strap (1) from the kit into the jack and tool bag holder Place the tool bag and the jack in the holder. Tighten the tool bag and the jack in place using the strap. M8901652 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 17 / 20...
- Page 18 (2) for the removed storage box and the two pins (3) for the battery holder If necessary: Slacken off the knob (4) so that the mounting aligns on the studs. M3903049 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 18 / 20...
- Page 19 Connect the two connectors on the routed cable (1) to the two connectors from the subwoofer Press the cable into the cable duct (2). M3903051 © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 19 / 20...
- Page 20 Volvo Car Corporation Gothenburg, Sweden Position the mat from the kit over the subwoofer. M8901654 Fold down the front floor hatch Reinstall the rear floor hatch. © Volvo Car Corporation Bass speakers, cargo compartment- 30664381 - V1.0 Side 20 / 20...
