Instruction No
Instruction No
Version
Version
31317574
31317574
1.1
1.1

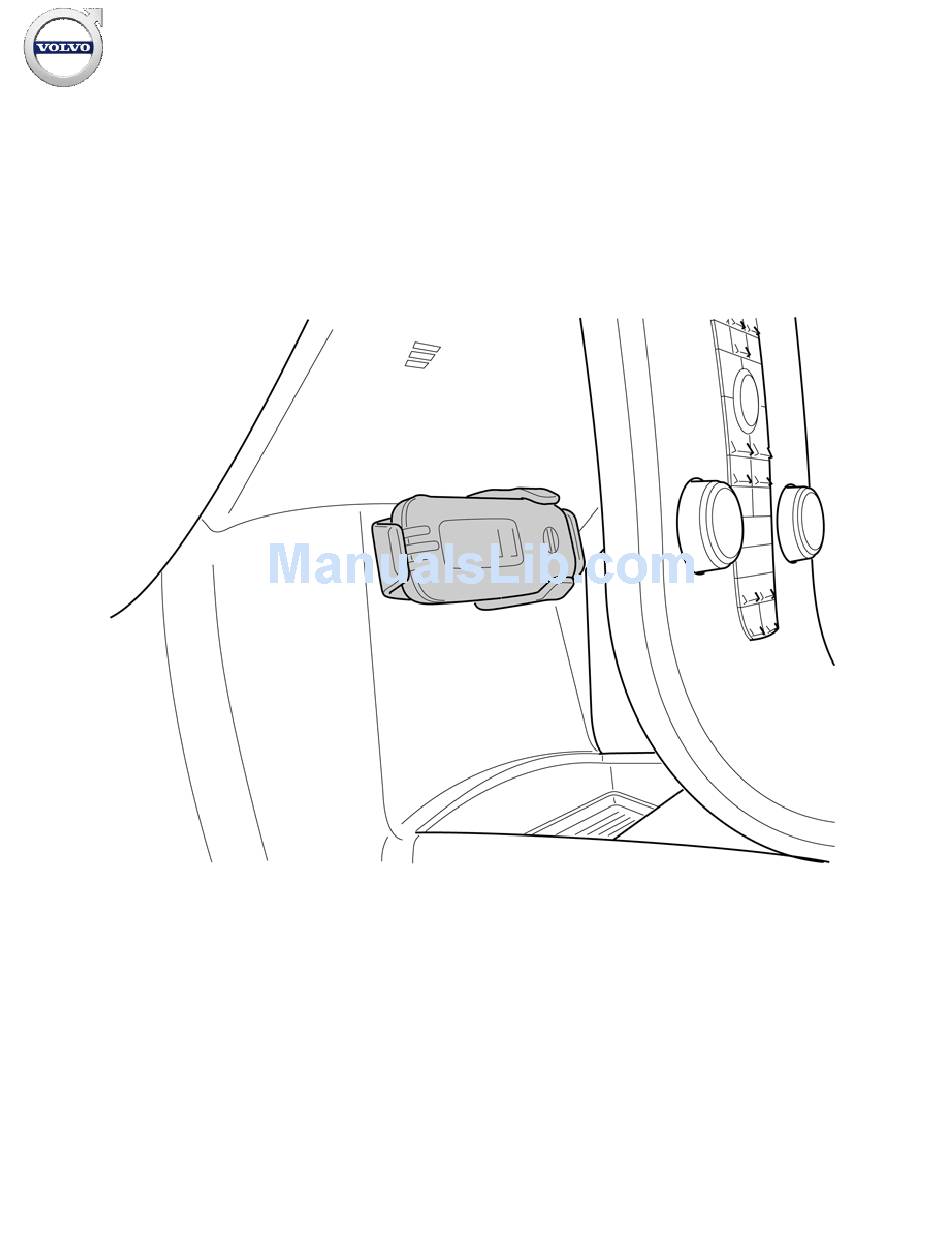

IMG-336184
IMG-336184
© Volvo Car Corporation
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Part. No.
Part. No.
30758207
30758207
Alcoguard
Alcoguard
Alcoguard- 31317574 - V1.1
Page 1 / 15
Advertisement
Related Manuals for Volvo Alcoguard 30758207
Summary of Contents for Volvo Alcoguard 30758207
- Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 31317574 31317574 30758207 30758207 Alcoguard Alcoguard IMG-336184 IMG-336184 © Volvo Car Corporation Alcoguard- 31317574 - V1.1 Page 1 / 15...
- Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment A0000162 IMG-242205 IMG-239660 IMG-239667 IMG-239681 IMG-239981 IMG-240675 IMG-336189 © Volvo Car Corporation Alcoguard- 31317574 - V1.1 Page 2 / 15...
- Page 3 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Note! The work is carried out the same way on left and right-hand drive cars, but mirrored on right-hand drive cars.
- Page 4 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Turn the ignition switch to position 0. Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment. IMG-245980 Place the cradle centrally between the two vertical lines at the front edge of the tunnel console and parallel with the panel at the upper edge.
- Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Open the glovebox. Carefully pry off the panel inside the centre console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides. Pull the panel off downwards.
- Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Carefully fold back the front edge on the tunnel console and ensure that no cable harnesses or anything else is in the way when drilling. IMG-336276 Drill out the holes. Remove any swarf.
- Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the panel on the right end of the dashboard. Carefully pry it loose all around with a weatherstrip tool, until the three legs release. Note! Do not damage the dashboard. IMG-240082 Detach the clip holding the vent from the glove compartment.
- Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the glove compartment's rubber mat. Remove the five screws in the opening to the glovebox. Pull the glove compartment straight back to loosen the two hidden clips in the upper edge.
- Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Make a cut out for the cable in the panel. Do not cut out more than necessary so that the cable can be secured slightly. IMG-336307 Drill a Ø 10 mm (25/64") hole on the left side of the glove compartment's outer part.
- Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Get the adapter wire from the kit and plug in one connector to the connection for the glove compartment lighting. Route the wires at the lower edge to the other side. IMG-300893 Fasten the wires and the little green connector with pieces of butyl tape.
- Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Insert the small connector and the whole cable in the glove compartment's outer part. IMG-300899 Fasten the wire at the hole with a piece of butyl tape. IMG-300904 © Volvo Car Corporation Alcoguard- 31317574 - V1.1...
- Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Get the outer glove compartment and plug in the connector from the glove compartment lighting to the corresponding in the new adapter wire. Connect the remaining connector to the courtesy lighting. IMG-300923...
- Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Reinstall and tighten down the glove compartment's outer part. Roll up the wire in the glove compartment and fasten it with the velcro strap. J8803318 Pull in the cable to the cradle and place it on the right-hand side of the tunnel console inside the carpet.
- Page 14 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustrations A and B Place the cable in the cut out in the panel and secure. Fold back the carpet. Tighten the cradle. Ensure that the cable is correctly routed in the cut out.
- Page 15 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-300964 Download the software for the accessory's function following the service information in VIDA. IMG-242268 © Volvo Car Corporation Alcoguard- 31317574 - V1.1 Page 15 / 15...
