Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Instruction No
Instruction No
Version
Version
30775801
30775801
1.1
1.1

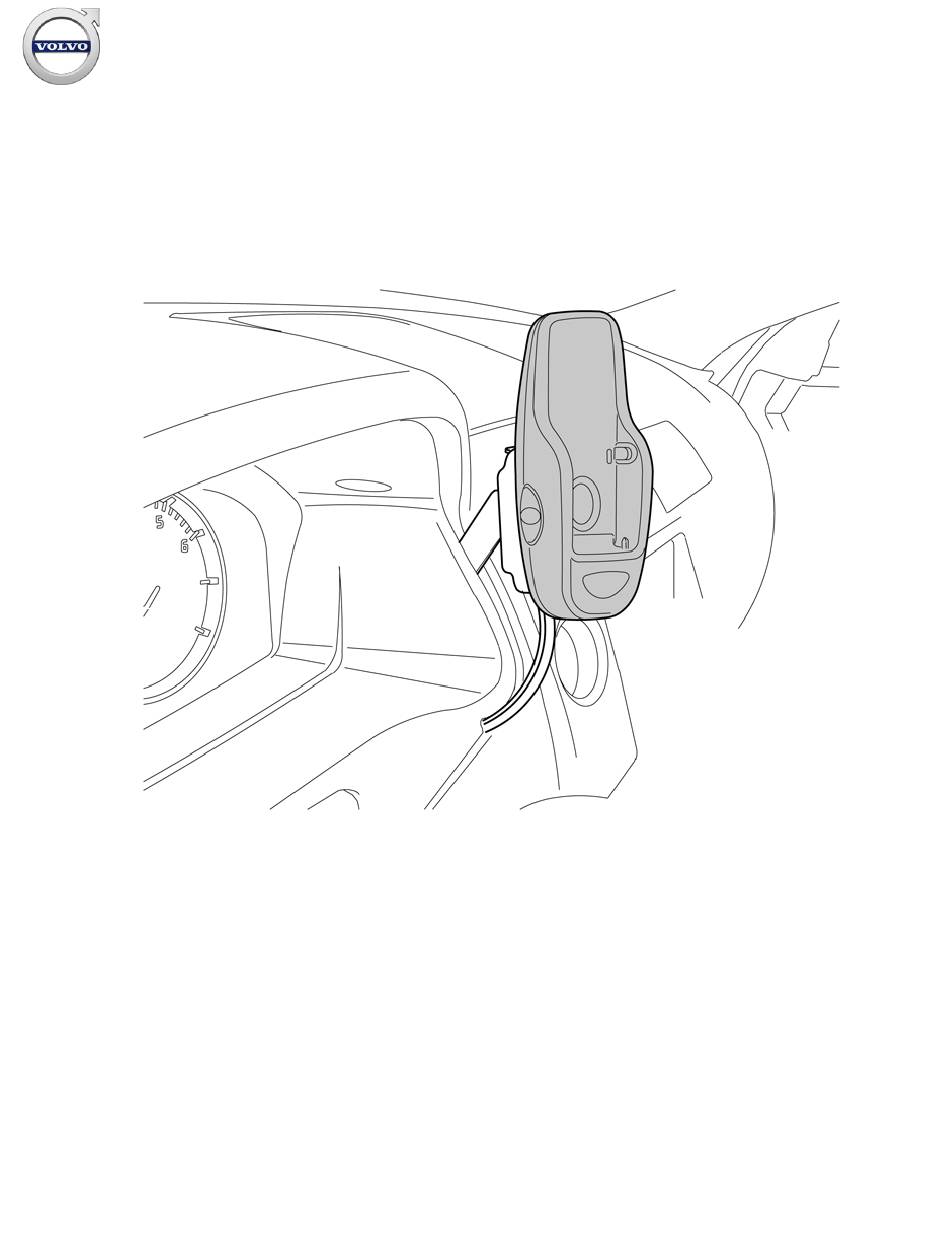

Handsfree for cellular phone, system B, entry level
Handsfree for cellular phone, system B, entry level
IMG-249663
IMG-249663
© Volvo Car Corporation
Part. No.
Part. No.
30775790, 30775791, 30775792, 30775793
30775790, 30775791, 30775792, 30775793
Handsfree for cellular phone, system B, entry level- 30775801 - V1.1
Page 1 / 47
Advertisement
Related Manuals for Volvo 30775790
Summary of Contents for Volvo 30775790
- Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 30775801 30775801 30775790, 30775791, 30775792, 30775793 30775790, 30775791, 30775792, 30775793 Handsfree for cellular phone, system B, entry level Handsfree for cellular phone, system B, entry level...
- Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment A0000162 IMG-239981 IMG-246925 M0000232 IMG-249651 © Volvo Car Corporation Handsfree for cellular phone, system B, entry level- 30775801 - V1.1 Page 2 / 47...
- Page 3 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-249652 © Volvo Car Corporation Handsfree for cellular phone, system B, entry level- 30775801 - V1.1 Page 3 / 47...
- Page 4 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-241704 © Volvo Car Corporation Handsfree for cellular phone, system B, entry level- 30775801 - V1.1 Page 4 / 47...
- Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-213320 © Volvo Car Corporation Handsfree for cellular phone, system B, entry level- 30775801 - V1.1 Page 5 / 47...
- Page 6 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Note! These installation instructions apply to left-hand drive vehicles. When installing in a right-hand drive vehicle, the procedure is carried out on the opposite side and/or mirrored.
- Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Turn the ignition switch to position 0. Disconnect the negative battery cable. Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment. IMG-237320 Use a weatherstrip tool to carefully pry loose the panel at the rear edge of the center console.
- Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the screws. IMG-240084 Open the glovebox. Use a plastic weatherstrip tool to carefully pry loose the panel inside the center console. It is held in place by two clips on each short side.
- Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Apply tape to the center console to protect it during removal and installation of the glove compartment. IMG-239762 Detach the surround around the display and the media player: Press in the catch at the edge of the media player cover. Use a small screwdriver.
- Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Press out the display module from the reverse of the center console. Use both hands and press straight back. Disconnect the two connectors. Put the display to one side. J8504534 Applies to cars with manual gearbox Remove the gear selector lever boot from the center console.
- Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the two screws holding the centre console to the dashboard. Remove the connector on the reverse of the dashboard environment panel. Remove the center console from the dashboard and tunnel console.
- Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the two screws from the bottom of the media player. Pull out the media player and detach the connectors on the rear side. Note! Note how the wiring is packed on the reverse. The fibre optic cables are easily damaged and must not be bent to a radius less than 25 mm (1").
- Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Grip the air vent, press it out and pull it upward. Do the equivalent to the other air vent. J8505198 Insert a scriber and push up one of the catches in the lower edge of the air vents' housing.
- Page 14 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Grip the ends of the housing and pull out until all catches on both the top and bottom are fully free from the inside of the dashboard. If necessary, use a weatherstrip tool to prize out the ends of the housing.
- Page 15 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the clip holding the nozzle for the air duct on the right- hand and left-hand sides. IMG-244221 Remove the rubber mat from the glovebox. Remove the screws, x 5, in the glovebox opening.
- Page 16 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Unplug the connectors on the top. IMG-222669 Remove the screw or the air vent on the right side. Pull off the vent to the right and place to one side. IMG-239763 © Volvo Car Corporation Handsfree for cellular phone, system B, entry level- 30775801 - V1.1...
- Page 17 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the clips at the rear edge of the soundproofing panel and remove it. J8504871 Position the steering wheel in its lowest and rearmost position. Remove the two screws from the surround for the combined instrument panel.
- Page 18 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Pull out the surround starting at the bottom edge and then the top. The surround is held in place with a clip on each side of the bottom edge. Place the surround to one side.
- Page 19 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Drill out the holes using a Ø5 mm (13/64") diameter drill bit. Use a 10 mm (25/64") drill stop to prevent damaging the components on the inside. Remove any swarf. J3905377 Take two screws and the support plate from the kit. Use the screws to secure the mounting's left leg to the dashboard.
- Page 20 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Drill out the hole for the right-hand support leg with a Ø4 mm (5/32") diameter bit. Take a screw from the kit and secure the right-hand support leg. J3905385 Take a mounting plate and the antenna cable connector from the kit.
- Page 21 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take four screws (l = 16 mm) from the kit and secure the mounting plate at the installed mounting. J3905386 Insert the two connectors on the top of the ignition switch, on the right-hand side of the combined instrument panel, and then down in the dashboard.
- Page 22 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the door weatherstrip at the left A-post. Pull off the panel from the A-post. The panel is secured by three clips. Lift the panel up and inwards in the vehicle. Unhook the clip nearest the roof.
- Page 23 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the protective backing from the antenna, position it as illustrated and press it into place on the windshield molding. IMG-249091 Route the antenna cable along the A-post, down toward the dashboard and out toward the end.
- Page 24 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Mark the holes for the mounting plate on the A-post panel as illustrated. Drill out the holes. Use a Ø2.5 mm (3/32 ") drill bit. Remove any swarf. J3905020 Take the microphone with mounting plate from the kit. The microphone may be mounted on the mounting plate.
- Page 25 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Press the microphone into place on the mounting plate. J3904901 Route the microphone cable along the inside of the A-post. Secure it with pieces of butyl tape where it folds over the edge of the panel and continue along the front edge as illustrated.
- Page 26 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Reinstall the A post panel. Insert the cable for the microphone through the left end of the dashboard. Continue routing the cables of the microphone and antenna above the combined instrument panel and to the phone cradle cable at the ignition key.
- Page 27 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Push the felt tape on the right-hand side of the surround to one side. Cut off the two tabs. Re-apply the tape. J3904905 Reinstall the combined instrument panel surround. Ensure that the phone cradle cable is positioned in the cutout.
- Page 28 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Install the phone cradle on the mounting plate. IMG-249723 Connect the antenna cable (1) to the short cable (2) from the phone cradle mounting plate. Route the microphone cable (3) on to the right side of the center console.
- Page 29 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with internal amplifier Take cable harness A (marked A in the kit image) from the kit. Applies to cars with external amplifier Take cable harness C (marked C in the kit image) from the kit.
- Page 30 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Fold the carpet to the right of the center console. IMG-239780 Applies to cars with internal amplifier Take the mute relay from the kit. Plug in the cable connectors to the mute relay.
- Page 31 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with internal amplifier Place the relay between the carpet and the climate control unit as illustrated. IMG-239783 Take the phone module and two pieces of foam tape from the kit.
- Page 32 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Connect the connectors as illustrated. The adapter cable (1) to the control module. The cable (2) from the microphone. The cable (3) from the media player. The cable (4) from the phone cradle.
- Page 33 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with external amplifier Take two strip clamps from the kit to clamp cable harness C (which will later be routed back to the external amplifier) above the impact pipe.
- Page 34 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Steps 55-76 apply to cars with external amplifier. Detach the sill molding by first pulling at the front edge and then straight up so the clips release. J8400991 Grasp the upper edge of the right-hand side cushion. Pull the side cushion forward so that the clip on the reverse releases.
- Page 35 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Pull off the rubber strip at the rear of the opening for the right- hand rear door. Carefully pry off the lower panel on the C-post on the right-hand side. Carefully pry at the top edge. Use a plastic weatherstrip tool.
- Page 36 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Pull off the rubber mouldings at the rear edge of the right-hand front door and at the front edge of the right-hand rear door. This releases the lower panel on the B-post.
- Page 37 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Steps 61-64 apply to V50 with external amplifier. Remove the cargo compartment carpet. J8504575 Use a weatherstrip tool and pry up one corner of the sill trim panel so that the two clips on the short side release.
- Page 38 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Note! On right-hand drive cars, this step only needs to be performed on the left side of the car. Remove the screw. Pull the panel upwards so that the four clips on the inside release.
- Page 39 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Steps 65-69 apply to S40 with external amplifier. Remove the cargo compartment carpet. J8504553 Remove the upper floor support on the left and right-hand sides if applicable. J8504552 © Volvo Car Corporation Handsfree for cellular phone, system B, entry level- 30775801 - V1.1...
- Page 40 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Unscrew the two external clips at the front edge/bottom edge of the sill trim panel on the tailgate. Use a weatherstrip tool and pry up one corner of the sill trim panel so that the two clips in that end release.
- Page 41 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-240928 Steps 70-76 apply to S40 and V50 with external amplifier Route the cable inside the floor carpets and lower B-post panel, further to the rear edge of the right rear wheel housing. Route the cables along the existing cable harnesses in the cargo compartment.
- Page 42 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden (Applies to left-hand drive cars only) Continue routing the cable harness to the amplifier. Position the cable harness at the existing cable harness to the side and at the rear edge of the cargo compartment, all the way from the right-hand wheel arch to the amplifier.
- Page 43 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Disconnect the rear connector (1) on the amplifier. IMG-240930 Connect the T-cable to the amplifier as follows: Connect connector (1) (disconnected from the amplifier) to the female connector (2) on the T-cable.
-
Page 44: Finishing Work
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to the V50 Reinstall the insulation panel on the left-hand side. Applies to the S40 and V50 Connect the cables to the mute relay. Tape 2 thick pieces of foam tape around the mute relay as illustrated. - Page 45 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Finishing work Applies to all models Reinstall the connectors to the rear section of the glove box. Note the color marking on the cable for the right-hand connector. IMG-231504 © Volvo Car Corporation Handsfree for cellular phone, system B, entry level- 30775801 - V1.1...
- Page 46 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden At the dashboard Reinstall: the lower vent. the sound proofing. the rear section of the glovebox by guiding it in diagonally inside the center console and then straight forward. The rear section must be positioned on the outside of the remaining inner section.
- Page 47 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Turn the ignition key to position II. Reconnect the negative battery cable IMG-242267 © Volvo Car Corporation Handsfree for cellular phone, system B, entry level- 30775801 - V1.1 Page 47 / 47...
