1 System overview

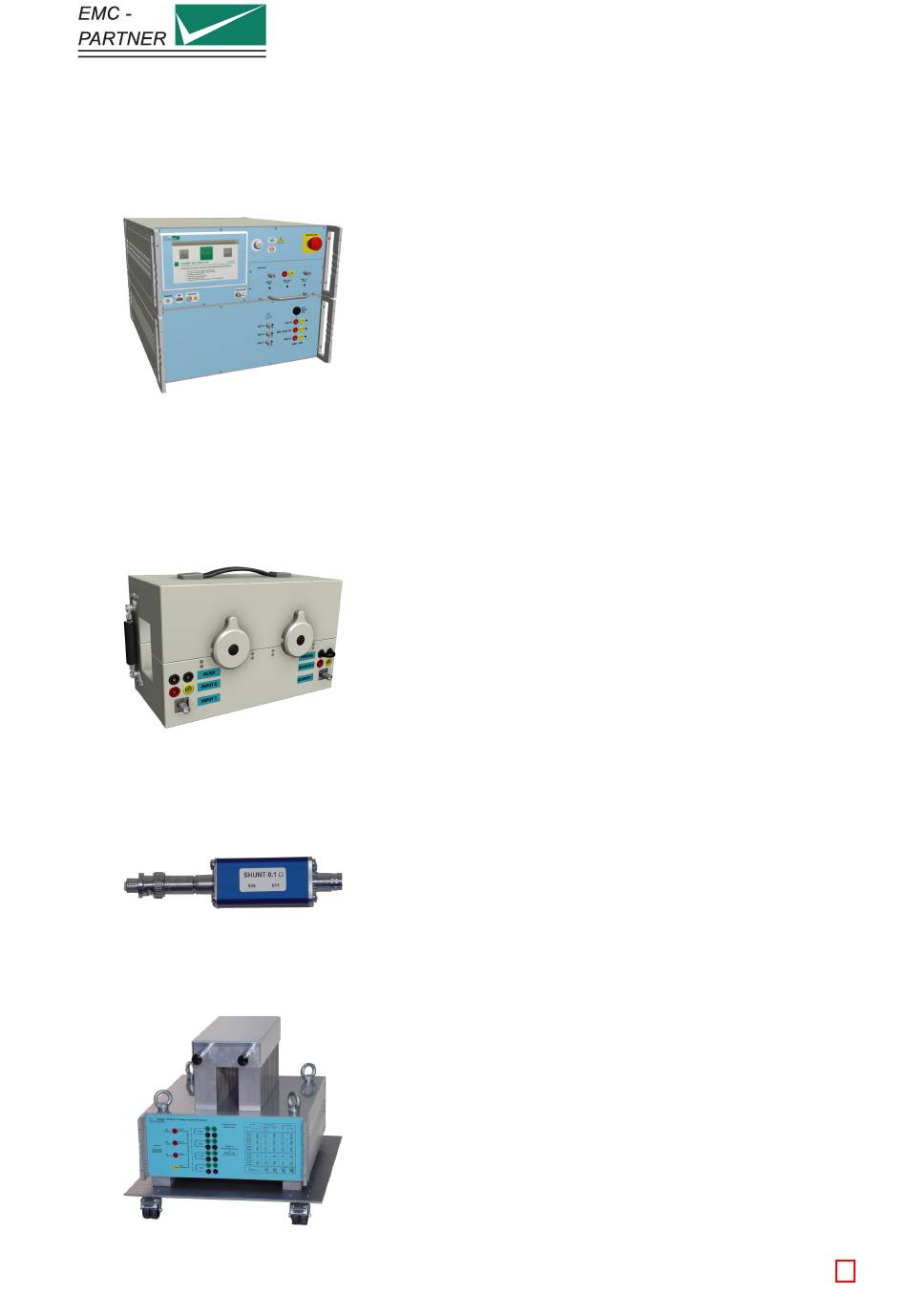

AVI3000 (PN 107630)
AVI3000 generator is a compact system with all waveforms for DO-160 section 22 up to level
3 and MIL-STD-461 CS117 for internal tests. A coupling transformer, for cable injection tests,
completes the system. The 7 inch graphic colour touch panel provides an intuitive and comfortable
user interface. Interactive parameter input, help text and graphic illustrations, guide the user
through the instrument programming process.
CN-BT7 (PN 107632)
Coupling transformer for Cable Bundle testing used with WF1, WF2, WF3, WF5A, WF6. The
CN-BT7 has a large aperture of 6 x 9cm and is equipped with a monitor loop for calibration and
supervision during the test.
SHUNT0E1 (PN 103575)
0.1 Ohm shunt with SHV-BNC connector for direct measurement of current impulses on AVI3000
and CN-BT7.
CN-GI-CI-V (PN 103577)
