For each parameter, an additional help text ist provided directly on the generator. Press and hold
a parameter to open the help text in a popup window.
3 Parameter image
Individual images clarify the effect of each parameter.

4.2 Run a test

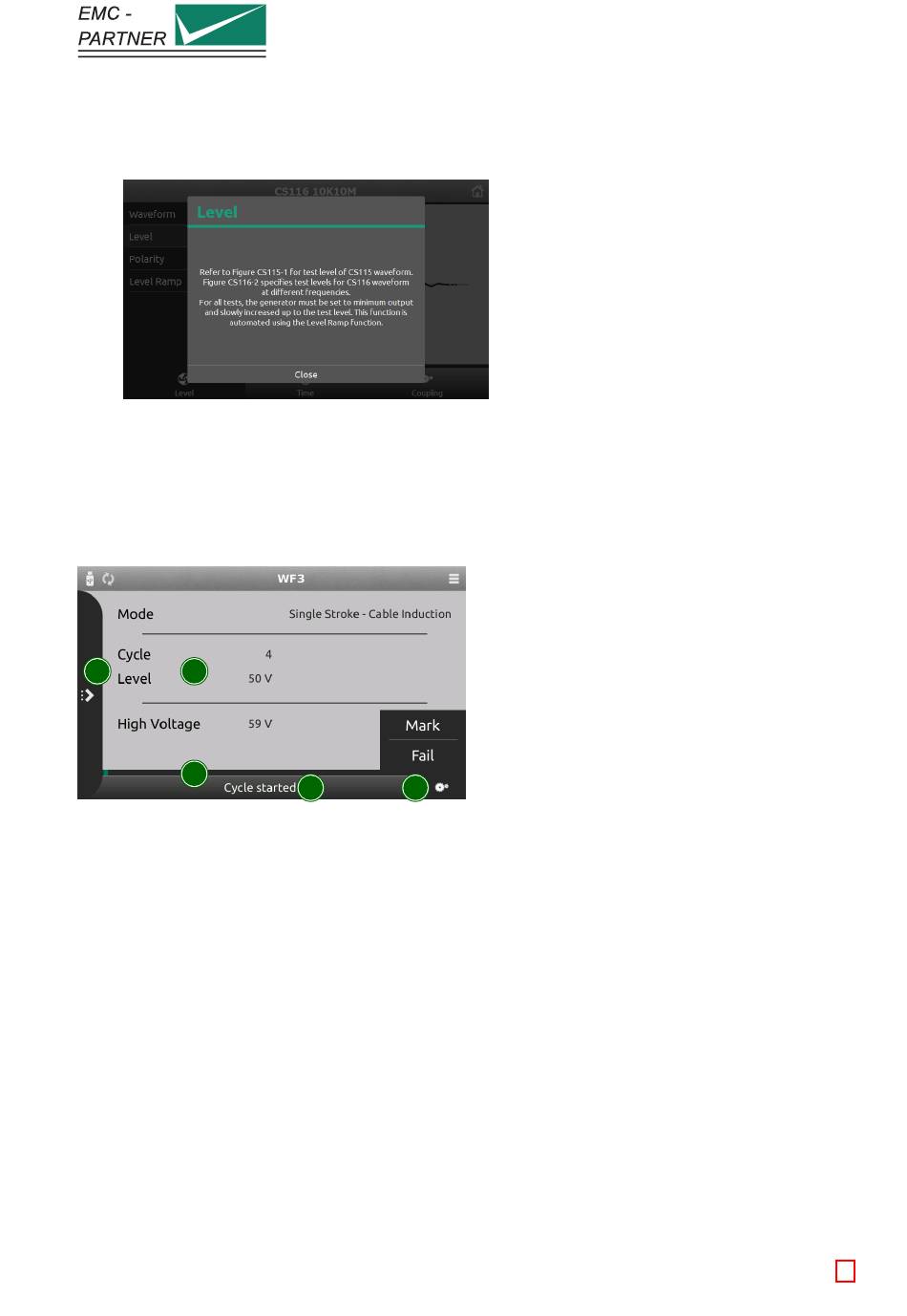

Starting a test by pressing the run button on the front panel, changes the display to the run view.
5 1
2
1 Information Area
Indicates the most important information about a running test.
2 Progress bar
Indicates progress of the whole test and, if available, about the current cycle.
3 Status bar
Provides information about the current event.
4 Running options
Click to open a menu where it is possible to mark or fail a test at the current position. This
information will be included in the protocol.
5 Parameter change
Click to open a shutter menu containing all parameters that can be edited while a test is running.
Depending on the test type, parameter change will take place with the next cycle or after a few
seconds. Changed values are highlighted for a few seconds in the information area.
3 4
4 Perform a test
Page 17/45
