Description

The target of the Airlink LS300 is the Alarming Module. Its purpose is to Send and Receive SMS
messages. Essentially, it is going to be utilized as an SMS gateway. As an example, Ignition picks up
information from a PLC that the water temperature is too hot. Ignition sends an SMS message via the
AirLink LS300 to contacts assigned to that alarm. It is received by a contact, which is then acknowledged
via SMS by the contact. This SMS message is sent back and received by Ignition via the AirLink.

LS300 and Network Security

The security settings covered here are basic steps to secure the LS300. Inductive Automation is not
responsible for the security of your LS300. You should take the time to configure and test the current
and other security measures as appropriate to your network.
Inductive Automation tested this router as a device that sits inside a network. Therefore, it needs to be
configured to act simply as another device on the network, not as a router or DHCP Server etc. Its sole
purpose is to handle SMS traffic.

Configuration and ACEManager

To access the modem's configuration information and be able to change it, you will be accessing what is
called the ACEManager. This can be accessed via Ethernet, USB or Serial. This document will only cover
Ethernet access. The recommended browser to use is IE or Firefox. There are problems when using the
Chrome browser.
The sections below should be followed in the order given to setup the AirLink LS300. Note that any
change that is made usually requires a reboot of the router/modem, which can be done through the
ACEManager. Follow these instructions and reboot at the end.

Default Ethernet Connection

First connect the LS300 directly to your computer and follow the manual's instructions to connect to it.
Default Ethernet settings for access is the following:
Device IP Address: 192.168.13.31
Port: 9191
Username: user
Password: 12345
It should be as simple as changing your computer's LAN settings to DHCP. Then connect to it via a
browser with the URL of http://192.168.13.31:9191.

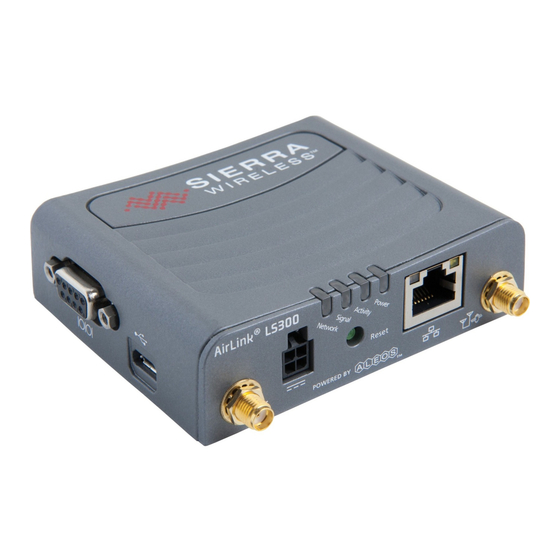

Sierra Wireless AirLink LS300

Setup Steps

Page 1 of 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirLink LS300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sierra Wireless AirLink LS300

Summary of Contents for Sierra Wireless AirLink LS300

  • Page 1 Sierra Wireless AirLink LS300 Description The target of the Airlink LS300 is the Alarming Module. Its purpose is to Send and Receive SMS messages. Essentially, it is going to be utilized as an SMS gateway. As an example, Ignition picks up information from a PLC that the water temperature is too hot.
  • Page 2 The first thing to check is if the router’s firmware is up-to-date. Go to the Status Tab. If the router’s ALEOS Software Version is not 4.3.3a.014 (the latest firmware version as of this writing), it should be updated. This can be found on the Sierra Wireless website at http://www.sierrawireless.com/en/Support/Downloads/AirLink/Configurable_Intelligent_Gateways/AirL ink_LS300.aspx...
  • Page 3 After the above has been done, go to the LAN – Host Port Routing Tab. The router must be set to NOT act as the gateway on the network. Primary Gateway: Disabled Failure to make the above setting may cause devices on the network to cease functioning. Host network subnet mask 2: 255.255.255.0 Host network subnet mask 3: 255.255.255.0 Below is a screen shot of the changes:...
  • Page 4 By default the ACE Manager can be accessed “over-the-air”. If you load the Inductive Automation default configuration, it is disabled. This will add security to the device to prevent access from outside the network via the cellular network. SSH Interface to the Modem If you load the Inductive Automation default configuration, SSH is used in preference to Telnet.
  • Page 5 ALEOS Command Password: 12345 Local Host IP: this should be set to the IP of the Ignition Server. Local Host Port: 17342 ALEOS Port: 17341 Port Filtering and Outbound Ports To prevent outbound http and https traffic over the air from the LS300, port filtering is utilized. Under Security –...
  • Page 6 Trusted Inbound/Outbound IP Address Using the AceManager, you can set certain Static IP addresses as trusted for both Inbound and outbound traffic for the modem. If this router will be put inside a network, this option should be looked Per the manual, Trusted IPs Inbound restricts access to the modem and all LAN connected devices. You would use the Public IP Address that someone would be accessing the LS300 over the air.
  • Page 7 Troubleshooting Notes: To reset your device back to factory defaults in IE (this does not work using Firefox or Chrome), go to the Admin - Advanced tab and hit the Reset to Factory Default button. If the above doesn’t work: ...
