EC
6-295
P220S001
ON-OFF digital controller for ventilated re-
frigerating units
Version 1.01 of 15
March 2005
th
File ec6295p220s001_eng_v1.01.pdf
PT
EVCO S.r.l.
Via Mezzaterra 6, 32036 Sedico Belluno ITALY
Phone 0039-0437-852468 • Fax 0039-0437-83648
ENGLISH
info@evco.it • www.evco.it
1

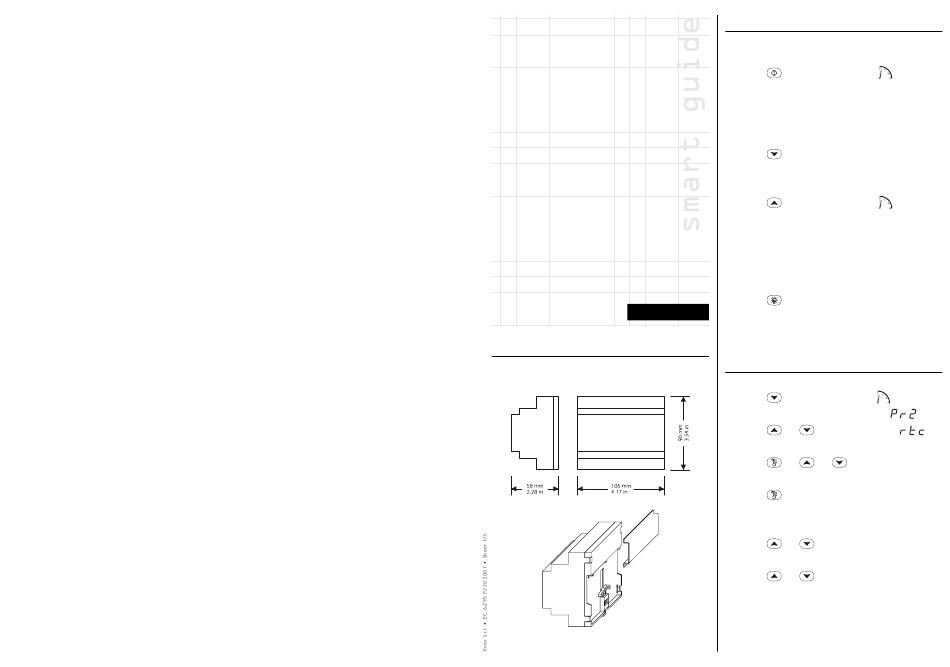

PREPARATIONS
1.1
How to install the instrument
On DIN rail (it is not supplied by the builder).
DIN rail installation (it is not supplied by the builder).
2
OPERATION
2.1
How to turn the instrument ON/OFF
If you have to turn the instrument ON/OFF:
• press
for 2 s
During the normal operation the instrument shows the cabinet
temperature.
2.2
How to silence the buzzer
If you have to silence the buzzer:
• press
2.3
How to activate the defrost by hand
If you have to activate the defrost by hand:
• press
for 4 s
Unless the evaporator temperature is below the defrost end tem-
perature you have set with the parameter d2, the defrost will
not be activated.
2.4
How to turn the cabinet light ON/OFF
If you have to turn the cabinet light ON/OFF:
• press
2.5
Compressor thermal protection
The activation of this input forces the compressor OFF by hard-
ware and software.
3
REAL TIME CLOCK
3.1
How to set the clock
Press
for 2 s
: the instrument
will show
Press
or
for selecting
If you have to modify the value of the hour:
• press
and
or
If you have to modify the value of the minutes:
• release
and
press it again during the
modification of the hour,
then ...
• press
or
If you have to quit the procedure:
• press
or
as long as the instrument
shows the cabinet tem-
perature or do not oper-
ate for about 30 s.
