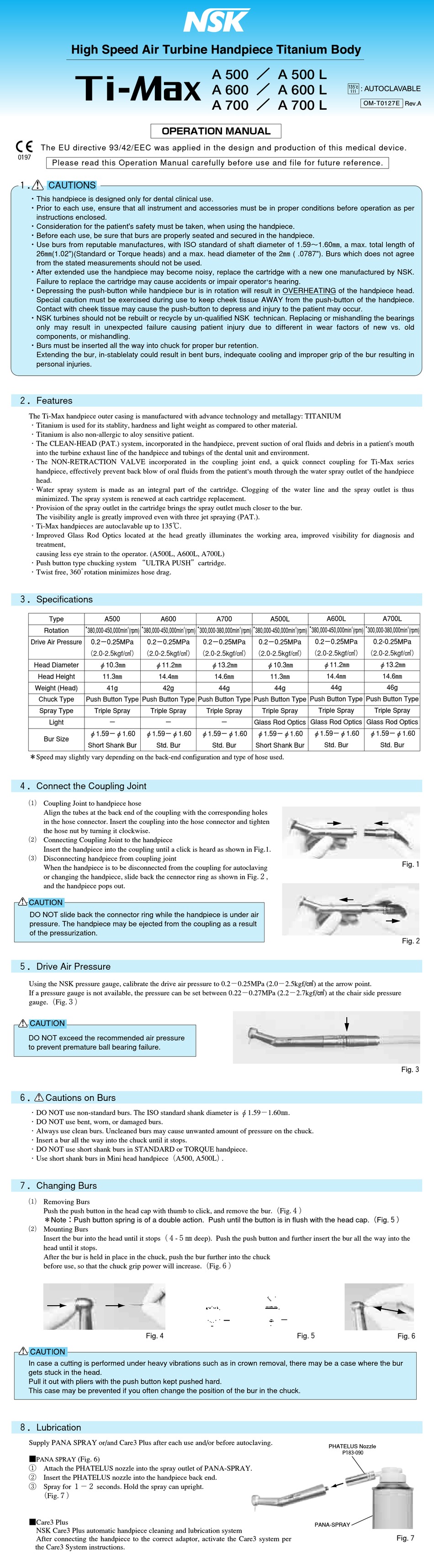

NSK Ti-Max A 500 Operation Manual

High speed air turbine handpiece titanium body

Advertisement

Quick Links

High Speed Air Turbine Handpiece Titanium Body
The EU directive 93/42/EEC was applied in the design and production of this medical device.
0197
Please read this Operation Manual carefully before use and file for future reference.
1.
CAUTIONS
!
・This handpiece is designed only for dental clinical use.
・Prior to each use, ensure that all instrument and accessories must be in proper conditions before operation as per
instructions enclosed.
・Consideration for the patient's safety must be taken, when using the handpiece.
・Before each use, be sure that burs are properly seated and secured in the handpiece.
・Use burs from reputable manufactures, with ISO standard of shaft diameter of 1.59〜1.60㎜, a max. total length of
26㎜(1.02")(Standard or Torque heads) and a max. head diameter of the 2㎜ ( .0787"). Burs which does not agree
from the stated measurements should not be used.
・After extended use the handpiece may become noisy, replace the cartridge with a new one manufactured by NSK.
Failure to replace the cartridge may cause accidents or impair operator , s hearing.
・Depressing the push-button while handpiece bur is in rotation will result in OVERHEATING of the handpiece head.
Special caution must be exercised during use to keep cheek tissue AWAY from the push-button of the handpiece.
Contact with cheek tissue may cause the push-button to depress and injury to the patient may occur.
・NSK turbines should not be rebuilt or recycle by un-qualified NSK  technican. Replacing or mishandling the bearings
only  may  result  in  unexpected  failure  causing  patient  injury  due  to  different  in  wear  factors  of  new  vs.  old
components, or mishandling.
・Burs must be inserted all the way into chuck for proper bur retention.
 Extending the bur, in-stablelaty could result in bent burs, indequate cooling and improper grip of the bur resulting in
personal injuries.
2.Features
The Ti-Max handpiece outer casing is manufactured with advance technology and metallagy: TITANIUM
・Titanium is used for its stablity, hardness and light weight as compared to other material.
・Titanium is also non-allergic to aloy sensitive patient.
・The CLEAN-HEAD (PAT.) system, incorporated in the handpiece, prevent suction of oral fluids and debris in a patient's mouth
into the turbine exhaust line of the handpiece and tubings of the dental unit and environment.
・The  NON-RETRACTION  VALVE  incorporated  in  the  coupling  joint  end,  a  quick  connect  coupling  for  Ti-Max  series
handpiece, effectively prevent back blow of oral fluids from the patient , s mouth through the water spray outlet of the handpiece
head.
・Water  spray  system  is  made  as  an  integral  part  of  the  cartridge.  Clogging  of  the  water  line  and  the  spray  outlet  is  thus
minimized. The spray system is renewed at each cartridge replacement.
・Provision of the spray outlet in the cartridge brings the spray outlet much closer to the bur.
 The visibility angle is greatly improved even with three jet spraying (PAT.).
・Ti-Max handpieces are autoclavable up to 135℃.
・Improved  Glass  Rod  Optics  located  at  the  head  greatly  illuminates  the  working  area,  improved  visibility  for  diagnosis  and
treatment,
 causing less eye strain to the operator. (A500L, A600L, A700L)
・Push button type chucking system  ULTRA PUSH cartridge.
・Twist free, 360゜ rotation minimizes hose drag.
3.Specifications
Type
Rotation
380,000-450,000min
Drive Air Pressure
0.2-0.25MPa

(2.0-2.5kgf/F)
Head Diameter
φ10.3㎜
Head Height
Weight (Head)
Chuck Type
Push Button Type
Spray Type
Triple Spray
Light
φ1.59-φ1.60
Bur Size
Short Shank Bur
*Speed may slightly vary depending on the back-end configuration and type of hose used.
4.Connect the Coupling Joint
a Coupling Joint to handpiece hose
  Align the tubes at the back end of the coupling with the corresponding holes
in the hose connector. Insert the coupling into the hose connector and tighten
the hose nut by turning it clockwise.
s Connecting Coupling Joint to the handpiece
  Insert the handpiece into the coupling until a click is heard as shown in Fig.1.
d Disconnecting handpiece from coupling joint
  When the handpiece is to be disconnected from the coupling for autoclaving
  or changing the handpiece, slide back the cennector ring as shown in Fig.2,
and the handpiece pops out.
CAUTION
!
 
DO NOT slide back the connector ring while the handpiece is under air
pressure. The handpiece may be ejected from the coupling as a result
of the pressurization.
5.Drive Air Pressure
Using the NSK pressure gauge, calibrate the drive air pressure to 0.2−0.25MPa (2.0-2.5kgf/F) at the arrow point.
If a pressure gauge is not available, the pressure can be set between 0.22-0.27MPa (2.2−2.7kgf/F) at the chair side pressure
gauge.(Fig.3)
CAUTION
 
!
DO NOT exceed the recommended air pressure
to prevent premature ball bearing failure.
6. Cautions on Burs
!
・DO NOT use non-standard burs. The ISO standard shank diameter is φ1.59−1.60㎜.
・DO NOT use bent, worn, or damaged burs.
・Always use clean burs. Uncleaned burs may cause unwanted amount of pressure on the chuck.
・Insert a bur all the way into the chuck until it stops.
・DO NOT use short shank burs in STANDARD or TORQUE handpiece.
・Use short shank burs in Mini head handpiece(A500, A500L) .
7.Changing Burs
a Removing Burs
  Push the push button in the head cap with thumb to click, and remove the bur.(Fig.4)
  *Note:Push button spring is of a double action.  Push until the button is in flush with the head cap.(Fig.5)
s Mounting Burs
  Insert the bur into the head until it stops(4-5a deep).  Push the push button and further insert the bur all the way into the
head until it stops.
  After the bur is held in place in the chuck, push the bur further into the chuck
  before use, so that the chuck grip power will increase.(Fig.6)
CAUTION
!
 
In case a cutting is performed under heavy vibrations such as in crown removal, there may be a case where the bur
gets stuck in the head.
Pull it out with pliers with the push button kept pushed hard.
This case may be prevented if you often change the position of the bur in the chuck.
8.Lubrication
Supply PANA SPRAY or/and Care3 Plus after each use and/or before autoclaving.

 (Fig. 6)
PANA SPRAY
① Attach the PHATELUS nozzle into the spray outlet of PANA-SPRAY.
② Insert the PHATELUS nozzle into the handpiece back end.
③ Spray for 1−2 seconds. Hold the spray can upright.
   (Fig.7)


■Care3 Plus
 NSK Care3 Plus automatic handpiece cleaning and lubrication system
 After connecting the handpiece to the correct adaptor, activate the Care3 system per
the Care3 System instructions.
OPERATION MANUAL
A500
A600

-1
-1
(rpm)
380,000-450,000min
0.2-0.25MPa
(2.0-2.5kgf/F)
φ11.2㎜
11.3㎜
14.4㎜
41g
42g
Push Button Type
Triple Spray
φ1.59-φ1.60
Std. Bur
Fig.4
A 500  /  A 500 L
A 600  /  A 600 L
A 700  /  A 700 L
A700
-1
(rpm)
300,000-380,000min
(rpm)
380,000-450,000min
0.2-0.25MPa
0.2-0.25MPa
(2.0-2.5kgf/F)
(2.0-2.5kgf/F)
φ13.2㎜
φ10.3㎜
14.6㎜
44g
Push Button Type
Push Button Type
Triple Spray
Triple Spray
Glass Rod Optics
φ1.59-φ1.60
φ1.59-φ1.60
Std. Bur
Short Shank Bur
A600L
A500L
-1
-1
380,000-450,000min
(rpm)
0.2-0.25MPa
(2.0-2.5kgf/F)
φ11.2㎜
14.4㎜
11.3㎜
44g
44g
Push Button Type
Triple Spray
Glass Rod Optics
φ1.59-φ1.60
Std. Bur
Fig.5
PHATELUS Nozzle
P183-090
PANA-SPRAY
OM-T0127E
Rev.A
A700L
-1
(rpm)
300,000-380,000min
(rpm)
0.2-0.25MPa
(2.0-2.5kgf/F)
φ13.2㎜
14.6㎜
46g
Push Button Type
Triple Spray
Glass Rod Optics
φ1.59-φ1.60
Std. Bur
Fig.1
Fig.2
Fig.3
Fig.6
Fig.7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ti-Max A 500 and is the answer not in the manual?

Questions and answers

Summary of Contents for NSK Ti-Max A 500

  • Page 1 CAUTIONS !  ・This handpiece is designed only for dental clinical use.  ・Prior to each use, ensure that all instrument and accessories must be in proper conditions before operation as per  instructions enclosed.  ・Consideration for the patient's safety must be taken, when using the handpiece.  ・Before each use, be sure that burs are properly seated and secured in the handpiece.  ・Use burs from reputable manufactures, with ISO standard of shaft diameter of 1.59〜1.60㎜, a max. total length of  26㎜(1.02")(Standard or Torque heads) and a max. head diameter of the 2㎜ ( .0787"). Burs which does not agree  from the stated measurements should not be used.  ・After extended use the handpiece may become noisy, replace the cartridge with a new one manufactured by NSK.  Failure to replace the cartridge may cause accidents or impair operator , s hearing.  ・Depressing the push-button while handpiece bur is in rotation will result in OVERHEATING of the handpiece head.  Special caution must be exercised during use to keep cheek tissue AWAY from the push-button of the handpiece.  Contact with cheek tissue may cause the push-button to depress and injury to the patient may occur.  ・NSK turbines should not be rebuilt or recycle by un-qualified NSK  technican. Replacing or mishandling the bearings  only  may  result  in  unexpected  failure  causing  patient  injury  due  to  different  in  wear  factors  of  new  vs.  old  components, or mishandling.  ・Burs must be inserted all the way into chuck for proper bur retention.   Extending the bur, in-stablelaty could result in bent burs, indequate cooling and improper grip of the bur resulting in ...
  • Page 2 9.Sterilization Sterilization by autoclave is recommended.  Sterilization required after each patient as noted below.  AUTOCLAVING:  ① Brush off excess dirt and wipe clean with alcohol-soaked cloth.   ② Remove the handpiece from the coupling and lubricate with PANA-SPRAY as described in the Lubrication section.   ③ Insert the handpiece in a sterilization pouch and seal it.  ④ Autoclavable up to a max. 135℃.     ex.) Autoclave for 20 min. at 121℃, or 15 min. at 132℃.   ⑤ Keep the handpiece in the autoclave pouch to keep it clean until you use it.  ※ Sterilization at 121℃ for more than 15 minutes is recommended by EN13060 or EN554.  ※ Performing sterilization according to our instruction has minimal effect on the instruments. Life span is generally determined     by wear and damage due to use. CAUTION !     ・Skip dry cycle.   ・Heating element may be located the bottom of the chamber, and the temperature there locally may exceed the set     value. Place the handpiese on the central or upper tray. 10.Clean up after each patient  It is important to clean the slit in the head as follows after each patient and before autoclaving to appreciate lasting CLEAN- HEAD performance.(Fig.8)  ① Brush off the debris at the slits as shown in Fig.9.   ② Run the handpiece at the rated pressure.  ③ Immerse half of the head in clean water while the handpiece is running.  ④ Run the handpiece in the water 4−5 seconds. (Fig.10)   ⑤ Remove the handpiece, while running, from the water.  Stop and wipe dry the handpiece.   ⑥ Lubricate before autoclaving.     *Note:Change water each time.    Slit Fig.8  Fig.9  Fig.10   This handpiece can be washed via Thermo Disinfector. 11.Replacing Cartridge a Removing the cartridge  ① Mount a dummy bur in the chuck.   ② Set the wrench on the head cap, turn the wrench counter-clockwise and     remove the cap.(Fig.11) ...
