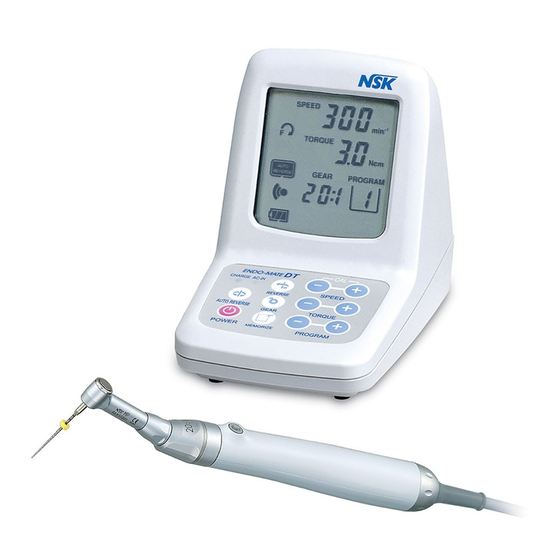

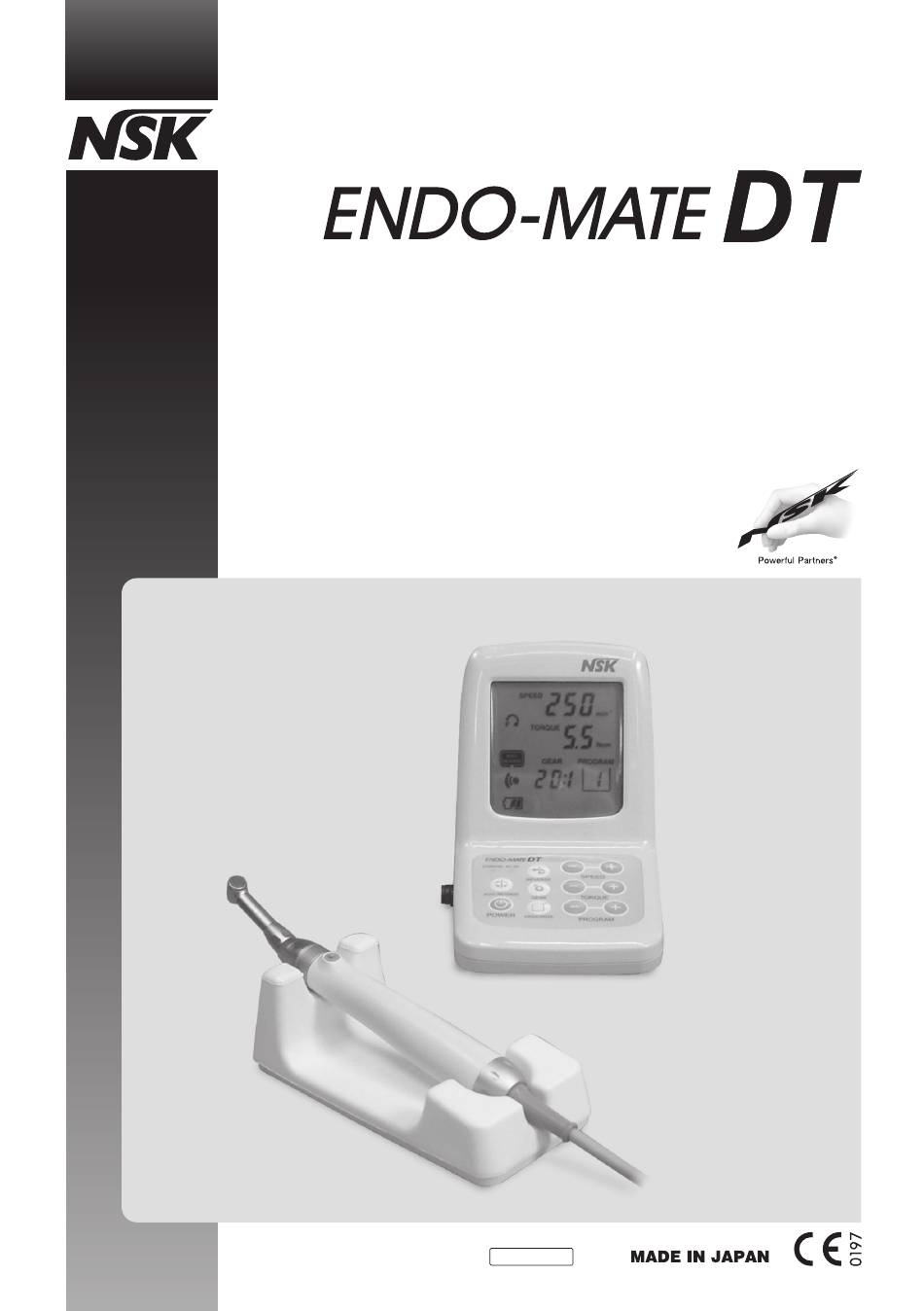

- Page 1 Motor Handpiece System for Root Canal Enlargement OPERATION MANUAL Please read this Operation Manual carefully before use, and file for future reference. OM-E0202E 002...
-
Page 2: Table Of Contents
Thank you for purchasing the ENDO-MATE DT. This product is used in dental office only. This product is used primarily for root canal enlargement. Read this Operation Manual carefully before use for operation instructions, care and maintenance. Keep this Operation Manual for future reference. - Page 3 10-85% RH, atmospheric pressure at 700-1060hPa, and no moisture condensation in the Control Unit. Use at outside of these limits may cause malfunction. • ENDO-MATE DT needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information.
-
Page 4: Features
• ENDO-MATE DT should not be used adjacent to or stacked with other equipment and that if adjacent or stacked use is necessary, ENDO-MATE DT should be observed to verify normal operation in the configuration in which it will be used. -
Page 5: Specifications
2. SPECIFICATIONS < Control Unit > < Motor Handpiece > Model Model NE131 EM13M Rated input DC20V 0.5A Rated input DC7V 0.4A Output Dimensions DC7V 0.4A ø20 × L108mm Charging time 5hours approx. Weight ( including motor handpiece cord ) Dimensions W92 x D148 x H124mm Weight 456g... - Page 6 Operation Panel and LCD Panel. ＜Operation Panel＞ ＜Operation Panel＞ 〈LCD Panel〉 REVERSE Key REVERSE Key AC IN Lamp AC IN Lamp SPEED Key SPEED Key CHARGE Lamp CHARGE Lamp AUTO REVERSE Key AUTO REVERSE Key TORQUE Key TORQUE Key This indicates that all displays are lighted. POWER Key POWER Key PROGRAM Key...
- Page 7 • PROGRAM Key • A program can be selected. The present program number is displayed. The program number is available from 1 to 9. • The alarm sound volume can be adjusted. (Refer to P.14 6. (5) “Alarm Sound Volume Control”) The present alarm mark is displayed.
- Page 8 • AUTO REVERSE Key The auto reverse mode can be selected by this key. (Refer to P.11 “ Auto Reverse Function.”) The present auto reverse mode mark is displayed. AUTO REVERSE If the load is removed after auto reverse rotation, it returns to the normal rotation again. AUTO STOP If the load is removed after autoreverse rotations, it stops.
-
Page 9: How To Connect Each Part
• Bar Display It displays the bar graph which shows the degree of load applied to the motor while the file is in motion. 4. HOW TO CONNECT EACH PART (1) Connecting Motor Handpiece Align the mark of the Motor Handpiece Cord Plug of the Motor Handpiece Connector Motor Handpiece Connector motor handpiece with the... -
Page 10: How To Use
5. HOW TO USE REVERSE Key REVERSE Key AC IN Lamp AC IN Lamp SPEED Key SPEED Key CHARGE Lamp CHARGE Lamp TORQUE Key TORQUE Key AUTO REVERSE Key AUTO REVERSE Key PROGRAM Key PROGRAM Key POWER Key POWER Key MEMORIZE Key MEMORIZE Key GEAR RATIO Key... - Page 11 (2) Changing Contra Angle Head Positioning Pin Positioning Slots • The contra angle head could be connected with the motor handpiece at 6 adjustable head positions. Align the positioning pins of the contra angle head with the positioning slots of the motor handpiece and insert the head until they click.
- Page 12 (5) Operation 1) • Start the motor handpiece to pressing the ON/OFF button briefly. Press the button again may stop the handpiece. (Alternate operation) ON/OFF Button • Keep pressing ON/OFF button more than a second, the motor handpiece starts while the button is pressed. If you release the button, it stops.
-
Page 13: Convenient Functions
AUTO REVERSE OFF The motor handpiece stops without reverse rotation. In this instance, the LCD panel shows “ ” and the rotation speed alternately. NOTICE • When the reverse rotation (R) is set, this Auto Reverse Function is not activated. •... - Page 14 NOTICE • This function is not activated unless this product is powered by the AC Adaptor. • If this function is used, all programs will disappear and return to the originally set values. Record the present program details according as needed. (3) Battery Refresh Nickel-metal-hydrate batteries may result in a decrease in charging capacity, if additional charging (repeating a cycle of short-time use and recharging) is made.
-
Page 15: Cleaning
(5) Alarm Sound Volume Control The alarm sound volume can be controlled at the three steps of “BIG VOLUME, SMALL VOLUME and LIMITED OFF. ” 1) Keep pressing both buttons of the PROGRAM key simultaneously. 2) The alarm mark on the LCD panel changes, and the sound volume changes. 3) Release the PROGRAM key when the sound volume reaches your required level and the required sound level is set up. -
Page 16: Changing Batteries
9. CHANGING BATTERIES ENDO-MATE DT uses rechargeable batteries. They can be recharged 300-500 times, depending on the use conditions of the Control Unit. If the operating time or recharging time becomes shorter or the rotation power becomes weaker, although the “memory effect”... -
Page 17: Error Code
5) Close the battery cover. Make sure to charge the batteries before use. NOTICE The used nickel metal hydride batteries are recyclable, but their disposal may sometimes not be permitted by the country. Return them to your dealer. 10. ERROR CODE If the motor handpiece stops due to an abnormality such as a malfunction, overload, break or wrong use, it automatically checks the state of the control unit and detects the cause of the abnormality and displays an error code on the LCD panel. -
Page 18: Troubleshooting
11. TROUBLESHOOTING When trouble is found, check the following again before contacting your dealer. If none of these is applicable or the trouble is not remedied even after action has been taken, a failure of this product is suspected. Contact your dealer. <Control Unit, AC Adaptor>... -
Page 19: Contra Angle Head (Option)
Problem Cause Solution The motor handpiece does The contra angle head is clogged. Clean or replace the contra angle head. not rotate. (“ ” and There is a short circuit inside the motor the rotation speed are Contact your dealer. handpiece or the motor handpiece cord. -
Page 20: Warranty
This mark is machine tool, electrical equipment and medical equipment Safety mark in Canada. Guidance and manufacturer's declaration - electromagnetic emissions The ENDO-MATE DT is intended for use in the electromagnetic environment specified below. The customer or the user of the ENDO-MATE DT should assure that is used in such an environment. - Page 21 Guidance and manufacturer's declaration - electromagnetic immunity The ENDO-MATE DT is intended for use in the electromagnetic environment specified below. The customer or the user of the ENDO-MATE DT should assure that it is used in such an environment. Immunity test...
- Page 22 Recommended separation distances between portable and mobile RF communications equipment and the ENDO-MATE DT The ENDO-MATE DT is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the ENDO-MATE DT can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the ENDO-MATE DT as recommended below, according to the maximum output power of the communications equipment.
- Page 23 The EU directive 93/42/EEC was applied in the design and production of this medical device. Specifications are subject to change without notice. 2014.11.20 02 M...
