OPERATOR'S MANUAL
SOIL BUILDER II
SBA209

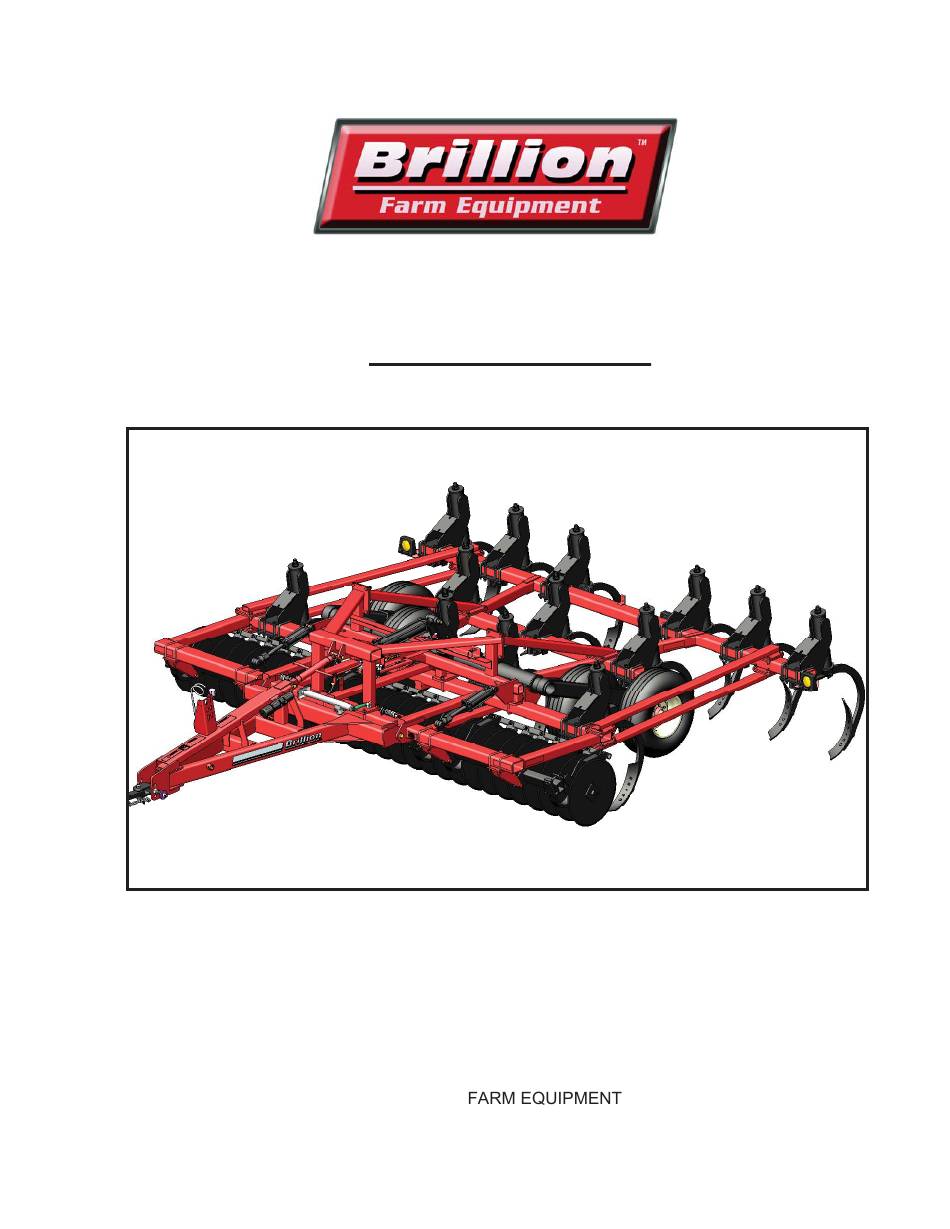

* Cover illustration may show optional equipment not supplied with standard unit

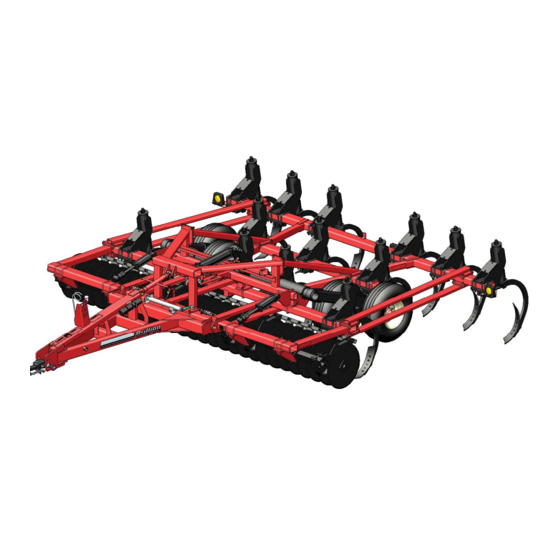

BRILLION'S Soil Builder II is the latest in its line of Soil Builder
coulter chilsel tools designed with conservation tillage at its forefront. It features larger
cutting clouters, heavier shanks, greater trash clearance the stronger frames to handle
today's heavier residue conditions and higher horsepower tractors.
308rev9-16-08
B
rillion
MODELS AVAILABLE
SBA211
BRILLION
BRILLION, WISCONSIN 54110
www.brillionfarmeq.com
SBA213
1P761
1P761

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOIL BUILDER II and is the answer not in the manual?

Questions and answers

Summary of Contents for Brillion SOIL BUILDER II

  • Page 1 SBA213 * Cover illustration may show optional equipment not supplied with standard unit BRILLION’S Soil Builder II is the latest in its line of Soil Builder coulter chilsel tools designed with conservation tillage at its forefront. It features larger cutting clouters, heavier shanks, greater trash clearance the stronger frames to handle today’s heavier residue conditions and higher horsepower tractors.
  • Page 2 1P761...
  • Page 3: Table Of Contents

    Contents Introduction ..............Location Reference .
  • Page 4 1P761...
  • Page 5: Introduction

    Description of Unit: The BRILLION SOIL BUILDER II was designed as a primary tillage tool that will work in harmony with an emphasis on conservation. Following the earlier Soil Builder and Super Soil Builder, the SOIL BUILDER II was developed to help convert from the moldboard plow to a conservation tillage system.
  • Page 6: Safety

    • Examine safety decals and be sure you have the correct safety decals for the machine. See Safety Sign and Locations in Safety Section for decal locations. • Order replacement decals through your Brillion dealer. • Keep these signs clean so they can be observed. It is important to keep these decals cleaned more frequently than the machine.
  • Page 7 Safety Important Safety Information Keep Riders Off Machinery • Do not allow anyone to ride on tractor or machine. Riders could be struck by foreign objects or thrown from the machine. • Never allow children to operate equipment. • Keep bystanders away from machine during operation. Transporting Safety •...
  • Page 8 Safety Important Safety Information Maintenance Safety * Block machine so it will not roll when working on or under it to prevent injury in case of hydraulic failure or inadvertent lowering by another person. * Do not make adjustments or lubricate machine while it is in motion. * Make sure all moving parts have stopped and all system pressure is relieved.
  • Page 9: Safety Chain

    * Use a chain with a strength rating equal to or greater than the gross weight of towed machinery. The chain we have included as standard with your Soil Builder II is rated at 20,200 pounds, which meets with ASAE S338.2 specifications, and will also allow you to pull another machine in tandem.
  • Page 10: Safety Signs & Locations

    Safety Signs Safety Hydraulic Leak Hazard P/N 3K706 WARNING Caution, Buried Cables P/N 8K829 DEEP TILL OPERATION CAN DAMAGE DO NOT GO NEAR LEAKS UNDERGROUND UTILITIES CAUSING HIGH PRESSURE OIL EASILY PUNCTURES SKIN DANGEROUS CONDITIONS AND CAUSING SERIOUS INJURY, GANGRENE OR DEATH.
  • Page 11 Safety Signs Safety Reflective Amber P/N 2J431 Reflective Red-Orange P/N 8K597 Reflective Red P/N 2J430 1P761...
  • Page 12 Safety Signs Safety WARNING SHANK IS ALWAYS UNDER LOAD DO NOT USE HANDS OR FEET TO DISLODGE ANY OBSTRUCTION HOLDING THE SHANK IN THE TRIPPED POSITION SHANK IS SPRING LOADED AND SERIOUS INJURY COULD RESULT AS SHANK RESETS 6K883 Page 10 1P761...
  • Page 13 rillion rillion rillion rillion rillion rillion rillion rillion rillion rillion Page 11 1P761...
  • Page 14: Assembly/Set Up

    Assembly ASSEMBLY Page 12 1P761...
  • Page 15: Fastener Torque Chart

    Assem 308rev6-10-08 Page 13 1P761...
  • Page 16: Axle Rockshaft

    Assembly The model illustrated may not agree with the size of your unit. Assembly of machines, NOTE: however, is similiar on all models. • Set the frame about 36” high on blocks or other supports rated for 2,000 lbs. or higher. DO NOT WORK UNDER MACHINE UNLESS IT IS BLOCKED UP SECURELY.
  • Page 17: Tire Assemblies

    Assem HEX WHEEL BOLTS 1/2-20 x 1 Gr5 Page 15 1P761...
  • Page 18: Front & Rear Frames

    Assembly • BOLT FRONT AND REAR FRAMES TOGETHER In the following illustrations, do not tighten hardware tight until all adjacent pieces NOTE: have been assembled to each other. HHCS, 3/4-10 x 2-1/4” FRONT FRAME LOCK NUT, 3/4-10 REAR FRAME Page 16 1P761...
  • Page 19: Frame Supports

    Assem • INSTALL FRAME SUPPORTS FRAME SUPPORTS FRAME SUPPORTS HHCS, 3/4-10 x 2-1/4” LOCK NUT, 3/4-10 Page 17 1P761...
  • Page 20: Anchor & Anchor Braces

    Assembly • INSTALL ANCHOR, THEN ANCHOR BRACES. ANCHOR ANCHOR BRACES ANCHOR BRACES ANCHOR HHCS, 3/4-10 x 2-1/4” LOCK NUT, 3/4-10 U-BOLTS, 3/4-10 x 6-11/16 x 5-3/4 LOCK NUTS, 3/4-10 Page 18 1P761...
  • Page 21: Rockshaft Cylinder

    Assembly Assem • INSTALL ROCKSHAFT CYLINDER CYLINDER 9K733 (SUPPLIED WITH CYLINDER) ROCKSHAFT EARS PIN, 1-1/4 x 6-1/4” Long GUIDE 1P777 ROLL PINS, 3/8 x 2” 308rev6-1-08 Page 19 1P761...
  • Page 22: Guide & Depth Valve

    Assembly • INSTALL GUIDE 1P777 SCALE, AND GUIDE 1P523. HHCS, 5/16-18 x 3/4” NY-LOK NUT, 5/16-18 SCALE HHCS, 3/8-16 x 1” SELF-TAP SCREWS, LOCK NUT, 3/8-16 #8-32 x 1/2 GUIDE 1P777 • INSTALL HYDRAULIC FITTINGS INTO DEPTH VALVE 1P763 and fasten loosely to guide. Do not tighten the valve down at this point, as its exact position will be determined after the actuator is in place.
  • Page 23: Actuator

    Assem ACTUATOR CLEVIS HHCS, 5/8-11 x 6” LOCK NUT, 5/8-11 BUSHING, .688 ID x 1.0 OD HHCS, 5/16-18 x 1-1/4” FLAT WASHER, 5/16 NY-LOK NUT, 5/16-18 ROD GUIDE ACTUATOR GUIDE HHCS, 5/16-18 x 3/4” NY-LOK NUT, 5/16-18 Page 21 1P761...
  • Page 24 Assembly --Then fit the rod of the actuator assembly into the rod guide with the plate in front of the guide and the paddle in front of the valve. One revolution of Depth Control Rod equals approximately 5/8”-3/4” of operating depth. Page 22 1P761...
  • Page 25: Coulters & Coulter Cylinders

    Assem •INSTALL GANG ASSEMBLIES TO DISC FRAME U-BOLTS, 5/8-11 x 3-11/16 x 5-3/16” LOCK NUT, 5/8-11 HHCS, 3/4-10 x 6-1/2” LOCK NUT, 3/4-10 SCRAPER (BETWEEN GANGS) PLATE BUSHING, 1.75 OD x 1.031 ID x 2.375” LONG DISC FRAME 9-DISC GANG ASSEMBLY Page 23 1P761...
  • Page 26 Assembly •INSTALL ASSEMBLED DISC GANGS TO LUGS ON MACHINE FRAME U-BOLTS, 5/8-11 x 6-11/16 x 5-1/2” LOCK NUT, 5/8-11 MACHINE FRAME DISC FRAME SUPPORT BRACKETS BUSHING IN FRAME LUG BUSHING IN HHCS, 1-8 x 5” FRAME LUG LOCK NUT, 1-8 Page 24 1P761...
  • Page 27 Assem •INSTALL DISK GANG OPERATING CYLINDERS 2J674 HYDRAULIC CYLINDERS 2J674 install pins that are supplied with cylinder. Page 25 1P761...
  • Page 28: Drawbar

    Assem • DRAWBAR ASSEMBLY MANUAL CANNISTER w/ HOSE CLAMPS JACK (Storage Position) HOSE SUPPORT CONNECTOR HOLDER HOSE HOLDER HHCS, 1/4-20 x 3/4” DRAWBAR FLANGE LOCK NUT, 1/4-20 HHCS, 5/8-11 x 2-1/4” FLAT WASHER, 5/8 LOCK NUT, 5/8-11 HHCS, 1-8 x 2-1/2” HHCS, 1-1/4-7 x 9-1/2”...
  • Page 29 Pins and Turnbuckle TURNBUCKLE PIN, 1-3/8 dia. x 6-3/4” ROLL PINS, 5/16 x 2” PIN, 1-3/8 dia. x 4-3/4” • APPLY BRILLION DECALS ROLL PINS, 5/16 x 2” (both sides) PIN, 1-7/16 dia. x 6-3/8” ROLL PINS, 1/2 x 2”...
  • Page 30: Transport Lock

    Assembly • INSTALL TRANSPORT LOCK & CYLINDER CONTROL SEGMENTS TRANSPORT LOCK (Installed) TRANSPORT LOCK (Stored) STROKE CONTROL SEGMENTS Page 28 1P761...
  • Page 31: Shanks

    Assem • INSTALL SHANK ASSEMBLIES Refer to Machine Configuration page for exact placement of Shank Assemblies. SHANK ASSEMBLIES • ATTACH SHANK ASSEMBLIES TO MACHINE FRAME U-BOLTS, 3/4-10 x 6-13/16 x 5-3/4” LOCK NUT, 3/4-10 • ATTACH SHOVELS TO SHANK LEGS HHCS, 3/4-10 x 6-1/2”...
  • Page 32: Model Configurations

    Assembly • MODEL CONFIGURATION SBA209 308rev9-16-08 Page 30 1P761...
  • Page 33 Assem 308rev9-16-08 Page 31 1P761...
  • Page 34 Assembly SBA213 308rev9-16-08 Page 32 1P761...
  • Page 35 rillion rillion rillion rillion rillion rillion rillion rillion rillion rillion Page 33 1P761...
  • Page 36: Hydraulics

    Assembly Page 34 1P761...
  • Page 37 Assem Page 35 1P761...
  • Page 38 Assembly SCHEMATIC OF MACHINE RAISING HYDRAULICS 1-HOLE PIN, 1-1/4 x 6-1/4” Long ROLL PIN, 3/8 x 2” ELBOW, 90 O-RING 4K603 HYDRAULIC CYLINDER, 3-1/2 x 16 1P764 HOSE ASM 9K733 3/8 x 220” ELBOW, 90 O-RING 4K603 HOSE CLAMP 4K882 HOSE ASM 3/8 x 34”...
  • Page 39 Assem SCHEMATIC OF DISC CONTROL HYDRAULICS HYDRAULIC CYLINDER, 3 x 8 HYDRAULIC CYLINDER, 3 x 8 2J674 2J674 ELBOW, 90 O-RING 4K603 ELBOW, 90 O-RING 4K603 4K885 HOSE ASM 3/8 x 63” 6K303 HOSE ASM TEE, 1P292 3/8 x 57” 4K883 HOSE ASM 4K917 HOSE ASM TEE, 1P292...
  • Page 40: Warning Lights

    Assembly • INSTALL LIGHT MOUNTING PLATES Attach mounting plates to machine by removing and reinserting existing shank and rear frame hardware. LIGHT MOUNTING BRACKET • INSTALL LAMPS Attach red and amber warning lamps in positions shown on this and the next page with 1/4-20 x 1-1/4”...
  • Page 41 Assem Page 39 1P761...
  • Page 42 Assembly ELECTRICAL SCHEMATIC AMBER LAMP AMBER LAMP RED LAMP RED LAMP WISHBONE HARNESS LIGHT MODULE 25’ EXTENSION HARNESS Page 40 1P761...
  • Page 43: 1P820 Extension Bracket Kit

    Assem EXTENSION BRACKET SHANK ASSEMBLY LOCK NUT, 5/8-11 U-BOLT, 5/8-11 x 4-11/16 x 7-1/2 ASSEMBLE TO REAR FRAME TUBE 308rev4-3-08 Page 41 1P761...
  • Page 44 Operation OPERATION Page 42 1P761...
  • Page 45: Operation

    Operation Operation The Brillion Soil Builder should be inspected prior to operation to be sure that it is in good operating condition. Make sure there are no leaks in the hydraulic lines and that all nuts and bolts are tight.
  • Page 46: Transporting

    • TRANSPORTING THE SOIL BUILDER II - THE TRANSPORT LOCK & ACTUATOR If the Soil Builder II is to be transported a long distance, or if you need to work on the machine, lock the machine in place. Extend the 3-1/2 x 16 cylinder and move the actuator handle to its lower position.
  • Page 47: Field Operatiion

    Operation Operation • FIELD POSITION - OPERATING THE SOIL BUILDER II During operation, place the actuator handle in the upper position of the guide. Remove the lock pins and locking angle, retract the 3-1/2 x 16 cylinder to raise the transport wheels and lower the machine.
  • Page 48: Shank Depth & Point Pressure

    Operation Operation SHANK ADJUSTMENT OPERATING DEPTH • DEPTH ADJUSTMENT - SHANKS The depth of operation is controlled with the actuator crank mechanism of the actuator. The scale located on the frame next to the actuator may be used as a depth guide. One turn of the crank will adjust the operating depth approximately 5/8”-3/4”.
  • Page 49: Leveling & Coulter Depth

    Operation Operation • MACHINE LEVELING Adjust turnbuckle to level frame when shanks are she to desired working depth. • DEPTH ADJUSTMENT - COUTLTERS Set the coulters to the desired depth by using stroke control segments on the two 3 x 8 cylinders attached to the coulter gangs.
  • Page 50 rillion rillion rillion rillion rillion rillion rillion rillion rillion rillion Page 48 1P761...
  • Page 51: Maintenance

    Maintenance Lubrication MAINTENANCE Page 49 1P761...
  • Page 52 HRS. Page 50 1P761...
  • Page 53 Maintenance Lubrication Annually Annually Annually Page 51 1P761...
  • Page 54: Machine Specifications

    Specifications (Subject to change without notice) Model Designation Basic model is denoted by : SBA: Extended Frame Super Soil Builder, with 25” coulters on 7.5” spacing and Coil Spring Reset Shanks with 10” of trip height on 15” spacing. The number following relates to the Series II number of shanks on the machine: SBA209 = 9 shanks, SBA211 = 11 shanks, SBA213 = 13 shanks FRAME: Walking Tandem Axles...
  • Page 56 Equipment from Landoll Corporation is built to exacting standards ensured by ISO 9001:2008 registration at all Landoll manufacturing facilities. LANDOLL CORPORATION 1900 North Street Marysville, Kansas 66508 (785) 562-5381 800-428-5655 ~ WWW.LANDOLL.COM Copyright 2010. Landoll Corporation "All rights reserved, including the right to reproduce this material or portions thereof in any form"...

This manual is also suitable for:

Sba209Sba211Sba213
