OPERATOR'S MANUAL

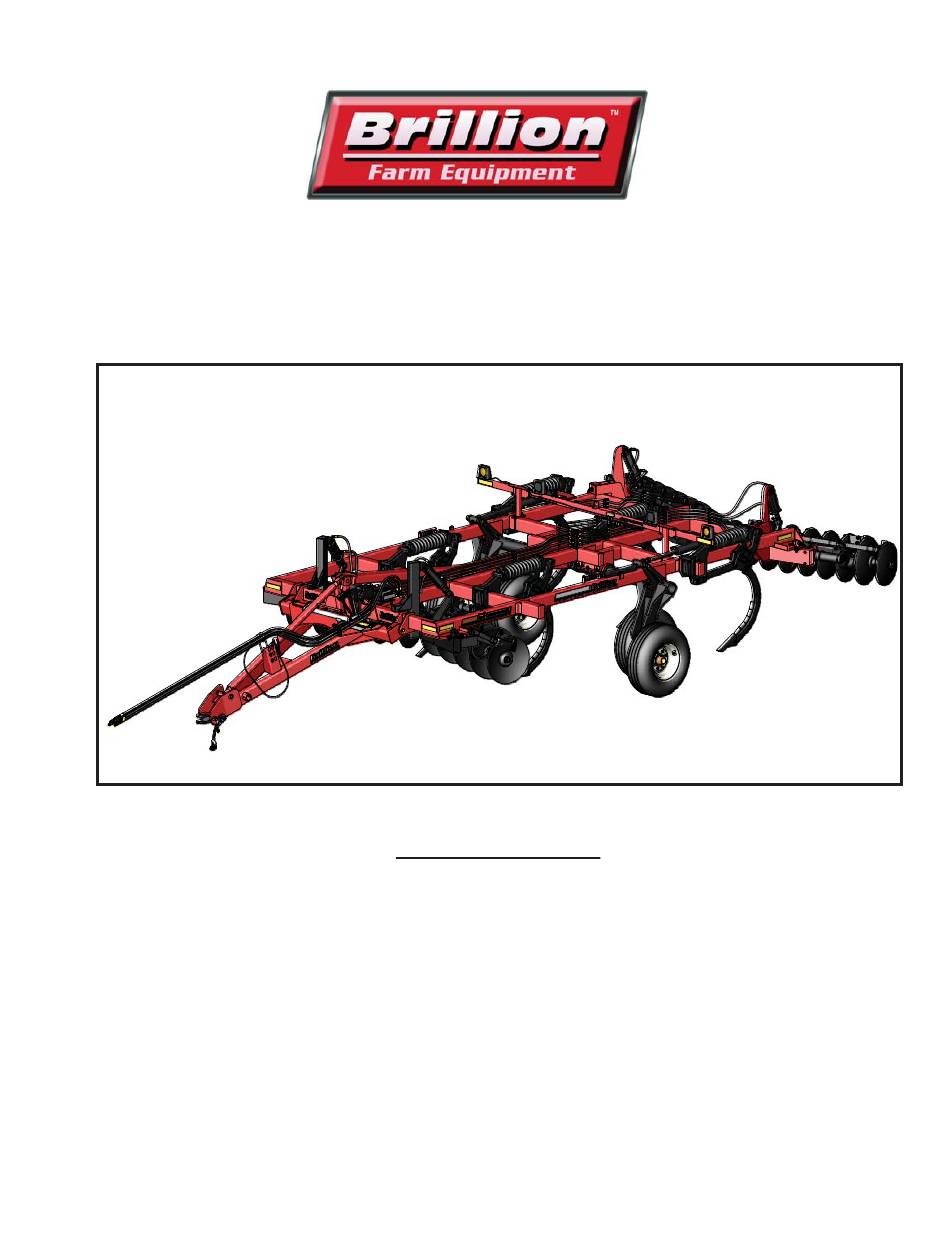

Land Commander III

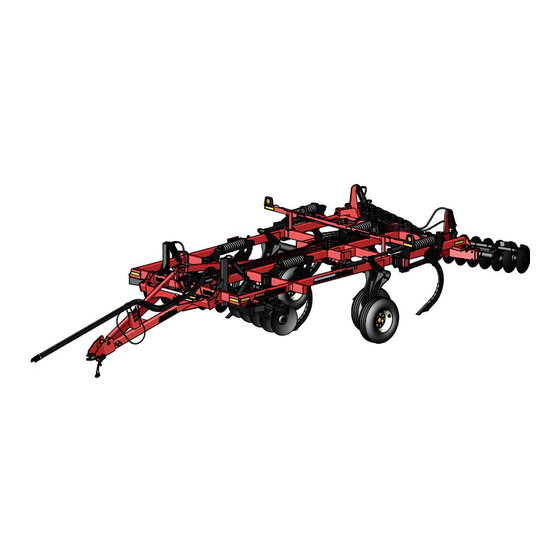

The Brillion Land Commander III, designed as a primary conservation tillage tool, is the
most verstile tool of its kind. It readily cuts through even heavy residue and with a 39"
under frame clearance, keeps the trash moving through the machine with ease.
* Cover illustration may show optional equipment not supplied with standard unit
15" Front Disc Spacing, 24" Plain Blades; 10" Rear Disc Spacing, 22" Plain Blades
LCS5303-4
LCS7203-4
15" Front Disc Spacing, 22" Single Plain Blades; 10" Rear Disc Spacing, 22" Plain Blades
LCS5303-5
LCS7203-5
15" Front Disc Spacing, 24" Notched Blades; 10" Rear Disc Spacing, 22" Plain Blades
LCS5303-6
LCS7203-6
15" Front Disc Spacing, 22" Single Notched Blades; 10" Rear Disc Spacing, 22" Plain Blades
LCS5303-7
LCS7203-7
Rev0410
B
rillion
MODELS AVAILABLE
LCS9153-4 LCS13153-4 LCS7303-4 LCS9203-4 LCS11153-4
LCS9153-5 LCS13153-5 LCS7303-5 LCS9203-5 LCS11153-5
LCS9153-6 LCS13153-6 LCS7303-6 LCS9203-6 LCS11153-6
LCS9153-7 LCS13153-7 LCS7303-7 LCS9203-7 LCS11153-7
BRILLION FARM EQUIPMENT
BRILLION, WISCONSIN 54110
www.brillionfarmeq.com
