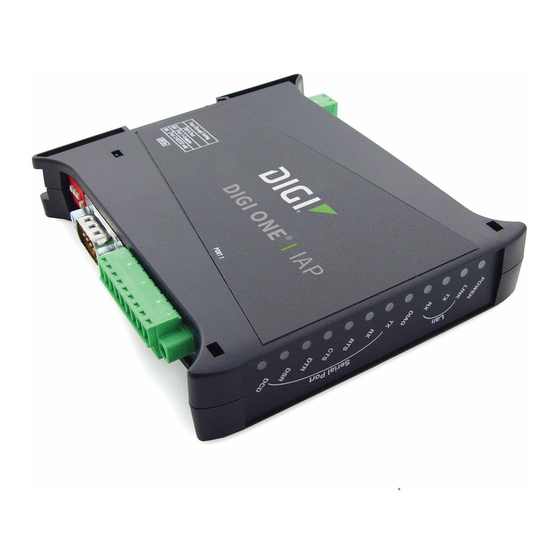

Digi One IAP Quick Start Manual

Quick Start Guide
Digi One™ IAP, Digi One™ IA, Digi
One™ IAP HAZ

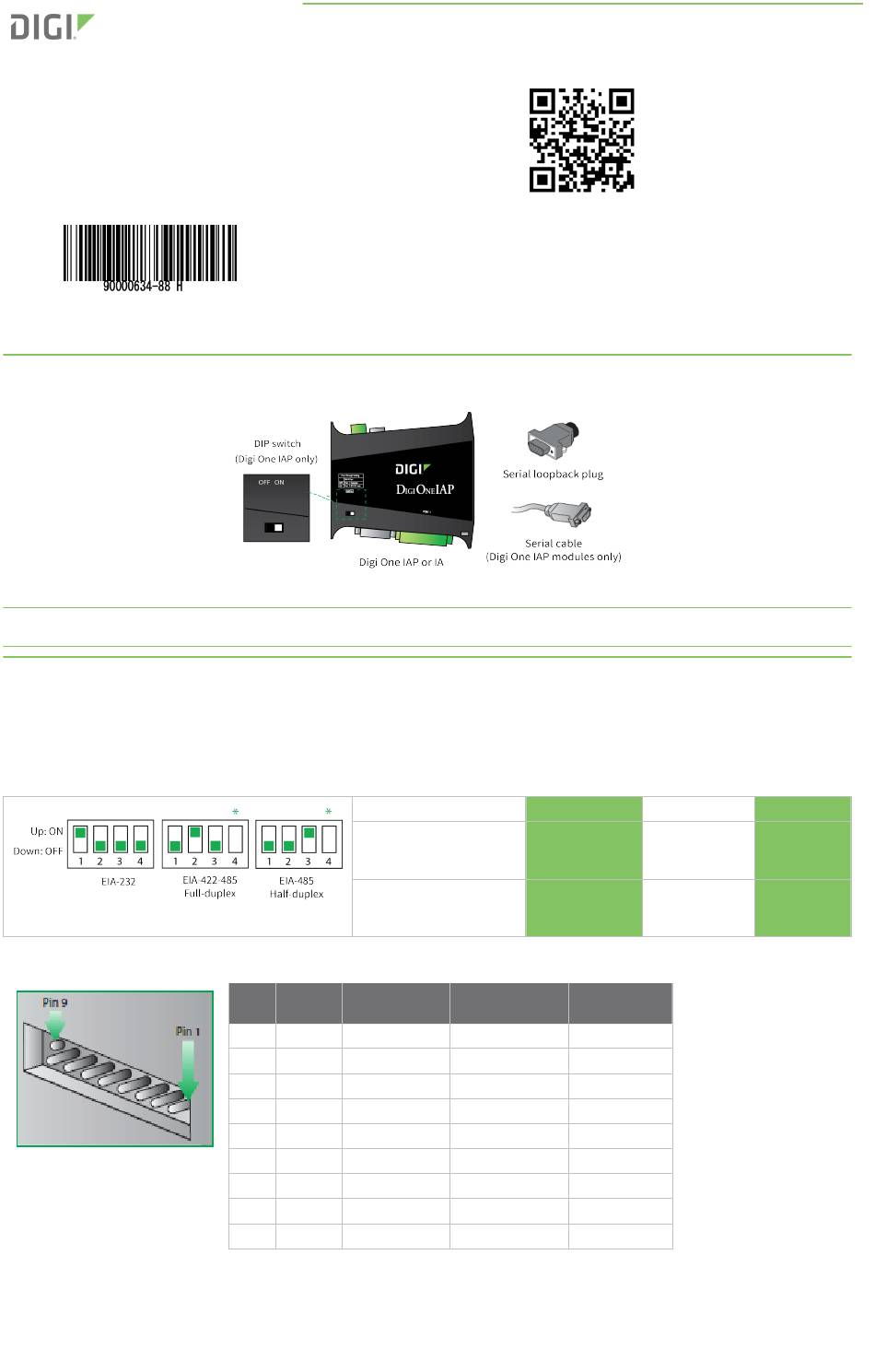

2 Verify your components
Verify that you have all included equipment. If any item is missing or damaged, contact your supplier.
Note A loose label sticker that includes the unique device password is included in the box. Retain this label sticker with your hardware records. This default
password will be needed if the device is factory reset and you want to access the web UI on the device.
3 Set the DIP switch or screw-terminal pins
Set the serial DIP switch according to your serial device requirements (EIA-232/422/485). The pinouts are on the back of the device.
Switch setting
Digi One IAP only: Set pass-through settings.
See the graphic in section 2, Verify your components, for the location of the DIP switch.
If switch 4 is up, the termination resister is connected. If switch 4 is down, the termination resistor is not connected.
© 2020 Digi International Inc.
Digi, Digi International, and the Digi logo are trademarks or registered trademarks in the United States and other countries worldwide. All other trademarks mentioned in this
document are the property of their respective owners.
1 Welcome to your Digi product
Get started: This guide helps you with initial product setup. Need more? Find additional
supporting material for this product at www.digi.com/products/serial-servers/digioneiapfamily.
Or connect to the online documentation by scanning this code:
Digi Technical Support: Digi offers multiple support plans to help you get the most out of your
product. For information on Technical Support plans and pricing, contact us at 877.912.3444 or
visit www.digi.com/support.
Documentation feedback: To provide feedback on this documentation, send your comments
to techcomm@digi.com.
Included equipment
Switch position
DB-9 RS-232
RS-422/485
Full-duplex
2 RxD RxD+
3 TxD TxD+
7 RTS RTS+
8 CTS CTS+
5 GND GND
6 DSR RxD-
1 DCD CTS-
4 DTR RTS-
9 NA TxD-
Port 1 screw term
ON Follows switch
(232/422/485)
OFF Follows switch
(232/422/485)
RS-485
Half_duplex Screw term
RxD+
TxD+
Not used
Not used
GND
RxD-
Not used
Not used
TxD-
Port 2 DB-9 Flow control
RS-232 Hardware flow
only control
supported
Follows switch Hardware flow
(232/422/485) control
supported
6
3
1
8
5
7
9
2
4
