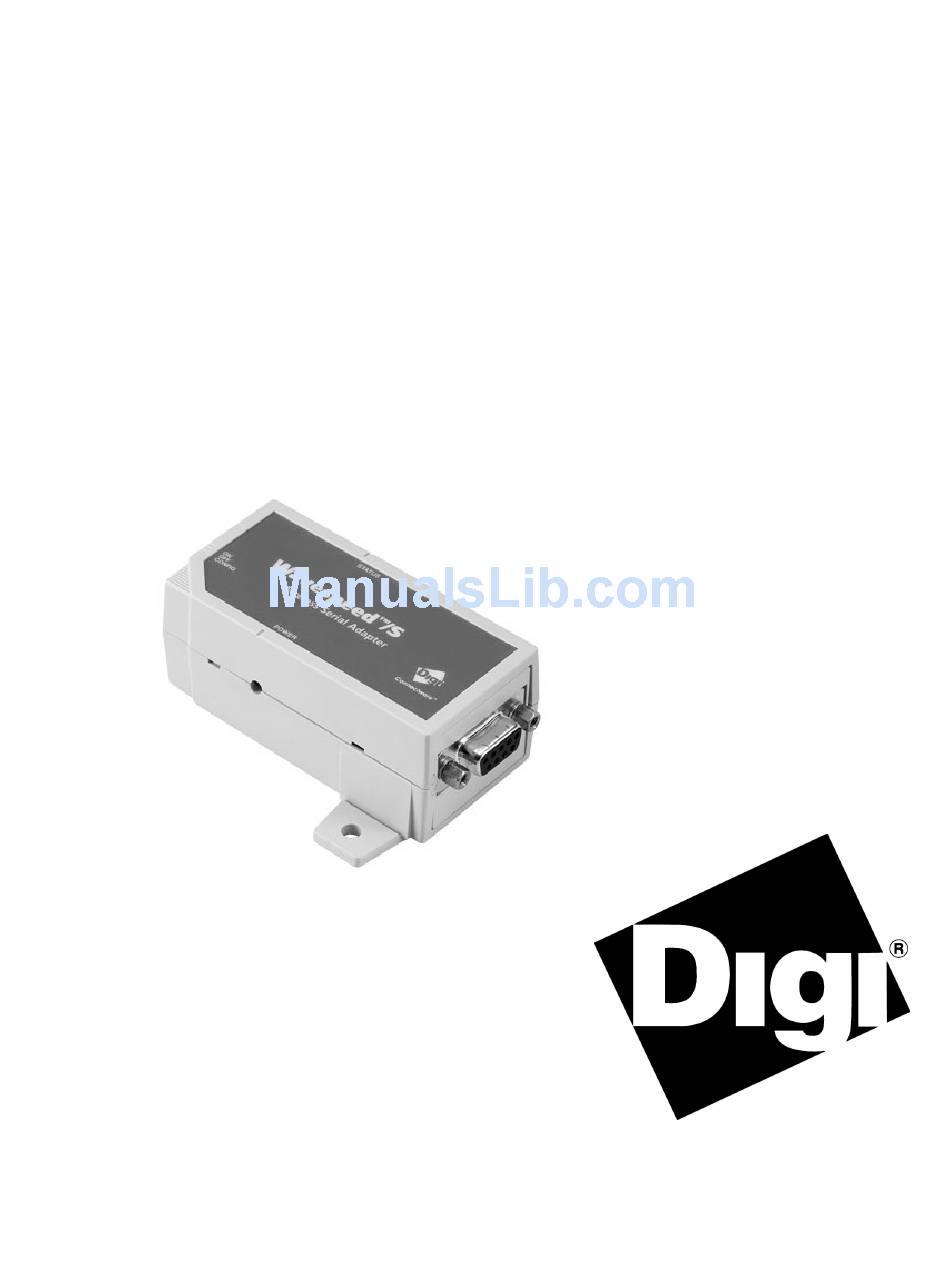

- Page 1 Wavespeed/S IRELESS ERIAL EVICE Configuration Guide www.digi.com...
-
Page 2: Table Of Contents
Table of Contents Wavespeed/S..................3 Operating Modes..................3 Pre-Configuration .................. 3 User Configuration ................4 Serial Cable Replacement Configuration ........4 Select COM Port..............4 Discover Devices..............4 Configure Local Port Settings ..........5 Configure Remote Device Port Settings........5 SPP Server Configuration .............. -
Page 3: Wavespeed/S
Wavespeed/S The Wavespeed/S provides an easy-to-use wireless data solution for legacy applications providing a serial link (RS- 232) to transfer data between devices or between devices and a host. The serial cable can be replaced with a Blue- tooth wireless link that is transparent to the software application. Following initial configuration using a ®... -
Page 4: User Configuration
User Configuration Serial Cable Replacement Configuration Power both units and connect one to a serial port on your computer. Place both units in configuration mode by sliding the three-position switch to the far right, away from the power connector. Class 1 units will need to be separated by several feet. -
Page 5: Configure Local Port Settings
10. The Configuration Wizard automatically notifies you that the bonding was successful. If the procedure fails, retry the bonding process. 11. Click Next when bonding is complete. Configure Local Port Settings The next step is to specify the local device’s port emulation settings and type. -
Page 6: Spp Server Configuration
SPP Server Configuration Power the unit and connect it to a serial port on your computer. Place both units in configuration mode by sliding the three-position switch to the far right, away from the power connector. Launch the WvsdpCfg configuration utility. In the first screen, select SPP Server in the Device Function box. -
Page 7: Configure Local Device
When all settings are specified, click Set Port Configuration to send the settings to the local device. 10. After viewing the confirmation message, click Next. Configure Local Device 11. You may give the device a unique name. 12. Authentication: If authentication is enabled, the Wavespeed/S unit only connects to units that provide a matching PIN code as part of the authentication process. -
Page 8: Specifications
Specifications Power Input: 5V 3-Position Switch A 3-position switch (ON/OFF/CONFIG) determines the device’s current mode. ON is the normal operational mode for the device. CONFIG puts the device in configuration mode. Female DB-9 Connector Configurable Port Settings Device Type DTE: Data Terminal Equipment DCE: Data Communication Equipment Baud Rate: 300, 1200, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200 (flow control required) -
Page 9: Pin Outs
The opposite is true of a DTE device. The voltage of pin 2 should be ground and the voltage of pin 3 should be in the –12 V to –3 V range. Regulation and Other Information © 2006 Digi, Digi International, the Digi logo, the Digi odically to the information herein; these changes may Connectware logo, and /S are trademarks or registered be incorporated in new editions of the publication. - Page 10 According to ISO/IEC Guide 22 and EN 45014 correct the interference by one or more of the following Manufacturer’s Name: measures: Digi International Reorient or relocate the receiving antenna. Manufacturer’s Addr.: Increase the separation between the equipment and the 11001 Bren Road East receiver.
- Page 11 Austin, Texas July 2006 Digi International 11001 Bren Road East Minnetonka, MN 55343 digi.info@digi.com www.digi.com Corporate Headquarters: 952-912-3444 877-912-3444 Fax: 952-912-4952 Digi Europe: +49-231-9747-0 Digi Hong Kong: +852-2833-1008 Digi North America: 877-912-3444 Wavespeed/S Configuration Guide (90000407 Rev. C) – Page 11...
