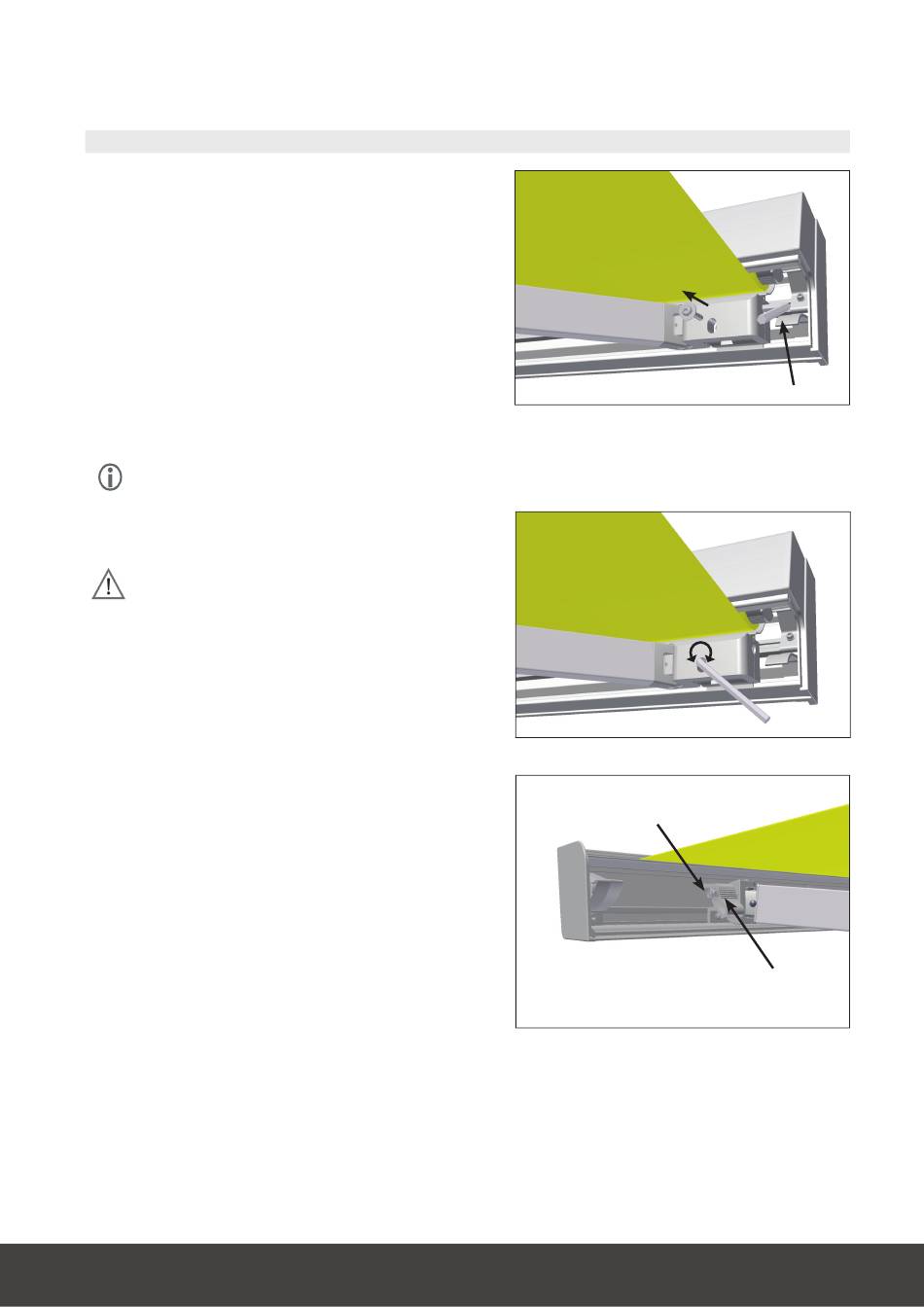

3.2 Setting the inClination of the awning
adjuStment of the inClination of the awning:
• Half extend the awning.
• Remove securing screw with Allen key 5.
• Loosen the side screw with Allen key 10.
• Lift arm slightly to relieve the load on the pivoting part and adjust
the inclination by turning the screw in the pivoting part with SW
10 Allen key.
to lower the awning, turn CloCkwiSe
to raiSe the awning, turn Counter-CloCkwiSe
In the event of a significant change of the inclination setting (more
than 10°), the arms must be adjusted alternately.
Ensure that the pivoting part rests with its surface on the
head of the countersunk screw.
• Following the adjustment of the inclination, firmly tighten the side
screw and insert the securing screw with the washer, then also
tighten firmly.
adjuStment of the CaSSette droP Profile:
• Extend the awning by approximately 40 to 50cm.
• Loosen stop nuts at the side of the drop profile holders with
SW 13 spanner.
• Move drop profile with one hand into the desired
inclination position.
• Push drop profile to the desired position and fix by tightening the
stop nut.
• Make the same adjustment on the other side. Use the mesh pattern
on the drop bar holder for easier orientation.
• Visually verify whether the side parts of the housing and the drop
profile are in alignment. If necessary, correct drop profile again.
• Wind up awning and check that the drop profile closes exactly.
