QUICK START GUIDE
CY4501 CCG1 DVK

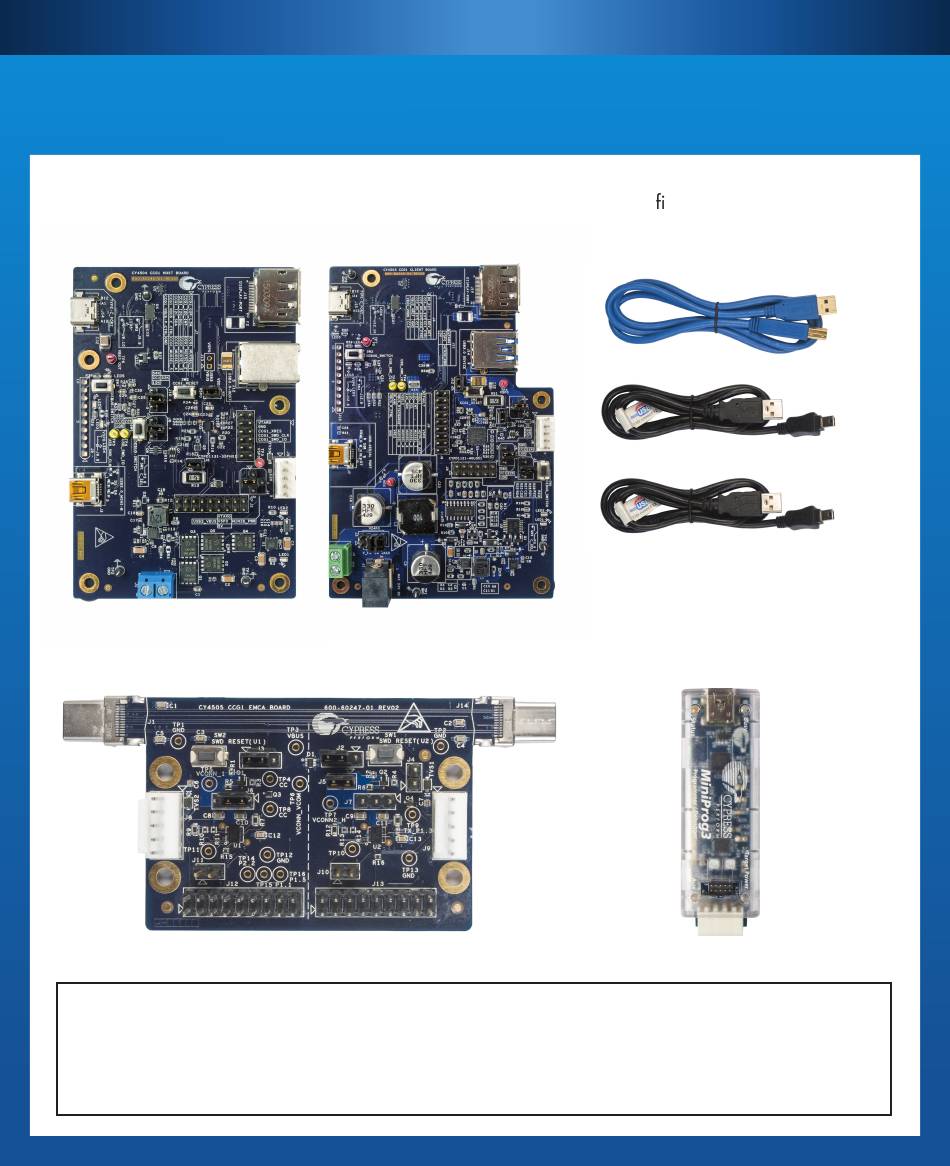

Step 1: Unpack kit contents. Download and install the latest kit setup le
"CY4501 CCG1 DVK COMPLETE SETUP" from
www.cypress.com/go/CY4501
ONE SUPERSPEED USB
TYPE-A TO TYPE-B CABLE
TWO USB 2.0 TYPE-A TO

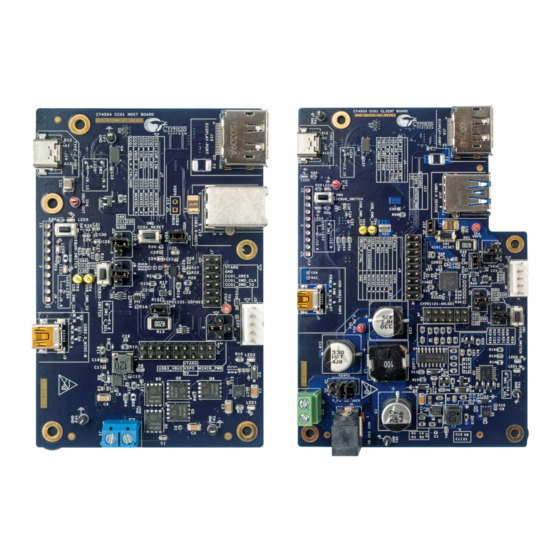

CCG1 HOST BOARD
CCG1 CLIENT BOARD
MINI-B CABLES
CCG1 EMCA BOARD
MINIPROG3
NOTE: 1. The Type-C receptacles and plugs used on the CCG1 boards are delicate parts and they
need to be handled carefully. Avoid putting excess pressure on the Type-C receptacles
and plugs during usage
2. Board revision number etched on the PCBA may differ from the image shown above.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CY4501 CCG1 DVK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cypress Semiconductor CY4501 CCG1 DVK

Summary of Contents for Cypress Semiconductor CY4501 CCG1 DVK

  • Page 1 QUICK START GUIDE CY4501 CCG1 DVK Step 1: Unpack kit contents. Download and install the latest kit setup le "CY4501 CCG1 DVK COMPLETE SETUP" from www.cypress.com/go/CY4501 ONE SUPERSPEED USB TYPE-A TO TYPE-B CABLE TWO USB 2.0 TYPE-A TO CCG1 HOST BOARD...
  • Page 2 QUICK START GUIDE Step 2: Verify jumper settings on the CCG1 Host board. Use SuperSpeed USB Type-A to Type-B cable to connect a PC with the Host board's SuperSpeed USB Type-B connector (receptacle) J12. J4, Decides the 5 V Power Source for the Board 1-2: Power from MiniProg3 2-3: Power from USB Type-C...
  • Page 3 QUICK START GUIDE Step 4: Verify jumper settings on the CCG1 EMCA board. J2, Controls Disconnection of J3, Controls Disconnection of VCONN Ra Resistor for J14 VCONN Ra Resistor Type-C Connector for J1 Type-C Connector 1-2 Short: U2 (Near End CCG1) 1-2 Short: U1 (Near End CCG1) Controls Disconnection Controls Disconnection (Default Setting)
  • Page 4 Step 9: For more details, refer to the CY4501 CCG1 Development Kit Guide.pdf located at C:\Program Files (x86)\Cypress\CY4501 CCG1 DVK\1.0\Documentation for 64-bit Windows operating systems or C:\Program Files\Cypress\CY4501 CCG1 DVK\1.0\ Documentation for 32-bit Windows operating systems. For the latest information about this kit, visit www.cypress.com/go/CY4501...
