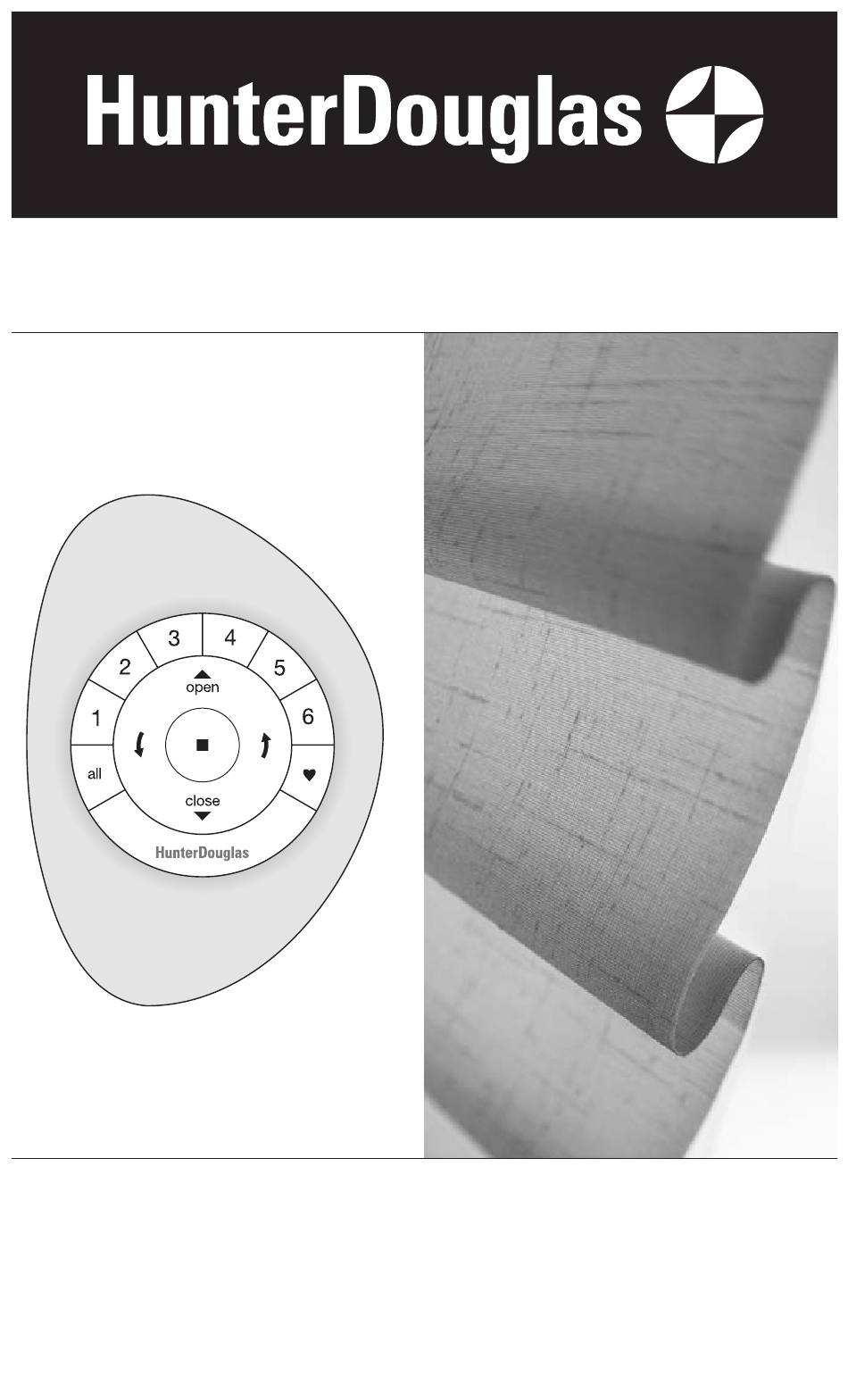

- Page 1 Installation Operation Care • • Vignette Modern Roman Shades ® Traditional Style Shades ™ PowerView Motorization ™...
-
Page 2: Table Of Contents
Cleaning Procedures ........... 19 Declarations ........Inside Back Cover Warranty ............Back Cover Questions? Call the Hunter Douglas Customer Information Center at 1-888-501-8364. © 2016 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or their respective owners. -
Page 3: Getting Started
GETTING STARTED Product View Battery Wand Battery Wand Clips Spacer Blocks Installation Brackets Extension Cable Power Cable* Headrail Magnetic Hold-Down Brackets (Optional) Bottom Rail Balance Weight Weight Clips *The power cable can be located at either end of the headrail, depending on the specified motor placement. -
Page 4: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing Hunter Douglas Vignette Modern Roman Shades with PowerView ™ ® Motorization. With proper installation, operation, and care, your new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. -
Page 5: Installation
INSTALLATION Installation Overview To install your shade, you will need to perform the following three steps: STEP 1: Install the Brackets STEP 2: Install the Shade STEP 3: Connect the Power Source STEP 1 — Install the Brackets Your order will include the correct number of installation brackets for your shade width, as shown in the table below. - Page 6 INSTALLATION Mount the Installation Brackets — Inside Mount Measure and mark 3" in from each jamb for bracket location. If more than two installation brackets came with your order, mark the location of the additional bracket(s) spaced evenly between the two end brackets. Mount into wood whenever possible.
- Page 7 INSTALLATION Mount the Installation Brackets — Outside Mount Center the headrail over the window opening at the desired height. Use a pencil to lightly mark each end of the headrail. Alternatively, measure the width of the headrail and use that width to mark the headrail end points over the window opening.
- Page 8 INSTALLATION If the shade will be powered by a battery wand: Attach the installation brackets with the " and " spacer blocks. Use 2" #6 hex head screws (not provided). The solid side of the spacer blocks faces the mounting surface. Spacer If using additional spacer blocks for more Longer...
-
Page 9: Step 2 - Install The Shade
INSTALLATION STEP 2 — Install the Shade Mount the Headrail CAUTION: Be sure the cables do not become pinched by the installation brackets when mounting the headrail. Hold the headrail so the front (curved side) faces you. Push the top edge of the headrail into the installation brackets. Rotate and push the headrail back until it snaps into place. -
Page 10: Step 3 - Connect The Power Source
Install the batteries according to the Squeeze instructions on the battery wand label. Latch Hunter Douglas recommends AA alkaline batteries for use with our battery-powered shades. These will provide approximately one year of operation. Lithium and rechargeable batteries are not recommended. Replace the cap. - Page 11 INSTALLATION Plug the Power Cable into the Battery Wand On the back of the headrail, connect the power cable from the shade into the socket on the battery wand. Socket Power Back of Shade Cable Proceed to “Attach Magnetic Hold-Down Brackets (Optional)” on page 12. If You Have a Satellite Battery Pack...
- Page 12 INSTALLATION Plug the power cable from the shade into the extension cable. Battery Wand Cover Plug the other end of the extension cable into Extension Cable the socket in the battery wand. Power Cable from Shade Proceed to “Attach Magnetic Hold-Down Brackets (Optional)” on page 12. If You Have a DC Power Supply...
- Page 13 INSTALLATION If You Have a DC Power Supply with Daisy-Chain Connections... The daisy-chain feature allows up to three PowerView motorized shades to be powered ™ by a single DC power supply. However, each shade has its own RF receiver and can operate independently.
-
Page 14: Attach Magnetic Hold-Down Brackets (Optional)
INSTALLATION Attach Magnetic Hold-Down Brackets (Optional) Lower the shade until it is fully lowered and rotated back toward the window. Attach the magnetic hold-down brackets onto the bottom Magnetic Hold-Down rail just inside the end caps. The brackets will attach into the Bracket channel in the middle of the bottom rail. -
Page 15: Operation
OPERATION Testing the Shade Check the Power Cord Check the headrail to ensure the power cord is not visible. If it is visible, adhere the wire saddle on the power cord to the back of the shade. Back of Shade Wire Saddle Wire... -
Page 16: Using The Powerview ™ Remote
OPERATION Using the PowerView Remote ™ First, activate the remote by pulling both plastic tabs from the back battery compartment. OPEN Group 4 Group 3 Group 5 Group 2 Group 1 Group 6 RIGHT ARROW No function (only used for vaned LEFT ARROW products or Top-Down/Bottom-Up) No function (only used... -
Page 17: Resetting The Shade
OPERATION 3. Press CLOSE to lower the selected shade(s). 4. Press OPEN to raise the selected shade(s). 5. Press STOP to stop shade movement anywhere along its travel. 6. While a shade is in motion, press the opposite of shade motion ( OPEN or CLOSE) to reverse direction. -
Page 18: Troubleshooting
If your shade is not operating correctly: First review the guide that came with your control device. Refer to the following troubleshooting procedures for specific solutions for your shade. If questions remain, please contact the Hunter Douglas Customer Information Center at 1-888-501-8364. Problem The shade will not snap into the installation brackets. - Page 19 OPERATION Problem The front fabric appears to cling to the back fabric. Solution Lightly apply a static spray for home furnishings. Follow the manufacturer’s directions. Allow the shade to dry in the fully lowered position. If necessary, reapply the static spray each time the shade is professionally cleaned.
- Page 20 OPERATION Problem The shade raises or lowers unevenly, the bottom rail is not level when fully raised, or the fabric winds unevenly or starts to rub against one end of the headrail. Solution Check that the installation brackets are level. Shim to level, if necessary. Check if the window is out-of-square by measuring the diagonals.
-
Page 21: Care
Cleaning Procedures Hunter Douglas Vignette Modern Roman Shades are made with anti-static, dust-resistant ® fabrics that repel dirt and dust. For most fabrics, the following cleaning options are available. - Page 22 CARE Ultrasonic Cleaning Vignette Modern Roman Shades can be ultrasonically cleaned by a professional. ® CAUTION: Do not ultrasonically clean the headrail or bottom rail fabric, or any room-darkening fabrics. Specify that a mild detergent solution be used. Never immerse the fabric-covered headrail into the solution. Allow the shade to dry in the completely lowered position.
-
Page 23: Declarations
This Class B digital apparatus complies with Canadian ICES-003, RSS-Gen and RSS-210. CAN ICES-3 (B)/NMB-3(B) European Conformity We, the undersigned, Hunter Douglas Window Fashions One Duette Way, Broomfield, CO 80020, USA Hunter Douglas Europe B.V. Piekstraat 2, 3071 EL Rotterdam, The Netherlands certify and declare under our sole responsibility that assembly PV4 conforms with the essential requirements of the EMC directive 2004/108/EC and R&TTE directive 1999/5/EC. - Page 24 2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to service locations. 3. Contact Hunter Douglas at (888) 501-8364 for technical support, certain parts free of charge, for assistance in obtaining warranty service or for further explanation of our warranty.
