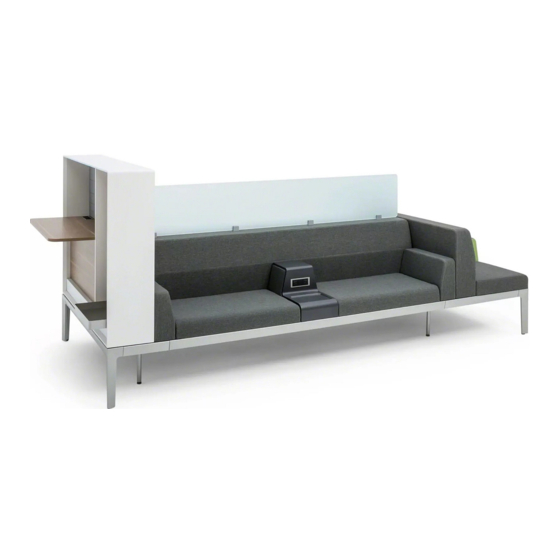

Steelcase Regard Tablet Installation Manual

Rail installation

Download this manual

HEALTH

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2018 Steelcase Inc.

Grand Rapids, MI 49501

U.S.A.

Printed in U.S.A.

Regard Tablet Rail Installation

Product Directions Needed:

Regard Customer Service Trim

Assembly # 9599294

Regard Customer Service Arm

Assembly # 9599294

Surround Tablet Assembly

1160570001

5mm

Page 1 of 5

116537 Rev A

Need help?

Do you have a question about the Regard Tablet and is the answer not in the manual?

Page 1 Surround Tablet Assembly 1160570001 If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.

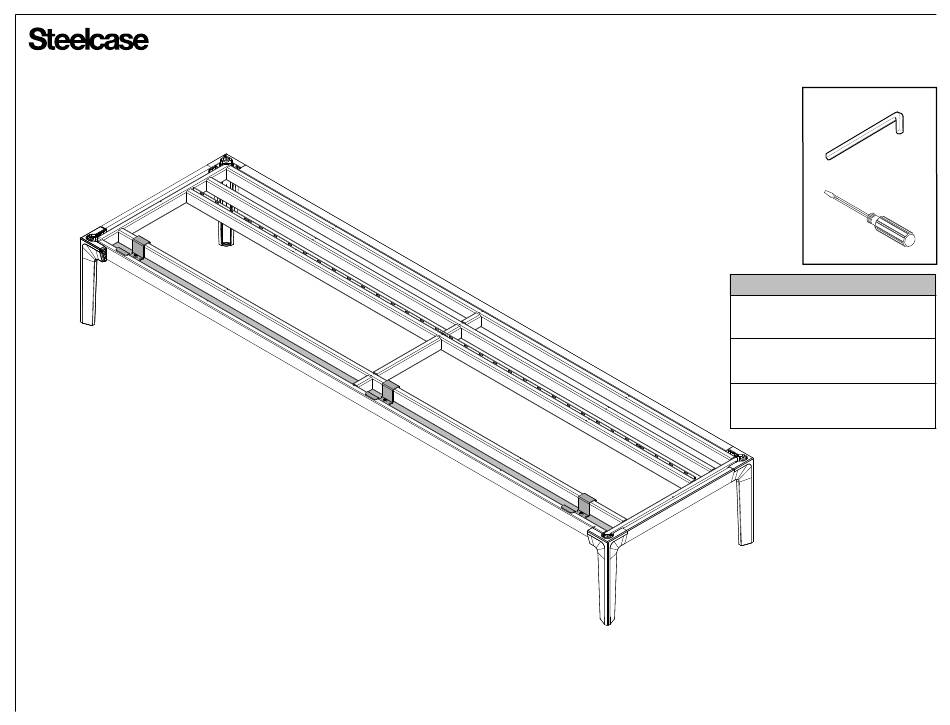

Page 2 ® HEALTH Install side trim. Lay out components (seats, arms, storage) and note where mounting brackets will be located on frame. Position the three tablet rail mouting brackets so there is one bracket at each end of the frame, and one in the center. NOTE: See next page for placement guidelines.
Page 3 ® HEALTH 2. Brackets may interfere with seat, arm, and/or storage mounting brackets. Place the end brackets within 24” of the end of the frame, and the center bracket within 12” of either side of the center of the frame. <...
Page 4 ® HEALTH Make sure t-nuts are aligned with each other as shown in figure 3a. Align the tablet rail under the frame, centering it between the left and right side trim. Once brackets are properly placed, tighten screws using the hex tool as shown to secure all three brackets to rail.
Page 5 ® HEALTH NOTE: Tablet must be installed prior to this step. See tablet assembly (#1160570001). Slide the tablet to the end of the rail, and rotate it. If it interferes with anything (nearby wall, cabinet, etc.), adjust the stops on the bottom of the rail. Loosen the bolt, slide the nut, and re-tighten.
