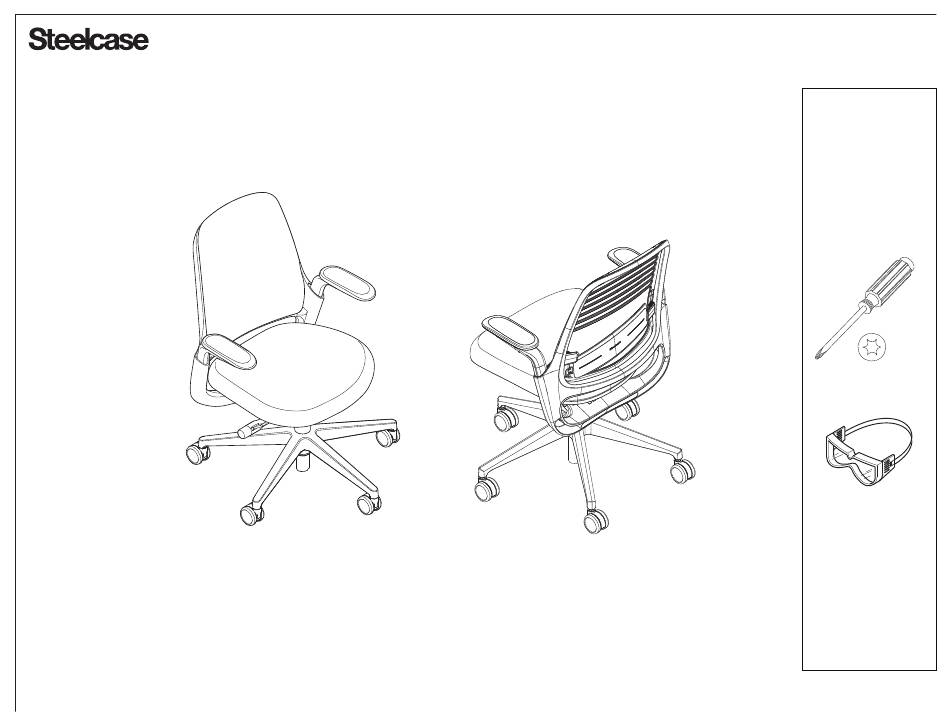

Steelcase Series 1 Lumbar Repair - User Guide
®
Issue: Lumbar Support is not connected on both side of the back frame.
Cause: Assembled incorrectly or chair has been pulled by the Lumbar Support.
T-15
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2017 Steelcase Inc.
Grand Rapids, MI 49501
Page 1 of 5
U.S.A.
113018 Rev A
Printed in U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lumbar 1 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Steelcase Lumbar 1 Series

Summary of Contents for Steelcase Lumbar 1 Series

  • Page 1 Steelcase Series 1 Lumbar Repair - User Guide ® Issue: Lumbar Support is not connected on both side of the back frame. Cause: Assembled incorrectly or chair has been pulled by the Lumbar Support. T-15 If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522)
  • Page 2 ® SQUARE BLACK BUTTON Remove Seat Pull seat depth lever out (1a) (Optional: insert paperclip wire as shown in 1b) and slide seat forward. Push and hold two square black buttons near the rear of the seat (2a) as you slide the seat forward and off (2b). Page 2 of 5 113018 Rev A...
  • Page 3 ® Repairing Lumbar Assembly Remove two (2) bottom screw (1a), and pull out bottom edge of Flexor assembly(1b). T-15 Swing the detached side of the lumbar up to the side handle, with the steel wire over the center of handle. Press Lumbar wire into side handle and guide the wire over the center of handle until Lumbar clicks in place.
  • Page 4 ® Replacing Lumbar Assembly Remove two (2) bottom screw (1a), and pull out bottom edge of T-15 Flexor assembly(1b). The lumbar support may fall out during this action. Push the lumbar handles forward to remove lumbar support. To reassemble, push lumbar support back into the sliding channel.
  • Page 5 ® Seat Replacement Align seat rails to seat, slide rearward until click. Adjust seat to assure proper assembly. Page 5 of 5 113018 Rev A...
