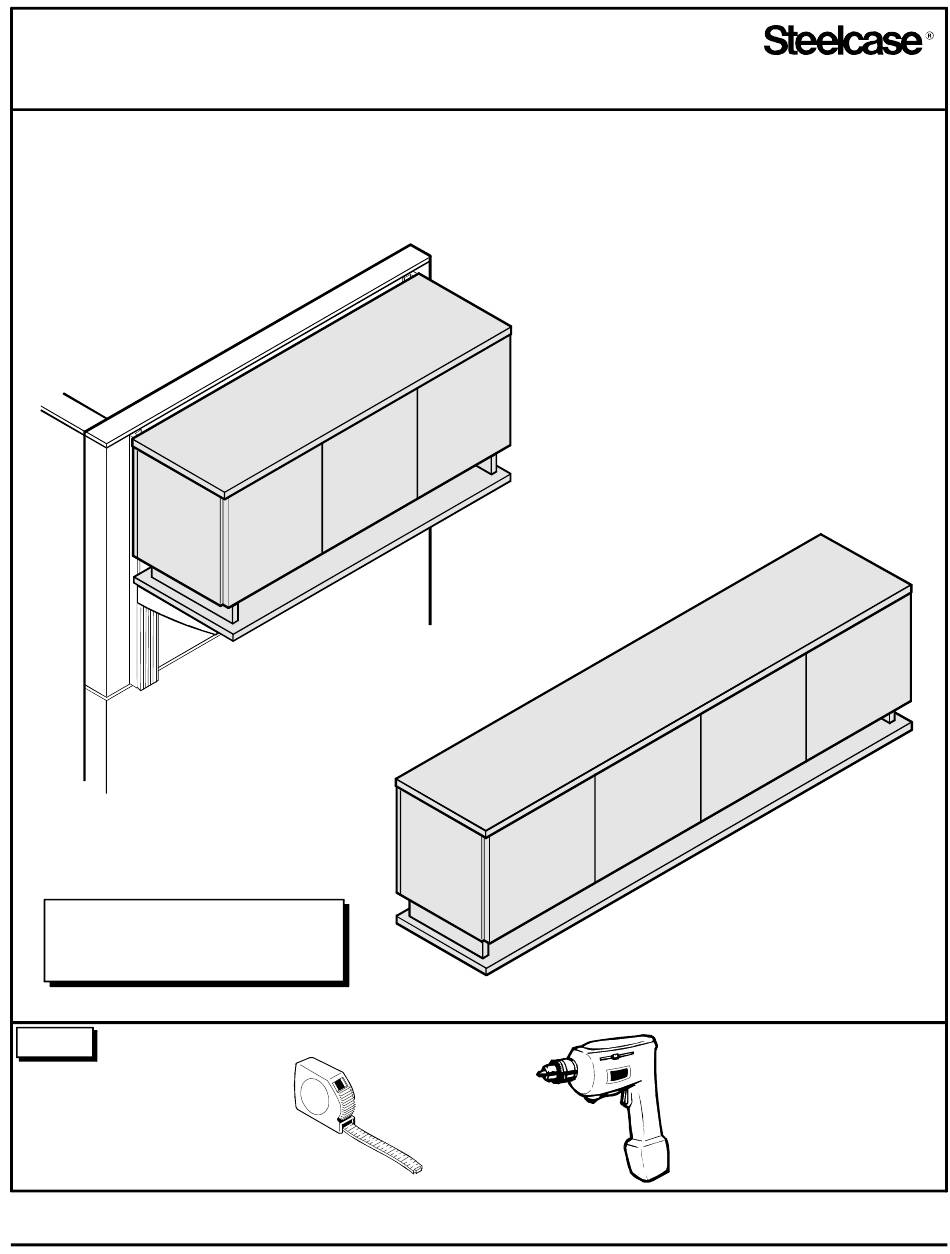

Steelcase RELEVANT Assembly Directions

Binder bin used on a pathways panel 42" 1067 mm unit/64" 1626 mm unit

Download this manual

Steelcase, Inc.

Grand Rapids, MI 49501

U.S.A.

1-888-783-3522

Binder Bin must be used on

a panel that has a return panel

or a "T" panel configuration.

TOOLS

Assembly Directions

RELEVANT - Binder Bin

used on a Pathways Panel

42" (1067 mm) Unit

Printed in U.S.A.

64" (1626 mm) Unit

REV C

Y9501898

Need help?

Do you have a question about the RELEVANT and is the answer not in the manual?

Page 1 Steelcase, Inc. Grand Rapids, MI 49501 U.S.A. 1-888-783-3522 RELEVANT - Binder Bin used on a Pathways Panel 42" (1067 mm) Unit Binder Bin must be used on a panel that has a return panel 64" (1626 mm) Unit or a "T" panel configuration.
Page 2 BRACKETS ON BOTTOM Determine location for binder bin on panel. Install panel brackets by inserting hooks into slots, then slide as shown. Make certain safety catches on top and bottom of brackets are engaged. Steelcase Page 2 of 4 Y9501898...
Page 3 PANEL BRACKET. Install support brackets onto panel brackets as shown. Make certain they are securely seated. FRONT VIEW ALIGN BRACKETS WITH SHELF RAILS Lower shelf assembly onto support brackets and secure with (4) screws provided. Steelcase Page 3 of 4 Y9501898...
Page 4 USE CORK SQUARES TO LEVEL BINDER BIN IF NEEDED. Carefully set binder bin onto shelf assembly. Align both sides and back panel with shelf assembly. Route cords if any, then snap on trim covers. Steelcase Page 4 of 4 Y9501898...
