Page 1 Floating Air Pro Single- Zone Cassette and Ducted Type Model Outdoor Condensor FPHFR9A3A Outdoor Condensor FPHFR12A3A Outdoor Condensor FPHFR18A3A Outdoor Condensor FPHFR24A3A Outdoor Condensor FPHFR36A3A Indoor Cassette FPHFC09A3A Indoor Cassette FPHFC12A3A Indoor Cassette FPHFC18A3A Indoor Cassette FPHFC24A3A Indoor Cassette FPHFC36A3A...
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents INTRODUCTION‑ Important Safety Information‑ Personal Injury Or Death Hazards‑ Model Identification Guide‑ Product Appearance ‑ Ducted and Cassette‑ Product Appearance‑ Outdoor Units‑ SPECIFICATIONS‑ Product Specifications Single‑Zone‑Cassette ‑ Product Specifications Single‑Zone Concealed Ducted ‑ Product Dimensions: 9k, 12k, and 18k Ducted Indoor Units‑ Product Dimensions: 24k Ducted Indoor Units‑...
Page 3 TABLE OF CONTENTS Leak Check, Evacuation, and Charging (Triple Evacuation)‑ Checklist‑ Operation Test‑ Fresh Air Intake‑ R‑410A SEALED SYSTEM REPAIR‑ Service Valves Appearance‑ Pumping Down‑ Gas Charging (After Repair)‑ Replace 9‑18k Outdoor unit Compressor and Motor‑ Replace 24k Outdoor unit Compressor and Motor‑ Replace 36k Outdoor unit Compressor and Motor‑...
Page 4 36K Indoor Cassette‑ 9K, 12K, Ducted Indoor‑ 18K Ducted Indoor‑ 24k Ducted Indoor‑ 36k Ducted Indoor‑ APPENDIX‑ Appendix 1: Reference Sheet of Celsius and Farenheit‑ Appendix 2: Pipe Expanding Method‑ ACCESSORIES‑ LIMITED WARRANTY‑ CUSTOMER SATISFACTION and QUALITY ASSURANCE‑ FRIEDRICH AUTHORIZED PARTS DEPOTS‑...
Page 5: Introduction
INTRODUCTION Important Safety Information The information in this manual is intended for use by a qualified technician who is familiar with the safety procedures required for installation and repair, and who is equipped with the proper tools and test instruments required to service this product.
Page 6 DO NOT OPERATE EQUIPMENT DURING ACTIVE STAGES OF CONSTRUCTION To ensure proper operation, Friedrich requires that all equipment is not operated during active construction phases. This includes active stages of completing framing, drywalling, spackling, sanding, painting, flooring, and moulding in the equipment’s designated conditioning space. The use of this equipment during construction could result in premature failure of the components and/or system and is in violation of our standard warranty guidelines.
Page 7: Personal Injury Or Death Hazards
INTRODUCTION Personal Injury Or Death Hazards WARNING AVERTISSEMENT ADVERTENCIA Do not remove, disable or Ne pas supprime, désactiver ou No eliminar, desactivar o pasar SAFETY bypass this unit’s safety contourner cette l´unité des por alto los dispositivos de devices. Doing so may cause dispositifs de sécurité, faire vous seguridad de la unidad.
Page 8: Model Identification Guide
INTRODUCTION Model Identification Guide MODEL IDENTIFICATION GUIDE Function : Model Type: HS – H ea t Pump Single Approximate Voltag e FR- Floating Air Premier Coolin g 1- 115 Volts HM – Heat Pump Multi FP - Floating Air Pro HF –...
Page 9: Product Appearance - Ducted And Cassette
INTRODUCTION Product Appearance - Ducted and Cassette Duct type Model Indoor Unit (Btu/h) 9K/12K 18 K Figure 102 Cassette type Model Indoor Unit (Btu/h) 9K/12K 18K/ 24k/ 36k Figure 103...

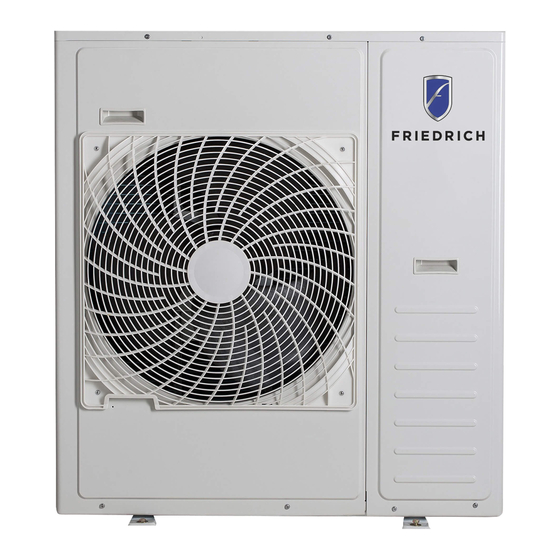

Page 10: Product Appearance- Outdoor Units
INTRODUCTION Product Appearance- Outdoor Units Figure 104...
Page 11: Specifications
SPECIFICATIONS Product Specifications Single-Zone-Cassette PERFORMANCE RATINGS FPHFC09A3A FPHFC12A3A FPHFC18A3A FPHFC24A3A FPHSC36A3B INDOOR MODEL FPHFC09A3B FPHFC12A3B FPHFC18A3B FPHFC24A3B Wi‑Fi Wi‑Fi" Wi‑Fi" Wi‑Fi" Wi‑Fi" OUTDOOR MODEL FPHFR09A3A FPHFR12A3A FPHFR18A3A FPHFR24A3A FPHFR36A3A SPECIFICATIONS CAPACITY COOLING (RATED) 9000 12000 18000 24000 36000 CAPACITY COOLING (MIN~MAX) 4850‑11600 5800‑13100 8000‑19200...
Page 12: Product Specifications Single-Zone Concealed Ducted
SPECIFICATIONS Product Specifications Single-Zone Concealed Ducted PERFORMANCE RATINGS INDOOR MODEL FPHFD09A3A FPHFD12A3A FPHFD18A3A FPHFD24A3A FPHSD36A3A OUTDOOR MODEL FPHFR09A3A FPHFR12A3A FPHFR18A3A FPHFR24A3A FPHFR36A3A SPECIFICATIONS CAPACITY COOLING (RATED) 9000 12000 18000 24000 36000 CAPACITY COOLING (MIN~MAX) 4850‑11600 5800‑13100 8000‑19200 8600‑25200 12600‑36800 CAPACITY HEATING @470F 9000 12000 18000...
Page 13: Product Dimensions: 9K, 12K, And 18K Ducted Indoor Units
SPECIFICATIONS Product Dimensions: 9k, 12k, and 18k Ducted Indoor Units 5-1/4(134) 5(127) 6-11/16(170) 8-3/4(222) Air outlet Air inlet Unit: Inches “ (mm) Air outlet Electric box Air inlet Model ( Btu/ h) 37- 13/16 35- 13/16 29-1/2 9K/12K (961) (910) (749) (786) 48-7/16...
Page 14: Product Dimensions: 24K Ducted Indoor Units
SPECIFICATIONS Product Dimensions: 24k Ducted Indoor Units Unit: Inches”(mm) Model Figure 204...
Page 15: Product Dimensions: 9K And 12K Cassette
SPECIFICATIONS Product Dimensions: 9k and 12k Cassette Unit: Inches “ (mm) 24-7/16(620) 12(305) 10-13/16(275) 2-7/16 (62) 22-7/16(570) 20-1/4(515) 2(51) 3-11/16 2-1/16(52) (93) 22-5 /8~23-1/4(575~590) 24-7/16(620) Figure 205...
Page 16: Product Dimensions: 18-36K Cassette
SPECIFICATIONS Product Dimensions: 18-36k Cassette Unit: Inches “ (mm) 37- 3/8(95 0) (490 ) (478 ) 33-1/16(840) 33-1/8(841) 7-1/8 5-1/8 (180) (130) 4-5/16 (110) 29-7/8(760) 33-7/8~35-13/16(860~910) Figure 206...
Page 17: Product Dimensions: 9-12K Outdoor Units
SPECIFICATIONS Product Dimensions: 9-12k Outdoor Units 11(250) Inches “(mm) Figure 207...
Page 18: Product Dimensions: 18K Outdoor Units
SPECIFICATIONS Product Dimensions: 18k Outdoor Units Inches “(mm) Figure 208...
Page 19: Product Dimensions: 24K Outdoor Units
SPECIFICATIONS Product Dimensions: 24k Outdoor Units Unit: Inches “ (mm) 7-1/4(185) 22- 7/8(580) 7(180) 37- 3/8(950) 3-1/4(82) 40- 7/8(1032) 13- 9/16(344) 5/8(15) 2-3/4(70) Figure 209...
Page 20: Product Dimensions: 36K Outdoor Units
SPECIFICATIONS Product Dimensions: 36k Outdoor Units Inches “ (mm) Figure 210...
Page 21 SPECIFICATIONS Capacities and selection data Capacity Characteristics Chart Single Zone Ducted "The Insider" - Concealed Ducted Cooling Capacity Table Indoor Air Temp. °F DB / °F WB Outdoor Model Air Temp. 68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75...
Page 22 SPECIFICATIONS Capacity Characteristics Chart Capacities and selection data Single Zone Ducted Cooling Capacity Table Indoor Air Temp. °F DB / °F WB Outdoor Model Air Temp. 68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75 (Btu/h) (°F DB)
Page 23: Capacity Characteristics Chart
SPECIFICATIONS Capacity Characteristics Chart Capacities and selection data Single Zone Ducted Cooling Capacity Table Indoor Air Temp. °F DB / °F WB Outdoor Model Air Temp. 68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75 (Btu/h) (°F DB)
Page 24 SPECIFICATIONS Capacity Characteristics Chart Capacities and selection data Single Zone Ducted Cooling Capacity Table Indoor Air Temp. °F DB / °F WB Outdoor Model Air Temp. 68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75 (Btu/h) (°F DB)
Page 25 SPECIFICATIONS Capacity Characteristics Chart Capacities and selection data Single Zone Ducted Cooling Capacity Table Indoor Air Temp. °F DB / °F WB Outdoor Model Air Temp. 68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75 (Btu/h) (°F DB)
Page 26 SPECIFICATIONS Capacities and selection data Capacity Characteristics Chart Cassette Single Zone Cassette Cooling Capacity Table Indoor Air Temp. °F DB / °F WB Outdoor Model Air Temp. 68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75 (Btu/h) (°F DB)
Page 27 SPECIFICATIONS Capacity Characteristics Chart Capacities and selection data Single Zone Cassette Cooling Capacity Table Indoor Air Temp. °F DB / °F WB Outdoor Model Air Temp. 68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75 (Btu/h) (°F DB)
Page 28 SPECIFICATIONS Capacity Characteristics Chart Capacities and selection data Single Zone Cassette Cooling Capacity Table Indoor Air Temp. °F DB / °F WB Outdoor Model Air Temp. 68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75 (Btu/h) (°F DB)
Page 29 SPECIFICATIONS Capacity Characteristics Chart Capacities and selection data Single Zone Cassette Cooling Capacity Table Indoor Air Temp. °F DB / °F WB Outdoor Model Air Temp. 68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75 (Btu/h) (°F DB)
Page 30 SPECIFICATIONS Capacity Characteristics Chart Capacities and selection data Single Zone Cassette Cooling Capacity Table Indoor Air Temp. °F DB / °F WB Outdoor Model Air Temp. 68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75 (Btu/h) (°F DB)
Page 31: Sound Pressure Data- Ducted Indoor
SPECIFICATIONS Sound Pressure Data- Ducted Indoor Model Model Test condition 4.6ft(1.4m) from the unit; 3.3ft(1.0m) high from the ground 4.6ft(1.4m) from the unit; 3.3ft(1.0m) high from the ground Test condition NC-70 NC-70 NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40...
Page 32 SPECIFICATIONS Sound Pressure Data -Ducted Indoor Model Test condition 4.6ft(1.4m) from the unit; 3.3ft(1.0m) high from the ground NC-70 NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 NC-15 Octave band center frequency(Hz) Figure 220...
Page 33: Sound Pressure Data -Cassettes
SPECIFICATIONS Sound Pressure Data -Cassettes Model Model Test condition Test condition NC-70 NC-70 NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 NC-15 NC-15 Model Model Test condition Test condition NC-70 NC-65 NC-60...
Page 34 SPECIFICATIONS Sound Pressure Data -Cassettes Model Test condition NC-70 NC-65 NC-60 NC-55 NC-50 NC-45 NC-40 NC-35 NC-30 NC-25 NC-20 NC-15 Figure 221...
Page 35 SPECIFICATIONS Sound Pressure Data -Outdoor Units Model Model Test condition Test condition Model Model 3.28ft(1.0m) ahead of the unit;2.7ft (0.83) high from the 3.28ft(1.0m) ahead of the unit; 2.7ft(0.83m) high Test condition Test condition bottom of the unit;3.28ft (1.0m) high from the ground. from the bottom of the unit.
Page 36: Sound Pressure Data -Outdoor Units
SPECIFICATIONS Sound Pressure Data -Outdoor Units Model 3.28ft(1.0m) ahead of the unit; 3.28ft (1.0m) high from Test condition the bottom of the unit. Figure 222...
Page 37: Air Flow Distribution 9K
SPECIFICATIONS Air Flow Distribution 9k 1) Cooling /Air Velocity Distribution 2) Cooling/Air Temperature Distribution 3) Heating/Air Velocity Distribution 4) Hea ting/Air Temperature Distribution Figure 223...
Page 38: Air Flow Distribution 12K
SPECIFICATIONS Air Flow Distribution 12k 2) Cooling/Air Temperature Distribution 3) Heating/Air Velocity Distribution 4) Hea ting/Air Temperature Distribution Figure 224...
Page 39: Air Flow Distribution 18-24K
SPECIFICATIONS Air Flow Distribution 18-24k 2) Cooling/Air Temperature Distribution 3) Heating/Air Velocity Distribution 4) Hea ting/Air Temperature Distribution Figure 225...
Page 40: Air Flow Distribution 36K
SPECIFICATIONS Air Flow Distribution 36k 2) Cooling/Air Temperature Distribution 3) Heating/Air Velocity Distribution 4) Hea ting/Air Temperature Distribution Figure 226...
Page 41: Esp (External Static Pressure) Chart (Duct Type) 9K
SPECIFICATIONS ESP (External Static Pressure) chart (Duct Type) 9k Standard Chart ( 0. in.H Airﬂow rate (CFM ) St andard Chart ( 0.2 in.H Airﬂow rate (CFM ) Figure 227...
Page 42: Esp (External Static Pressure) Chart (Duct Type) 12K
SPECIFICATIONS ESP (External Static Pressure) chart (Duct Type) 12k Standard E SP Chart ( 0 Pa) 0.32(80) 0.28 (70) limit Limit 0.24 (60) High 0.2 (50) Middle High 0.16 (40) Middle Rated 0.12 (30) 0.08 (20) 0.04 (10) Rated 14 0 (CFM) High E SP Chart (5 0 Pa) 0.4 (100)
Page 43: Esp (External Static Pressure) Chart (Duct Type) 18K
SPECIFICATIONS ESP (External Static Pressure) chart (Duct Type) 18k Standard E SP Chart ( 0.18 in.H 0. 0 2 2 0 0 Rated 0.18 0.16 Middle High 0.14 0.12 0.10 0.08 0.06 0.04 0.02 0.00 Airﬂow rate ( St andard E SP Chart ( 0.2 in.H 0.24 Rated 0.16...
Page 44: Esp (External Static Pressure) Chart (Duct Type) 24K
SPECIFICATIONS ESP (External Static Pressure) chart (Duct Type) 24k Standard E SP C hart (0.18in.H 0.36 0.32 0.28 High 0.24 0.20 R ated 0.16 0.12 0.08 0.04 1000 Airﬂow rate ( E SP Chart ( 0.4in.H 0.51 limit 0.46 High R ated 0.41 0.36...
Page 45: Esp (External Static Pressure) Chart (Duct Type) 36K
SPECIFICATIONS ESP (External Static Pressure) chart (Duct Type) 36k Standard Chart ( Limit Airﬂow rate ( High Chart ( 0.64 0.54 0.44 0.34 0.24 0.14 0.04 1000 1100 1200 1300 1400 1500 Airﬂow rate ( Figure 231...
Page 46: Refrigerant Cycle 9-18K Outdoor Units
SPECIFICATIONS Refrigerant Cycle 9-18k Outdoor Units Cooling cycle Heating cycle List of components Compressor Suction temperature sensor Discharge temperature sensor 4-way valve Outdoor heat exchanger Ambient temperature sensor Coil temperature sensor Electronic expansion valve Stop valve (Liquid) Stop valve (Gas) Figure 232...
Page 47: Refrigerant Cycle 24K Outdoor Units
SPECIFICATIONS Refrigerant Cycle 24k Outdoor Units List of components Compressor Coil temperature sensor Defrost temperature sensor temperature sensor Ambient temperature sensor Suction temperature sensor Electronic expansion valve valve Stop valve (Liquid) Stop valve (Gas) Figure 233...
Page 48 SPECIFICATIONS Refrigerant Cycle 36k Outdoor Units Cooling cycle Heating cycle Electronic expansion valv e Compressor Stop valve Discharge temperature sennor Suction temperature sennor Stop valve High pressure switch 4-Way valve Low pressure switch Outdoor heat excharge Coil temperature sennor Strainer Ambient temperature sennor Figure 234...
Page 49: Correction Factors
CORRECTION FACTORS Piping length correction factor Height Correctiion Factors Pipe length L Indoor unit Height difference H Outdoor unit Th e correction facto r is base d on the equi valent piping length in feet (EL ) and the height between outdoor and indoor units in feet (H).
Page 50 CORRECTION FACTORS Piping Length Factor Chart The correction factor of height between each indoor unit and outdoor unit 16ft(5m) 32.8ft( 10m) 49ft(15m) 66ft(20m ) 82ft(25m ) 98ft(30m ) 0.95 0.88 0.75 To ensure correc t unit selec tion, co nsider the farthest indoo r unit. NOT E : The above data re ects that the minimum height requirements have been meet or exceeded height di erence between the indoor and outdoor unit is based...
Page 51 CORRECTION FACTORS Piping Length Correctiion Factor Correction factors according to defrosting operation The heating capacity in the preceding paragraph excludes the condition of the frost or the or the defrosting operation period. In consideration of the frost or the defrosting operation, the heating capacity is corrected by the equation below.
Page 52: Operation
OPERATION Display Panel D isplay panel C assette Type 5 4 3 D escription 1 Run indicator (Red) It lights on during operation. It lights off during SLEEP mode. 2 Emergency switch The ﬁlter clean indicator is reset when the switch is pressed. The unit will be started or stopped when the switch is pressed.
Page 53: Cassette Remote Control
OPERATION Cassette Remote Control Button Identification Press both Quiet and Economy buttons for 5 seconds to disable the heat pump function...
Page 54: Batteries
OPERATION Cassette Remote Control Batteries...
Page 55: Operation Modes
OPERATION Cassette Remote Control Operation Modes...
Page 56: Airflow Direction Control
OPERATION Cassette Remote Control Airflow direction Control...
Page 57: Smart Mode
OPERATION Cassette Remote Control Smart Mode...
Page 58: 46°Heat Mode
OPERATION Cassette Remote Control 46°Heat Mode...
Page 59: Timer Mode
OPERATION Cassette Remote Control Timer Mode...
Page 60: Clock Button
OPERATION Cassette Remote Control Clock Button...
Page 61: Sleep Mode
OPERATION Cassette Remote Control Sleep Mode...
Page 62: Indoor Unit Control Mode
OPERATION Indoor Unit Control Mode Main general technical parameters (1) Remote receiver distance: 8 m. (2) Remote receiver angle: Less than 80 degrees. (3) Temperature control accuracy: ±1℃. (4) Time error: Less than 1%. Functions of the control function (1) Emergency switch Pressing the emergency button can start or stop the unit, or the unit can start up according to the automatic mode of operation.
Page 63 OPERATION Indoor Unit Control Mode (9) Auto re-start from power break When the power supply is recovered after a break, all presets are still effective and the air‑conditioner can run according to the previous setting. How to set/cancel: It can be set /canceled with wired remote controller. For details, see internal control parameter adjustment.
Page 64: Outdoor Unit Control Mode
OPERATION Outdoor Unit Control Mode Control function Cooling Anti-Freeze Protection The indoor coil sensor functions as real time temperature detector of evaporator. It prevents the indoor unit evaporator temperature becoming too low. If the indoor coil temperature is too low, the compressor will automatically start protection mode. Overload Protection To prevent system overload caused by excessive pressure, the machine will implement real‑time detection when outdoor coil temperature is too high during cooling mode or indoor coil temperature is too high during heating mode.
Page 65: Control Logic Description
OPERATION Control Logic Description (1) Outdoor fan and compressor stop. (2) Temperature setting function is disabled, and no setting temperature is displayed. (3) Indoor fan can be set to high/medium/low, but can not be set to auto. Cooling Mode Indoor fan running rules: In cooling mode, indoor fan runs all the time and the speed can be selected as high,(medium), low and auto.
Page 66 OPERATION Control Logic Description Heating Mode Indoor fan running rules: The indoor unit fan will not run until the indoor unit heat heat exchanger reches a high enough temperature. This is because the cold air prevention system is operating. After several minutes, the speed can be selected to high, medium, low, or auto.
Page 67 OPERATION Control Logic Description Auto Mode This mode can be chosen with remote controller and the setting temperature can be changed between 61°F~86°F(16°C~30) In auto mode, the unit will choose cooling, heating or fan -on ly mode according to T ( T =T1 -Ts).
Page 68 OPERATION Control Logic Description Condenser High-tem perature Protection DC -Inverter outdoor unit AC will enter T3 protection if any of the following conditions is satisﬁed. TE1 0 TE1 1 Condition1: Cooling mode: When the outdoor coil temp. T3 keeps higher than T2 for 10 seconds, the compressor and outdoor fan will shut off.
Page 69: Installation
INSTALLATION Outdoor Units Fig. 432 Fig. 433...
Page 70 INSTALLATION 24 and 36k Outdoor Units Piping Work and Refigerant Charge Pipe length L Indoor unit Outdoor unit Max. Pipe Max. Height Add. Refrigerant Model length (L) difference (H) [exceed 2 ft. (7.6m)] 9K/12K . t f . t f t f / 98 ft.
Page 71: Leak Check, Evacuation, And Charging (Triple Evacuation)
Leak Check, Evacuation, and Charging (Triple Evacuation) Friedrich requires all installations are Leak Checked and Evacuated in accordance to the “triple evacuation” process. This process promotes a dry tight refrigeration system before opening the service valves. It recommended that a single port refrigeration manifold and hoses rated over 31.5psi be used.
Page 72 INSTALLATION Leak Check, Evacuation, and Charging (Triple Evacuation) EVACUATE BREAK VACUUM WITH DRY NITROGEN WAIT EVACUATE BREAK VACUUM WITH DRY NITROGEN WAIT EVACUATE CHECK FOR TIGHT, DRY SYSTEM (IF IT HOLDS A VACUUM) CHARGE SYSTEM...
Page 73: Checklist
INSTALLATION Checklist Check Unit following Installation Items to be checked Possible malfunction Has the unit been The unit may drop, shake or installed ﬁrmly? emit noise. Have you done the It may cause insufﬁcient cooling refrigerant leakage test? (heating) capacity. Is heat insulation of It may cause condensation and pipeline sufﬁcient?
Page 74: Operation Test
INSTALLATION Operation Test Test Operation System Checks 1. Conceal refrigerant pipes where possible. 2. Make sure drain hose slopes downward along entire length. 3. Ensure all refrigerant pipes and connections are properly insulated. 4. Fasten pipes to outside wall, when possible. 5.
Page 75: Fresh Air Intake
INSTALLATION Fresh Air Intake Duct (9K~18K) Indoor unit can take fresh air from the reserved fresh air intake, the size of the fresh air intake hole is 2-1/2 in.(65mm) (9K~18K). Please follow the steps below when needed. 1) Cut off the reserved metal circular hole on the base board. 2) Connect air duct with the fresh air intake.
Page 76: R-410A Sealed System Repair
R-410A SEALED SYSTEM REPAIR Service Valves Appearance 2-way Valve (Liquid Side) 3-way Valve (Gas Side) Valve cap Hexagonal wrench (4mm) Open position Flare nut Flare nut Closed position Open position Closed position piping piping Service Service connection connection port cap port To outdoor unit To outdoor unit...
Page 77 R-410A SEALED SYSTEM REPAIR Pumping Down Liquid side Indoor unit Outdoor unit Open 2-Way valve Gas side Closed 3-Way valve CLOSE CLOSE Purge the air Fig. 505 – Do this quickly so that the gauge ends up indicating 0-15 PSI. –...
Page 78: Gas Charging (After Repair)
R-410A SEALED SYSTEM REPAIR Gas Charging (After Repair) Liquid side Indoor unit Outdoor unit 3-Way valve Open Gas side 3-Way valve Open OPEN CLOSE Fig. 506 This is different from previous procedures. – Connect the charge hose which you dis-connected from the Because you are charging with liquid refrigerant vacuum pump to the valve at the bottom of the cylinder.
Page 79: Replace 9-18K Outdoor Unit Compressor And Motor
R-410A SEALED SYSTEM REPAIR Replace 9-18k Outdoor unit Compressor and Motor Important: Befor e disassembly and assembl y, mak e sure that the power to the system has been disconnect ed and veriﬁed as voltage free. Step Illustration Handling Instruction 1.
Page 80: Replace 24K Outdoor Unit Compressor And Motor
R-410A SEALED SYSTEM REPAIR Replace 24k Outdoor unit Compressor and Motor Important: Befor e disassembly and assembly, mak e sure that the power to the system has been disconnected and veriﬁed as voltage free. Step Illustration Handling Instruction 1. Remove the top cover, handle and valve cover;...
Page 81: Replace 36K Outdoor Unit Compressor And Motor
R-410A SEALED SYSTEM REPAIR Replace 36k Outdoor unit Compressor and Motor Important: Before disassembly and assembly, make sure that the power to the system has been disconnected and veriﬁed as voltage free. Step Illustration Handling Instruction 1. Remove the top cover, 1.
Page 82: Replace 9K And 12K Duct Type Unit Compressor And Motor
R-410A SEALED SYSTEM REPAIR Replace 9k and 12k Duct Type unit Compressor and Motor Removal and Assembly of Fan Motor Important: Before removing the fan, make sure power to the system is disconnected. Step Illustration Handling Instruction Use screwdriver to remove the 1.
Page 83: Replace 18K Duct Type Unit Compressor And Motor
R-410A SEALED SYSTEM REPAIR Replace 18k Duct Type unit Compressor and Motor Removal and Assembly of F an Motor Important: Before removing the fan, make sure power to the system is disconnected. Step Illustration Handlin g Instruction Use screwdriver to remove the 1.
Page 84: Replace 24K Duct Type Unit Compressor And Motor
R-410A SEALED SYSTEM REPAIR Replace 24k Duct Type unit Compressor and Motor...
Page 85: Replace 36K Duct Type Unit Compressor And Motor
R-410A SEALED SYSTEM REPAIR Replace 36k Duct Type unit Compressor and Motor Use screwdriver to remove the electric box cover and unplug the motor cables cables in electric box. Loose n and take out the screws ﬁxing the base board, then remove the base the base board.
Page 86: Replace 9K, 12K, And18K Cassette Type Unit Compressor And Motor
R-410A SEALED SYSTEM REPAIR Replace 9k, 12k, and18k Cassette Type unit Compressor and Motor Replacement of F an Motor Step Illustration Handli ng Instruction 1. Loose n the screws Use screwdriver to loos en the screws holding the holding condensate pan . drain pa n in place.
Page 87 R-410A SEALED SYSTEM REPAIR Replace 9k, 12k, and18k Cassette Type unit Compressor and Motor Replacement of F an Motor Illustration Step Handli ng Instruction 6. Remov e the motor Remove the motor and and replac e it replace it. 7. Tighten the bolts wrench holding the motor socket...
Page 88: Replace 9K, 12K, And18K Cassette Type Unit Compressor And Motor
R-410A SEALED SYSTEM REPAIR Replace 9k, 12k, and18k Cassette Type unit Compressor and Motor Removal and Installation of Condensate Pump Illustration Step Handli ng Instruction Use screwdriver to loosen 1. Loose n the screws screws holding the holding condensat e pan . drain pan in place.
Page 89: Replace 24K And 36K Cassette Compressor And Motor Type Unit Compressor And Motor
R-410A SEALED SYSTEM REPAIR Replace 24k and 36k Cassette Compressor and Motor Type unit Compressor and Motor Step Illustration Handling Instruction 1. Loosen the screws Use screwdriver to loosen the Electric box. holding the electric box cover and electric box. 2.
Page 90: Component Testing
COMPONENTS TESTING OUTDOOR COMPRESSOR DISCHARGE TEMPERATURE Resistance Table Of Outdoor Compressor Discharge Temperature =187.25K±6.3% ；R =3.77K±2.5K ；B0/100=3979K±1% ）（R T [°F ] R min [ K R nom [ K R max [ K D R (MIN)% D R (MAX )% 908.2603 985.5274 1065.1210...
Page 91: Resistance Table Of Outdoor Compressor Discharge Temperature
COMPONENTS TESTING Resistance Table Of Outdoor Compressor Discharge Temperature R min [ K R nom [ K R max [ K D R (MIN)% D R (MAX )% T [°F ] 71.2227 75.3122 79.3848 -5.43 5.13 68.1036 71.9808 75.8414 -5.39 5.09 65.1373 68.8141...
Page 92 COMPONENTS TESTING Resistance Table Of Outdoor Compressor Discharge Temperature ºC R min [ K R nom [ K R max [ K D R (MIN)% D R (MAX )% T [°F ] 8.0951 8.3705 8.6440 -3.29 3.16 7.8290 8.0926 8.3544 -3.26 3.13 7.5730...
Page 93 COMPONENTS TESTING AMBIENT AIR SENSOR IN INDOOR AND OUTDOOR UNIT ： Ambient Air Sensor In Indoor And Outdoor Unit =15K±2% ；B0/100=3450K±2% ）（R T [ºC ] R min [ K R nom [ K R max [ K D R (MIN)% D R (MAX )% T [°F ] 60.78...
Page 94: Ambient Air Sensor In Indoor And Outdoor Unit
COMPONENTS TESTING Ambient Air Sensor In Indoor And Outdoor Unit °C R min [ K R nom [ K R max [ K D R (MIN)% D R (MAX )% T [°F ] 5.667 5.882 6.103 -3.66 3.62 5.449 5.664 5.886 -3.80 3.77...
Page 95 COMPONENTS TESTING Ambient Air Sensor In Indoor And Outdoor Unit ºC T [°F ] R min [ K R nom [ K R max [ K D R (MIN)% D R (MAX )% 0.8570 0.9246 0.9971 -7.31 7.27 0.8316 0.8977 0.9687 -7.36 7.33...
Page 96: Indoor Unit Fan Motor
COMPONENTS TESTING Indoor Unit Fan Motor Check parts unit Resistance Test The compressor is at fault if the resistance of winding is 0 (short circuit)or ∞ open circuit. Common signs compressor is faulty: • Compressor motor lock. • Discharge pressure value approaches static pressure value . •...
Page 97: Outdoor Unit Fan Motor And Compressor
COMPONENTS TESTING Outdoor Unit Fan Motor and Compressor unit motor DC motor Compressor Controller Compressor in resistance. 1) Compressor motor lock. 2) Discharge pressure value approaches static pressure value. 3) Compressor motor winding abnormality.
Page 98 COMPONENTS TESTING Outdoor Unit Fan Motor and Compressor Notes Don’t put a compressor on its side or turn over. Pleas e assembl e the compressor in your air conditioner rapidly after removing the plugs. D on’t place the comp. in air for a long time. Avoid compressor running in reverse caused by connecting electrical wire incorrectly.
Page 99: Test Fan Motor And Compressor
COMPONENTS TESTING Test Fan Motor and Compressor Fan motor ompressor DC Inverter & Power Controller Compressor...
Page 100 COMPONENTS TESTING Test Fan Motor and Compressor Test the resistance of the winding. The compressoris faulted if the resistance of winding is 0(short c ircuit)or∞（open circuit ） Typical Symptoms Compressor motor lock. Discharge pressure value approaches static pressure value . Compressor phases are not equal (+/- 0.1Ohm).
Page 101: Check Refrigerant System
COMPONENTS TESTING Check Refrigerant System TEST SYSTEM FLOW Conditions: ① Compressor is running. ② Th e air condition should be in stalled in good ventilation. Tool: Pressure Gauge Technique: ① see ② feel ③ test ----- Tube defrost. FEEL ----- The difference between tube’s temperature. TEST ----- Test pressure.
Page 102 COMPONENTS TESTING Test System Flow Cooling mode Test system The pressure on the pressure.Does the low high side. pressure normal at service part ? Recharge refrigerant after air purging with If the pressure is The pressure on the the vacuum close to static low side.
Page 103: Check Fuse And Capacitor
COMPONENTS TESTING Check Fuse and Capacitor Checking continuity of fuse on PCB ASS’Y. Remove the PCB ASS’Y from the electrical component box. Then pull out the fuse from the PCB ASS’Y (Fig.1) Fuse PCB Ass'Y Fig.1 2) Check for continuity by a multimeter as shown in Fig.2. Fuse Fig.2 .CAPACITOR...
Page 104: 9-18K Ducted Control Board
COMPONENTS TESTING 9-18k Ducted Control Board 10 9 Description Description Heat Disp Output1 Output2 Step Motor Wired. DC Fan Wi-Fi Swing Reserved Pump Humidity Water Level Switch L, N P ower Input Coil Temp . Sensor Nano Ambient Temp . Sensor Disp Figure 603...
Page 105: 24-36K Ducted Units And 9-36K Cassettes Control Board
COMPONENTS TESTING 24-36k Ducted units and 9-36k Cassettes Control Board Description Description AC Power Filter Wi-Fi Main C ontrol C omponent C ode Wired Controller Electric Heater DC Motor Step Motor Pump Motor Swing Motor Temp. Sensor Water Level Switch Out Input Switching Power S upply Display...
Page 106: 9-12K Outdoor Unit Control Board
COMPONENTS TESTING 9-12k Outdoor Unit Control Board 2 3 4 5 16 15 Description Description Overheat S witch SI-N Am bient Temperatur e Sensor AC IN-L Coil Temperatur e Sensor AC IN-N Discharge Temperatur e Sensor Re actor L1 Electric expansio n Valve Re actor L2 Checker/Computer Co mpressor U...
Page 107: Outdoor Unit Control Board
COMPONENTS TESTING 18k Outdoor Unit Control Board 2 3 4 5 6 7 1716 Description Description DC FAN SI-L AC IN -L Coil Temperature Sensor AC IN -N Ambient Temperature Sensor R eactor L1 Discharge Temperature Sensor R eactor L2 Overheat Protector Rectiﬁer Bridge Electric expansion Va lve...
Page 108: Outdoor Unit Control Board
COMPONENTS TESTING 24k Outdoor Unit Control Board 20 19 18 17 16 15 14 Description Description Suction temperature Sensor ACIN-P Discharge temperature Sensor 4-Way Valve Tube electric heater Coil & Defrost temperature Sensor Electric Expansion Valve Ambient temperature Sensor Electric Heating Belt High Pressure Switch ACIN-P Button...
Page 109 COMPONENTS TESTING 36k Outdoor Unit Control Board 2 3 4 5 Description Description E lectric E xpansion Valve Communication SI High Pressure Switch Communication SI -N Low Pressure Switch Power Suction Temperature Sensor Heater -L Ambient Temperature Sensor Heater -N Coil/Defrost Temperature Sensor Transformer O utput Side Discharge Temperature Sensor...
Page 110: 24-36K Outdoor Unit Drive Board
COMPONENTS TESTING 24-36k Outdoor Unit Drive Board Drive Board Description Description IPM Module AC Power Input 12 V&5V Power IGBT MCU Component Diodes Communication with Upper System Rectiﬁer Bridge CPU code Drive Board Code Drive board Description Description DC FAN motor AC Power LIN DC -FAN -SI Reactor -L1...
Page 111: Field Settings Outdoor Unit Dip Switch
COMPONENTS TESTING Field Settings Outdoor Unit Dip Switch DIP Switch Setting of Outdoor Unit ( 24K/36K) Turn off all power sources before setting. Without turning off, the switches s ettings are not Setting is required SW2-4 SW2-1 Refrigerant Piping Length Setting Refrigerant Collection Setting is required Actual Piping Length L(m)
Page 112: Field Settings (Esp Setting) Duct Type Only
COMPONENTS TESTING Field Settings (ESP Setting) Duct Type Only The static pressure can be freely adjusted by using speciﬁc wire remote controller. Model The range of Error Indicator (Capacity Function code set static pressure Btu/h) Parameter Code 0-50, more than 50 is 0-0.015 in.Hg 0.015 in.Hg (50 Pa), 9K/12K/18K...
Page 113: Field Settings (Indoor Unit Parameter Revision)
COMPONENTS TESTING Field Settings (Indoor Unit Parameter Revision) 1. Connect wire remote controller with indoor unit Step 1: Removing the upper cover of the wired controller Upper cover of the wired controller Lower cover of the wired controller Insert a normal screw driver into the position, and gently rotate it.
Page 114 COMPONENTS TESTING Field Settings (Indoor Unit Parameter Revision) PAR AME TE R VALUE &R E PR E S E NTATIO N PAR AME TE R PAR AME TE R NO TE D ATA R E PR E SE NTATIO N C O D E D E SC R IPTIO N TY PE...
Page 115: Field Settings (Running Parameter Query)
COMPONENTS TESTING Field Settings (Running Parameter Query) Running Parameter Query Running parameters can be referred to by digital tube switch or speciﬁed wired remote control. Operation: 1. Connect wired remote controller with indoor unit (same method as indoor parameter revise. 2.
Page 116: Field Settings (Queery By 7 Segment Display)
COMPONENTS TESTING Field Settings (Queery by 7 segment display) SWITCH INCREASE DECREASE ：...
Page 117 COMPONENTS TESTING Field Settings (Running Parameter Query) Parameters can be checked as following table below. Parameter D escriptions code Protect Code or Fault code Target Frequency Driving Frequency Outdoor EEV Opening Outdoor EEV Target Opening Upper DC Motor Revolving Speed AC Input Voltage Current P.10...
Page 118: Field Settings (Function Settings)
COMPONENTS TESTING Field Settings (Function Settings) Instructions for the function setting of acces s control, ﬁre protection , ON/OFF 1. Factory setting ON/OFF function is disabled a s factory default while both the access control and fire protectio n functions are enabled. To use or cancel the ac cess control / ﬁre protection / (ON/O FF ) function , use the wired controller to modify the parameter s of indoo r unit.
Page 119: Troubleshooting
TROUBLESHOOTING s for ；；...
Page 120 TROUBLESHOOTING (2) Fault codes indicated by LED lamps on display panel Lamp RUN (LED2, Red) and Lamp DEFROST LED5, Green ﬂash . Lamp RUN display s fault code represented by 2- digit number, lamp DEFROST display s fault code represented by single digit number (as shown ﬁg.
Page 121: 9-18K Outdoor Unit
TROUBLESHOOTING 9-18k Outdoor Unit...
Page 122: 24-36K Outdoor Units
TROUBLESHOOTING 24-36k Outdoor Units Main control fault display Fault co de will be display ed on digital tube board. Outdoor C ontrol Board Digital T ube Drive fault code display The lamp of drive board ﬂash ing shows failure occur s.
Page 123 TROUBLESHOOTING 24-36k Outdoor Units Drive fault code display The lamp of drive board ﬂash ing shows failure occur s. How many times the drive failure lamp ﬂicks will show the failure code. Single phase models: LED1:Drive failure indicator...
Page 124: Outdoor Unit Fault Code
TROUBLESHOOTING Outdoor Unit Fault Code Fault Fault escription Possible reasons for bnormality How to eal ith code 1.Reconnect the outdoor 1.The outdoor ambien t temperature ambient temperature sensor; Outdoor ambient sens or is connected loose ly; 2.Replace the outdoor ambient temperature sensor 2.The outdoor ambien t temperature temperature sensor...
Page 125 TROUBLESHOOTING Outdoor Fault Code Fault Fault escription Possible reasons for bnormality How to eal ith code 1. Reconnect the wiring of the 1. The wiring of the overload overload protector; protector is conne cted loose ly. 2. Replace the overload 2.
Page 126 TROUBLESHOOTING Outdoor Fault Codes s for ；...
Page 127: Indoor Unit Fault Codes
TROUBLESHOOTING Indoor Unit Fault Codes Fault How to eal ith Re marks Fault escription Possible reason s for bnormality code...
Page 128 TROUBLESHOOTING Indoor Unit Fault Codes Fault Fault D escription Possible R eason of Abnormality How to D eal With R E MAR KS code 1. Normally protection Three-phase power is abnormal; Application of 2. Check the wiring connection The outdoor wiring connect wrong; three-phase voltage absent phase refer to the wiring diagram;...
Page 129 TROUBLESHOOTING Indoor Unit Fault Codes Fault Fault description Possible reason s f or bnormality How to eal ith Re marks code EE in MCU fails, the unit Indoor EEPROM can run, but the function Replace EE data in MCU. Data 2 fault user has set is ineffective.
Page 130 TROUBLESHOOTING Indoor Unit Fault Codes NO TE NO TE NOTE NOTE 4...
Page 131: Drive Fault Code (3.0/3.5Hp)
TROUBLESHOOTING Drive fault code (3.0/3.5HP) Fault escription Possible reasons for bnormality How to eal ith code Inverter DC voltage overload fault 1. Power supply input is too high 1. Check power supply ； Inverter DC low voltage fault or too low; 2.
Page 132: Drive Fault Code (24K/36K)
TROUBLESHOOTING Drive Fault Code (24K/36K) 1. Check the compressor wire; 1. C ompressor wire is not connect ed properly; 2. Change the driver board ; 2. Bad driver board components; Q axis current 3. Turn on the unit after the 3.
Page 133 TROUBLESHOOTING Drive Fault Code (24K/36K) s for 1. Voltag e input is too low; 1. Chec k the power supply; Low DC voltage 200V 2. Drive board fault. 2. Cha nge the driver board. Driver board read EE 1. EEPROM has no data or data error;...
Page 134: 9-18K Outdoor Units
WIRING DIAGRAMS 9-18k Outdoor Units 2088424 Figure 804...
Page 135: Outdoor Units
WIRING DIAGRAMS 24k Outdoor Units E lectric Wiring Diagram 2020634 .E Control board Figure 805...
Page 136 WIRING DIAGRAMS 36k Outdoor Units E lec tric Wiring Diagram 2011464 .E Driver b Figure 806...
Page 137: 9K-36K Indoor Cassette Units
WIRING DIAGRAMS 9k-36k Indoor Cassette Units Electric Wiring Diagram 2104487 .A Main control board Figure 803...
Page 138: Ducted Indoor Units 9K, 12K, And 18K
WIRING DIAGRAMS Ducted Indoor Units 9k, 12k, and 18k Electric Wiring Diagram 1992115.D Coil temperature sensor X410 COIL Room temperature sensor DCFAN X400 ROOM DC m otor Step motor1 Step motor2 Main control STEP MOTOR DISP Display board board Water level switch Wire WATER remote...
Page 139: Ducted Indoor Units 24-36K
WIRING DIAGRAMS Ducted Indoor Units 24-36k Electric Wiring Diagram 2104500 .A Main control board Figure 802...
Page 140: Parts Catalog
PARTS CATALOG 9K Outdoor Condensor Figure 901A...
Page 141 PARTS CATALOG 9K Outdoor Condensor <Refrigerant Cycle> Figure 901B...
Page 142: Outdoor Condensor
PARTS CATALOG <Electrical Parts> 9K Outdoor Condensor Figure 901C...
Page 143: Outdoor Condensor
PARTS CATALOG 9K Outdoor Condensor ITEM PART PART DESCRIPTION USED ON MODEL NUMBER 67401110 1847918 - Fan Guard FPHFR09A3A 67401111 2103279 - Panel FPHFR09A3A 67401112 1203994 - Hex Nuts FPHFR09A3A 67400181 1556766 - Propeller Fan Blade FPHFR09A3A 67401113 1932167 - DC Motor FPHFR09A3A 67401114 2009048 - Motor Supporter...
Page 144: Outdoor Condensor
PARTS CATALOG 9K Outdoor Condensor ITEM PART PART DESCRIPTION USED ON MODEL NUMBER 67401139 1926317 - Terminal Connecting FPHFR09A3A Board 67401047 2078758 - Power Terminal FPHFR09A3A Panel 67400365 1993154 - Connection Terminal FPHFR09A3A Panel 67401140 1881059 - Baffle FPHFR09A3A 67401141 1832676 - Radiator FPHFR09A3A 67400208...
Page 145 PARTS CATALOG 12K Outdoor Condensor Figure 902A...
Page 146 PARTS CATALOG 12K Outdoor Condensor Figure 902B...
Page 147 PARTS CATALOG 12K Outdoor Condensor Figure 902C...
Page 148 PARTS CATALOG 12K Outdoor Condensor ITEM PART PART DESCRIPTION USED ON MODEL NUMBER 67401110 1847918 - Fan Guard FPHFR12A3A 67401111 2103279 - Panel FPHFR12A3A 67401112 1203994 - Hex Nuts FPHFR12A3A 67400181 1556766 - Propeller Fan Blade FPHFR12A3A 67401113 1932167 - DC Motor FPHFR12A3A 67401114 2009048 - Motor Supporter...
Page 149 PARTS CATALOG 12K Outdoor Condensor ITEM PART PART DESCRIPTION USED ON MODEL NUMBER 67401138 2089057 ‑ Electric Box FPHFR12A3A 67401139 1926317 ‑ Terminal Connecting FPHFR12A3A Board FPHFR12A3A 67401047 2078758 ‑ Power Terminal Panel 67400365 1993154 ‑ Connection Terminal FPHFR12A3A Panel 67401140 1881059 ‑...
Page 150 PARTS CATALOG 18K Outdoor Condensor Figure 903A...
Page 151 PARTS CATALOG 18K Outdoor Condensor Figure 903B...
Page 152 PARTS CATALOG 18K Outdoor Condensor Figure 903C...
Page 153 PARTS CATALOG 18K Outdoor Condensor ITEM PART NUMBER PART DESCRIPTION USED ON MODEL 67401011 1844024 ‑ Fan Guard FPHFR18A3A 67401012 2091948 ‑ Panel FPHFR18A3A 67401013 1263647 ‑ Hex Nuts FPHFR18A3A 67401014 1559520 ‑ Propeller Fan Blade FPHFR18A3A 67401015 1803035 ‑ Axis Sheath FPHFR18A3A 67400296 1859837 ‑...
Page 154 PARTS CATALOG 18K Outdoor Condensor ITEM PART NUMBER PART DESCRIPTION USED ON MODEL 67401163 1987098 ‑ Electric Box FPHFR18A3A 67401017 1834430 ‑ Connecting Board FPHFR18A3A 67401047 2078758 ‑ Power Terminal Panel FPHFR18A3A 67400365 1993154 ‑ Connection Terminal FPHFR18A3A Panel 67401164 1964513 ‑...
Page 155 PARTS CATALOG 24K Outdoor Condensor Figure 904A...
Page 156 PARTS CATALOG 24K Outdoor Condensor Figure 904B...
Page 157 PARTS CATALOG 24K Outdoor Condensor Figure 904C...
Page 158 PARTS CATALOG 24K Outdoor Condensor ITEM PART PART DESCRIPTION USED ON MODEL NUMBER 67400388 2010128 ‑ Fan Guard FPHFR24A3A 67400336 1382485 ‑ front panel FPHFR24A3A 67400337 1469450 ‑ Left guard filter FPHFR24A3A 67400998 1382782 ‑ mounting plate FPHFR24A3A 67400999 1231108 ‑ Welding hex nuts FPHFR24A3A 67400340 1899961 ‑...
Page 159 PARTS CATALOG 24K Outdoor Condensor ITEM PART PART DESCRIPTION USED ON MODEL NUMBER 67401104 2025750 ‑ noise‑insulation cotton FPHFR24A3A 67400945 2008554 ‑ Mounting Plate FPHFR24A3A 67401105 2004833 ‑ Drive plate assembly FPHFR24A3A 67401106 2009368 ‑ Control Board FPHFR24A3A 67401107 1944799 ‑ Power Filter FPHFR24A3A 67400934 2013786 ‑...
Page 160 PARTS CATALOG 36K Outdoor Condensor Figure 905A...
Page 161 PARTS CATALOG 36K Outdoor Condensor Figure 905B...
Page 162 PARTS CATALOG 36K Outdoor Condensor Figure 905C...
Page 163 PARTS CATALOG 36K Outdoor Condensor ITEM PART PART DESCRIPTION USED ON MODEL NUMBER 67400380 1556829 ‑ Guard Filter FPHFR36A3A 67400381 1400459 ‑ Upper Board FPHFR36A3A 67401049 1893556 ‑ Motor Supporter FPHFR36A3A 67400383 1498534 ‑ DC Motor FPHFR36A3A 67400384 1947347 ‑ Propeller Fan Blade FPHFR36A3A 67400386 1424902 ‑...
Page 164 PARTS CATALOG 36K Outdoor Condensor ITEM PART PART DESCRIPTION USED ON MODEL NUMBER 67401067 1464292 ‑ Mounting Plate Essy FPHFR36A3A #N/A #N/A FPHFR36A3A 67400405 1343638 ‑ AC Contactor FPHFR36A3A 67401010 1464281 ‑ Compressor Mounting FPHFR36A3A Plate Parts 67400406 1916769 ‑ Radiator FPHFR36A3A 67400951 1519508 ‑...
Page 165: 12K Indoor Cassette
PARTS CATALOG 9K, 12K Indoor Cassette B-M4x08 • Figure 906...
Page 166 PARTS CATALOG 9K, 12K Indoor Cassette ITEM PART PART DESCRIPTION USED ON MODEL NUMBER 67400976 Air guiding plate FPHC09A3A, FPHC12A3A 67400977 Water drain tube FPHC09A3A, FPHC12A3A 67400425 Centrifugal fan blade FPHC09A3A, FPHC12A3A 67400426 DC motor FPHC09A3A, FPHC12A3A 67400843 Fixed board FPHC09A3A, FPHC12A3A 67400422 Evaporator assembly...
Page 167: Indoor Cassette
PARTS CATALOG 18K Indoor Cassette � ---- _______ 1 � A-4X8 _,,,, A-4X10 5X53 �/if: - � t �- A-4X 12 A-4 X8 Figure 907 Pan Head Tapping Screw Bolt, Washer Combinations Hex Flange Self-tapping Screws Hexagon Head Tapping Screw NOTE, The unicromated coating is applied to iron and steel material for the unspecified materials of the bolt and screw.
Page 168 PARTS CATALOG 18K Indoor Cassette ITEM PART PART DESCRIPTION USED ON MODEL NUMBER FIGURE 905 67400872 Base FPHC18A3A 67400984 Air Duct Plate FPHC18A3A 67400438 Fan Motor FPHC18A3A 67400985 Side Panel FPHC18A3A 67400986 Fan Snail Shell FPHC18A3A 67400439 Pump Motor FPHC18A3A 67400987 Cover FPHC18A3A...
Page 169: Indoor Cassette
PARTS CATALOG 24K Indoor Cassette A-4X10 _ _,,, 1 - - - - - - : == == -=r= �· � -=-- �t 5X53 A-4X12 A-4X8 FIgure 908 NOTE,...
Page 170 PARTS CATALOG 24K Indoor Cassette ITEM PART PART DESCRIPTION USED ON MODEL NUMBER 67400872 Base FPHC24A3A 67400984 Air Duct Plate FPHC24A3A 67400438 Fan Motor FPHC24A3A 67400985 Side Panel FPHC24A3A 67400986 Fan Snail Shell FPHC24A3A 67400439 Pump Motor FPHC24A3A 67400987 Cover FPHC24A3A 67400440 Drainage Hose...
Page 171 PARTS CATALOG 36K Indoor Cassette A-4X10 _ _,,, 1 - - - - - - : == == -=r= �· � -=-- �t 5X53 A-4X12 A-4X8 Figure 909 NOTE,...
Page 172 PARTS CATALOG 36K Indoor Cassette ITEM PART NUMBER PART DESCRIPTION USED ON MODEL 67400872 1913587 ‑ Base FPHFC36A3A 67400984 1416128 ‑ Air Duct Plate FPHFC36A3A 67401175 1416353 ‑ Fan Motor FPHFC36A3A 67401176 1509689 ‑ Side Panel FPHFC36A3A 67401177 1510203 ‑ Fan Snail Shell FPHFC36A3A 67400439 1514478 ‑...
Page 173: 12K, Ducted Indoor
PARTS CATALOG 9K, 12K, Ducted Indoor Figure 910A...
Page 174 PARTS CATALOG 9K, 12K, Ducted Indoor Figure 910B...
Page 175 PARTS CATALOG 9K, 12K, Ducted Indoor Figure 910C...
Page 176 PARTS CATALOG 9K, 12K Ducted Indoor ITEM PART NUMBER PART DESCRIPTION USED ON MODEL 67400885 Base Plate FPHD09A3A, FPHD12A3A 67400886 Bottom Plate FPHD09A3A, FPHD12A3A 67400887 Water Drain FPHD09A3A, FPHD12A3A 67400409 Evaporator FPHD09A3A, FPHD12A3A 67400902 Supporting FPHD09A3A, FPHD12A3A 67400889 Electric Box Cover FPHD09A3A, FPHD12A3A 67400904 Seal Plate...
Page 177: Ducted Indoor
PARTS CATALOG 18K Ducted Indoor Figure 911A...
Page 178 PARTS CATALOG 18K Ducted Indoor Figure 911B...
Page 179: Ducted Indoor
PARTS CATALOG 18K Ducted Indoor Figure 911C...
Page 180 PARTS CATALOG 18K Ducted Indoor ITEM PART PART DESCRIPTION USED ON MODEL NUMBER 67400899 Base Plate FPHD18A3A 67400900 Bottom Plate FPHD18A3A 67400901 Water Drain FPHD18A3A 67400412 Evaporator FPHD18A3A 67400902 Supporting FPHD18A3A 67400889 Electric Box Cover FPHD18A3A 67400904 Seal Plate FPHD18A3A 67400891 Rght Side Board FPHD18A3A...
Page 181 PARTS CATALOG 24k Ducted Indoor ..........--..._. Figure 912A...
Page 182 PARTS CATALOG 24k Ducted Indoor Figure 912B ,_-.._. __ lllfllllllllllalll ..l:rla ..,_..fllll .._...
Page 183 PARTS CATALOG 24k Ducted Indoor ·- A __ ._,._ llillllp_,___ � ..-..111••11111111111A1 .... _...lffllllllal- Figure 912C...
Page 184 PARTS CATALOG 24k Ducted Indoor ITEM PART PART DESCRIPTION USED ON MODEL NUMBER 67400952 Base Plate FPHD24A3A 67400953 Base Holder FPHD24A3A 67400954 Water Drain FPHD24A3A 67400955 Rubber Plug FPHD24A3A 67400956 Evaporator assembly FPHD24A3A 67400957 Supporting FPHD24A3A 67400958 Outlet Flange Border FPHD24A3A 67400959 Supporting...
Page 185 PARTS CATALOG 36k Ducted Indoor Figure 913A...
Page 186 PARTS CATALOG 36K Indoor Ducted Figure 913B...
Page 187 PARTS CATALOG 36K Indoor Ducted Figure 913C...
Page 188 PARTS CATALOG 36k Ducted Indoor ITEM PART PART DESCRIPTION USED ON MODEL NUMBER 67401075 1506706 ‑ Base Plate FPHFD36A3A 67401076 1506966 ‑ Top Plate FPHFD36A3A 67401077 1506775 ‑ Mounting Plate FPHFD36A3A 67401078 1506769 ‑ Mounting Plate FPHFD36A3A 67401079 1401329 ‑ Water Drain FPHFD36A3A 67400955 1360977 ‑...
Page 189: Appendix
APPENDIX Appendix 1: Reference Sheet of Celsius and Farenheit Fahrenheit Fahrenheit Fahrenheit display Fahrenheit display Fahrenheit display Fahrenheit Celsius Celsius Celsius temperature temperature temperature 60.8 69/70 69.8 78/79 78.8 62/63 62.6 71/72 71.6 80/81 80.6 64/65 64.4 73/74 73.4 82/83 82.4 66/67 66.2...
Page 190: Appendix 2: Pipe Expanding Method
APPENDIX Appendix 2: Pipe Expanding Method Pipe Pipe cutter Leaning Uneven Burr A:Cut the pip Conﬁrm the pipe length according to the distance of indoor unit and outdoor unit. Cut the required pipe with pipe cutter. B:Remove the burrs Pipe Shaper Remove the burrs with shaper and prevent the burrs from getting into the pipe.
Page 191: Accessories
ACCESSORIES CONTROLLER FPWC1 Wired wall controller option for Floating Air Premier and Pro Single/Multizone CEILING CASSETTE GRILLES (REQUIRED ACCESSORY) Required decorative grille for ceiling cassette models Decorative Grille Decorative Grille FPCG0912 FPCG182436 DCG2436 FPHFC09A3A, FPHFC12A3A FPHFC18A3A, FPHFC24A3A MC24Y3J MC36Y3J...
Page 192: Limited Warranty
2. Any defective part to be replaced must be made available to FRIEDRICH in exchange for the replacement part. You must present proof of the original date of installation of the product in order to establish the effective date of the warranty. Otherwise, the effective date will be deemed to be the date of manufacture plus thirty days.
Page 193: Customer Satisfaction And Quality Assurance
CUSTOMER SATISFACTION and QUALITY ASSURANCE Friedrich is a conscientious manufacturer, concerned about customer satisfaction, product quality, and controlling warranty costs. As an Authorized Service Provider you play a vital role in these areas. By adhering to the policies and procedures you provide us with vital information on each warranty repair you complete. This information is used to identify product failure trends, initiate corrective action, and improve product quality, thereby further reducing warranty expenses while increasing customer satisfaction levels.

This manual is also suitable for:

Fphfr12a3a Fphfr18a3a Fphfr24a3a Fphfr36a3a Fphfc09a3a Fphfc12a3a ... Show all

Friedrich FPHFR9A3A Service & Parts Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Friedrich FPHFR9A3A

Summary of Contents for Friedrich FPHFR9A3A

This manual is also suitable for:

Table of Contents
