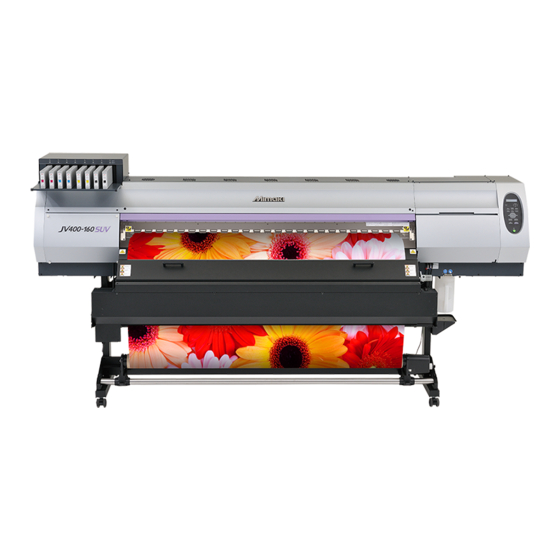

MIMAKI JV400-SUV Daily Care Manual

D202726-10
JV400-SUV Daily Care
With a view to using this machine in a better condition, please be sure to the following daily care
daily work. Please refer to "Daily care manual" for the detail.
Cleaning of around the heads
1. Perform [HEAD MAINT.], move the carriage to the
maintenance position and open the left maintenance cover.
(1) Press the
MAINT.
(2) Press the
(3) Press
(4) Press the
(5) Open the left maintenance cover.
2. Wipe off the ink of around the head and groove with clean stick or waste cloth dipped in
maintenance liquid 07.
Clean with a clean stick.
The nozzle part (Never
touch it.)
Clean with a clean stick.
3. Close the left maintenance cover.
4. Press
Cleaning of the station
1. Perform [STATION MAINT.], move the carriage to the
maintenance position and open the right maintenance cover.
(1) Press the
MAINT.
(2) Press the
(3) Press
(4) Press the
(5) Open the right maintenance cover.
© 2014 MIMAKI ENGINEERING CO., LTD.
key in LOCAL.
key.
to select [HEAD MAINT.].
key.
• When you clean, fully be careful not to touch the nozzle surface.
• When you leave during maintenance (or cleaning), please make sure to complete the
cleaning by pressing
uncovered and then outside light makes the ink cure, which causes nozzle clogging or the
like.
, complete the cleaning.
key in LOCAL.
key.
to select [STATION MAINT.].
key.
Make sure to wear the attached
goggles and glove
[Before cleaning]
key. Without completing the cleaning, the nozzle part is left
M015467-00(D202726-10)-18042014
when you work.
after at the end of the
Left maintenance
cover
[After cleaning]
Right maintenance
cover
