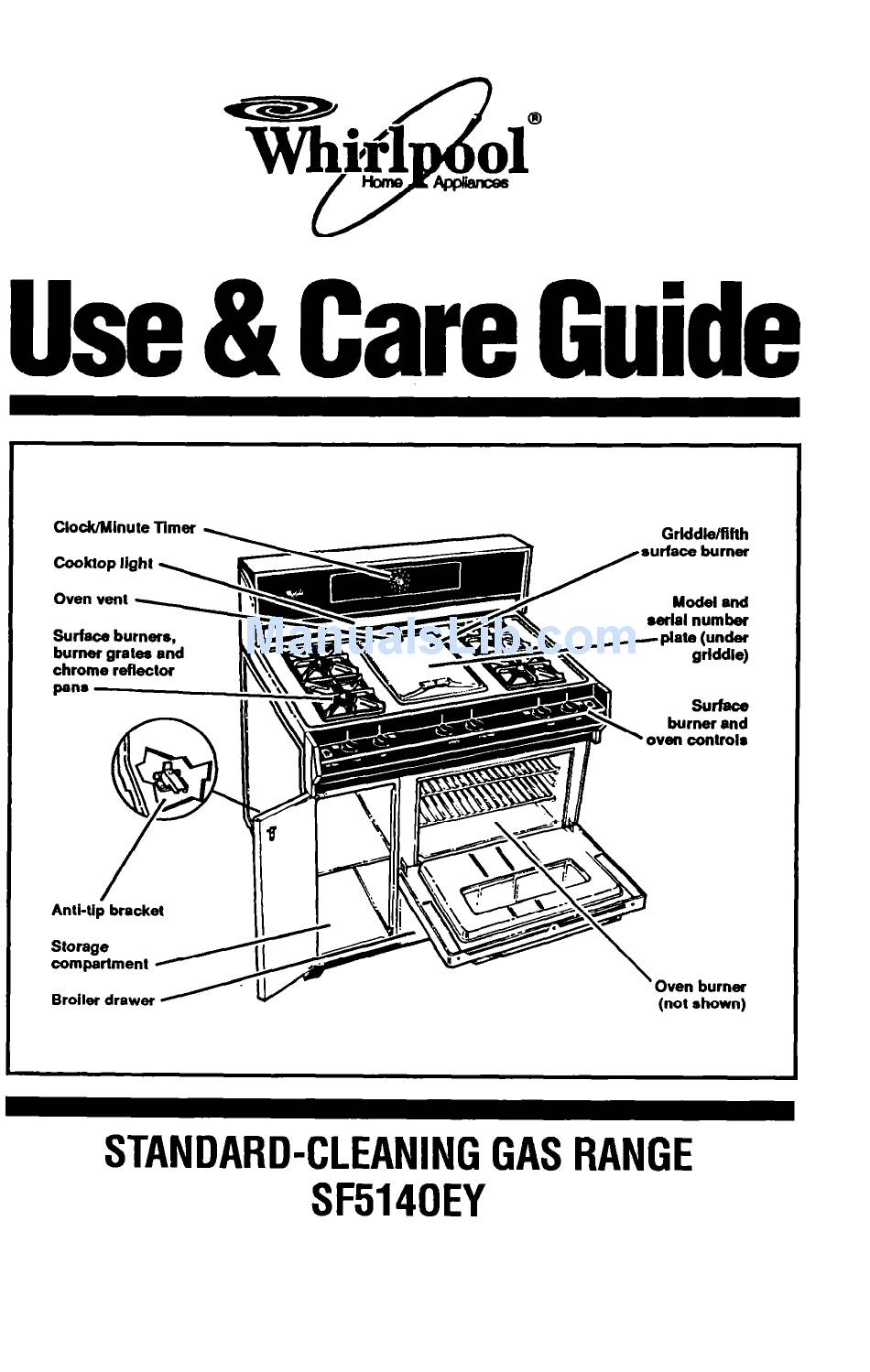

- Page 1 CtodUMinute Timer se&l number !hJrfaoe burner and controls Oven burner Brc .- (not shown) STANDARD-CLEANING GAS RANGE SF5140EY...
-
Page 2: Table Of Contents
The cooktop light ... The oven light ... If You Need Servlce Or Assistance Whlrlpool Cooklng Product Warranty ..24 al991 Whirlpool Corporation Thank you for buying a Whlrlpool appliance. Page Please complete and mall the Owner Regls- ..3 tratlon Card provided wlth thls product. -
Page 3: Important Safety Lnstructlons
Important Safety Instructions Gas ranges have been thoroughly tested for safe and effiiient operation. However, as with any appli- ance, there are specific installation satisfactory operation. damage when using the range, follow basic precautions, lncludlng DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. - Page 4 Important Safety Instructions Continued Install or locate the range only in accor- dance with the provided Installation Instruc- tions. h is recommended that the range be installed by a qualified installer. The range must be properly connected to the proper gas supply checked for leaks..
- Page 5 Do not use decorative covers or trivets over the surface burners. Do not heat unopened containers. They could explode. The hot contents could cause burns and container particles could cause injury. Grease is flammable and should be handled carefully. Let fat cool before attempting to handle ft.
-
Page 6: Using Your Range
Using Your Range Surface burner marker Using the surface burners Control knobs must be pushed In, to the LITE position. The clicking sound is the ignition sparking. To stop the clicking sound after the burner lights, turn the control knob back to a desired setting. -
Page 7: Setting The Dock
Setting the clock Push In and turn the Minute Timer Knob to set the block. 1. Push In Mlnute Timer Knob and turn cloc~lse until clock shows the correct time of day. 2. Let the Mlnute Timer Knob pop out. clockwise until Minute Timer hand points to The clock setting will change If you OFF. -
Page 8: Using The Oven Control
Using Your Range Continued Using the oven control Baklnglroastlng 1. Position the rack(s) properly To change rack position, on ,the oven. rack out to stop, raise front edge and lift out. When using one rack, the rack should be pfaced so the top of the food will be centered in the oven. -
Page 9: Adjusting The Oven Temperature Control
Indicator Markers Knob skiri Adjustlng the oven temperature wntrol Does your oven seem hotter or colder old oven? The temperature of your old oven may have shifted gradually without you noticing the change. Your new oven is properly adjusted to provide accurate temperatures. -
Page 10: Broiling
Using Your Flange Continued Broiling The broiler drawer is located below the oven Always broil with the oven door closed. door. Pull the broiler drawer open panel down. Place broiler pan grii so grease can drain down sides into Lower part of broiler pan. See picture. -
Page 11: Using The Griddle Or Fifth Surface Burner
Griddle chart Preheat on HI, then turn to a lower setting to cook. Griidling times are approximate and may need to be adjusted to individual tastes. Using the griddle or fifth surface burner Burn, Flre and Product Damage Hazard Be sure the grlddle/flfth burner control ls off and the grlddfe Is cool and covered when not In use. -
Page 12: Using The Fifth Surface Burner
Using Your Range Continued the fifth surface burner Uslng Make sure the Griddle/Fifth Knob is turned to OFF and the griddle is cool. 2. Remove the griddle cover and griddle from - the cooktop. 3. Install the fifth burner assembly and grate. Use this burner as you would any other surface burner. -
Page 13: Carlng For Your Range
Caring For Your Range Burn, Electrical Shock, Flre and Explosion Hazard Make sure all controls are OFF and the range Is cool before cleaning. * Do not use oven cleaners, bleach or rust removers. D Do not use gasoline or other flammable llqulds or vapors to clean thls or any otter appliance. -
Page 14: Surface Burner Grates, Reflector Pans And Griddle
Carlng For Your Range Continued 5. Replace control knobs by pushing them firmly into place. NOTE: When cleaning, never use steel wool, abras’wes, or commercial oven cleaners which may damage the finish. After cleaning, make sure all control knobs point to OFF. Surface burner grates, reflector pans and griddle Make sure all surface burners are off and the... -
Page 15: Surface Burners
Typksl surface burner flame Surface burners Remove the cooktop, following instructions under “Removable cooktop” below. Wipe off surface burners with warm, soapy water and a soft cloth after each use. Gccasionally check the burner flames for proper size and shape as shown. A good flame is blue in color. -
Page 16: Removable Oven Door
Caring For Your Range Continued 3. Wipe surface under the cook-top with warm, soapy water. Use a soap-filled plastic scrubbing pad on heavily soiled areas. 4. Replace cooktop by fitting studs on back of cooktop into guide holes in rear vertical supports. -
Page 17: Using The Standardcleaning Oven
Using the standard-cleaning oven The standardcleaning oven has to be hand- cleaned. Use warm, soapy water, soapy steel wool pads or a commercial oven cleaner. See “Cleaning tips” on page 18 for further instruc- tions. Uslng foil catch sugar or starchy spills from pies and casseroles, use a piece of heavy-duty foil or&hallow... -
Page 18: Cleaning Tips
Carlng For Your Range Continued Cleaning tips Control knobs Clean with warm, soapy water and a Wash, rinse and dry well. Do not soak. Control panels Clean with warm, soapy water or spray glass cleaner and a soft cloth. Wash, rinse and dry well. Follow directions provided with the cleaner. -
Page 19: Using And Replacing The Light Bulbs
Using and replacing the light bulbs The woktop light The fluorescent light is on the bottom of the contro! panel. The Cimktop Lght Switch is located on the left side of the front control panel. ElectrIcal Shock and Burn Hazard Make iwre power to the range has been dlswnnected at the maln power supply... -
Page 20: The Oven Light
Caring For Your Range Contlnued The oven light The oven light will come on when you push the Oven Light Switch on the control panel. Push the switch again to turn off the light. Electrical Shock and Personal Injury Hazard Make sure oven and light bulb are cool and power to the oven has been turned off before replaclng the light bulb. -
Page 21: If You Need Servlce Or Assistance
If You Need Service Or Assistance=.. We suggest you follow these steps: ’ 1. Before calling for assistance . . . Performance problems often result from little things you can find and fix without tools of any kind. If nothing operates: Is the gas turned on? Is the power supply cord plugged into a live circuit with the proper voltage? (See Installa-... - Page 22 To locate FSP replacement refer to Step 3 above or call the Whirlpool Consumer Assistance 5. If you are not satlsfled wlth how the problem was solved* . . . Contact the Major Appliance Panel (MACAP).
- Page 23 Notes...
-
Page 24: Whlrlpool Cooklng Product Warranty
C. Pick-up and delivery. This product is designed to be repaired in the home. D. Damage to the making product caused by accident, misuse, fire, flood, acts of God or use of products not approved by Whirlpool. E. Repairs to parts or systems caused by unauthorized WHIRLPOOL CORPORATfON DAMAGES.
