Use and Care Manual
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10032070 Instructions
Installation
98015589 Installation Instr
(Template)
W10106860 Guide, Use & Care
98007130 Safer Cooking Tips
98007032 Tech Sheet
4−08 Litho in U.S.A. (jac)(bay)

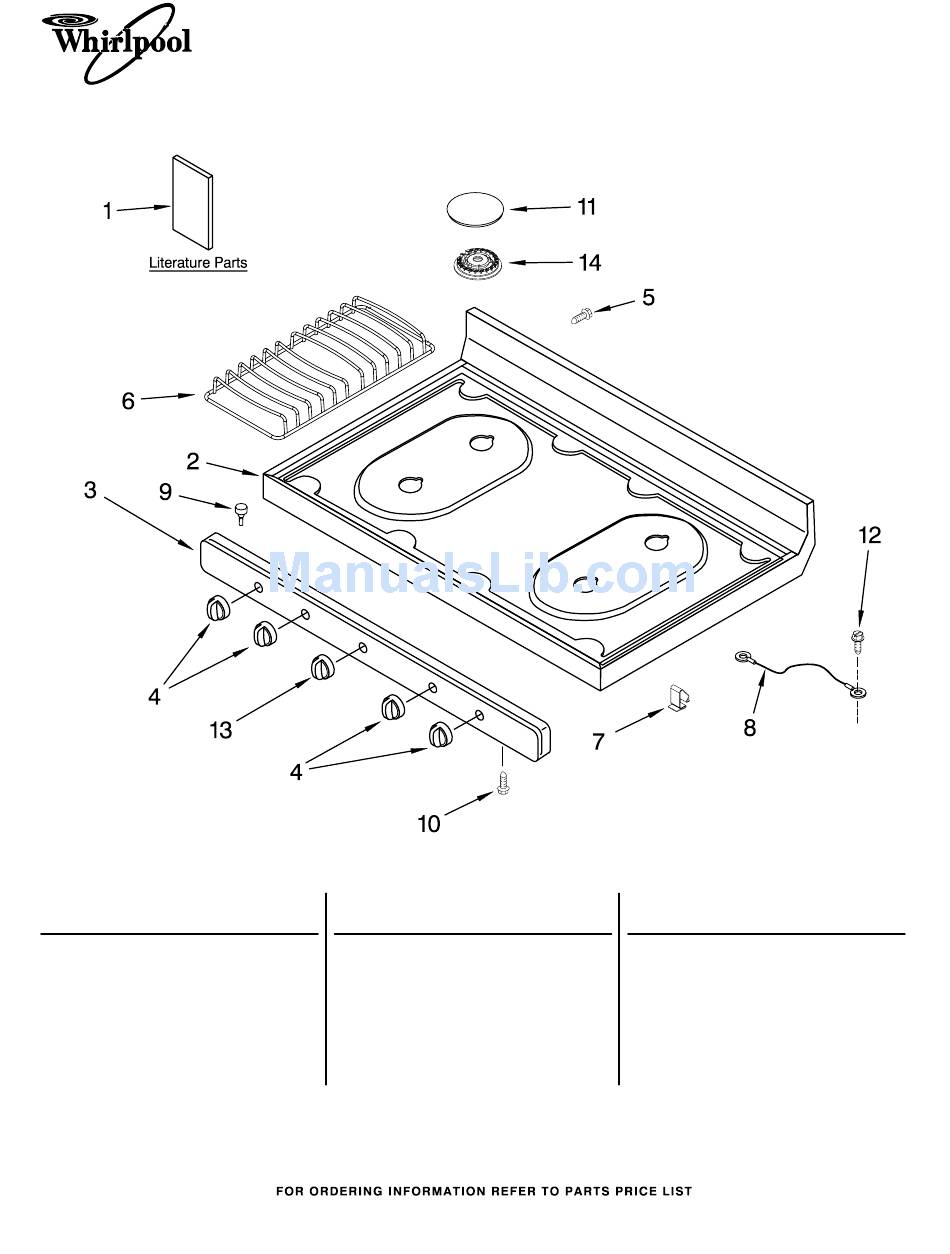

COOKTOP PARTS
For Model: SF110AXSQ2
(Designer White)
Illus.
Part
No.
No.
DESCRIPTION
2 98017619W Cooktop
3 W10094870 Panel, Manifold
4
98006102 Knob, Burner (4)
5
98007225 Screw
6
98013747 Grate, Burner (2)
7
98004722 Clip, Cooktop (2)
8
98014544 Wire, Ground
1
30" GAS FREESTANDING
STANDARD CLEAN RANGE
ELECTRONIC IGNITION
Illus.
Part
No.
No.
DESCRIPTION
9
98013389 Bumper, Cooktop
10
98005000 Screw (3)
11
98017465 Cap, Burner (4)
12
8534079 Screw
13
98008321 Knob, Oven
14
98017537 Burner, Top (4)
Part No. W10202705 Rev A.
Advertisement
Related Manuals for Whirlpool SF110AXSQ2
Summary of Contents for Whirlpool SF110AXSQ2
- Page 1 98015589 Installation Instr (Template) W10106860 Guide, Use & Care 98007130 Safer Cooking Tips 98007032 Tech Sheet 4−08 Litho in U.S.A. (jac)(bay) COOKTOP PARTS For Model: SF110AXSQ2 (Designer White) Illus. Part DESCRIPTION 2 98017619W Cooktop 3 W10094870 Panel, Manifold 98006102 Knob, Burner (4)
- Page 2 BACKGUARD PARTS For Model: SF110AXSQ2 (Designer White) Illus. Part DESCRIPTION Endcap 98005336 White Left 98005337 White Right 98006083 Rear, Backguard 3 98017736W Panel, Backguard 9757609 Nameplate 98015526 Screw W10202705...
-
Page 3: Manifold Parts
MANIFOLD PARTS For Model: SF110AXSQ2 (Designer White) W10202705... - Page 4 MANIFOLD PARTS For Model: SF110AXSQ2 (Designer White) Illus. Part DESCRIPTION 98017323 Nut (4) 98017582 Venturi, Front (2) 98017741 Brkt., Venturi (4) 98017359 Venturi, Rear (2) 98017954 Spark Module 98007411 Regulator 98007192 Cover, Module 98015099 Spreader, Flame 98006632 Screw 98012138 Burner, Oven...
-
Page 5: Chassis Parts
CHASSIS PARTS For Model: SF110AXSQ2 (Designer White) W10202705... - Page 6 CHASSIS PARTS For Model: SF110AXSQ2 (Designer White) Illus. Part DESCRIPTION 98003799 Flue Box 98013690 Clip, Flue 3 W10164112 Shield, Insulation 98010042 Panel, Side (2) 98005502 Clip, Oven Bottom 98006710 Counterweight 98006739 Wire, Brick 8 W10166434 Frame, Front 9 W10153610 Foot, Front (2)
- Page 7 98014136 Rack, Oven (2) 98003480 Grill, Broiler 98016005 Pan, Broiler 98016570 Rack, Broiler 98004761 Bracket, Rack (2) 98004715 Guide, Rack (4) W10202705 For Model: SF110AXSQ2 (Designer White) Illus. Part DESCRIPTION 7 W10154379 Hinge, Brlr Door 98006727 Screw 9 W10162115 Liner, Door...
-
Page 8: Door Parts
Illus. Part DESCRIPTION 8533842 Screw 98008699 Screw (2) 98017966 Liner, Door 4 W10137223 Insulation, Door DOOR PARTS For Model: SF110AXSQ2 (Designer White) Illus. Part DESCRIPTION Hinge, Door 98017873 Left 98017875 Right 8 98017968W Panel, Door 98017250 Retainer, Upper(2) 10 98017915W Handle, Oven Door Illus. -
Page 9: Optional Parts
242825 Wire, Red 14 Ga. 150 c 242831 Wire, Red 14 Ga. 200 c 242827 Wire, Yellow 14 Ga. 150 c W10202705 OPTIONAL PARTS For Model: SF110AXSQ2 (Designer White) Illus. Part DESCRIPTION REFINISHING MATERIAL 799832 Kit, Porcelain Repair (White) 242756 Touch−Up Self−Clean(1/2 Pt)
