Whirlpool SF387PEYB4 Parts Manual

30" gas freestanding range electronic ignition self− clean oven sealed burner
Hide thumbs

Advertisement

Quick Links

Illus. Part
No.
No.
DESCRIPTION
1 4371844
Panel, Control
2 4371835
Control,
Electronic Timer
3 4371834
Bracket, Timer
4 4371316
Endcap, RH
5 4371317
Endcap, LH
6 4371536
Cap, Filler
7 4371836
Retainer, Timer
8 4371534
Trim, Wrapper
9 4371535
Trim, Deflector
10
Support,Backguard
4372307
R.H.
4372308
L.H.
11 4371300
Shield, Rear Wall
12 4371537
Deflector, Flue
21 4371655
Shield,Inner Bkgd
23
816703
Switch, Light
6−94 Litho in U.S.A. (rmb)

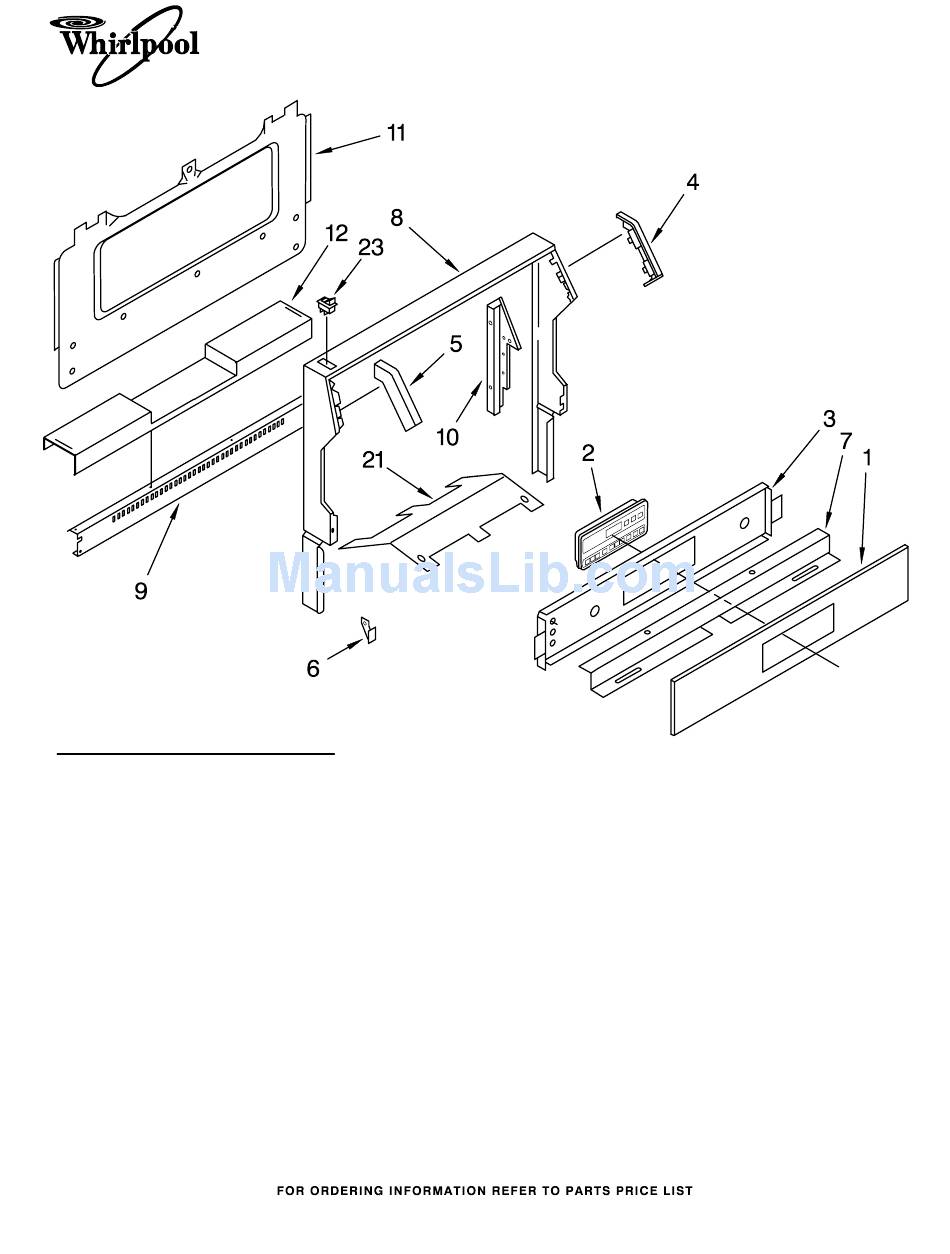

CONTROL PANEL PARTS
For Model: SF387PEYW4, SF387PEYN4, SF387PEYB4
(White) (Almond) (Black)
SELF− CLEAN OVEN SEALED BURNER
1
30" GAS
FREESTANDING RANGE
ELECTRONIC IGNITION
Part No. 4372343

Advertisement

loading

  Related Manuals for Whirlpool SF387PEYB4

  Summary of Contents for Whirlpool SF387PEYB4

  • Page 1 CONTROL PANEL PARTS For Model: SF387PEYW4, SF387PEYN4, SF387PEYB4 Illus. Part DESCRIPTION 1 4371844 Panel, Control 2 4371835 Control, Electronic Timer 3 4371834 Bracket, Timer 4 4371316 Endcap, RH 5 4371317 Endcap, LH 6 4371536 Cap, Filler 7 4371836 Retainer, Timer...
  • Page 2 For Model: SF387PEYW4, SF387PEYN4, SF387PEYB4 Illus. Part DESCRIPTION 1 4372210 Grate (4) Top, Main 4371697 White 4371698 Almond 4371879 Black 3 4371545 Bracket, Hinge RH 4 4371546 Bracket, Hinge LH 5 4371683 Panel, Manifold 6 4371663 Knob, Control (4) 4371541...
  • Page 3 COOKTOP BURNER PARTS For Model: SF387PEYW4, SF387PEYN4, SF387PEYB4 4372343 (White) (Almond) (Black) Illus. Part 1 4371596 2 4372146 3 4372148 4 4372147 5 4372149 6 4372306 7 4371587 8 4371597 9 4371164 10 4372316 11 4372040 13 4371598 14 4371858...
  • Page 4 BROILER & OVEN BURNER PARTS For Model: SF387PEYW4, SF387PEYN4, SF387PEYB4 Illus. Part DESCRIPTION 816582 Baffle, Broiler Burner 816584 Baffle, Oven Burner 816722 Burner, Broiler 816588 Burner, Oven 816624 Ignitor, Broiler Burner 816625 Ignitor, Oven Burner 7 4371583 Ignitor, Module 816594...
  • Page 5: Oven Parts

    OVEN PARTS For Model: SF387PEYW4, SF387PEYN4, SF387PEYB4 (White) (Almond) (Black) 4372343...
  • Page 6 For Model: SF387PEYW4, SF387PEYN4, SF387PEYB4 Illus. Part DESCRIPTION 816669 Spacer, Body (8) 816659 Shield, Rear Wall 816651 Screw, Oven Bottom 816668 Socket, Oven Lamp 5 4371303 Bulb, Oven Light 4371621 Retainer, Lens 816609 Lens, Oven Light 8 4371143 Hinge, Oven Door...
  • Page 7 DOOR AND DRAWER PARTS For Model: SF387PEYW4, SF387PEYN4, SF387PEYB4 Illus. Part DESCRIPTION 816622 Handle, Door 816688 Trim, Door 3 4371690 Glass, Door 816674 Foil, Alum. (2) 816675 Foil, Alum. 816676 Bracket, Glass 816679 Glass, Oven Door 8 4371253 Shield, Heat...
