Whirlpool SF216LXSM0 Parts List
Whirlpool SF216LXSM0 Parts List

Whirlpool SF216LXSM0 Parts List

30" gas freestanding standard clean range electronic ignition

Advertisement

Quick Links

Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10110358 Instruct, Install
98015589 Installation Instr
(Template)
W10110357 Guide, Use & Care
98007130 Safer Cooking Tips
W10111753 Tech Sheet
2
Cooktop
W10110387 White
W10110093 Metalic
9−06 Litho in U.S.A. (jac)

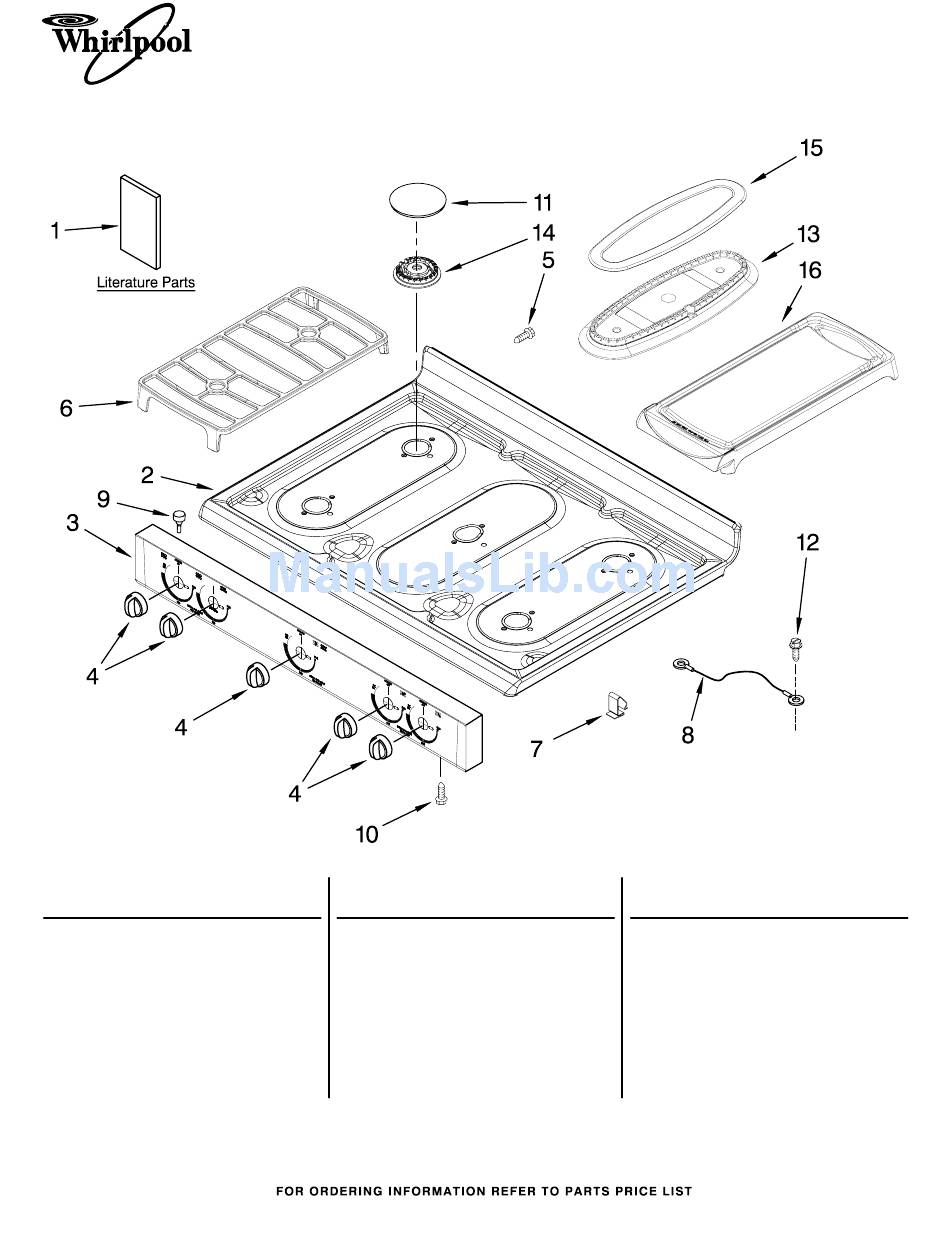

COOKTOP PARTS
For Model: SF216LXSQ0, SF216LXSM0
(Designer White) (Metalic)
Illus.
Part
No.
No.
DESCRIPTION
3
Panel, Manifold
W10110086 Metalic
W10110437 White
4
Knob, Burner (5)
98006100 Black
98006102 White
5
98007225 Screw
6
98016580 Grate, Burner (3)
7
98004722 Clip, Cooktop (2)
1
30" GAS FREESTANDING
STANDARD CLEAN RANGE
ELECTRONIC IGNITION
Illus.
Part
No.
No.
DESCRIPTION
8
98014544 Wire, Ground
9
98013389 Bumper, Cooktop
10
98005000 Screw (3)
11
98017461 Cap, Burner (4)
12
8534079 Screw
13
98017464 Fish Burner
14
98017537 Burner, Top (4)
15
98017539 Cap, Fish Burner
16
98004565 Griddle
Part No. 8191169

Advertisement

loading

Subscribe to Our Youtube Channel

Summary of Contents for Whirlpool SF216LXSM0

  • Page 1 W10110357 Guide, Use & Care 98007130 Safer Cooking Tips W10111753 Tech Sheet Cooktop W10110387 White W10110093 Metalic 9−06 Litho in U.S.A. (jac) COOKTOP PARTS For Model: SF216LXSQ0, SF216LXSM0 (Designer White) (Metalic) Illus. Part DESCRIPTION Panel, Manifold W10110086 Metalic W10110437 White...
  • Page 2 Part DESCRIPTION Endcap 98004632 Black Left 98004633 Black Right 98005336 White Left 98005337 White Right 98006083 Rear, Backguard BACKGUARD PARTS For Model: SF216LXSQ0, SF216LXSM0 (Designer White) (Metalic) Illus. Part DESCRIPTION 9757609 Nameplate Panel, Control 98017734L Metalic 98017734W White Control, Elec...
  • Page 3: Manifold Parts

    MANIFOLD PARTS For Model: SF216LXSQ0, SF216LXSM0 (Designer White) (Metalic) 8191169...
  • Page 4 MANIFOLD PARTS For Model: SF216LXSQ0, SF216LXSM0 (Designer White) (Metalic) Illus. Part DESCRIPTION 98017323 Nut (4) Venturi, Front (2) W10110344 LF W10110343 RF 98017741 Brkt., Venturi (4) 4 W10110342 Venturi, Rear (2) 5 W10110523 Spark Module 98007411 Regulator 98007192 Cover, Module...
  • Page 5: Chassis Parts

    CHASSIS PARTS For Model: SF216LXSQ0, SF216LXSM0 (Designer White) (Metalic) 8191169...
  • Page 6 CHASSIS PARTS For Model: SF216LXSQ0, SF216LXSM0 (Designer White) (Metalic) Illus. Part DESCRIPTION 98003799 Flue Box 98013690 Clip, Flue 98014398 Shield, Insulation Panel, Side (2) 98010042 White 98010043 Black 98005502 Clip, Oven Bottom 98006710 Counterweight 98006739 Wire, Brick 98005044 Frame, Front...
  • Page 7 98003480 Grill, Broiler 98016005 Pan, Broiler 8533843 Screw Support, Tray 98016664 Left (2) 98016666 Right (2) Guide, Fixed(2) 98004994 Left 98005209 Right 8191169 For Model: SF216LXSQ0, SF216LXSM0 (Designer White) (Metalic) Illus. Part DESCRIPTION Guide, Mobile(2) 98004995 Left 98004954 Right Screw 98006727 White...
  • Page 8: Door Parts

    98004953 Right 98017875 Hinge, Door (2) Panel, Door 98015017W White 98015017L Metalic 98015442 Glass, Outer 9 W10109950 Glass, Inner DOOR PARTS For Model: SF216LXSQ0, SF216LXSM0 (Designer White) (Metalic) Illus. Part DESCRIPTION Handle, Oven Door 98004940 White 98004939 Black 98010557 Actuator (2)
  • Page 9 14 Ga. 150 c 242825 Wire, Red 14 Ga. 150 c 242831 Wire, Red 14 Ga. 200 c 242827 Wire, Yellow 14 Ga. 150 c 8191169 For Model: SF216LXSQ0, SF216LXSM0 (Designer White) (Metalic) Illus. Part DESCRIPTION REFINISHING MATERIAL 799832 Kit, Porcelain Repair (White) 242756 Touch−Up...

This manual is also suitable for:

Sf216lxsq0
