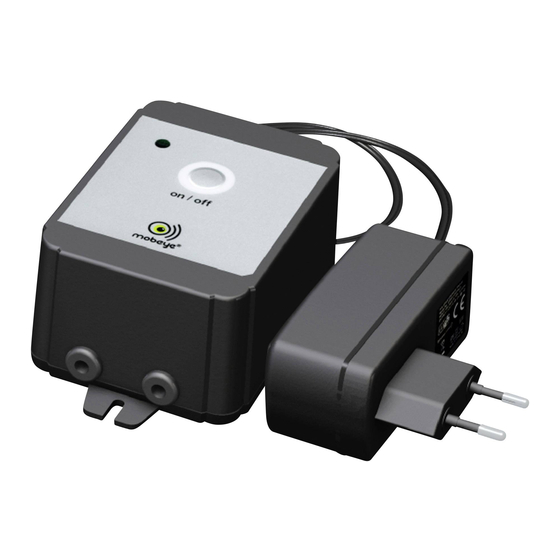

USER MANUAL
®
Mobeye
PowerGuard
CM2100
SW version 1.n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerGuard CM2100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mobeye PowerGuard CM2100

Summary of Contents for Mobeye PowerGuard CM2100

  • Page 1 USER MANUAL ® Mobeye PowerGuard CM2100 SW version 1.n...
  • Page 2 • Do not use in an environment where any inflammable gases, vapors or dust are present or could be present. ® • The repairs of the device may only be carried out by people, trained for Mobeye repair. • In case the device must be repaired, only original replacement components may be used. The use of ®...

  • Page 3: Table Of Contents

    CONTENT General description Getting started Place a SIM card Place the batteries Connect the unit to the external power supply Program at least one telephone number Switching on/off Use of inputs Extended options Program mode The security code Programming the settings by SMS Possible General settings 4.4.1 Phone numbers...

  • Page 4: General Description

    - In case the power is restored, the Mobeye PowerGuard sends a ‘power restored’ SMS text message to the phone numbers as programmed. - In case one of the inputs is activated by a sensor, the Mobeye PowerGuard sends an alarm SMS text message and calls to the phone numbers as programmed by the user.

  • Page 5: Getting Started

    2. GETTING STARTED To get started with the Mobeye PowerGuard at least the following steps need to be taken in following order: 1. Place SIM card (with PIN code 0000 or without PIN code) 2. Place the batteries 3. Connect the unit to the external power supply 4.

  • Page 6: Switching On/Off

    2.5 SWITCHING ON/OFF After the previous steps, the Mobeye PowerGuard is ready for use. It is armed (switched on) automatically. The green LED blinks once in 3 seconds. In order to switch off (disarm) the Mobeye PowerGuard: - Press the on/ off button at the upper side for 1 second. The green LED switches off to indicate the armed status.

  • Page 7: Use Of Inputs

    3. USE OF INPUTS It is possible to connect external sensors to the inputs. As a standard reaction after a triggered input, the Mobeye PowerGuard sends an SMS text message to the preset numbers and calls these numbers. Insert the 2 wires of an external sensor through the hole of the enclosure to the inside part and next in the two connectors of input 1.

  • Page 8: Extended Options

    This paragraph describes the general settings for the PowerGuard. 4.4.1 Phone numbers The Mobeye PowerGuard is able to send alarm messages up to 5 phone numbers. The first telephone number (TEL1) belongs to the administrator. Only this number receives all system messages.

  • Page 9: Identification Text

    0031612345678). 4.4.2 Identification text It is possible to add a standard identification text (NAME) to all messages sent out by the Mobeye PowerGuard. The alarm messages are a combination of the name and the alarm text. A user defined identification has a length of maximum 20 characters. The default identification text is ‘Mobeye’.

  • Page 10: Inactive Time

    SMS command alarm repeat time: <CODE> REPEAT:xx 4.4.10 Test SMS text message The Mobeye PowerGuard can send regular test SMS messages (´keep alive’) to the administrator, to ensure the proper functioning of the unit. The test message function is only active in case the unit is armed.

  • Page 11: List Of Sms Commands For Configuration

    …. alarm messages TEL5:<tel number> Delete telephone number DEL1 …. DEL5 Identification text NAME: <text> 20 characters Mobeye Alarm notification type CALL: <type> ON, OFF Power failure delay time DELAYPOW:<min> 0..999 (min) Input type (input 1) TYPEIN1:<type> NO, NC Input type (input 2) TYPEIN2:<type>...

  • Page 12: Request Overview Of The Settings And Status

    Before sending the request, make sure the unit is in the program mode (please refer to 4.1). 5.1 STATUS REQUEST The status of the Mobeye PowerGuard can be requested by sending an SMS with the content: <CODE> STATUS? Upon sending this request, the Mobeye PowerGuard returns the status to the originator of the request.

  • Page 13: Technical Messages And Status Feedback

    6. TECHNICAL MESSAGES AND STATUS FEEDBACK Technical messages In case of a technical problem, the administrator receives an SMS message. Possible technical messages are: Message Reason Low batteries, external power supply Power is available, batteries need to be replaced No external power supply, batteries OK No external power supply, batteries are capable to take over operation in low power mode Low batteries, no external power No external power supply, batteries need to be...
  • Page 14 Publisher. Reprinting, even in summary, is prohibited. This user manual meets the technical requirements at the moment of printing. Changes in technology and equipment are reserved. © Copyright 2012 by Mobeye, version CM2100NL120305...
