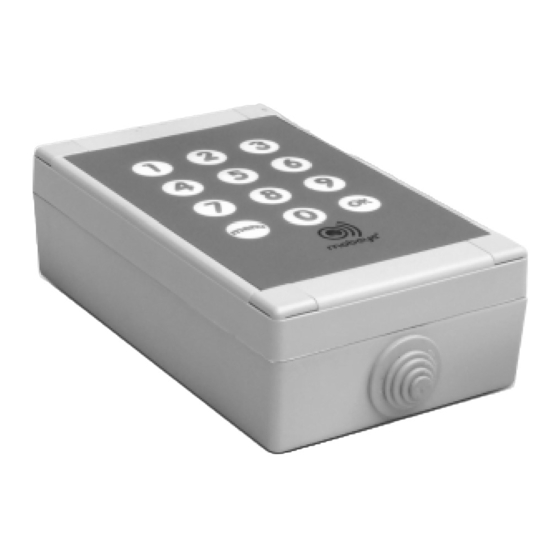

- Page 1 Installation manual Mobeye MS100BK Measure, Control and Alarm module SW version 7.n...
-
Page 3: Table Of Contents
Table of Content Introduction To get ready in seven steps Place the SIM Card Connect a sensor Insert the batteries Connect the power supply Program the phone numbers Check the settings Switching on Operation Switching on and off Alarm message confirmation Controlling the outputs Sensors and devices Configuration method... - Page 4 • Do not let it fall from height. • Do not use in an environment where any inflammable gases, vapours or dust are present or could be present. • Repair of the device may only be carried out by people, trained for Mobeye ® repair.
-
Page 5: Introduction
The Mobeye MS100BK has following features: • In case one of the inputs is activated by a sensor, the Mobeye MS100BK sends an alarm SMS text message and calls the phone numbers as programmed. The SMS message contains the text ‘Mobeye alarm 1’... -
Page 6: To Get Ready In Seven Steps
2.1 PLACE THE SIM CARD To use the Mobeye MS100BK a SIM card from any network is needed. On this SIM card, the PIN code security needs to be disabled or 0000. If you have a SIM card with PIN code, you can disable or change this using any mobile phone and change the PIN code security. -
Page 7: Connect The Power Supply
2.4 CONNECT THE POWER SUPPLY The Mobeye MS100BK is designed to run on batteries, or to use an external power supply (9-32VDC). Using external power, the module is always in connection with the GSM network. This gives following advantages: a longer battery lifetime, possibility to receive... -
Page 8: Operation
• Press “OK” The light turns red shortly and an indication tone is started for a few seconds. If the code is entered incorrectly 3 times, the indicator turns red and the Mobeye MS100BK will be blocked for 10 minutes. -
Page 9: Sensors And Devices
SMS command. And although the Mobeye MS100BK is designed to run on batteries, it is possible to use an external power supply in order to report power failure and to remotely control the system. -
Page 10: Configuration Method
• Enter “21” • Press “OK” First the light flashes red (interval ca. 1 sec). As soon as the light turns green, the Mobeye MS100BK is able to receive SMS-messages. After five minutes there is a time-out and a beep is heard. Leave the program mode earlier by pressing “OK” twice. -
Page 11: How To Program By Sms
5.2.2 How to Program by SMS - Be sure the unit is in program mode - Send an SMS message with following content: CODE COMMAND:OPTION - The CODE stands for the installation code. Factory setting is “1111”. - Do not forget the space between CODE and COMMAND. - The complete scheme with SMS commands is listed chapter 8. -
Page 12: Configuration Possibilities
6.3 TELEPHONE NUMBERS Up to five telephone numbers can be programmed in to the Mobeye MS100BK. In the event of an alarm the Mobeye MS100BK first sends an SMS text message to all numbers, next they are called. -
Page 13: Automatic Time-Based Arm/Disarm
6.8 AUTOMATIC TIME-BASED ARM/DISARM The MS100BK can be armed and/or disarmed based on a daily time schedule. The first telephone number needs to be set before the arming and/or disarming time can be set. 6.9 IDENTIFICATION TEXT It is possible to add a standard identification text (NAME) to all messages sent out by the Mobeye MS100BK. -
Page 14: Authorisations And Remote Control
O2OFF 6.16 UNAUTHORISED SWITCHING OF OUTPUTS Although the Mobeye MS100BK is designed to only switch the outputs by an incoming SMS (or call, see chapter 7) from an authorized phone, there is also an option to let them be switched by any incoming call/SMS, without being authorised. To disable the need for authorised numbers, the 'authorization' option can be set to OFF. -
Page 15: Action Rules
7. ACTION RULES The alarm message and behaviour of the outputs of the Mobeye MS100BK are programmed by action-reaction patterns. These so-called Action Rules are pre-programmed, according to the needs of many applications. However, it is possible to change these action rules (for advanced users only!). -
Page 16: Programming Action Rules
1111 IN1:O1ON • Do not forget the space between CODE and the TRIGGER. • The Mobeye MS100BK will play a short melody to indicate a successful configuration. In case of a wrong command, a long beep will sound. 7.4 TIME-BASED ACTION RULES It is possible to let the action be daily performed at a certain time. -
Page 17: Delete Action Rules
7.6 DELETE ACTION RULES An action rule can be deleted by an SMS by the command below incl. index number. The index number is the sequence number of the action rule as displayed in the ARLREPORT. Example: CODE DELARL:indexnumber 1111 DELARL:1 Remark: a rule will keep its index number, even if a rule with a previous number is deleted. -
Page 18: Complete List Of Settings
8. COMPLETE LIST OF SETTINGS Setting Menu/ Options Factory command default Keypad Installation code 4 digits 1111 INSTCODE: 0, 1, 2, 3, … or 30 Keypad Interval test message (days) TEST: Keypad 0 (off), 1 (on) SMS on/off 1 (ON) SMSALARM: ON, OFF Keypad... - Page 19 201…250 Delete authorised Keypad number DELA:1..DELA:50 Keypad Authorised remote ON, OFF control AUTH: Keypad Identification text NAME: 20 characters Mobeye Keypad Alarm text power Power failure TEXT2: 20 characters failure Keypad Alarm text power Power restored TEXT3: 20 characters restored...
-
Page 20: Reports And Lists
Warning In the event of a weak signal, the Mobeye MS100BK can still be used, but there is a risk that messages cannot be sent or will be received with a delay. In case of no signal, it is advised... -
Page 21: Issue Solving And Technical Data
• Batteries: 4 x CR123 Lithium 3.0 V • Power, battery operated: 50 μA, short peaks of max. 2 A • Power, ext. powered: 50 mA, short peaks of max. 2 A For support on technical problems regarding Mobeye MS100BK please contact info@mobeye.eu. - Page 22 Declaration of Conformity Herewith we, Mobeye, declare that the product Mobeye XM2 telemetry module And the derived products MS100, MS200, MS300, Call-Key are in compliance with the essential requirements of the following European standards / EU Directives: Directive 73/23/EEC (low voltage directive)
